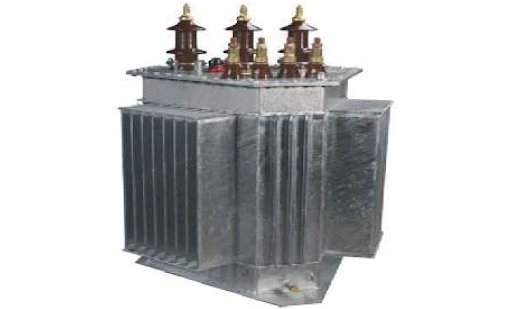

3 Phase Oil Immersed Deltaformer

By winding the transformer core instead of stacking sheets of metal in such a way that core becomes Hexagonal in shape, symmetrical & joint free, Raychem RPG brings an innovative closed symmetrical cage core for its distribution transformers "Deltaformer". This patented triangle-shaped core gives exceptional properties, produces less noise and reduces the amount of loss produced, making these products environmental friendly.

Product Features

• Lower no-load losses
• Smaller in size
• Low no - load amps
• Robust design
• Less vibrations
• Low noise level
• Smaller EM stray fields
• Lower in - rush current
• Less third harmonics

Characteristics

• Compliant to Standards IS2026 & IEC60076
• Frequency: 50 Hz
• Vector Group: Dyn11 standard, others on request
• Impedance voltage (Uk 75 °C): 4.5%
• Temperature class: A (105 °C)
• Ambient temperature: -6 to +50 °C Temperature rise wdg/oil: 35/40 °C
• BIL HV, LI/AC: 75/28 KV
• BIL LV, AC: 3 KV
• Off circuit tap changer : ±2x2.5%
• Double isolated copper windings
• Noise level <54 dB(A) for all models
• Hermetically sealed or breathing type
• ONAN Cooling
• Mineral oil as standard, other cooling liquid on request
• Porcelain or elastimold bushings
• Painted or galvanized tank with fin walls
• Drain valve for oil drainage/sampling
• Lifting lugs on the cover of the tank
• 3 Star rating as per BEE
