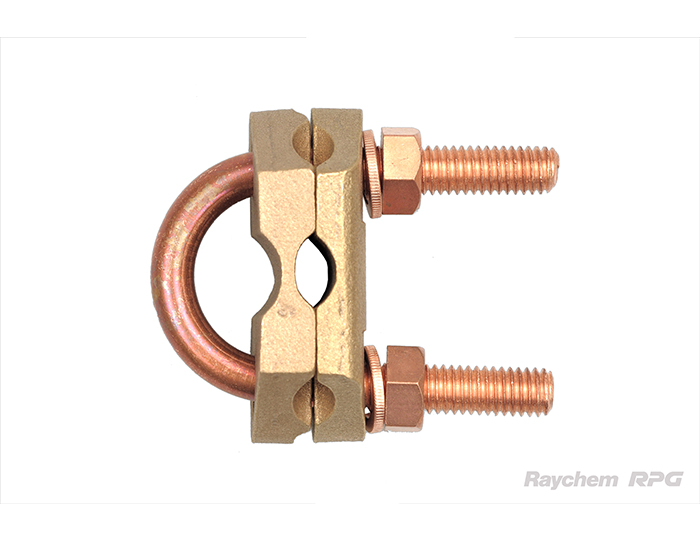

U-Bolt : Double Plate Type For Vertical Stranded Cable Type (Type GUV)
Related Tags :
Type GUV
No Search Result
Contact Us
Connect with us by clicking on one of the following options.
Sales Enquiry Visit Contact Page
Grievance Officer grievance_officer@raychemrpg.com- Other Enquiry info@raychemrpg.com
Chat with Us Mon. to Sat. 9am to 6pm
0
-
-
Your List Is Empty
- View Products
Share
- Features
- Help & Support
Provides secure connection between vertical stranded cable and earth rod. Used for providing a secure connection between down conductor vertical stranded cable and earth rod. The assembly consists of two copper alloy plates used for firm clamping of solid round or stranded conductor. U-bolt performs the function of holding rod/rebar and stranded cable together.
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|
U-Bolt Double Plate Type for Vertical Stranded Cable Type |
||||
|---|---|---|---|---|
|
S.No. |
Product Code |
Nominal Rod Dia. In Inch |
Nominal Rod Dia. In mm |
Conductor Range in Sq. mm |
|
1 |
RUC - 01 |
5/8" |
16 |
35-120 |
|
2 |
RUC - 02 |
5/8" |
16 |
120-300 |
|
3 |
RUC - 03 |
3/4" |
20 |
35-120 |
|
4 |
RUC - 04 |
3/4" |
20 |
120-300 |
|
5 |
RUC - 05 |
1" |
25 |
35-120 |
|
6 |
RUC - 06 |
1" |
25 |
120-300 |
|
Raychem RPG manufacturers Rod to U-bolt Clamps- Double Plate Type for Vertical Stranded Cable Type GUV as per IEC 62561-1:2017, BS EN 50164-1:2009 and EN 50164-1:2009. |
||||
Technical Information
| Parameter |
|---|
| Manufactures U-bolt Clamps- Double Plate Type for Vertical Stranded Cable Type GUV from high quality copper alloy; pure copper U-bolt and fasteners manufactured form PB |
| Designed and tested for class H category - “Heavy Duty” |
| Withstands lightning impulse current of 100 kA |
Certifications
IEC certified
More info available on request
