8 Shape
Related Tags :
Figure 8 Style
No Search Result
Contact Us
Connect with us by clicking on one of the following options.
Sales Enquiry Visit Contact Page
Other Enquiry info@raychemrpg.com
Chat with Us Mon. to Sat. 9am to 6pm
0
-
-
Your List Is Empty
- View Products
Share
- Features
- Help & Support

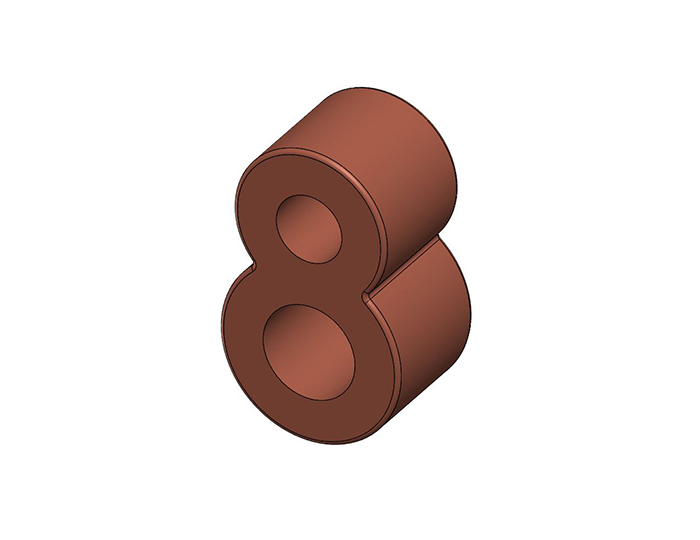

Provides permanent crimped connection between conductor to conductor and conductor to earth rod. 8 Shape Connectors are made of high conductivity ETP Garde Copper providing irreversible crimped connection between conductor and earth rod. It is suitable for direct burial application and marked with conductor size and die index for easy identification.
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
| Product Code | Copper Conductor Range | Earth Rod Size |
|
|---|---|---|---|
| RUN (AWG) | RUN ( Sq.mm) | TAP | |
|
RCC8 26-12 |
#2 Str - 2/0 Str | 35 - 70 | 1/2" |
|
RCC8 26-58 |
#2 Str - 2/0 Str | 35 - 70 | 5/8" |
|
RCC8 26-34 |
#2 Str - 2/0 Str | 35 - 70 | 3/4" |
|
RCC8 26-100 |
#2 Str - 2/0 Str | 35 - 70 | 1" |
| RCC8 29-12 | 4/0 Str - 250 kcmil | 95 - 12 | 1/2" |
| RCC8 29-58 | 4/0 Str - 250 kcmil | 95 - 12 | 5/8" |
| RCC8 29-34 | 4/0 Str - 250 kcmil | 95 - 12 | 3/4" |
| RCC8 29-100 | 4/0 Str - 250 kcmil | 95 - 12 | 1" |
| RCC8 34-58 | 300 kcmil-500 kcmil | 150 - 240 | 5/8" |
| RCC8 34-34 | 300 kcmil-500 kcmil | 150 - 240 | 3/4" |
| RCC8 34-100 | 300 kcmil-500 kcmil | 150 - 240 | 1" |
Technical Information
| Parameter | Value |
|---|---|
| Material | ETP Copper |
Certifications
UL Listed
More info available on request
IEC certified
More info available on request
