Resistant to galvanic corrosion. Stainless Steel Earth Rods are used in protective earthing of commercial and industrial buildings by dispersing lightning flashes and fault currents of distribution to the earth.
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications

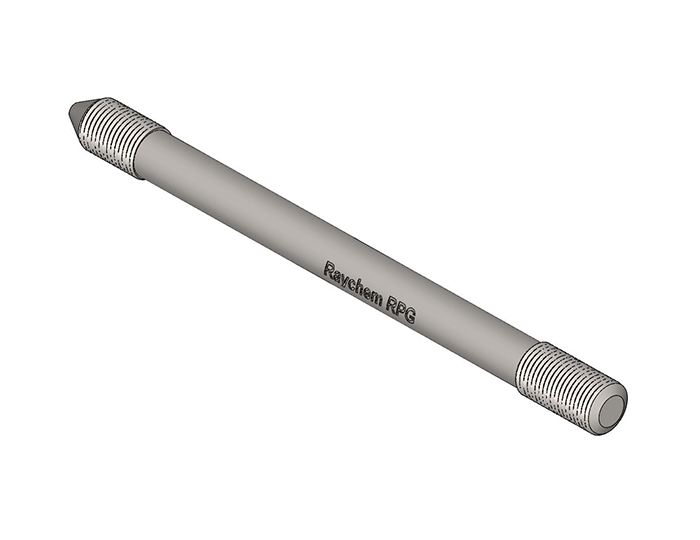

Externally Threaded Stainless Steel Rod.
| Product Code | Thread Size | Shank Dia. | Rod Length |
|---|---|---|---|
| mm | mm | ||
| RESS-01 | 9/16” | 12.7 | 1200 |
| RESS-02 | 9/16” | 12.7 | 1500 |
| RESS-03 | 9/16” | 12.7 | 1800 |
| RESS-04 | 9/16” | 12.7 | 2440 |
| RESS-05 | 9/16” | 12.7 | 3050 |
| RESS-06 | 5/8” | 14.2 | 1200 |
| RESS-07 | 5/8” | 14.2 | 1500 |
| RESS-08 | 5/8” | 14.2 | 1800 |
| RESS-09 | 5/8” | 14.2 | 2440 |
| RESS-10 | 5/8” | 14.2 | 3050 |
| RESS-11 | 5/8” | 16 | 1200 |
| RESS-12 | 5/8” | 16 | 1800 |
| RESS-13 | 5/8” | 16 | 2440 |
| RESS-14 | 5/8” | 16 | 3050 |
| RESS-15 | 3/4” | 17.2 | 1200 |
| RESS-16 | 3/4” | 17.2 | 1500 |
| RESS-17 | 3/4” | 17.2 | 1800 |
| RESS-18 | 3/4” | 17.2 | 2440 |
| RESS-19 | 3/4” | 17.2 | 3050 |
Driving Stud
| Product Code | Earth Rod Dia. | |
|---|---|---|
| UNC Thread | mm | |
| RID-01 | 5/8" | 14.2 |
| RID-02 | 3/4" | 17.2 |
| RID-03 | 9/16" | 12.7 |
Coupler
| Product Code | Thread Size |
|---|---|
| RECB-01 | 9/16” |
| RECB-02 | 5/8" |
| RECB-03 | 3/4" |
Internally Threaded Stainless-Steel Rod
| Product Code | Thread Size | Shank Dia. | Rod Length |
|---|---|---|---|
| mm | mm | ||
| RIS-01 | M10 | 15 | 1200 |
| RIS-07 | M10 | 15 | 1500 |
| RIS-02 | M10 | 15 | 1800 |
| RIS-03 | M10 | 15 | 2440 |
| RIS-08 | M10 | 15 | 3050 |
| RIS-04 | M12 | 20 | 1200 |
| RIS-09 | M12 | 20 | 1500 |
| RIS-05 | M12 | 20 | 1800 |
| RIS-06 | M12 | 20 | 2440 |
| RIS-10 | M12 | 20 | 3050 |
| RIS-11 | M10 | 16 | 1200 |
| RIS-12 | M10 | 16 | 1500 |
| RIS-13 | M10 | 16 | 1800 |
| RIS-14 | M10 | 16 | 2440 |
| RIS-15 | M10 | 16 | 3050 |
| RIS-16 | M12 | 19 | 1200 |
| RIS-17 | M12 | 19 | 1500 |
| RIS-18 | M12 | 19 | 1800 |
| RIS-19 | M12 | 19 | 2440 |
| RIS-20 | M12 | 19 | 3050 |
Driving Head
| Product Code | Earth Rod Dia. (mm) | Thread Size |
|---|---|---|
| RDS-02 | 15 | M10 |
| RDS-03 | 20 | M12 |
| RDS-04 | 16 | M10 |
| RDS-05 | 19 | M12 |
Coupling Dowell
| Product Code | Earth Rod Dia. (mm) |
|---|---|
| RIC-01 | 15 |
| RIC-02 | 20 |
| RIC-03 | 16 |
| RIC-04 | 19 |
Driving Tip
| Product Code | Earth Rod Dia. (mm) |
|---|---|
| RIT-01 | 15 |
| RIT-02 | 20 |
| RIT-03 | 16 |
| RIT-04 | 19 |
Technical Information
| Parameter |
|---|
| Stainless Steel Earth Rods are highly resistant to corrosion |
| Manufactured from Stainless Steel 316 |
Certifications
UL Listed
More info available on request
IEC certified
More info available on request
