Bar to Earth Rod
Bar to Earth Rod FullScreen
  • Features
  • Help & Support

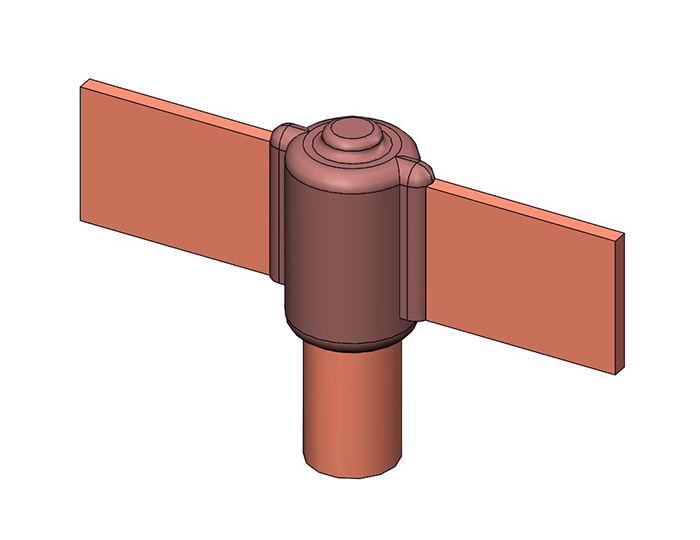

Copper Bar to Earth Rod Connection. Exothermic welding process is a simple, efficient method of permanently bonding copper to copper or copper to steel. Exothermic connection provides permanent conductivity over the complete section due to molecular bonding between metal surfaces. Exothermic welded joint carries more tensile strength than mechanical connections.

  • Make in India

Please connect with us

Specifications

1. RBR1

A mm Φ B Inches Φ C Weld & Ignition Powder Mould
mm x mm
12.7 1⁄2” 20 x 2 RWP 065 RBR1-R4-127202
12.7 1⁄2” 20 x 3 RWP 090 RBR1-R4-127203
12.7 1⁄2” 20 x 4 RWP 090 RBR1-R4-127204
12.7 1⁄2” 25 x 2 RWP 065 RBR1-R4-127252
12.7 1⁄2” 25 x 3 RWP 090 RBR1-R4-127253
12.7 1⁄2” 25 x 4 RWP 090 RBR1-R4-127254
12.7 1⁄2” 30 x 2 RWP 090 RBR1-R4-12730
12.7 1⁄2” 30 x 3 RWP 090 RBR1-R4-127303
12.7 1⁄2” 31 x 3 RWP 090 RBR1-R4-127313
12.7 1⁄2” 38 x 3 RWP 090 RBR1-R4-127383
12.7 1⁄2” 40 x 3 RWP 090 RBR1-R4-127403
12.7 1⁄2” 50 x 3 RWP 115 RBR1-R4-127503
12.7 1⁄2” 50 x 6 RWP 115 RBR1-R4-127506
14.2 5⁄8” 20 x 3 RWP 090 RBR1-R4-147203
14.2 5⁄8” 20 x 4 RWP 090 RBR1-R4-147204
14.2 5⁄8” 25 x 3 RWP 090 RBR1-R4-147253
14.2 5⁄8” 25 x 4 RWP 115 RBR1-R4-147254
14.2 5⁄8” 25 x 5 RWP 115 RBR1-R4-147255
14.2 5⁄8” 25 x 6 RWP 115 RBR1-R4-147256
14.2 5⁄8” 30 x 2 RWP 115 RBR1-R4-147302
14.2 5⁄8” 30 x 3 RWP 115 RBR1-R4-147303
14.2 5⁄8” 30 x 4 RWP 150 RBR1-R4-147304
14.2 5⁄8” 30 x 5 RWP 150 RBR1-R4-147305
14.2 5⁄8” 30 x 6 RWP 150 RBR1-R4-147306
14.2 5⁄8” 31 x 3 RWP 115 RBR1-R4-147313
14.2 5⁄8” 31 x 6 RWP 150 RBR1-R4-147316
14.2 5⁄8” 38 x 3 RWP 115 RBR1-R4-147383
14.2 5⁄8” 38 x 5 RWP 150 RBR1-R4-147385
14.2 5⁄8” 38 x 6 RWP 200 RBR1-R4-147386
14.2 5⁄8” 40 x 3 RWP 115 RBR1-R4-147403
14.2 5⁄8” 40 x 4 RWP 150 RBR1-R4-147404
14.2 5⁄8” 40 x 5 RWP 150 RBR1-R4-147405
14.2 5⁄8” 40 x 6 RWP 200 RBR1-R4-147406
14.2 5⁄8” 50 x 3 RWP 150 RBR1-R4-147503
14.2 5⁄8” 50 x 4 RWP 200 RBR1-R4-147504
14.2 5⁄8” 50 x 5 RWP 200 RBR1-R4-147505
14.2 5⁄8” 50 x 6 RWP 200 RBR1-R4-147506
17.2 3⁄4” 20 x 3 RWP 115 RBR1-R4-177203
17.2 3⁄4” 20 x 4 RWP 150 RBR1-R4-177204
17.2 3⁄4” 25 x 3 RWP 150 RBR1-R4-177253
17.2 3⁄4” 25 x 4 RWP 150 RBR1-R4-177254
17.2 3⁄4” 25 x 5 RWP 150 RBR1-R4-177255
17.2 3⁄4” 25 x 6 RWP 200 RBR1-R4-177256
17.2 3⁄4” 30 x 2 RWP 150 RBR1-R4-177302
17.2 3⁄4” 30 x 3 RWP 150 RBR1-R4-177303
17.2 3⁄4” 30 x 4 RWP 250 RBR1-R4-177304
17.2 3⁄4” 30 x 5 2 X RWP 200 RBR1-R4-177305
17.2 3⁄4” 30 x 6 RWP 250 RBR1-R4-177306
17.2 3⁄4” 31 x 3 RWP 150 RBR1-R4-177313
17.2 3⁄4” 31 x 6 RWP 250 RBR1-R4-177316
17.2 3⁄4” 38 x 3 RWP 200 RBR1-R4-177383
17.2 3⁄4” 38 x 5 RWP 200 RBR1-R4-177385
17.2 3⁄4” 38 x 6 2 X RWP 150 RBR1-R4-177386
17.2 3⁄4” 40 x 3 RWP 200 RBR1-R4-177403
17.2 3⁄4” 40 x 4 RWP 200 RBR1-R4-177404
17.2 3⁄4” 40 x 5 RWP 200 RBR1-R4-177405
17.2 3⁄4” 40 x 6 2 X RWP 150 RBR1-R4-177406
17.2 3⁄4” 50 x 3 2 X RWP 150 RBR1-R5-177503
17.2 3⁄4” 50 x 4 2 X RWP 150 RBR1-R5-177504
17.2 3⁄4” 50 x 5 2 X RWP 150 RBR1-R5-177505
17.2 3⁄4” 50 x 6 2 X RWP 200 RBR1-R5-177506
17.2 3⁄4” 50 x 8 2 X RWP 200 RBR1-R5-177508

2. RBR2

A mm Φ B Inches Φ C Weld & Ignition Powder Mould
mm x mm
12.7 1⁄2” 20 x 2 RWP 065 RBR2-R4-127202
12.7 1⁄2” 20 x 3 RWP 090 RBR2-R4-127203
12.7 1⁄2” 20 x 4 RWP 090 RBR2-R4-127204
12.7 1⁄2” 25 x 2 RWP 090 RBR2-R4-127252
12.7 1⁄2” 25 x 3 RWP 090 RBR2-R4-127253
12.7 1⁄2” 25 x 4 RWP 090 RBR2-R4-127254
12.7 1⁄2” 25 x 5 RWP 115 RBR2-R4-127255
12.7 1⁄2” 30 x 2 RWP 090 RBR2-R4-127302
12.7 1⁄2” 30 x 3 RWP 090 RBR2-R4-127303
12.7 1⁄2” 30 x 4 RWP 115 RBR2-R4-127304
12.7 1⁄2” 31 x 3 RWP 090 RBR2-R4-127313
12.7 1⁄2” 38 x 3 RWP 090 RBR2-R4-127383
12.7 1⁄2” 40 x 3 RWP 090 RBR2-R4-127403
12.7 1⁄2” 40 x 5 RWP 115 RBR2-R4-127405
12.7 1⁄2” 50 x 3 RWP 115 RBR2-R4-127503
12.7 1⁄2” 50 x 5 RWP 200 RBR2-R4-127505
12.7 1⁄2” 50 x 6 RWP 115 RBR2-R4-127506
14.2 5⁄8” 20 x 2 RWP 090 RBR2-R4-142202
14.2 5⁄8” 20 x 3 RWP 090 RBR2-R4-142203
14.2 5⁄8” 20 x 4 RWP 090 RBR2-R4-142204
14.2 5⁄8” 25 x 3 RWP 090 RBR2-R4-142253
14.2 5⁄8” 25 x 4 RWP 115 RBR2-R4-142254
14.2 5⁄8” 25 x 5 RWP 115 RBR2-R4-142255
14.2 5⁄8” 25 x 6 RWP 150 RBR2-R4-142256
14.2 5⁄8” 30 x 2 RWP 090 RBR2-R4-142302
14.2 5⁄8” 30 x 3 RWP 115 RBR2-R4-142303
14.2 5⁄8” 30 x 4 RWP 150 RBR2-R4-142304
14.2 5⁄8” 30 x 5 RWP 150 RBR2-R4-142305
14.2 5⁄8” 30 x 6 RWP 150 RBR2-R4-142306
14.2 5⁄8” 31 x 3 RWP 115 RBR2-R4-142313
14.2 5⁄8” 31 x 6 RWP 150 RBR2-R4-142316
14.2 5⁄8” 38 x 3 RWP 150 RBR2-R4-142383
14.2 5⁄8” 38 x 5 RWP 150 RBR2-R4-142385
14.2 5⁄8” 38 x 6 RWP 200 RBR2-R4-142386
14.2 5⁄8” 40 x 3 RWP 150 RBR2-R4-142403
14.2 5⁄8” 40 x 4 RWP 150 RBR2-R4-142404
14.2 5⁄8” 40 x 5 RWP 150 RBR2-R4-142405
14.2 5⁄8” 40 x 6 RWP 200 RBR2-R4-142406
14.2 5⁄8” 50 x 3 RWP 200 RBR2-R4-142503
14.2 5⁄8” 50 x 4 RWP 200 RBR2-R4-142504
14.2 5⁄8” 50 x 5 RWP 200 RBR2-R4-142505
14.2 5⁄8” 50 x 6 RWP 250 RBR2-R4-142506
17.2 3⁄4” 20 x 2 RWP 150 RBR2-R4-172202
17.2 3⁄4” 20 x 3 RWP 150 RBR2-R4-172203
17.2 3⁄4” 20 x 4 RWP 150 RBR2-R4-172204
17.2 3⁄4” 25 x 3 RWP 150 RBR2-R4-172253
17.2 3⁄4” 25 x 4 RWP 200 RBR2-R4-172254
17.2 3⁄4” 25 x 5 RWP 150 RBR2-R4-172255
17.2 3⁄4” 25 x 6 RWP 200 RBR2-R4-172256
17.2 3⁄4” 30 x 2 RWP 150 RBR2-R4-172302
17.2 3⁄4” 30 x 3 RWP 150 RBR2-R4-172303
17.2 3⁄4” 30 x 4 RWP 250 RBR2-R4-172304
17.2 3⁄4” 30 x 5 RWP 200 RBR2-R4-172305
17.2 3⁄4” 30 x 6 RWP 250 RBR2-R4-172306
17.2 3⁄4” 31 x 3 RWP 200 RBR2-R4-172313
17.2 3⁄4” 31 x 6 RWP 250 RBR2-R4-172316
17.2 3⁄4” 38 x 3 RWP 200 RBR2-R4-172383
17.2 3⁄4” 38 x 5 RWP 200 RBR2-R4-172385
17.2 3⁄4” 38 x 6 RWP 250 RBR2-R4-172386
17.2 3⁄4” 40 x 3 RWP 200 RBR2-R4-172403
17.2 3⁄4” 40 x 4 RWP 200 RBR2-R4-172404
17.2 3⁄4” 40 x 5 RWP 200 RBR2-R4-172405
17.2 3⁄4” 40 x 6 RWP 250 RBR2-R4-172406
17.2 3⁄4” 40 x 10 2 X RWP 150 RBR2-R5-1724010
17.2 3⁄4” 50 x 3 2 X RWP 150 RBR2-R5-172503
17.2 3⁄4” 50 x 4 2 X RWP 150 RBR2-R5-172504
17.2 3⁄4” 50 x 5 2 X RWP 150 RBR2-R5-172505
17.2 3⁄4” 50 x 6 2 X RWP 150 RBR2-R5-172506
17.2 3⁄4” 50 x 8 2 X RWP 200 RBR2-R5-172508

3. RBR7

A mm Φ B mm Φ C Weld & Ignition Powder Mould
mm x mm
12.7 1⁄2” 20 x 3 RWP 090 RBR7-R4-127203
12.7 1⁄2” 25 x 3 RWP 090 RBR7-R4-127253
12.7 1⁄2” 25 x 4 RWP 090 RBR7-R4-127254
12.7 1⁄2” 30 x 2 RWP 090 RBR7-R4-127302
12.7 1⁄2” 30 x 3 RWP 090 RBR7-R4-127303
12.7 1⁄2” 31 x 3 RWP 090 RBR7-R4-127313
12.7 1⁄2” 38 x 3 RWP 090 RBR7-R4-127383
12.7 1⁄2” 40 x 3 RWP 090 RBR7-R4-127403
12.7 1⁄2” 50 x 3 RWP 115 RBR7-R4-127503
12.7 1⁄2” 50 x 6 RWP 115 RBR7-R4-127506
14.2 5⁄8” 20 x 3 RWP 090 RBR7-R4-142203
14.2 5⁄8” 25 x 3 RWP 090 RBR7-R4-142253
14.2 5⁄8” 25 x 4 RWP 115 RBR7-R4-142254
14.2 5⁄8” 25 x 6 RWP 115 RBR7-R4-142256
14.2 5⁄8” 30 x 2 RWP 115 RBR7-R4-142302
14.2 5⁄8” 30 x 3 RWP 115 RBR7-R4-142303
14.2 5⁄8” 30 x 4 RWP 150 RBR7-R4-142304
14.2 5⁄8” 30 x 5 RWP 150 RBR7-R4-142305
14.2 5⁄8” 31 x 3 RWP 115 RBR7-R4-142313
14.2 5⁄8” 31 x 6 RWP 150 RBR7-R4-142316
14.2 5⁄8” 38 x 3 RWP 115 RBR7-R4-142383
14.2 5⁄8” 38 x 5 RWP 150 RBR7-R4-142385
14.2 5⁄8” 38 x 6 RWP 200 RBR7-R4-142386
14.2 5⁄8” 40 x 3 RWP 115 RBR7-R4-142403
14.2 5⁄8” 40 x 4 RWP 150 RBR7-R4-142404
14.2 5⁄8” 40 x 5 RWP 150 RBR7-R4-142405
14.2 5⁄8” 40 x 6 RWP 200 RBR7-R4-142406
14.2 5⁄8” 50 x 3 RWP 150 RBR7-R4-142503
14.2 5⁄8” 50 x 4 RWP 200 RBR7-R4-142504
14.2 5⁄8” 50 x 5 RWP 200 RBR7-R4-142505
14.2 5⁄8” 50 x 6 RWP 200 RBR7-R4-142506
17.2 3⁄4” 20 x 3 RWP 115 RBR7-R4-172203
17.2 3⁄4” 25 x 3 RWP 150 RBR7-R4-172253
17.2 3⁄4” 25 x 4 RWP 150 RBR7-R4-172254
17.2 3⁄4” 25 x 6 RWP 200 RBR7-R4-172256
17.2 3⁄4” 30 x 2 RWP 150 RBR7-R4-172302
17.2 3⁄4” 30 x 3 RWP 150 RBR7-R4-172303
17.2 3⁄4” 30 x 4 RWP 250 RBR7-R4-172304
17.2 3⁄4” 30 x 5 RWP 200 RBR7-R4-172305
17.2 3⁄4” 31 x 3 RWP 200 RBR7-R4-172313
17.2 3⁄4” 31 x 6 RWP 200 RBR7-R4-172316
17.2 3⁄4” 38 x 3 RWP 200 RBR7-R4-172383
17.2 3⁄4” 38 x 5 RWP 200 RBR7-R4-172385
17.2 3⁄4” 38 x 6 RWP 250 RBR7-R5-172386
17.2 3⁄4” 40 x 3 RWP 200 RBR7-R4-172403
17.2 3⁄4” 40 x 4 RWP 200 RBR7-R4-172404
17.2 3⁄4” 40 x 5 RWP 200 RBR7-R4-172405
17.2 3⁄4” 40 x 6 RWP 250 RBR7-R5-172406
17.2 3⁄4” 50 x 3 RWP 250 RBR7-R5-172503
17.2 3⁄4” 50 x 4 RWP 250 RBR7-R5-172504
17.2 3⁄4” 50 x 5 2 x RWP 150 RBR7-R5-172505
17.2 3⁄4” 50 x 6 2 x RWP 200 RBR7-R5-172506

Technical Information

Joint Type :

Connection Type
RBR1 RBR2 RBR7
