Bar to Steel Surface FullScreen
  • Features
  • Help & Support

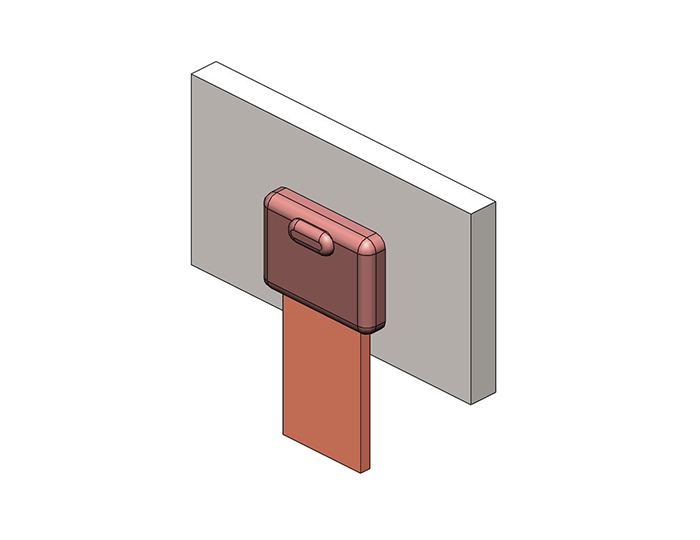

Copper Bar to Steel Surface Connection . Exothermic welding process is a simple, efficient method of permanently bonding copper to copper or copper to steel. Exothermic connection provides permanent conductivity over the complete section due to molecular bonding between metal surfaces. Exothermic welded joint carries more tensile strength than mechanical connections.

  • Make in India

Please connect with us

Specifications

RBS1

A Weld & Ignition Powder Mould
mm x mm
20 x 2 RWP 065 RBS1-R4-202
20 x 3 RWP 090 RBS1-R4-203
25 x 3 RWP 090 RBS1-R4-253
25 x 4 RWP 090 RBS1-R4-254
25 x 5 RWP 115 RBS1-R4-255
30 x 2 RWP 115 RBS1-R4-302
30 x 3 RWP 115 RBS1-R4-303
30 x 4 RWP 150 RBS1-R4-304
30 x 5 RWP 200 RBS1-R4-305
31 x 3 RWP 115 RBS1-R4-313
31 x 6 RWP 200 RBS1-R4-316
38 x 3 RWP 150 RBS1-R4-383
38 x 5 RWP 200 RBS1-R4-385
38 x 6 RWP 200 RBS1-R4-386
40 x 1.5 RWP 065 RBS1-R4-40 / 1.5
40 x 3 RWP 115 RBS1-R4-403
40 x 4 RWP 200 RBS1-R4-404
40 x 5 RWP 200 RBS1-R4-405
40 x 6 RWP 250 RBS1-R4-406
50 x 3 RWP 200 RBS1-R4-503
50 x 4 2 x RWP 150 RBS1-R4-504
50 x 5 2 x RWP 150 RBS1-R5-505
50 x 6 2 x RWP 150 RBS1-R5-506
50 x 8 2 x RWP 200 RBS1-R5-508

RBS2

A Weld & Ignition Powder Mould
mm x mm
20 x 2 RWP 065 RBS2-R4-202
20 x 3 RWP 065 RBS2-R4-203
20 x 3 RWP 090 RBS2-R4-203
25 x 2 RWP 090 RBS2-R4-252
25 x 3 RWP 115 RBS2-R4-253
25 x 4 RWP 115 RBS2-R4-254
25 x 5 RWP 150 RBS2-R4-255
25 x 6 RWP 150 RBS2-R4-256
25 x 10 RWP 250 RBS2-R4-2510
25 x 12 RWP 250 RBS2-R4-2512
30 x 2 RWP 115 RBS2-R4-302
30 x 3 RWP 115 RBS2-R4-303
30 x 4 RWP 150 RBS2-R4-304
30 x 5 RWP 200 RBS2-R4-305
30 x 6 RWP 200 RBS2-R4-306
31 x 3 RWP 115 RBS2-R4-313
31 x 6 RWP 200 RBS2-R4-316
38 x 3 RWP 150 RBS2-R4-383
38 x 5 RWP 200 RBS2-R4-385
38 x 6 RWP 250 RBS2-R4-386
40 x 3 RWP 150 RBS2-R4-403
40 x 4 RWP 200 RBS2-R4-404
40 x 5 RWP 250 RBS2-R4-405
40 x 6 RWP 250 RBS2-R4-406
40 x 10 2 x RWP 150 RBS2-R4-4010
40 x 12 2 x RWP 200 RBS2-R4-4012
50 x 3 RWP 250 RBS2-R4-503
50 x 4 RWP 250 RBS2-R4-504
50 x 5 RWP 250 RBS2-R4-505
50 x 6 RWP 250 RBS2-R4-506
60 x 8 2 x RWP 150 RBS2-R4-608
60 x 10 2 x RWP 200 RBS2-R4-6010

RBS3

A Weld & Ignition Powder Mould
mm x mm
20 x 2 RWP 065 RBS3-R4-202
20 x 3 RWP 065 RBS3-R4-203
20 x 3 RWP 090 RBS3-R4-203
25 x 2 RWP 090 RBS3-R4-252
25 x 3 RWP 115 RBS3-R4-253
25 x 4 RWP 115 RBS3-R4-254
25 x 5 RWP 150 RBS3-R4-255
25 x 6 RWP 150 RBS3-R4-256
25 x 10 RWP 250 RBS3-R4-2510
25 x 12 RWP 250 RBS3-R4-2512
30 x 2 RWP 115 RBS3-R4-302
30 x 3 RWP 115 RBS3-R4-303
30 x 4 RWP 150 RBS3-R4-304
30 x 5 RWP 200 RBS3-R4-305
30 x 6 RWP 200 RBS3-R4-306
31 x 3 RWP 115 RBS3-R4-313
31 x 6 RWP 200 RBS3-R4-316
38 x 3 RWP 150 RBS3-R4-383
38 x 5 RWP 200 RBS3-R4-385
38 x 6 RWP 250 RBS3-R4-386
40 x 3 RWP 150 RBS3-R4-403
40 x 4 RWP 200 RBS3-R4-404
40 x 5 RWP 250 RBS3-R4-405
40 x 6 RWP 250 RBS3-R4-406
40 x 10 2 x RWP 150 RBS3-R4-4010
40 x 12 2 x RWP 200 RBS3-R4-4012
50 x 3 RWP 250 RBS3-R4-503
50 x 4 RWP 250 RBS3-R4-504
50 x 5 RWP 250 RBS3-R4-505
50 x 6 RWP 250 RBS3-R4-506
60 x 8 2 x RWP 150 RBS3-R4-608
60 x 10 2 x RWP 200 RBS3-R4-6010

Technical Information

Joint Type
RBS1
RBS2
RBS3
