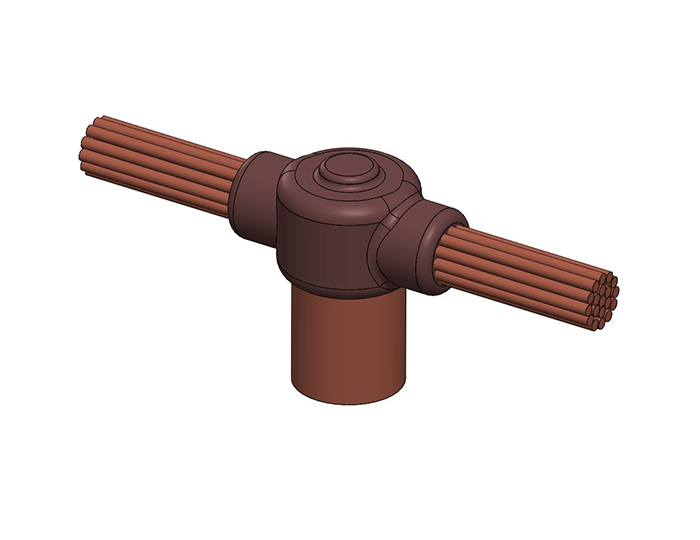

Cable to Earth Rod
Cable to Earth Rod FullScreen
  • Features
  • Help & Support

Copper Cable to Earth Rod Connection.Exothermic welding process is a simple, efficient method of permanently bonding copper to copper or copper to steel. Exothermic connection provides permanent conductivity over the complete section due to molecular bonding between metal surfaces. Exothermic welded joint carries more tensile strength than mechanical connections.

  • Make in India

Please connect with us

Specifications

RCR1

A B C Weld & Ignition Powder Mould
mm Inches mm²
11.1 - 25 RWP 065 RCR1-R4-11125
11.1 - 35 RWP 065 RCR1-R4-11135
11.1 - 50 RWP 065 RCR1-R4-11150
11.1 - 70 RWP 090 RCR1-R4-11170
11.1 - 95 RWP 090 RCR1-R4-11195
11.1 - 120 RWP 090 RCR1-R4-111120
11.1 - 150 RWP 090 RCR1-R4-111150
12.7 1⁄2” 16 RWP 045 RCR1-R4-12716
12.7 1⁄2” 25 RWP 065 RCR1-R4-12725
12.7 1⁄2” 30 RWP 065 RCR1-R4-12730
12.7 1⁄2” 35 RWP 065 RCR1-R4-12735
12.7 1⁄2” 50 RWP 065 RCR1-R4-12750
12.7 1⁄2” 8 mm Ø RWP 065 RCR1-R4-1278SC
12.7 1⁄2” 70 RWP 090 RCR1-R4-12770
12.7 1⁄2” 95 RWP 090 RCR1-R4-12795
12.7 1⁄2” 120 RWP 090 RCR1-R4-127120
12.7 1⁄2” 150 RWP 115 RCR1-R4-127150
12.7 1⁄2” 185 RWP 115 RCR1-R4-127185
12.7 1⁄2” 240 RWP 150 RCR1-R4-127240
12.7 1⁄2” 300 RWP 150 RCR1-R4-127300
14.2 5⁄8” 16* RWP 065 RCR1-R4-14216
14.2 5⁄8” 25 RWP 065 RCR1-R4-14225
14.2 5⁄8” 30 RWP 065 RCR1-R4-14230
14.2 5⁄8” 35 RWP 065 RCR1-R4-14235
14.2 5⁄8” 50 RWP 090 RCR1-R4-14250
14.2 5⁄8” 8 mm Ø RWP 090 RCR1-R4-1428SC
14.2 5⁄8” 70 RWP 090 RCR1-R4-14270
14.2 5⁄8” 95 RWP 090 RCR1-R4-14295
14.2 5⁄8” 120 RWP 090 RCR1-R4-142120
14.2 5⁄8” 150 RWP 115 RCR1-R4-142150
14.2 5⁄8” 185 RWP 115 RCR1-R4-142185
14.2 5⁄8” 240 RWP 150 RCR1-R4-142240
14.2 5⁄8” 300 RWP 200 RCR1-R4-142300
17.2 3⁄4” 16 RWP 065 RCR1-R4-17216
17.2 3⁄4” 25 RWP 065 RCR1-R4-17225
17.2 3⁄4” 30 RWP 090 RCR1-R4-17230
17.2 3⁄4” 35 RWP 065 RCR1-R4-17235
17.2 3⁄4” 50 RWP 090 RCR1-R4-17250
17.2 3⁄4” 8 mm Ø RWP 090 RCR1-R4-1728SC
17.2 3⁄4” 70 RWP 090 RCR1-R4-17270
17.2 3⁄4” 95 RWP 090 RCR1-R4-17295
17.2 3⁄4” 120 RWP 090 RCR1-R4-172120
17.2 3⁄4” 150 RWP 115 RCR1-R4-172150
17.2 3⁄4” 185 RWP 115 RCR1-R4-172185
17.2 3⁄4” 240 RWP 150 RCR1-R4-172240
17.2 3⁄4” 300 RWP 200 RCR1-R4-172300
25.4 1” 25 RWP 150 RCR1-R4-25425
25.4 1” 30 RWP 150 RCR1-R4-25430
25.4 1” 35 RWP 150 RCR1-R4-25435
25.4 1” 50 RWP 150 RCR1-R4-25450
25.4 1” 70 RWP 150 RCR1-R4-25470
25.4 1” 95 RWP 150 RCR1-R4-25495
25.4 1” 120 RWP 150 RCR1-R4-254120
25.4 1” 150 RWP 200 RCR1-R4-254150
25.4 1” 185 RWP 200 RCR1-R4-254185
25.4 1” 240 RWP 200 RCR1-R4-254240
25.4 1” 300 RWP 200 RCR1-R4-254300

RCR2

A B C Weld & Ignition Powder Mould
mm Inches Ø mm²
11.1 - 25 RWP 90 RCR2-R4-11125
11.1 - 30 RWP 90 RCR2-R4-11130
11.1 - 35 RWP 90 RCR2-R4-11135
11.1 - 50 RWP 90 RCR2-R4-11150
11.1 - 70 RWP 90 RCR2-R4-11170
11.1 - 95 RWP 115 RCR2-R4-11195
11.1 - 120 RWP 150 RCR2-R4-111120
11.1 - 150 RWP 150 RCR2-R4-111150
12.7 1⁄2” 16 RWP 090 RCR2-R4-12716
12.7 1⁄2” 25 RWP 090 RCR2-R4-12725
12.7 1⁄2” 30 RWP 090 RCR2-R4-12730
12.7 1⁄2” 35 RWP 090 RCR2-R4-12735
12.7 1⁄2” 50 RWP 090 RCR2-R4-12750
12.7 1⁄2” 8 mm Ø RWP 065 RCR2-R4-1278SC
12.7 1⁄2” 70 RWP 090 RCR2-R4-12770
12.7 1⁄2” 95 RWP 115 RCR2-R4-12795
12.7 1⁄2” 120 RWP 150 RCR2-R4-127120
12.7 1⁄2” 150 RWP 150 RCR2-R4-127150
12.7 1⁄2” 185 RWP 200 RCR2-R4-127185
12.7 1⁄2” 240 RWP 200 RCR2-R4-127240
12.7 1⁄2” 300 RWP 250 RCR2-R4-127300
14.2 5⁄8” 16 RWP 065 RCR2-R4-14216
14.2 5⁄8” 25 RWP 090 RCR2-R4-14225
14.2 5⁄8” 30 RWP 090 RCR2-R4-14230
14.2 5⁄8” 35 RWP 090 RCR2-R4-14235
14.2 5⁄8” 50 RWP 090 RCR2-R4-14250
14.2 5⁄8” 8 mm Ø RWP 090 RCR2-R4-1428SC
14.2 5⁄8” 70 RWP 115 RCR2-R4-14270
14.2 5⁄8” 95 RWP 115 RCR2-R4-14295
14.2 5⁄8” 120 RWP 150 RCR2-R4-142120
14.2 5⁄8” 150 RWP 200 RCR2-R4-142150
14.2 5⁄8” 185 RWP 200 RCR2-R4-142185
14.2 5⁄8” 240 RWP 250 RCR2-R4-142240
14.2 5⁄8” 300 2 X RWP 150 RCR2-R5-142300
17.2 3⁄4” 16* RWP 090 RCR2-R4-17216
17.2 3⁄4” 25 RWP 090 RCR2-R4-17225
17.2 3⁄4” 30 RWP 090 RCR2-R4-17230
17.2 3⁄4” 35 RWP 090 RCR2-R4-17235
17.2 3⁄4” 50 RWP 115 RCR2-R4-17250
17.2 3⁄4” 8 mm Ø RWP 115 RCR2-R4-1728SC
17.2 3⁄4” 70 RWP 115 RCR2-R4-17270
17.2 3⁄4” 95 RWP 115 RCR2-R4-17295
17.2 3⁄4” 120 RWP 150 RCR2-R4-172120
17.2 3⁄4” 150 RWP 200 RCR2-R4-172150
17.2 3⁄4” 185 RWP 200 RCR2-R4-172185
17.2 3⁄4” 240 RWP 250 RCR2-R4-172240
17.2 3⁄4” 300 2 X RWP 150 RCR2-R5-172300
25.4 1” 25 RWP 150 RCR2-R4-25425
25.4 1” 30 RWP 150 RCR2-R4-25430
25.4 1” 35 RWP 150 RCR2-R4-25435
25.4 1” 50 RWP 150 RCR2-R4-25450
25.4 1” 70 RWP 150 RCR2-R4-25470
25.4 1” 95 RWP 150 RCR2-R4-25495
25.4 1” 120 RWP 200 RCR2-R4-254120
25.4 1” 150 RWP 200 RCR2-R4-254150
25.4 1” 185 RWP 250 RCR2-R4-254185
25.4 1” 240 RWP 250 RCR2-R4-254240
25.4 1” 300 2 X RWP 150 RCR2-R4-254300

RCR3

A B C Weld & Ignition Powder Mould
mm Ø Inches Ø mm²
12.7 1⁄2” 16 RWP090 RCR3-R9-12716
12.7 1⁄2” 25 RWP090 RCR3-R9-12725
12.7 1⁄2” 35 RWP090 RCR3-R9-12735
12.7 1⁄2” 50 RWP115 RCR3-R9-12750
12.7 1⁄2” 8 mm Ø RWP115 RCR3-R9-1278SC
12.7 1⁄2” 70 RWP115 RCR3-R9-12770
12.7 1⁄2” 95 RWP115 RCR3-R9-127R95
12.7 1⁄2” 120 RWP150 RCR3-R9-127120
12.7 1⁄2” 150 - RCR3-R9-127120
12.7 1⁄2” 185 - RCR3-R9-127120
12.7 1⁄2” 240 - RCR3-R9-127120
12.7 1⁄2” 300 - RCR3-R9-127120
14.2 5⁄8” 16* RWP090 RCR3-R9-14216
14.2 5⁄8” 25 RWP090 RCR3-R9-14225
14.2 5⁄8” 35 RWP090 RCR3-R9-14235
14.2 5⁄8” 50 RWP115 RCR3-R9-14250
14.2 5⁄8” 8 mm Ø RWP115 RCR3-R9-1428SC
14.2 5⁄8” 70 RWP115 RCR3-R9-14270
14.2 5⁄8” 95 RWP115 RCR3-R9-142R95
14.2 5⁄8” 120 RWP150 RCR3-R9-142120
14.2 5⁄8” 150 RWP150 RCR3-R9-142150
14.2 5⁄8” 185 RWP200 RCR3-R9-142185
14.2 5⁄8” 240 2 x RWP200 RCR3-R10-142240
14.2 5⁄8” 300 - RCR3-R10-142300
17.2 3⁄4” 16 RWP090 RCR3-R9-17216
17.2 3⁄4” 25 RWP090 RCR3-R9-17225
17.2 3⁄4” 35 RWP090 RCR3-R9-17235
17.2 3⁄4” 50 RWP115 RCR3-R9-17250
17.2 3⁄4” 8 mm Ø RWP115 RCR3-R9-1728SC
17.2 3⁄4” 70 RWP150 RCR3-R9-17270
17.2 3⁄4” 95 RWP150 RCR3-R9-172R95
17.2 3⁄4” 120 RWP200 RCR3-R9-172120
17.2 3⁄4” 150 RWP250 RCR3-R9-172150
17.2 3⁄4” 185 2 x RWP200 RCR3-R10-172185
17.2 3⁄4” 240 2 x RWP250 RCR3-R10-172240
17.2 3⁄4” 300 3 x RWP200 RCR3-R10-172300

RCR17

A B C Weld & Ignition Powder Mould
mm Ø Inches Ø mm²
12.7 1⁄2” 16 RWP090 RCR17-R4-12716
12.7 1⁄2” 25 RWP090 RCR17-R4-12725
12.7 1⁄2” 30 RWP090 RCR17-R4-12730
12.7 1⁄2” 35 RWP115 RCR17-R4-12735
12.7 1⁄2” 50 RWP115 RCR17-R4-12750
12.7 1⁄2” 8mmØ RWP115 RCR17-R4-1278SC
12.7 1⁄2” 70 RWP150 RCR17-R4-12770
12.7 1⁄2” 95 RWP200 RCR17-R4-12795
12.7 1⁄2” 120 RWP250 RCR17-R4-127120
14.2 5⁄8” 16 RWP90 RCR17-R4-14216
14.2 5⁄8” 25 RWP90 RCR17-R4-14225
14.2 5⁄8” 30 RWP115 RCR17-R4-14230
14.2 5⁄8” 35 RWP115 RCR17-R4-14235
14.2 5⁄8” 50 RWP150 RCR17-R4-14250
14.2 5⁄8” 8mmØ RWP115 RCR17-R4-1428SC
14.2 5⁄8” 70 RWP200 RCR17-R4-14270
14.2 5⁄8” 95 RWP250 RCR17-R4-14295
14.2 5⁄8” 120 2xRWP150 RCR17-R5-142120
14.2 5⁄8” 150 2xRWP200 RCR17-R5-142150
14.2 5⁄8” 185 2xRWP150 RCR17-R5-142185
14.2 5⁄8” 240 3xRWP200 RCR17-R5-142240
17.2 3⁄4” 16 RWP115 RCR17-R4-17216
17.2 3⁄4” 25 RWP115 RCR17-R4-17225
17.2 3⁄4” 30 RWP115 RCR17-R4-17230
17.2 3⁄4” 35 RWP150 RCR17-R4-17235
17.2 3⁄4” 50 RWP150 RCR17-R4-17250
17.2 3⁄4” 8mmØ RWP150 RCR17-R4-1728SC
17.2 3⁄4” 70 RWP200 RCR17-R4-17270
17.2 3⁄4” 95 RWP250 RCR17-R4-17295
17.2 3⁄4” 120 2xRWP150 RCR17-R5-172120
17.2 3⁄4” 150 2xRWP200 RCR17-R5-172150
17.2 3⁄4” 185 3xRWP150 RCR17-R5-172185
17.2 3⁄4” 240 3xRWP200 RCR17-R5-172240
17.2 3⁄4” 300 2xRWP250 RCR17-R4-172300
25.4 1” 25 RWP115 RCR17-R4-25425
25.4 1” 30 RWP150 RCR17-R4-25430
25.4 1” 35 RWP150 RCR17-R4-25435
25.4 1” 50 RWP200 RCR17-R4-25450
25.4 1” 70 RWP250 RCR17-R4-25470
25.4 1” 95 2xRWP150 RCR17-R5-25495
25.4 1” 120 2xRWP200 RCR17-R5-254120
25.4 1” 150 3xRWP150 RCR17-R5-254150
25.4 1” 185 3xRWP200 RCR17-R5-254185
25.4 1” 240 3xRWP250 RCR17-R5-254240

RCR17

A B C Weld & Ignition Powder Mould
mm Ø Inches Ø mm²
11.1 - 25 RWP 115 RCR24-R4-11125
11.1 - 30 RWP 115 RCR24-R4-11130
11.1 - 35 RWP 115 RCR24-R4-11135
11.1 - 50 RWP 150 RCR24-R4-11150
11.1 - 70 RWP 250 RCR24-R4-11170
11.1 - 95 RWP 250 RCR24-R4-11195
11.1 - 120 2 X RWP 150 RCR24-R5-111120
11.1 - 150 2 X RWP 200 RCR24-R5-111150
12.7 1⁄2” 16 RWP 090 RCR24-R4-12716
12.7 1⁄2” 25 RWP 115 RCR24-R4-12725
12.7 1⁄2” 30 RWP 115 RCR24-R4-12730
12.7 1⁄2” 35 RWP 115 RCR24-R4-12735
12.7 1⁄2” 50 RWP 150 RCR24-R4-12750
12.7 1⁄2” 8 mm Ø RWP 115 RCR24-R4-1278SC
12.7 1⁄2” 70 RWP 200 RCR24-R4-12770
12.7 1⁄2” 95 RWP 250 RCR24-R4-12795
12.7 1⁄2” 120 2 X RWP 150 RCR24-R4-127120
12.7 1⁄2” 150 2 X RWP 200 RCR24-R4-127150
14.2 5⁄8” 16 RWP 090 RCR24-R4-14216
14.2 5⁄8” 25 RWP 115 RCR24-R4-14225
14.2 5⁄8” 30 RWP 150 RCR24-R4-14230
14.2 5⁄8” 35 RWP 150 RCR24-R4-14235
14.2 5⁄8” 50 RWP 200 RCR24-R4-14250
14.2 5⁄8” 8 mm Ø RWP 200 RCR24-R4-1428SC
14.2 5⁄8” 70 RWP 250 RCR24-R4-14270
14.2 5⁄8” 95 2 XRWP 150 RCR24-R5-14295
14.2 5⁄8” 120 2 X RWP 200 RCR24-R5-142120
14.2 5⁄8” 150 3 X RWP 150 RCR24-R5-142150
14.2 5⁄8” 185 2 X RWP 250 RCR24-R5-142185
14.2 5⁄8” 240 3 X RWP 250 RCR24-R5-142240
17.2 3⁄4” 16 RWP 115 RCR24-R4-14216
17.2 3⁄4” 25 RWP 115 RCR24-R4-17225
17.2 3⁄4” 30 RWP 150 RCR24-R4-17230
17.2 3⁄4” 35 RWP 150 RCR24-R4-17235
17.2 3⁄4” 50 RWP 200 RCR24-R4-17250
17.2 3⁄4” 8 mm Ø RWP 250 RCR24-R4-1728SC
17.2 3⁄4” 70 RWP 250 RCR24-R4-17270
17.2 3⁄4” 95 2 X RWP 150 RCR24-R4-17295
17.2 3⁄4” 120 2 X RWP 200 RCR24-R5-172120
17.2 3⁄4” 150 3 X RWP 150 RCR24-R5-172150
17.2 3⁄4” 185 3 X RWP 200 RCR24-R5-172185
17.2 3⁄4” 240 3 X RWP 250 RCR24-R5-172240
17.2 3⁄4” 300 3 X RWP 250 RCR24-R5-172300
25.4 1” 25 RWP 150 RCR24-R4-25425
25.4 1” 30 RWP 200 RCR24-R4-25430
25.4 1” 35 RWP 200 RCR24-R4-25435
25.4 1” 50 RWP 250 RCR24-R4-25450
25.4 1” 70 2 X RWP 150 RCR24-R5-25470
25.4 1” 95 2 X RWP 200 RCR24-R5-25495
25.4 1” 120 2 X RWP 250 RCR24-R5-254120
25.4 1” 150 3 X RWP 200 RCR24-R5-254150
25.4 1” 185 3 X RWP 250 RCR24-R5-254185
25.4 1” 240 4 X RWP 250 RCR24-R5-254240

Technical Information

Joint Type
RCR1
RCR2
RCR3
RCR17
RCR24

Related Products

All products provided below with slider to find faster.

Slide Left
/
Slide Right
Aluminium Tape Customizable
  • Add to list
  • Make in India

Aluminium Tape

Used as down conductors

Learn More Learn More
Bare Copper Tape Customizable
  • Add to list
  • Make in India

Bare Copper Tape

High conductivity annealed bare copper tape

Learn More Learn More
Bare Solid Conductor Customizable
  • Add to list
  • Make in India

Bare Solid Conductor

Provides least resistance path from lightening fault currents to ground earth pit

Learn More Learn More
Bare Stranded Copper Conductor Customizable
  • Add to list
  • Make in India

Bare Stranded Copper Conductor

Provides least resistance path from lightening fault currents to ground earth pit

Learn More Learn More
Exothermic Welding Powder Customizable
  • Add to list
  • Make in India

Exothermic Welding Powder

Produce high quality electrical connections between different metals (copper to copper / copper to s...

Learn More Learn More
Hard Drawn Copper Bar Customizable
  • Add to list
  • Make in India

Hard Drawn Copper Bar

High conductivity hard drawn copper bar

Learn More Learn More
PVC Copper Tape Customizable
  • Add to list
  • Make in India

PVC Copper Tape

Used as down conductors

Learn More Learn More
PVC Covered Stranded Copper Conductor Customizable
  • Add to list
  • Make in India

PVC Covered Stranded Copper Conductor

Protection against shock while carrying fault currents of bare conductors

Learn More Learn More
Tinned Copper Tape Customizable
  • Add to list
  • Make in India

Tinned Copper Tape

Used as down conductors

Learn More Learn More
Welding Accessories Customizable
  • Add to list
  • Make in India

Welding Accessories

Used for igniting and initiating exothermic reaction. Welding accessories like Flint Gun, Handle Cla...

Learn More Learn More
