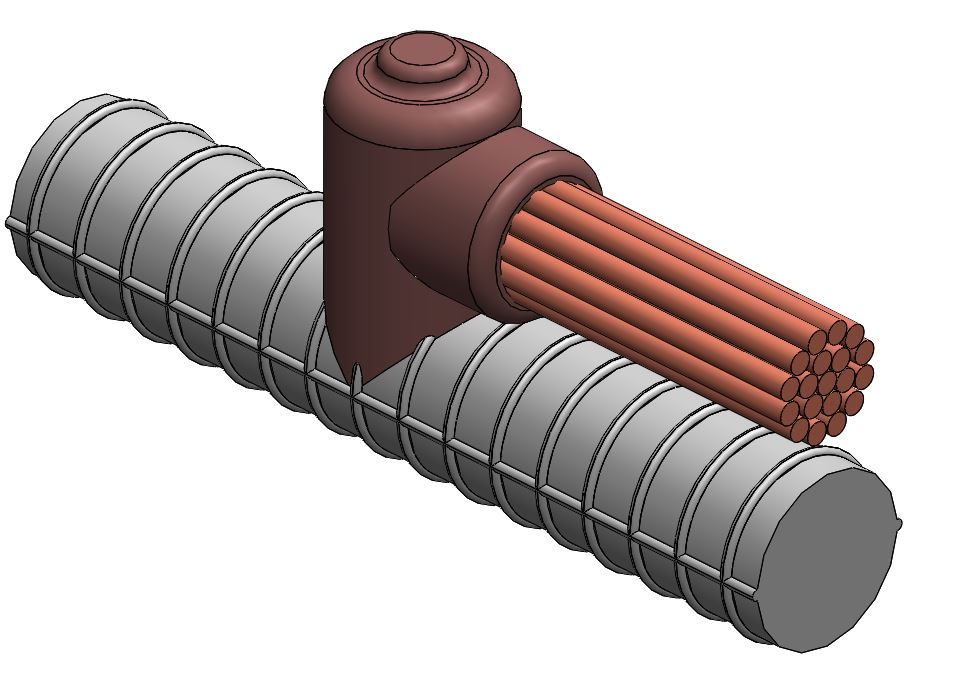

Copper Cable to Reinforcing Bar Connection . Exothermic welding process is a simple, efficient method of permanently bonding copper to copper or copper to steel. Exothermic connection provides permanent conductivity over the complete section due to molecular bonding between metal surfaces. Exothermic welded joint carries more tensile strength than mechanical connections.
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
RCRE2
| A | B | Weld & Ignition Powder | Mould |
|---|---|---|---|
| mm² | mm² | ||
| 12 | 240 | RWP 250 | RCRE2-R4-2R240 |
| 13 | 25 | RWP 090 | RCRE2-R4-13R25 |
| 13 | 35 | RWP 090 | RCRE2-R4-13R35 |
| 13 | 50 | RWP 115 | RCRE2-R4-13R50 |
| 13 | 70 | RWP 115 | RCRE2-R4-13R70 |
| 13 | 95 | RWP 150 | RCRE2-R4-13R95 |
| 16 | 16 | RWP 090 | RCRE2-R4-16R16 |
| 16 | 25 | RWP 090 | RCRE2-R4-16R25 |
| 16 | 35 | RWP 090 | RCRE2-R4-16R35 |
| 16 | 8 mm Ø | RWP 115 | RCRE2-R4-16R8SC |
| 16 | 50 | RWP 115 | RCRE2-R4-16R50 |
| 16 | 10 mm Ø | RWP 115 | RCRE2-R4-16R10SC |
| 16 | 70 | RWP 115 | RCRE2-R4-16R70 |
| 16 | 95 | RWP 150 | RCRE2-R4-16R95 |
| 16 | 120 | RWP 150 | RCRE2-R4-16R120 |
| 16 | 150 | RWP 200 | RCRE2-R4-16R150 |
| 16 | 185 | RWP 200 | RCRE2-R4-16R185 |
| 16 | 240 | RWP 250 | RCRE2-R4-16R240 |
| 16 | 300 | 2 X RWP 150 | RCRE2-R4-16R300 |
| 18 | 16* | RWP 115 | RCRE2-R4-18R16 |
| 18 | 25 | RWP 115 | RCRE2-R4-18R25 |
| 18 | 35 | RWP 115 | RCRE2-R4-18R35 |
| 18 | 8 mm Ø | RWP 150 | RCRE2-R4-18R8SC |
| 18 | 50 | RWP 115 | RCRE2-R4-18R50 |
| 18 | 10 mm Ø | RWP 150 | RCRE2-R4-18R10SC |
| 18 | 70 | RWP 150 | RCRE2-R4-18R70 |
| 18 | 95 | RWP 150 | RCRE2-R4-18R95 |
| 18 | 120 | RWP 200 | RCRE2-R4-18R120 |
| 18 | 150 | RWP 200 | RCRE2-R4-18R150 |
| 18 | 185 | RWP 200 | RCRE2-R4-18R185 |
| 18 | 240 | RWP 250 | RCRE2-R4-18R240 |
| 18 | 300 | 2 X RWP 150 | RCRE2-R4-18R300 |
| 20 | 16* | RWP 115 | RCRE2-R4-20R16 |
| 20 | 25 | RWP 115 | RCRE2-R4-20R25 |
| 20 | 35 | RWP 115 | RCRE2-R4-20R35 |
| 20 | 8 mm Ø | RWP 150 | RCRE2-R4-20R8SC |
| 20 | 50 | RWP 150 | RCRE2-R4-20R50 |
| 20 | 10 mm Ø | RWP 150 | RCRE2-R4-20R10SC |
| 20 | 70 | RWP 150 | RCRE2-R4-20R70 |
| 20 | 95 | RWP 200 | RCRE2-R4-20R95 |
| 20 | 120 | RWP 200 | RCRE2-R4-20R120 |
| 20 | 150 | RWP 200 | RCRE2-R4-20R150 |
| 20 | 185 | RWP 250 | RCRE2-R4-20R185 |
| 20 | 240 | 2 X RWP 150 | RCRE2-R4-20R240 |
| 20 | 300 | 2 X RWP 200 | RCRE2-R5-20R300 |
| 22 | 35 | RWP 115 | RCRE2-R4-22R35 |
| 22 | 50 | RWP 115 | RCRE2-R4-22R50 |
| 22 | 70 | RWP 150 | RCRE2-R4-22R70 |
| 22 | 95 | RWP 150 | RCRE2-R4-22R95 |
| 25 | 16 | RWP 200 | RCRE2-R4-25R16 |
| 25 | 25 | RWP 200 | RCRE2-R4-25R25 |
| 25 | 35 | RWP 200 | RCRE2-R4-25R35 |
| 25 | 8 mm Ø | RWP 200 | RCRE2-R4-25R8SC |
| 25 | 50 | RWP 200 | RCRE2-R4-25R50 |
| 25 | 10 mm Ø | RWP 250 | RCRE2-R4-25R10SC |
| 25 | 70 | RWP 250 | RCRE2-R4-25R70 |
| 25 | 95 | RWP 250 | RCRE2-R4-25R95 |
| 25 | 120 | RWP 250 | RCRE2-R4-25R120 |
| 25 | 150 | 2 X RWP 150 | RCRE2-R4-25R150 |
| 25 | 185 | 2 X RWP 150 | RCRE2-R5-25R185 |
| 25 | 240 | 2 X RWP 200 | RCRE2-R5-25R240 |
| 25 | 300 | 2 X RWP 200 | RCRE2-R5-25R300 |
| 30 | 16* | RWP 250 | RCRE2-R4-30R16 |
| 30 | 25 | RWP 250 | RCRE2-R4-30R25 |
| 30 | 35 | RWP 250 | RCRE2-R4-30R35 |
| 30 | 8 mm Ø | 2 X RWP 150 | RCRE2-R4-30R8SC |
| 30 | 50 | 2 X RWP 150 | RCRE2-R4-30R50 |
| 30 | 10 mm Ø | 2 X RWP 150 | RCRE2-R4-30R10SC |
| 30 | 70 | 2 X RWP 150 | RCRE2-R4-30R70 |
| 30 | 95 | 2 X RWP 150 | RCRE2-R5-30R95 |
| 30 | 120 | 2 X RWP 200 | RCRE2-R4530R120 |
| 30 | 150 | 2 X RWP 200 | RCRE2-R5-30R150 |
| 30 | 185 | 2 X RWP 250 | RCRE2-R5-30R185 |
| 30 | 240 | 3 X RWP 200 | RCRE2-R5-30R240 |
| 30 | 300 | 3 X RWP 200 | RCRE2-R5-30R300 |
| 32 | 35 | RWP 115 | RCRE2-R4-32R35 |
| 32 | 50 | RWP 150 | RCRE2-R4-32R50 |
| 32 | 70 | RWP 200 | RCRE2-R4-32R70 |
| 32 | 95 | RWP 200 | RCRE2-R5-32R95 |
| 32 | 120 | RWP 250 | RCRE2-R5-32R120 |
| 32 | 240 | 2 X RWP 200 | RCRE2-R5-32R240 |
| 36 | 35 | RWP 115 | RCRE2-R4-36R35 |
| 36 | 50 | RWP 150 | RCRE2-R4-36R50 |
| 36 | 70 | RWP 200 | RCRE2-R4-36R70 |
| 36 | 95 | RWP 200 | RCRE2-R5-36R95 |
RCRE3
| A | B | Weld & Ignition Powder | Mould |
|---|---|---|---|
| mm² | mm² | ||
| 10-40 | 16 | RWP045 | RCRE3-R4-16 |
| 10-40 | 25 | RWP045 | RCRE3-R4-25 |
| 10-40 | 35 | RWP045 | RCRE3-R4-35 |
| 10-40 | 8mmØ | RWP090 | RCRE3-R4-8SC |
| 10-40 | 50 | RWP090 | RCRE3-R4-50 |
| 10-40 | 10mmØ | RWP090 | RCRE3-R4-10SC |
| 10-40 | 70 | RWP090 | RCRE3-R4-70 |
| 10-40 | 95 | RWP090 | RCRE3-R4-95 |
| 10-40 | 120 | RWP090 | RCRE3-R4-120 |
RCRE6
| A | B | Weld & Ignition Powder | Mould |
|---|---|---|---|
| mm² Ø | mm² | ||
| 10-40 | 16* | RWP045 | RCRE6-R4-16 |
| 10-40 | 25 | RWP045 | RCRE6-R4-25 |
| 10-40 | 35 | RWP045 | RCRE6-R4-35 |
| 10-40 | 8mmØ | RWP065 | RCRE6-R4-8SC |
| 10-40 | 50 | RWP065 | RCRE6-R4-50 |
| 10-40 | 10mmØ | RWP090 | RCRE6-R4-10SC |
| 10-40 | 70 | RWP090 | RCRE6-R4-70 |
| 10-40 | 95 | RWP090 | RCRE6-R4-95 |
| 10-40 | 120 | RWP115 | RCRE6-R4-120 |
RCRE17
| A | B | Weld & Ignition Powder | Mould |
|---|---|---|---|
| mm² Ø | mm² | ||
| 10-40 | 16 | RWP045 | RCRE17-R4-16 |
| 10-40 | 25 | RWP045 | RCRE17-R4-25 |
| 10-40 | 35 | RWP045 | RCRE17-R4-35 |
| 10-40 | 8mmØ | RWP090 | RCRE17-R4-8SC |
| 10-40 | 50 | RWP090 | RCRE17-R4-50 |
| 10-40 | 10mmØ | RWP090 | RCRE17-R4-10SC |
| 10-40 | 70 | RWP090 | RCRE17-R4-70 |
| 10-40 | 95 | RWP090 | RCRE17-R4-95 |
| 10-40 | 120 | RWP090 | RCRE17-R4-120 |
Technical Information
| Joint Type | ||
|---|---|---|
| RCRE2 | ||
| RCRE3 | ||
| RCRE6 | ||
| RCRE17 | ||
