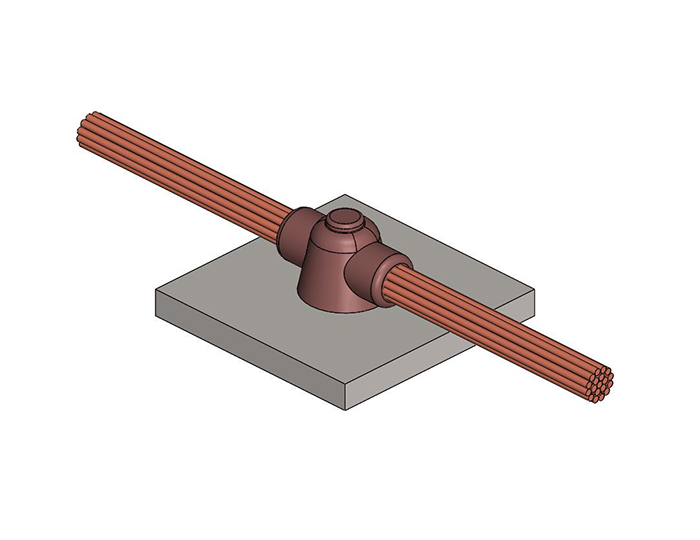

Copper Cable to Steel Surface & Pipe Connection. Exothermic welding process is a simple, efficient method of permanently bonding copper to copper or copper to steel. Exothermic connection provides permanent conductivity over the complete section due to molecular bonding between metal surfaces. Exothermic welded joint carries more tensile strength than mechanical connections.
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
RCS1
| A | Weld & Ignition Powder | Mould |
|---|---|---|
| mm² | ||
| 8mmØ | RWP090 | RCS1-R4-8SC |
| 50 | RWP090 | RCS1-R4-50-FU |
| 10mmØ | RWP090 | RCS1-R4-10SC |
| 70 | RWP090 | RCS1-R4-70 |
| 95 | RWP115 | RCS1-R4-95 |
| 120 | RWP115 | RCS1-R4-120 |
| 150 | RWP150 | RCS1-R4-150 |
| 185 | RWP200 | RCS1-R4-185 |
| 240 | RWP200 | RCS1-R4-240 |
| 300 | RWP250 | RCS1-R4-300 |
RCS2
| A | Weld & Ignition Powder | Mould | ||
|---|---|---|---|---|
| mm² | ||||
| 8 mm Ø | RWP090 | RCS2-R4-8SC | ||
| 50 | RWP090 | RCS2-R4-50 | ||
| 10 mm Ø | RWP115 | RCS2-R4-10SC | ||
| 70 | RWP115 | RCS2-R4-70 | ||
| 95 | RWP1t15 | RCS2-R4-95 | ||
| 120 | RWP150 | RCS2-R4-120 | ||
| 150 | RWP200 | RCS2-R4-150 | ||
| 185 | RWP250 | RCS2-R4-185 | ||
| 240 | RWP2 x 150 | RCS2-R5-240 | ||
| 300 | RWP2 x 200 | RCS2-R5-300 | ||
RCS3
| A | Weld & Ignition Powder | Mould |
|---|---|---|
| mm² | ||
| 16 | RWP045 | RCS3-R4-16 |
| 25 | RWP045 | RCS3-R4-25 |
| 35 | RWP045 | RCS3-R4-35 |
| 8 mm Ø | RWP065 | RCS3-R4-8SC |
| 50 | RWP065 | RCS3-R4-50 |
| 10 mm Ø | RWP090 | RCS3-R4-10SC |
| 70 | RWP090 | RCS3-R4-70 |
| 95 | RWP115 | RCS3-R4-95 |
| 120 | RWP115 | RCS3-R4-120 |
| 150 | RWP115 | RCS3-R4-150 |
| 185 | RWP200 | RCS3-R4-185 |
| 240 | RWP200 | RCS3-R4-240 |
| 300 | RWP250 | RCS3-R4-300 |
RCS7
| A | Weld & Ignition Powder | Mould |
|---|---|---|
| mm² | ||
| 16 | RWP065 | RCS7-R4-16 |
| 25 | RWP065 | RCS7-R4-25 |
| 35 | RWP065 | RCS7-R4-35 |
| 8 mm Ø | RWP090 | RCS7-R4-8SC |
| 50 | RWP090 | RCS7-R4-50 |
| 10 mm Ø | RWP150 | RCS7-R4-10SC |
| 70 | RWP150 | RCS7-R4-70 |
| 95 | RWP200 | RCS7-R5-95 |
| 120 | RWP200 | RCS7-R5-120 |
| 150 | RWP250 | RCS7-R5-150 |
| 185 | RWP2 x 150 | RCS7-R9-185 |
| 240 | RWP2 x 150 | RCS7-R9-240 |
| 300 | RWP2 x 200 | RCS7-R10-300 |
RCS8
| A | Weld & Ignition Powder | Mould |
|---|---|---|
| mm² | ||
| 16 | RWP045 | RCS8-R2-16 |
| 25 | RWP045 | RCS8-R2-25 |
| 35 | RWP045 | RCS8-R2-35 |
| 8 mm Ø | RWP045 | RCS8-R2-8SC |
| 50 | RWP045 | RCS8-R2-50 |
| 10 mm Ø | RWP065 | RCS8-R2-10SC |
| 70 | RWP065 | RCS8-R2-70 |
| 95 | RWP090 | RCS8-R2-95 |
| 120 | RWP115 | RCS8-R4-120 |
| 150 | RWP150 | RCS8-R4-150 |
| 185 | RWP200 | RCS8-R4-185 |
| 240 | RWP200 | RCS8-R4-240 |
| 300 | RWP250 | RCS8-R4-300 |
RCS9
| A | Weld & Ignition Powder | Mould |
|---|---|---|
| mm² | ||
| 16 | RWP045 | RCS9-R2-16 |
| 25 | RWP045 | RCS9-R2-25 |
| 35 | RWP045 | RCS9-R2-35 |
| 8 mm Ø | RWP090 | RCS9-R4-8SC |
| 50 | RWP090 | RCS9-R4-50 |
| 10 mm Ø | RWP115 | RCS9-R4-10SC |
| 70 | RWP115 | RCS9-R4-70 |
| 95 | RWP115 | RCS9-R4-95 |
| 120 | RWP150 | RCS9-R4-120 |
| 150 | RWP200 | RCS9-R4-150 |
| 185 | RWP250 | RCS9-R4-185 |
| 240 | RWP2 x 150 | RCS9-R5-240 |
RCS25
| A | Weld & Ignition Powder | Mould |
|---|---|---|
| mm² | ||
| 16 | RWP45 | RCS25-R4-16 |
| 25 | RWP45 | RCS25-R4-25 |
| 35 | RWP45 | RCS25-R4-35 |
| 8 mm Ø | RWP65 | RCS25-R4-8SC |
| 50 | RWP65 | RCS25-R4-50 |
| 10 mm Ø | RWP90 | RCS25-R4-10SC |
| 70 | RWP90 | RCS25-R4-70 |
| 95 | RWP115 | RCS25-R4-95 |
| 120 | RWP115 | RCS25-R4-120 |
| 150 | RWP150 | RCS25-R4-150 |
| 185 | RWP200 | RCS25-R4-185 |
| 240 | RWP200 | RCS25-R4-240 |
| 300 | RWP250 | RCS25-R4-300 |
RCS27
| A | Weld & Ignition Powder | Mould |
|---|---|---|
| mm² | ||
| 16 | RWP45 | RCS27-R4-16 |
| 25 | RWP045 | RCS27-R4-25 |
| 35 | RWP045 | RCS27-R4-35 |
| 8 mm Ø | RWP065 | RCS27-R4-8SC |
| 50 | RWP065 | RCS27-R4-50 |
| 10 mm Ø | RWP115 | RCS27-R4-10SC |
| 70 | RWP115 | RCS27-R4-70 |
| 95 | RWP150 | RCS27-R4-95 |
| 120 | RWP150 | RCS27-R4-120 |
| 150 | RWP200 | RCS27-R5-150 |
| 185 | RWP250 | RCS27-R5-185 |
| 240 | RWP2 x 150 | RCS27-R5-240 |
| 300 | RWP2 x 200 | RCS27-R5-300 |
RCS32
| A | A | Weld & Ignition Powder | Mould |
|---|---|---|---|
| mm² | mm Φ | ||
| 2.5 | < 125 | RWP 015 | RCS32-R4-2.5-A |
| 2.5 | > 125 | RWP 015 | RCS32-R4-2.5-B |
| 4 | < 125 | RWP 015 | RCS32-R4-4-A |
| 4 | > 125 | RWP 015 | RCS32-R4-4-B |
| 6 | < 125 | RWP 015 | RCS32-R4-6-A |
| 6 | > 125 | RWP 015 | RCS32-R4-6-B |
| 10 | < 125 | RWP 025 | RCS32-R4-10-A |
| 10 | > 125 | RWP 025 | RCS32-R4-10-B |
| 16 | < 125 | RWP 045 | RCS32-R4-16-A |
| 16 | > 125 | RWP 045 | RCS32-R4-16-B |
| 25 | < 70 | RWP 025 | RCS32-R4-25-C |
| 25 | 70-165 | RWP 025 | RCS32-R4-25-D |
| 25 | > 165 | RWP 025 | RCS32-R4-25-E |
| 35 | < 70 | RWP 045 | RCS32-R4-35-C |
| 35 | 70-165 | RWP 045 | RCS32-R4-35-D |
| 35 | 165-250 | RWP 045 | RCS32-R4-35-F |
| 35 | > 250 | RWP 045 | RCS32-R4-35-G |
| 50 | < 70 | RWP 045 | RCS32-R4-50-C |
| 50 | 70-165 | RWP 045 | RCS32-R4-50-D |
| 50 | 165-250 | RWP 045 | RCS32-R4-50-F |
| 50 | > 250 | RWP 045 | RCS32-R4-50-G |
| 70 | < 70 | RWP 045 | RCS32-R4-70-C |
| 70 | 70-165 | RWP 065 | RCS32-R4-70-D |
| 70 | 165-250 | RWP 065 | RCS32-R4-70-F |
| 70 | > 250 | RWP 065 | RCS32-R4-70-G |
RCS34
| A | A | Weld & Ignition Powder | Mould |
|---|---|---|---|
| mm² | mm Φ | ||
| 2.5 | < 125 | RWP 015 | RCS34-R4-2.5-A |
| 2.5 | > 125 | RWP 015 | RCS34-R4-2.5-B |
| 4 | < 125 | RWP 015 | RCS34-R4-4-A |
| 4 | > 125 | RWP 015 | RCS34-R4-4-B |
| 6 | < 125 | RWP 015 | RCS34-R4-6-A |
| 6 | > 125 | RWP 015 | RCS34-R4-6-B |
| 10 | < 125 | RWP 032 | RCS34-R4-10-A |
| 10 | > 125 | RWP 032 | RCS34-R4-10-B |
| 16 | < 125 | RWP 032 | RCS34-R4-16-A |
| 16 | > 125 | RWP 032 | RCS34-R4-16-B |
| 25 | < 70 | RWP 032 | RCS34-R4-25-C |
| 25 | 70-165 | RWP 032 | RCS34-R4-25-D |
| 25 | > 165 | RWP 032 | RCS34-R4-25-E |
| 35 | < 70 | RWP 045 | RCS34-R4-35-C |
| 35 | 70-165 | RWP 045 | RCS34-R4-35-D |
| 35 | 165-250 | RWP 045 | RCS34-R4-35-F |
| 35 | > 250 | RWP 045 | RCS34-R4-35-G |
| 50 | < 70 | RWP 065 | RCS34-R4-50-C |
| 50 | 70-165 | RWP 065 | RCS34-R4-50-D |
| 50 | 165-250 | RWP 065 | RCS34-R4-50-F |
| 50 | > 250 | RWP 065 | RCS34-R4-50-G |
Technical Information
| Joint Type | |
|---|---|
| RCS1 | RCS9 |
| RCS2 | RCS25 |
| RCS3 | RCS27 |
| RCS7 | RCS32 |
| RCS8 | RCS34 |
