Free Standing Air Termination

1

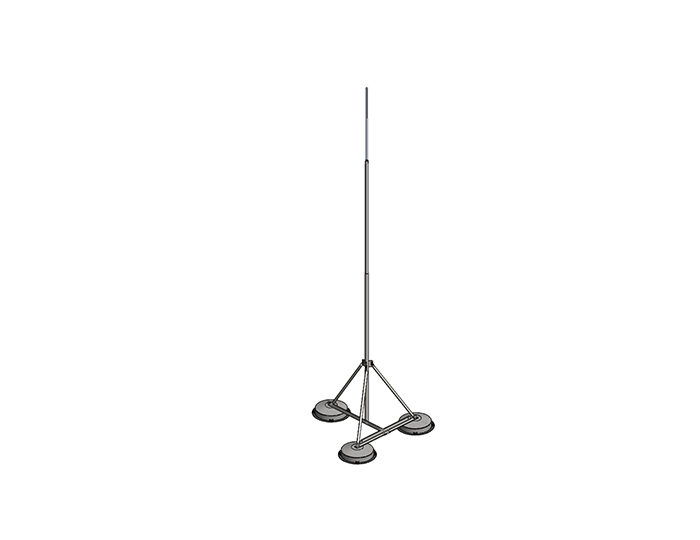

Air-termination pole, SET, stainless steel with tip aluminium, height 3,0m
Ø 42-10 mm, 2-part, incl. base frame and 4x concrete plate 12kg
max. wind speed: -211 km/h (safety factor 1,0 for wind)
-172 km/h (safety factor 1,5 for wind)

10-1000
16-500
42-1500

RSATA-3

2

Air-termination pole, SET, stainless steel with tip aluminium, height 3,5m
Ø 42-10 mm, 2-part, incl. base frame and 4x concrete plate 12kg
max. wind speed: -177 km/h (safety factor 1,0 for wind)
-145 km/h (safety factor 1,5 for wind)

10-1000
16-500
36-1000
42-1000

RSATA-3.5

3

Air-termination pole, SET, stainless steel with tip aluminium, height 4,0m
Ø 42-10 mm, 2-part, incl. base frame and 4x concrete plate 16kg
max. wind speed: -168 km/h (safety factor 1,0 for wind)
-137 km/h (safety factor 1,5 for wind)

10-1000
16-500
36-1000
42-1500

RSATA-4

4

Air-termination pole, SET, stainless steel with tip aluminium, height 4,5m
Ø 42-16 mm, 2-part, incl. base frame and 3x concrete base 20kg and support plate
max. wind speed: -154km/h (safety factor 1,0 for wind)
-126 km/h (safety factor 1,5 for wind)


16-1000
36-1500
42-2000

RSATA-4.5

5

Air-termination pole, SET, stainless steel with tip aluminium, height 5,0m
Ø 42-10 mm, 2-part, incl. base frame and 3x concrete base 20kg and support plate
max. wind speed: -151 km/h (safety factor 1,0 for wind)
-123 km/h (safety factor 1,5 for wind)

10-1000
16-500
36-1500
42-2000

RSATA-5

6

Air-termination pole, SET, stainless steel with tip aluminium, height 5,5m
Ø 42-10 mm, 2-part, incl. base frame and 3x concrete base 25kg and support plate
max. wind speed: -149 km/h (safety factor 1,0 for wind)
-121 km/h (safety factor 1,5 for wind)

10-1000
16-500
36-1500
42-2500

RSATA-5.5

7

Air-termination pole, SET, stainless steel with tip aluminium, height 6,0m
Ø 60-16 mm, 3-part, incl. base frame and 6x concrete base 12kg and support plate
max. wind speed: -164 km/h (safety factor 1,0 for wind)
-134 km/h (safety factor 1,5 for wind)


16-1000
20-1000
36-1000
42-1000
60-2000

RSATA-6

8

Air-termination pole, SET, stainless steel with tip aluminium, height 6,5m
Ø 60-10 mm, 3-part, incl. base frame and 6x concrete base 12kg and support plate
max. wind speed: -155 km/h (safety factor 1,0 for wind)
-127 km/h (safety factor 1,5 for wind)

10-1000
16-500
20-1000
36-1000
42-1000
60-2000

RSATA-6.5

9

Air-termination pole, SET, stainless steel with tip aluminium, height 7,0m
Ø 60-16 mm, 3-part, incl. base frame and 6x concrete base 16kg and support plate
max. wind speed: -148 km/h (safety factor 1,0 for wind)
-121 km/h (safety factor 1,5 for wind)


16-1000
20-1000
36-1000
42-1000
60-3000

RSATA-7

10

Air-termination pole, SET, stainless steel with tip aluminium, height 7,5m
Ø 60-10 mm, 3-part, incl. base frame and 6x concrete base 16kg and support plate
max. wind speed: -153 km/h (safety factor 1,0 for wind)
-125 km/h (safety factor 1,5 for wind)

10-1000
16-500
20-1000
36-1000
42-1000
60-3000

RSATA-7.5

11

Air-termination pole, SET, stainless steel with tip aluminium, height 8,0m
Ø 60-16 mm, 3-part, incl. base frame and 6x concrete base 16kg and support plate
max. wind speed: -147 km/h (safety factor 1,0 for wind)
-120 km/h (safety factor 1,5 for wind)


16-1000
20-1000
36-1000
42-1000
60-4000

RSATA-8

12

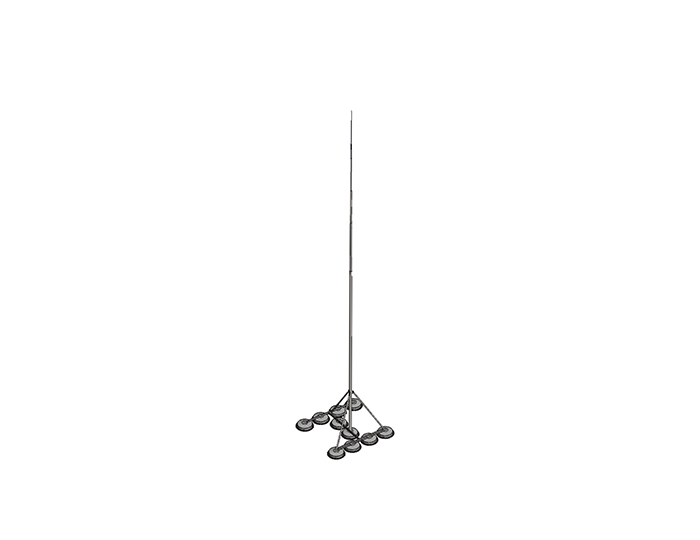

Air-termination pole, SET, stainless steel with tip aluminium, height 9,0m
Ø 60-10 mm, 3-part, incl. base frame and 10x concrete base 25kg and support plate
max. wind speed: -163 km/h (safety factor 1,0 for wind)
-133 km/h (safety factor 1,5 for wind)

10-1000
16-500
20-1000
36-1000
42-1500
60-4000

RSATA-9

13

Air-termination pole, SET, stainless steel with tip aluminium, height 10,0m
Ø 60-10 mm, 3-part, incl. base frame and 10x concrete base 25kg and support plate
max. wind speed: -141 km/h (safety factor 1,0 for wind)
-115 km/h (safety factor 1,5 for wind)

10-1000
16-500
20-1000
36-1000
42-1500
60-5000

RSATA-10

14

Air-termination pole, SET, stainless steel with tip aluminium, height 11,0m
Ø 60-10 mm, 3-part, incl. 5x base frame, 32x concrete plate 16kg and 4x 12kg
max. wind speed: -181 km/h (safety factor 1,0 for wind)
-148 km/h (safety factor 1,5 for wind)

10-6000
60-5000

RSATA-11

15

Air-termination pole, SET, stainless steel with tip aluminium, height 12,0m
Ø 60-10 mm, 3-part, incl. 5x base frame, 32x concrete plate 16kg and 4x 12kg
max. wind speed: -177 km/h (safety factor 1,0 for wind)
-145 km/h (safety factor 1,5 for wind)

10-6000
60-6000

RSATA-12

 Determining the correct interception a ir rod for a particular installation is straightforward.

• Establish the interception air rod height required to create a protective zone around the equipment. The table below gives guidance on minimum interception air rod heights to protect the equipment for respective Classes of Lightning Protection Systems (LPS), as defined in IEC/BS EN 62305 & IEC 62561. This is relevant for all interception air rods from 0.5 m upwards.

• Consider the wind loading at the installation. Wind loading becomes an important factor for taller interception air rods since extreme weather can subject them to fatigue mechanisms.
