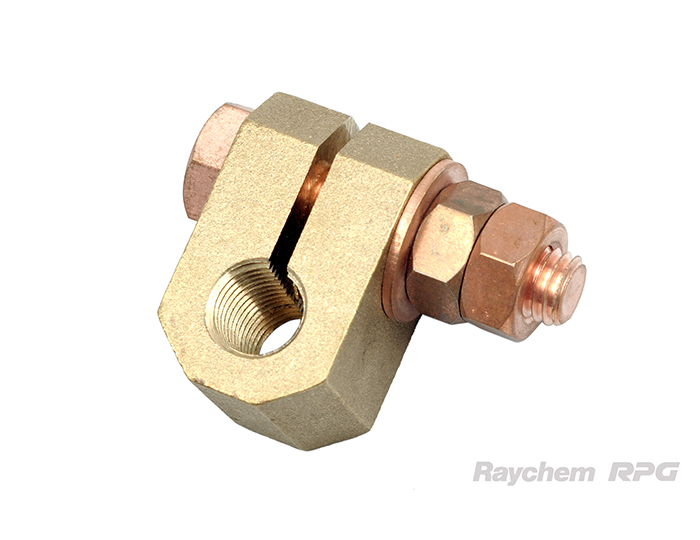

Direct connection of stranded cables lugs to earth rods and suitable for unthreaded / threaded rods
- Split Connector Clamps provide direct connection of stranded cables lugs to earth rods and suitable for unthreaded / threaded rods.
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|
Unthreaded Clamps |
|
|---|---|
|
Product Code |
Nominal Rod Dia. (mm) |
|
RSBU-01 |
9.5 |
|
RSBU-02 |
12.7 |
|
RSBU-03 |
14.2 |
|
RSBU-04 |
17.2 |
|
RSBU-05 |
25.4 |
|
Threaded Clamps |
|
|
Product Code |
Nominal Rod Dia. (mm) |
|
RSBT-01 |
3/8" |
|
RSBT-02 |
1/2" |
|
RSBT-03 |
5/8" |
|
RSBT-04 |
3/4" |
|
RSBT-05 |
1" |
|
Split Connector Clamps are made as per IEC 62561-1, BS EN 50164-1 and EN 50164-1 standards. |
|
Technical Information
| Parameter |
|---|
| Split Connector Clamps are made from copper alloy |
| Designed for class H category - Heavy Duty |
| Withstands lightning impulse current of 100 kA |
Certifications
IEC certified
More info available on request
