Everything You Need to Know About Junction Boxes

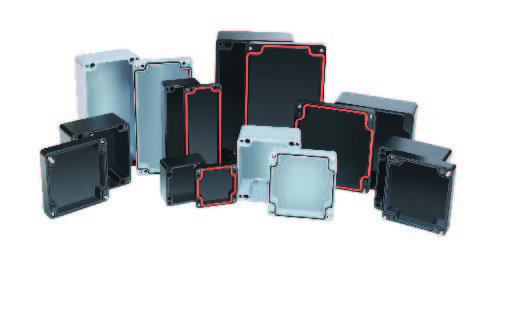

Raychem RPG offers a range of innovative enclosures-junction boxes for industrial and hazardous applications.

Enclosures in aluminium, glass reinforced polyester, stainless steel and steel suitable in industrial and hazardous areas, making it a perfect fit for all requirements. Fire rated enclosures in polyester and metal are suited for fire resistant cable systems. ATEX enclosures made of aluminium, polyester and steel provide reliable protection for electrical distribution systems in hazardous areas.

Aluminum Junction Box

Features

• Material provide high impact strength and rigidity.
• Superior working temperature of -40 degree Celsius to 135 degree
• Excellent dimensional stability and electrical properties.
• Good resistance to chemical attack (painted)
• Good heat sink properties.

Fire Rated Junction Box

• Intrinsic fire resistance in accordance with DIN 4102 PART 12 ( German standard ) in
• combination with fire survival cable and ceramic terminal block
• Intrinsic fire resistance from external flame , water and external impact with BS
• 6387:2013 in combination with fire survival cables &; ceramic terminal block
• Protection against accidental is ensured by enclosure.
• Cable junction box can be used for tunnel application.

GRP Junction Box

• Fiber Glass, a thermoset polyester material reinforced with fiber glass
• Superior working temperature of -40 degree Celsius to 150 degree Celsius
• Flexible provision for Earthing ,Din rail and Mounting plate
• IP 66 and IP 67 & IP 68 on request

If you would like to know more about our junction boxes, click here.
