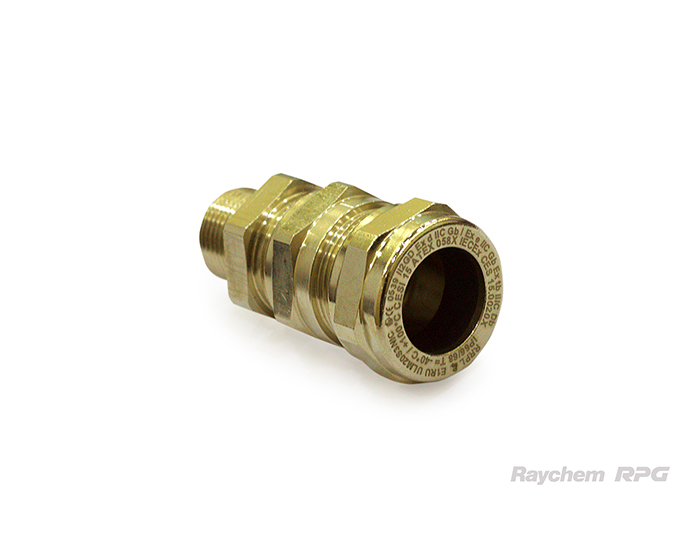

Ex metal cable glands suitable for armoured and wired cables in Group I (Mining) and Group II (Surface). Raychem RPG supplies cable glands suitable for Ex Hazardous areas in which flammable substances (Oil & Gas) substantially exist, making it potentially explosive atmospheres. Our cable glands are compatible for equipment/enclosures/junction boxes of Group II (Surface Industries).
- Design is specific for non-explosion-hazard zones
- Approved in accordance with directive 2014/34/EU
- Applicable for Group II (Surface Industries)
- Equipment Protection up to Ex d, Ex e and Ex tb
- High IP rating upto IP68
- High impact resistance
- more...
- Catalog
- Add to List
- Enquire Now
Chat with UsSpecifications
|
Metric: |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
|
Part Numbers |
Size TD ISO Pitch 1,5 |
Cable glands dimensions |
Clamping Range |
||||||
|
H min |
TL min |
SW 1 |
SW 2 |
SW 3 |
D2 |
D |
D1 |
||
|
ULM12S1 |
M12x1.5 |
48.5 |
15 |
22 |
26 |
26 |
29 |
3,0-7,5 |
6,0-12,0 |
|
ULM16S1 |
M16x1,5 |
47.5 |
16 |
22 |
26 |
26 |
29 |
3,0-8,5 |
6,0-12,0 |
|
ULM16S2 |
M16x1,5 |
50 |
16 |
25 |
29 |
29 |
31.5 |
6,0-12,0 |
8,5-16,0 |
|
ULM20S1 |
M20x1,5 |
47.5 |
16 |
24 |
26 |
26 |
29 |
3,0-8,5 |
6,0-12,0 |
|
ULM20S2 |
M20x1,5 |
49 |
16 |
25 |
29 |
29 |
31.5 |
6,0-12,0 |
8,5-16,0 |
|
ULM20S3 |
M20x1,5 |
52 |
16 |
28 |
30 |
32 |
35 |
8,5-14,5 |
12,0-20,0 |
|
ULM25X1 |
M25x1,5 |
47.5 |
18 |
29 |
26 |
26 |
29 |
3,0-8,5 |
6,0-12,0 |
|
ULM25S1 |
M25x1,5 |
50.5 |
18 |
29 |
29 |
29 |
31.5 |
6,0-12,0 |
8,5-16,0 |
|
ULM25S2 |
M25x1,5 |
54.5 |
18 |
32 |
34 |
34 |
37 |
8,5-16,0 |
12,0-21,0 |
|
ULM25S3 |
M25x1,5 |
60.5 |
18 |
36 |
40 |
40 |
44 |
12,0-20,0 |
16,0-26,0 |
|
ULM32X1 |
M32x1,5 |
50.5 |
18 |
36 |
29 |
29 |
31.5 |
6,0-12,0 |
8,5-16,0 |
|
ULM32S1 |
M32x1,5 |
62 |
18 |
40 |
40 |
40 |
44 |
12,0-20,0 |
16,0-26,0 |
|
ULM32S2 |
M32x1,5 |
78.5 |
18 |
48 |
52 |
52 |
57 |
15,0-26,0 |
20,0-33,0 |
|
ULM40X1 |
M40x1,5 |
62 |
18 |
45 |
40 |
40 |
44 |
12,0-20,0 |
16,0-26,0 |
|
ULM40S1 |
M40x1,5 |
78.5 |
18 |
48 |
52 |
52 |
57 |
15,0-26,0 |
20,0-33,0 |
|
ULM40S2 |
M40x1,5 |
89.5 |
18 |
55 |
60 |
60 |
66 |
20,0-32,0 |
29,0-41,0 |
|
ULM50X1 |
M50x1,5 |
78.4 |
18 |
54 |
52 |
52 |
57 |
15,0-26,0 |
20,0-33,0 |
|
ULM50X2 |
M50x1,5 |
89.9 |
18 |
55 |
60 |
60 |
66 |
20,0-32,0 |
29,0-41,0 |
|
ULM50S1 |
M50x1,5 |
96.5 |
18 |
60 |
70 |
75 |
82 |
22,0-35,0 |
33,0-48,0 |
|
ULM50S2 |
M50x1,5 |
100 |
18 |
70 |
70 |
74 |
83 |
27,0-41,0 |
36,0-52,0 |
|
ULM63X1 |
M63x1,5 |
96.5 |
20 |
68 |
70 |
75 |
82 |
22,0-35,0 |
33,0-48,0 |
|
ULM63X2 |
M63x1,5 |
100 |
20 |
70 |
70 |
74 |
83 |
27,0-41,0 |
36,0-52,0 |
|
ULM63S1 |
M63x1,5 |
106 |
20 |
75 |
80 |
80 |
89.5 |
35,0-45,0 |
43,0-57,0 |
|
ULM63S2 |
M63x1,5 |
108 |
20 |
85 |
85 |
85 |
94 |
40,0-52,0 |
47,0-60,0 |
|
ULM75X1 |
M75x1,5 |
106 |
20 |
85 |
80 |
80 |
89.5 |
35,0-45,0 |
43,0-57,0 |
|
ULM75S1 |
M75x1,5 |
108 |
20 |
85 |
85 |
85 |
94 |
40,0-52,0 |
47,0-60,0 |
|
ULM75S2 |
M75x1,5 |
125 |
20 |
90 |
95 |
100 |
110.5 |
45,0-60,0 |
54,0-70,0 |
|
ULM90X1 |
M90x1,5 |
108 |
20 |
100 |
85 |
85 |
94 |
40,0-52,0 |
47,0-60,0 |
|
ULM90S1 |
M90x1,5 |
124 |
20 |
90 |
95 |
100 |
110.5 |
45,0-60,0 |
54,0-70,0 |
|
ULM90S2 |
M90x1,5 |
154 |
20 |
110 |
115 |
115 |
127 |
60,0-72,0 |
63,0-80,0 |
|
ULM1101 |
M110x1,5 |
124 |
20 |
120 |
95 |
100 |
110.5 |
45,0-60,0 |
54,0-70,0 |
|
ULM1102 |
M110x1,5 |
154 |
20 |
120 |
115 |
115 |
127 |
60,0-72,0 |
63,0-80,0 |
|
NPT: |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
|
Part Numbers |
Size TD |
Cable glands dimensions |
Clamping Range |
||||||
|
H min |
TL min |
SW 1 |
SW 2 |
SW 3 |
D2 |
D |
D1 |
||
|
ULN14S1 |
1/4" |
48 |
16 |
22 |
26 |
26 |
29 |
3,0-8,0 |
6,0-12,0 |
|
ULN38S1 |
3/8" |
47.5 |
16 |
22 |
26 |
26 |
29 |
3,0-8,5 |
6,0-12,0 |
|
ULN38S2 |
3/8" |
50 |
16 |
25 |
29 |
29 |
31.5 |
6,0-12,0 |
8,5-16,0 |
|
ULN12S1 |
1/2" |
47.5 |
21 |
24 |
26 |
26 |
29 |
3,0-8,5 |
6,0-12,0 |
|
ULN12S2 |
1/2" |
49 |
21 |
25 |
29 |
29 |
31.5 |
6,0-12,0 |
8,5-16,0 |
|
ULN12S3 |
1/2" |
52 |
21 |
28 |
30 |
32 |
35 |
8,5-14,5 |
12,0-20,0 |
|
ULN34X1 |
3/4" |
47.5 |
21 |
29 |
26 |
26 |
29 |
3,0-8,5 |
6,0-12,0 |
|
ULN34S1 |
3/4" |
50.5 |
21 |
29 |
29 |
29 |
31.5 |
6,0-12,0 |
8,5-16,0 |
|
ULN34S2 |
3/4" |
54.5 |
21 |
32 |
34 |
34 |
37 |
8,5-16,0 |
12,0-21,0 |
|
ULN34S3 |
3/4" |
60.5 |
21 |
36 |
40 |
40 |
44 |
12,0-20,0 |
16,0-26,0 |
|
ULN01X1 |
1" |
50.5 |
26 |
36 |
29 |
29 |
31.5 |
6,0-12,0 |
8,5-16,0 |
|
ULN01S1 |
1" |
62 |
26 |
40 |
40 |
40 |
44 |
12,0-20,0 |
16,0-26,0 |
|
ULN01S2 |
1" |
78.5 |
26 |
48 |
52 |
52 |
57 |
15,0-26,0 |
20,0-33,0 |
|
ULN114X1 |
1 1/4" |
62 |
28 |
45 |
40 |
40 |
44 |
12,0-20,0 |
16,0-26,0 |
|
ULN1141 |
1 1/4" |
78.5 |
28 |
48 |
52 |
52 |
57 |
15,0-26,0 |
20,0-33,0 |
|
ULN1142 |
1 1/4" |
89.5 |
28 |
55 |
60 |
60 |
66 |
20,0-32,0 |
29,0-41,0 |
|
ULN112X1 |
1 1/2" |
78.4 |
28 |
54 |
52 |
52 |
57 |
15,0-26,0 |
20,0-33,0 |
|
ULN112X2 |
1 1/2" |
88.7 |
28 |
55 |
60 |
60 |
66 |
20,0-32,0 |
29,0-41,0 |
|
ULN1121 |
1 1/2" |
96.5 |
28 |
60 |
70 |
75 |
82 |
22,0-35,0 |
33,0-48,0 |
|
ULN1122 |
1 1/2" |
100 |
28 |
70 |
70 |
74 |
83 |
27,0-41,0 |
36,0-52,0 |
|
ULN02X1 |
2" |
96.5 |
28 |
68 |
70 |
75 |
82 |
22,0-35,0 |
33,0-48,0 |
|
ULN02X2 |
2" |
100 |
28 |
70 |
70 |
74 |
83 |
27,0-41,0 |
36,0-52,0 |
|
ULN02S1 |
2" |
106 |
28 |
75 |
80 |
80 |
89.5 |
35,0-45,0 |
43,0-57,0 |
|
ULN02S2 |
2" |
108 |
28 |
85 |
85 |
85 |
94 |
40,0-52,0 |
47,0-60,0 |
|
ULN212X1 |
2 1/2" |
105.5 |
41 |
80 |
80 |
80 |
89.5 |
35,0-45,0 |
43,0-57,0 |
|
ULN2121 |
2 1/2" |
108 |
41 |
85 |
85 |
85 |
94 |
40,0-52,0 |
47,0-60,0 |
|
ULN2122 |
2 1/2" |
125 |
41 |
90 |
95 |
100 |
110.5 |
45,0-60,0 |
54,0-70,0 |
|
ULN03X1 |
3" |
108 |
43 |
95 |
85 |
85 |
94 |
40,0-52,0 |
47,0-60,0 |
|
ULN03S1 |
3" |
124 |
43 |
90 |
95 |
100 |
110.5 |
45,0-60,0 |
54,0-70,0 |
|
ULN03S2 |
3" |
154 |
43 |
110 |
115 |
115 |
127 |
60,0-72,0 |
63,0-80,0 |
|
ULN3121 |
3 1/2" |
124 |
43 |
110 |
95 |
100 |
110.5 |
45,0-60,0 |
54,0-70,0 |
|
ULN3122 |
3 1/2" |
154 |
43 |
110 |
115 |
115 |
127 |
60,0-72,0 |
63,0-80,0 |
|
UL…..LT: |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
|
Part Numbers |
Size TD |
Cable glands dimensions |
Clamping Range |
||||||
|
H min |
TL min |
SW 1 |
SW 2 |
SW 3 |
D2 |
D |
D1 |
||
|
ULM20LT1 |
M20x1,5 |
57 |
16 |
28 |
30 |
32 |
35 |
8,5-14,5 |
12,0-20,0 |
|
ULM25LT1 |
M25x1,5 |
57 |
18 |
29 |
30 |
32 |
35 |
8,5-14,5 |
12,0-20,0 |
|
ULM25LT2 |
M25x1,5 |
59.5 |
18 |
32 |
34 |
34 |
37 |
8,5-16,0 |
12,0-21,0 |
|
ULM32LT1 |
M32x1,5 |
59.5 |
18 |
36 |
34 |
34 |
37 |
8,5-16,0 |
12,0-21,0 |
|
ULM90LT1 |
M90x2,0 |
154 |
20 |
115 |
120 |
120 |
134 |
70,0-82,0 |
78,0-90,0 |
|
ULM100LT1 |
M100x2,0 |
164.5 |
20 |
135 |
135 |
135 |
150 |
80,0-92,0 |
88,0-100,0 |
|
ULM110LT1 |
M110x2,0 |
173.5 |
20 |
145 |
145 |
145 |
162 |
90,0-101,0 |
98,0-110,0 |
|
ULM130LT1 |
M130x2.0 |
195.5 |
24 |
160 |
160 |
160 |
176 |
100,0-115,0 |
109,0-123,0 |
|
NPT: |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
|
Part Numbers |
Size |
Cable glands dimensions |
Clamping Range |
||||||
|
H min |
TL min |
SW 1 |
SW 2 |
SW 3 |
D2 |
D |
D1 |
||
|
ULN12LT1 |
1/2" |
57 |
21 |
28 |
30 |
32 |
35 |
8,5-14,5 |
12,0-20,0 |
|
ULN34LT1 |
3/4" |
57 |
21 |
29 |
30 |
32 |
35 |
8,5-14,5 |
12,0-20,0 |
|
ULN34LT2 |
3/4" |
59.5 |
21 |
32 |
34 |
34 |
37 |
8,5-16,0 |
12,0-21,0 |
|
ULN01LT1 |
1" |
59.5 |
26 |
36 |
34 |
34 |
37 |
8,5-16,0 |
12,0-21,0 |
|
ULN312T1 |
3 1/2" |
154.5 |
43 |
115 |
120 |
120 |
134 |
70,0-82,0 |
78,0-90,0 |
|
ULN04T1 |
4" |
164.5 |
45 |
135 |
135 |
135 |
150 |
80,0-92,0 |
88,0-100,0 |
|
ULN04T2 |
4" |
173.5 |
45 |
145 |
145 |
145 |
162 |
90,0-101,0 |
98,0-110,0 |
|
ULN05T1 |
5" |
195.5 |
47 |
160 |
160 |
160 |
176 |
100,0-115,0 |
109,0-123,0 |
Technical Information
|
Parameters |
ATEX |
|
|---|---|---|
|
E1RU |
||
|
RAW MATERIAL |
Brass, Stainless steel 316/304/303, Nickel plated Brass, Galvanized steel, Aluminium |
|
|
IP (IEC 60529) |
IP 66/68 |
|
|
Mechanical Specifications |
Impact Category |
7 Joules |
|
Service Temperature |
Chloroprene: - 40°C to + 100°C |
|
|
Seal |
Double |
|
|
Accessories |
Shrouds/locknuts/earth tags/washers |
|
|
Cable type |
Armoured |
|
|
Thread types |
Metric, NPT Other threads available on request |
|
|
Certifications |
ATEX |
|
Technical InformationCertifications
IECEx certified
More info. Available on request
Ex certified
More info. Available on request
EAC Certified
More info. Available on request
UL Listed
More info available on request
