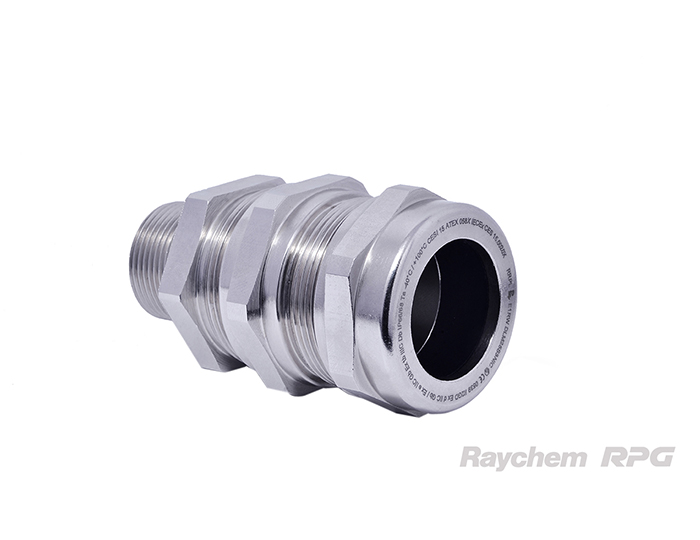

Ex metal cable glands suitable for armoured cables in Group I (Mining) and Group II (Surface). Raychem RPG supplies cable glands suitable for Ex Hazardous areas in which flammable substances (Oil & Gas) substantially exist, making it potentially explosive atmospheres. Our cable glands are compatible for equipment/enclosures/junction boxes of Group II (Surface Industries) with Equipment Protection.
- Designs specific for non-explosion-hazard zones
- Approved in accordance with directive 2014/34/EU
- Applicable for both Group II (Surface Industries) and Group I (Mining Industries)
- Equipment Protection up to Ex d, Ex e and Ex tb
- High IP rating upto IP68
- High impact resistance
- more...
- Catalog
- Add to List
- Enquire Now
Chat with UsSpecifications
|
Metric: |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
|
Part Numbers |
Size TD |
Cable glands dimensions |
Clamping Range |
||||||
|
H min |
TL min |
SW1 |
SW 2 |
SW 3 |
D2 |
D |
D1 |
||
|
DLM12S1 |
M12x1.5 |
60.5 |
15 |
17 |
17 |
17 |
18.9 |
2,0-4,0 |
3,0-5,5 |
|
DLM12S2 |
M12x1.5 |
48.5 |
15 |
22 |
26 |
26 |
29 |
3,0-7,5 |
6,0-12,0 |
|
DLM16S1 |
M16x1.5 |
47.5 |
16 |
22 |
26 |
26 |
29 |
3,0-8,5 |
6,0-12,0 |
|
DLM16S2 |
M16x1.5 |
50 |
16 |
25 |
29 |
29 |
31.5 |
6,0-12,0 |
8,5-16,0 |
|
DLM20S1 |
M20x1.5 |
47.5 |
16 |
24 |
26 |
26 |
29 |
3,0-8,5 |
6,0-12,0 |
|
DLM20S2 |
M20x1.5 |
49 |
16 |
25 |
29 |
29 |
31.5 |
6,0-12,0 |
8,5-16,0 |
|
DLM20S3 |
M20x1.5 |
52 |
16 |
28 |
30 |
32 |
35 |
8,5-14,5 |
12,0-20,0 |
|
DLM25X1 |
M25x1.5 |
47.5 |
18 |
29 |
26 |
26 |
29 |
3,0-8,5 |
6,0-12,0 |
|
DLM25S1 |
M25x1.5 |
50.5 |
18 |
29 |
29 |
29 |
31.5 |
6,0-12,0 |
8,5-16,0 |
|
DLM25S2 |
M25x1.5 |
54.5 |
18 |
32 |
34 |
34 |
37 |
8,5-16,0 |
12,0-21,0 |
|
DLM25S3 |
M25x1.5 |
60.5 |
18 |
36 |
40 |
40 |
44 |
12,0-20,0 |
16,0-26,0 |
|
DLM32X1 |
M32x1.5 |
50.5 |
18 |
36 |
29 |
29 |
31.5 |
6,0-12,0 |
8,5-16,0 |
|
DLM32S1 |
M32x1.5 |
62 |
18 |
40 |
40 |
40 |
44 |
12,0-20,0 |
16,0-26,0 |
|
DLM32S2 |
M32x1.5 |
78.5 |
18 |
48 |
52 |
52 |
57 |
15,0-26,0 |
20,0-33,0 |
|
DLM40X1 |
M40x1.5 |
62 |
18 |
45 |
40 |
40 |
44 |
12,0-20,0 |
16,0-26,0 |
|
DLM40S1 |
M40x1.5 |
78.5 |
18 |
48 |
52 |
52 |
57 |
15,0-26,0 |
20,0-33,0 |
|
DLM40S2 |
M40x1.5 |
89.5 |
18 |
55 |
60 |
60 |
66 |
20,0-32,0 |
29,0-41,0 |
|
DLM50X1 |
M50x1.5 |
78.4 |
18 |
54 |
52 |
52 |
57 |
15,0-26,0 |
20,0-33,0 |
|
DLM50X2 |
M50x1.5 |
89.9 |
18 |
55 |
60 |
60 |
66 |
20,0-32,0 |
29,0-41,0 |
|
DLM50S1 |
M50x1.5 |
96.5 |
18 |
60 |
70 |
75 |
82 |
22,0-35,0 |
33,0-48,0 |
|
DLM50S2 |
M50x1.5 |
100 |
18 |
70 |
70 |
74 |
83 |
27,0-41,0 |
36,0-52,0 |
|
DLM63X1 |
M63x1.5 |
96.5 |
20 |
68 |
70 |
75 |
82 |
22,0-35,0 |
33,0-48,0 |
|
DLM63X2 |
M63x1.5 |
100 |
20 |
70 |
70 |
74 |
83 |
27,0-41,0 |
36,0-52,0 |
|
DLM63S1 |
M63x1.5 |
106 |
20 |
75 |
80 |
80 |
89.5 |
35,0-45,0 |
43,0-57,0 |
|
DLM63S2 |
M63x1.5 |
108 |
20 |
85 |
85 |
85 |
94 |
40,0-52,0 |
47,0-60,0 |
|
DLM63S3 |
M63x1.5 |
124 |
20 |
90 |
95 |
100 |
110.5 |
45,0-56,0 |
54,0-70,0 |
|
DLM75X1 |
M75x1.5 |
106 |
20 |
85 |
80 |
80 |
89.5 |
35,0-45,0 |
43,0-57,0 |
|
DLM75S1 |
M75x1.5 |
108 |
20 |
85 |
85 |
85 |
94 |
40,0-52,0 |
47,0-60,0 |
|
DLM75S2 |
M75x1.5 |
125 |
20 |
90 |
95 |
100 |
110.5 |
45,0-60,0 |
54,0-70,0 |
|
DLM90X1 |
M90x1.5 |
108 |
20 |
100 |
85 |
85 |
94 |
40,0-52,0 |
47,0-60,0 |
|
DLM90S1 |
M90x1.5 |
124 |
20 |
95 |
95 |
100 |
110.5 |
45,0-60,0 |
54,0-70,0 |
|
DLM90S2 |
M90x1.5 |
154 |
20 |
110 |
115 |
115 |
127 |
60,0-72,0 |
63,0-80,0 |
|
DLM110S1 |
M110x1.5 |
124 |
20 |
120 |
95 |
100 |
110.5 |
45,0-60,0 |
54,0-70,0 |
|
DLM110S2 |
M110x1.5 |
154 |
20 |
120 |
115 |
115 |
127 |
60,0-72,0 |
63,0-80,0 |
|
NPT: |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
|
Part Numbers |
Size TD |
Cable glands dimensions |
Clamping Range |
||||||
|
H min |
TL min |
SW1 |
SW 2 |
SW 3 |
D2 |
D |
D1 |
||
|
DLN14S1 |
1/4" |
60.5 |
16 |
17 |
17 |
17 |
18.9 |
2,0-4,0 |
3.0-5,5 |
|
DLN14S2 |
1/4" |
48 |
16 |
22 |
26 |
26 |
29 |
3,0-8,0 |
6,0-12,0 |
|
DLN38S1 |
3/8" |
47.5 |
16 |
22 |
26 |
26 |
29 |
3,0-8,5 |
6,0-12,0 |
|
DLN38S2 |
3/8" |
50 |
16 |
25 |
29 |
29 |
31.5 |
6,0-12,0 |
8,5-16,0 |
|
DLN12S1 |
1/2" |
47.5 |
21 |
24 |
26 |
26 |
29 |
3,0-8,5 |
6,0-12,0 |
|
DLN12S2 |
1/2" |
49 |
21 |
25 |
29 |
29 |
31.5 |
6,0-12,0 |
8,5-16,0 |
|
DLN12S3 |
1/2" |
52 |
21 |
28 |
30 |
32 |
35 |
8,5-14,5 |
12,0-20,0 |
|
DLN34X1 |
3/4" |
47.5 |
21 |
29 |
26 |
26 |
29 |
3,0-8,5 |
6,0-12,0 |
|
DLN34S1 |
3/4" |
50.5 |
21 |
29 |
29 |
29 |
31.5 |
6,0-12,0 |
8,5-16,0 |
|
DLN34S2 |
3/4" |
54.5 |
21 |
32 |
34 |
34 |
37 |
8,5-16,0 |
12,0-21,0 |
|
DLN34S3 |
3/4" |
60.5 |
21 |
36 |
40 |
40 |
44 |
12,0-20,0 |
16,0-26,0 |
|
DLN01X1 |
1" |
50.5 |
26 |
36 |
29 |
29 |
31.5 |
6,0-12,0 |
8,5-16,0 |
|
DLN01S1 |
1" |
62 |
26 |
40 |
40 |
40 |
44 |
12,0-20,0 |
16,0-26,0 |
|
DLN01S2 |
1" |
78.5 |
26 |
48 |
52 |
52 |
57 |
15,0-26,0 |
20,0-33,0 |
|
DLN114X1 |
1 1/4" |
62 |
28 |
45 |
40 |
40 |
44 |
12,0-20,0 |
16,0-26,0 |
|
DLN1141 |
1 1/4" |
78.5 |
28 |
48 |
52 |
52 |
57 |
15,0-26,0 |
20,0-33,0 |
|
DLN1142 |
1 1/4" |
89.5 |
28 |
55 |
60 |
60 |
66 |
20,0-32,0 |
29,0-41,0 |
|
DLN112X1 |
1 1/2" |
78.4 |
28 |
54 |
52 |
52 |
57 |
15,0-26,0 |
20,0-33,0 |
|
DLN112X2 |
1 1/2" |
88.7 |
28 |
55 |
60 |
60 |
66 |
20,0-32,0 |
29,0-41,0 |
|
DLN1121 |
1 1/2" |
96.5 |
28 |
60 |
70 |
75 |
82 |
22,0-35,0 |
33,0-48,0 |
|
DLN1122 |
1 1/2" |
100 |
28 |
70 |
70 |
74 |
83 |
27,0-41,0 |
36,0-52,0 |
|
DLN02X1 |
2" |
96.5 |
28 |
68 |
70 |
75 |
82 |
22,0-35,0 |
33,0-48,0 |
|
DLN02X2 |
2" |
100 |
28 |
70 |
70 |
74 |
83 |
27,0-41,0 |
36,0-52,0 |
|
DLN02S1 |
2" |
106 |
28 |
75 |
80 |
80 |
89.5 |
35,0-45,0 |
43,0-57,0 |
|
DLN02S2 |
2" |
108 |
28 |
85 |
85 |
85 |
94 |
40,0-52,0 |
47,0-60,0 |
|
DLN02S3 |
2" |
124 |
28 |
90 |
95 |
100 |
110.5 |
45,0-52,0 |
54,0-70,0 |
|
DLN212X1 |
2 1/2" |
105.5 |
41 |
80 |
80 |
80 |
89.5 |
35,0-45,0 |
43,0-57,0 |
|
DLN2121 |
2 1/2" |
108 |
41 |
85 |
85 |
85 |
94 |
40,0-52,0 |
47,0-60,0 |
|
DLN2122 |
2 1/2" |
125 |
41 |
90 |
95 |
100 |
110.5 |
45,0-60,0 |
54,0-70,0 |
|
DLN03X1 |
3" |
108 |
43 |
95 |
85 |
85 |
94 |
40,0-52,0 |
47,0-60,0 |
|
DLN03S1 |
3" |
124 |
43 |
90 |
95 |
100 |
110.5 |
45,0-60,0 |
54,0-70,0 |
|
DLN03S2 |
3" |
154 |
43 |
110 |
115 |
115 |
127 |
60,0-72,0 |
63,0-80,0 |
|
DLN312X1 |
3 1/2" |
124 |
43 |
110 |
95 |
100 |
110.5 |
45,0-60,0 |
54,0-70,0 |
|
DLN312X2 |
3 1/2" |
154 |
43 |
110 |
115 |
115 |
127 |
60,0-72,0 |
63,0-80,0 |
|
DL……LT |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
|
Part Numbers |
Size |
Cable glands dimensions |
Clamping Range |
||||||
|
H min |
TL min |
SW 1 |
SW 2 |
SW 3 |
D2 |
D |
D1 |
||
|
DLM20LT1 |
M20x1,5 |
57 |
16 |
28 |
30 |
32 |
35 |
8,5-14,5 |
12,0-20,0 |
|
DLM25LT1 |
M25x1,5 |
57 |
18 |
29 |
30 |
32 |
35 |
8,5-14,5 |
12,0-20,0 |
|
DLM25LT2 |
M25x1,5 |
59.5 |
18 |
32 |
34 |
34 |
37 |
8,5-16,0 |
12,0-21,0 |
|
DLM32LT1 |
M32x1,5 |
59.5 |
18 |
36 |
34 |
34 |
37 |
8,5-16,0 |
12,0-21,0 |
|
DLM90LT1 |
M90x2,0 |
154.5 |
20 |
115 |
120 |
120 |
134 |
70,0-82,0 |
78,0-90,0 |
|
DLM100LT1 |
M100x2,0 |
164.5 |
20 |
135 |
135 |
135 |
150 |
80,0-92,0 |
88,0-100,0 |
|
DLM110LT1 |
M110x2,0 |
173.5 |
20 |
145 |
145 |
145 |
162 |
90,0-101,0 |
98,0-110,0 |
|
DLM130LT1 |
M130x2.0 |
195.5 |
24 |
160 |
160 |
160 |
176 |
100,0-115,0 |
109,0-123,0 |
|
NPT: |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
|
Part Numbers |
Size |
Cable glands dimensions |
Clamping Range |
||||||
|
H min |
TL min |
SW 1 |
SW 2 |
SW 3 |
D2 |
D |
D1 |
||
|
DLN12LT1 |
1/2" |
57 |
21 |
28 |
30 |
32 |
35 |
8,5-14,5 |
12,0-20,0 |
|
DLN34LT1 |
3/4" |
57 |
21 |
29 |
30 |
32 |
35 |
8,5-14,5 |
12,0-20,0 |
|
DLN34LT2 |
3/4" |
59.5 |
21 |
32 |
34 |
34 |
37 |
8,5-16,0 |
12,0-21,0 |
|
DLN01LT1 |
1" |
59.5 |
26 |
36 |
34 |
34 |
37 |
8,5-16,0 |
12,0-21,0 |
|
DLN312T1 |
3 1/2" |
154.5 |
43 |
115 |
120 |
120 |
134 |
70,0-82,0 |
78,0-90,0 |
|
DLN04T1 |
4" |
164.5 |
45 |
135 |
135 |
135 |
150 |
80,0-92,0 |
88,0-100,0 |
|
DLN04T2 |
4" |
173.5 |
45 |
145 |
145 |
145 |
162 |
90,0-101,0 |
98,0-110,0 |
|
DLN05T1 |
5" |
195.5 |
47 |
160 |
160 |
160 |
176 |
100,0-115,0 |
109,0-123,0 |
Technical Information
|
Parameters |
ATEX |
|
|---|---|---|
|
E1RW |
||
|
RAW MATERIAL |
Brass, Stainless steel 316/304/303, Nickel plated Brass, Galvanized steel, Aluminium |
|
|
IP (IEC 60529) |
IP 66/68 |
|
|
Mechanical Specifications |
Impact Category |
7 Joules |
|
Service Temperature |
Chloroprene: - 40°C to +100°C |
|
|
Seal |
Double |
|
|
Accessories |
Shrouds/locknuts/earth tags/washers |
|
|
Cable type |
Armoured |
|
|
Thread types |
Metric, NPT Other threads available on request |
|
|
Certifications |
ATEX |
|
Technical InformationCertifications
IECEx certified
More info. Available on request
Ex certified
More info. Available on request
EAC Certified
More info. Available on request
UL Listed
More info available on request
