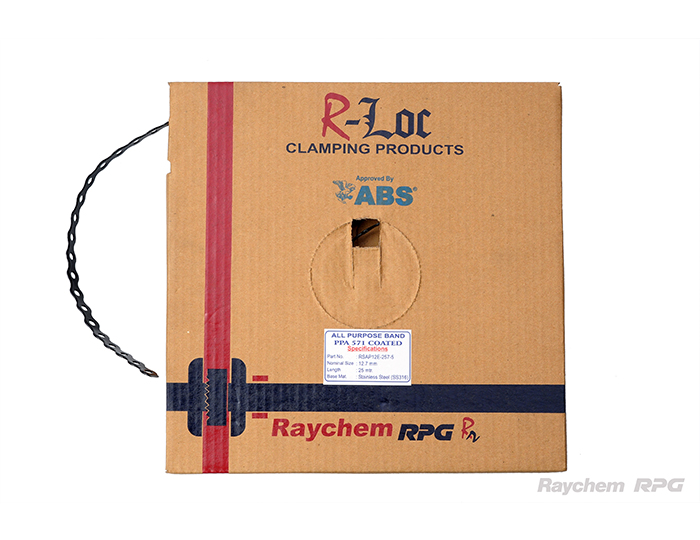

Perforated bands with evenly spaced holes & slots, enables fastening with nut & bolt, screw or cable tie.
- All Purpose Bands are made from SS316/SS304 with metallic finish or PPA 571 coating.
- The perforated bands have evenly spaced holes and slots to enable fastening with nut & bolt, screw or cable tie.
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|
Part Code |
Width |
Thickness |
Length |
Diameter of Hole |
|||||
|---|---|---|---|---|---|---|---|---|---|
|
SS316 |
SS304 |
In |
mm |
In |
mm |
Feet |
Mtrs |
In |
mm |
|
All Purpose PPA 571 Coated Bands |
|||||||||
|
RSAP12E257-5 |
RSAP12F257-5 |
1/2 |
12.7 |
0.04 |
1.1 |
82.5 |
25 |
1/5 |
5 |
|
RSAP19E257-5 |
RSAP19F257-5 |
3/4 |
19 |
0.04 |
1.1 |
82.5 |
25 |
2/7 |
7 |
|
All Purpose Uncoated Bands |
|||||||||
|
RSAU12E257-5 |
RSAU12F257-5 |
1/2 |
12.7 |
0.03 |
0.75 |
82.5 |
25 |
1/5 |
5 |
|
RSAU19E257-5 |
RSAU19F257-5 |
3/4 |
19 |
0.03 |
0.75 |
82.5 |
25 |
2/7 |
7 |
Technical Information
| Name | Value |
|---|---|
| Material | SS316 & SS304 |
| Packaging | Plastic Tote Dispenser |
| Package Quantity | 25 Mtr./Roll |
| Surface Finish | A) Uncoated: Metallic Finish B) Coated: PPA 571 Coating |
