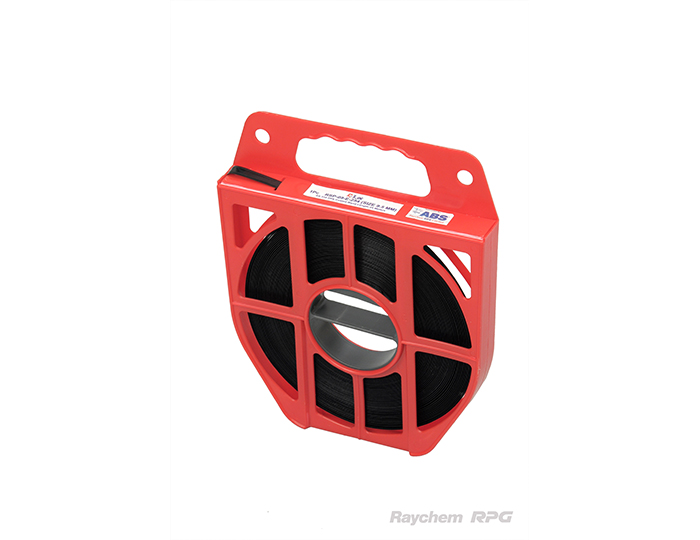

Coated with PPA 571 thermoplastic coating powder, provides long lasting solution for exterior application
- PPA 571, a thermoplastic coating powder, provides long-lasting coating to stainless steel.
- It is resistant to adverse weather conditions, detergents, salt spray and typical airborne pollutants.
- It also provides excellent resistance to stress cracking on bending, good abrasion and impact.
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
| Part Code | Width | Thickness | Length | Avg. Breaking Strength | Type of Packaging | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| SS304 | SS316 | In | mm | In | mm | Feet | Mtrs | N | lbs | |
| RSP06F254C | RSP06E254C | 1/4 | 6.5 | 0.04 | 1.1 | 82.5 | 25 | 1490 | 335 | Corrugated |
| RSP06F254T | RSP06E254T | 1/4 | 6.5 | 0.04 | 1.1 | 82.5 | 25 | 1490 | 335 | Red Tote |
| RSP09F254C | RSP09E254C | 3/8 | 9.5 | 0.04 | 1.1 | 82.5 | 25 | 2250 | 505 | Corrugated |
| RSP09F254T | RSP09E254T | 3/8 | 9.5 | 0.04 | 1.1 | 82.5 | 25 | 2250 | 505 | Red Tote |
| RSP12F254C | RSP12E254C | 1/2 | 12.7 | 0.04 | 1.1 | 82.5 | 25 | 2980 | 670 | Corrugated |
| RSP12F254T | RSP12E254T | 1/2 | 12.7 | 0.04 | 1.1 | 82.5 | 25 | 2980 | 670 | Yellow Tote |
| RSP16F254C | RSP16E254C | 5/8 | 16 | 0.04 | 1.1 | 82.5 | 25 | 3740 | 840 | Corrugated |
| RSP16F254T | RSP16E254T | 5/8 | 16 | 0.04 | 1.1 | 82.5 | 25 | 3740 | 840 | Grey Tote |
| RSP19F254C | RSP19E254C | 3/4 | 19 | 0.04 | 1.1 | 82.5 | 25 | 4450 | 1000 | Corrugated |
| RSP19F254T | RSP19E254T | 3/4 | 19 | 0.04 | 1.1 | 82.5 | 25 | 4450 | 1000 | Blue Tote |
Technical Information
| Parameter | Value |
|---|---|
| Material | SS316 & SS304 |
| Packaging | Plastic Tote Dispenser/Corrugated Box |
| Package Quantity |
25 Mtr./Roll Surface |
| Finish |
PPA 571 Coating |
| Application Tool |
RR-B04 |
Certifications
ABS Certified
More info available on request
DNV Certified
More info available on request
