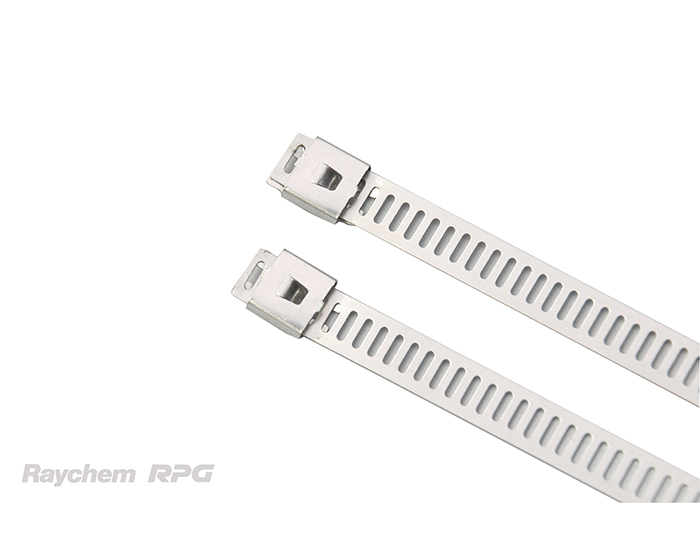

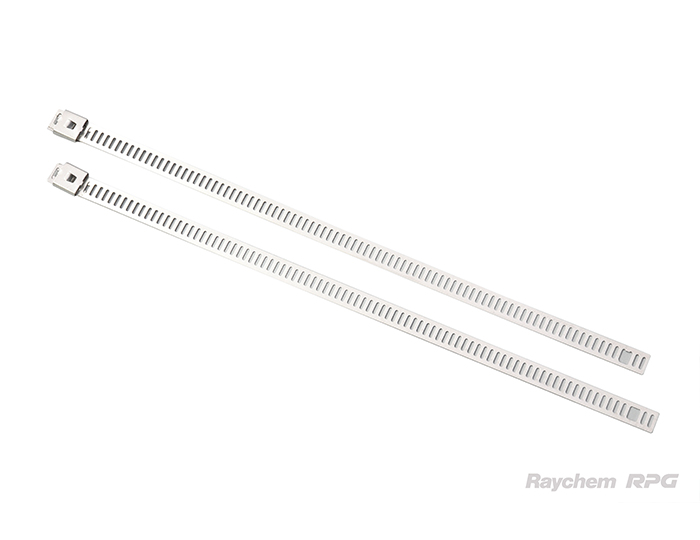

Ladder Type Cable ties with metallic finish, using Ratchet Mechanism.
- Ladder Type Cable Ties are designed with Ratchet Mechanism System.
- These Cable Ties are resistant to corrosion and suitable for indoor, outdoor or harsh environments.
- Catalog
- Add to List
- Enquire Now
Please connect with us
Email Us ebu@raychemrpg.com
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|
Part No. for Stainless Steel Grade |
Width |
Length |
Thickness |
Max. Bundling Diameter |
Min. Loop Tensile Strength |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SS304 |
SS316 |
In |
mm |
In |
mm |
In |
mm |
In |
mm |
N |
lbs |
|
Ladder Type - 7 mm width |
|||||||||||
|
LU74-150 |
LU76-150 |
0.28 |
7 |
6 |
150 |
0.012 |
0.3 |
1.3 |
34 |
445 |
100 |
|
LU74-200 |
LU76-200 |
0.28 |
7 |
8 |
200 |
0.012 |
0.3 |
2 |
50 |
445 |
100 |
|
LU74-225 |
LU76-225 |
0.28 |
7 |
9 |
225 |
0.012 |
0.3 |
2.3 |
58 |
445 |
100 |
|
LU74-250 |
LU76-250 |
0.28 |
7 |
10 |
250 |
0.012 |
0.3 |
2.6 |
66 |
445 |
100 |
|
LU74-300 |
LU76-300 |
0.28 |
7 |
12 |
300 |
0.012 |
0.3 |
3.1 |
80 |
445 |
100 |
|
LU74-360 |
LU76-360 |
0.28 |
7 |
14 |
360 |
0.012 |
0.3 |
3.9 |
99 |
445 |
100 |
|
LU74-450 |
LU76-450 |
0.28 |
7 |
18 |
450 |
0.012 |
0.3 |
5 |
128 |
445 |
100 |
|
LU74-600 |
LU76-600 |
0.28 |
7 |
24 |
600 |
0.012 |
0.3 |
6.9 |
176 |
445 |
100 |
|
LU74-610 |
LU76-610 |
0.28 |
7 |
24 |
610 |
0.012 |
0.3 |
7 |
179 |
445 |
100 |
|
LU74-750 |
LU76-750 |
0.28 |
7 |
30 |
750 |
0.012 |
0.3 |
8.8 |
224 |
445 |
100 |
|
LU74-1000 |
LU76-1000 |
0.28 |
7 |
39 |
1000 |
0.012 |
0.3 |
11.9 |
303 |
445 |
100 |
|
Ladder Type - 12 mm width |
|||||||||||
|
LU124-150 |
LU126-150 |
0.47 |
12 |
6 |
150 |
0.012 |
0.3 |
1.3 |
34 |
1112 |
250 |
|
LU124-200 |
LU126-200 |
0.47 |
12 |
8 |
200 |
0.012 |
0.3 |
2 |
50 |
1112 |
250 |
|
LU124-225 |
LU126-225 |
0.47 |
12 |
9 |
225 |
0.012 |
0.3 |
2.3 |
58 |
1112 |
250 |
|
LU124-250 |
LU126-250 |
0.47 |
12 |
10 |
250 |
0.012 |
0.3 |
2.6 |
66 |
1112 |
250 |
|
LU124-300 |
LU126-300 |
0.47 |
12 |
12 |
300 |
0.012 |
0.3 |
3.1 |
80 |
1112 |
250 |
|
LU124-360 |
LU126-360 |
0.47 |
12 |
14 |
360 |
0.012 |
0.3 |
3.9 |
99 |
1112 |
250 |
|
LU124-450 |
LU126-450 |
0.47 |
12 |
18 |
450 |
0.012 |
0.3 |
5 |
128 |
1112 |
250 |
|
LU124-600 |
LU126-600 |
0.47 |
12 |
24 |
600 |
0.012 |
0.3 |
6.9 |
176 |
1112 |
250 |
|
LU124-610 |
LU126-610 |
0.47 |
12 |
24 |
610 |
0.012 |
0.3 |
7 |
179 |
1112 |
250 |
|
LU124-750 |
LU126-750 |
0.47 |
12 |
30 |
750 |
0.012 |
0.3 |
8.8 |
224 |
1112 |
250 |
|
LU124-1000 |
LU126-1000 |
0.47 |
12 |
39 |
1000 |
0.012 |
0.3 |
11.9 |
303 |
1112 |
250 |
Technical Information
| Parameter | Value |
|---|---|
| Material |
A)316 grade non-magnetic stainless steel |
|
B)304 grade non-magnetic stainless steel |
|
| Temperature Range |
-60°C to +300°C |
| Surface Finish |
Metallic |
| Flammability Rating |
UL94 fireproof, Halogen free and UV-resistant |
| Package Quantity |
100 Pcs/Bag |
Certifications
UL Listed
More info available on request
ABS Certified
More info available on request
DNV Certified
More info available on request
