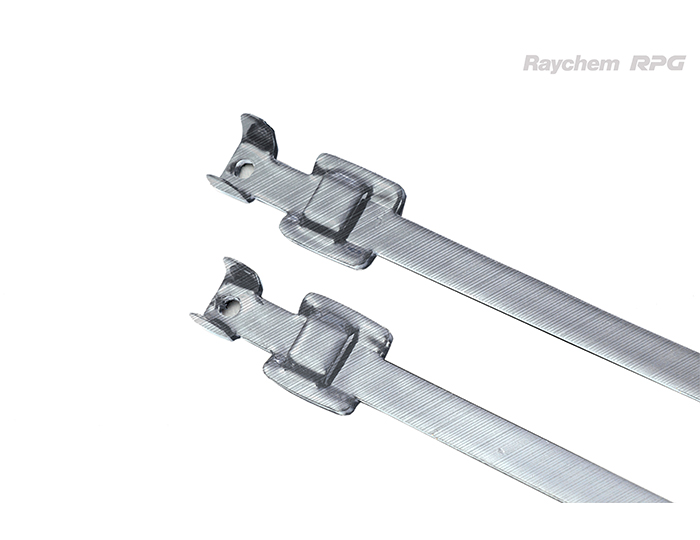

Releasable type cable ties with metallic finish, they are reusable and convenient for temporary installation and cable pulling.
- Releasable Cable Ties are used for multiple installation over long period of time.
- They are made with special grade polymer coating for superior hygroscopic and corrosion resistance properties and suitable for indoor, outdoor or harsh environments.
- Catalog
- Add to List
- Enquire Now
Please connect with us
Email Us ebu@raychemrpg.com
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|
Part No. for Stainless Steel Grade |
Width |
Length |
Thickness |
Max. Bundling Diameter |
Min. Loop Tensile Strength |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SS304 |
SS316 |
In |
mm |
In |
mm |
In |
mm |
In |
mm |
N |
lbs |
|
Releasable Cable Ties - 6.35mm width |
|||||||||||
|
RU54-150 |
RU56-150 |
1/4 |
6.35 |
6 |
152 |
0.02 |
0.5 |
1.3 |
34 |
1334 |
300 |
|
RU54-230 |
RU56-230 |
1/4 |
6.35 |
9 |
229 |
0.02 |
0.5 |
2.3 |
59 |
1334 |
300 |
|
RU54-330 |
RU56-330 |
1/4 |
6.35 |
12 |
305 |
0.02 |
0.5 |
3.6 |
91 |
1334 |
300 |
|
RU54-450 |
RU56-450 |
1/4 |
6.35 |
18 |
457 |
0.02 |
0.5 |
5 |
129 |
1334 |
300 |
|
RU54-600 |
RU56-600 |
1/4 |
6.35 |
24 |
610 |
0.02 |
0.5 |
7 |
177 |
1334 |
300 |
|
RU54-750 |
RU56-750 |
1/4 |
6.35 |
30 |
762 |
0.02 |
0.5 |
8.6 |
225 |
1334 |
300 |
|
RU54-900 |
RU56-900 |
1/4 |
6.35 |
36 |
914 |
0.02 |
0.5 |
10.8 |
273 |
1334 |
300 |
|
Releasable Type - 9.53mm width |
|||||||||||
|
RU104-150 |
RU106-150 |
3/8 |
9.53 |
6 |
152 |
0.02 |
0.5 |
1.3 |
34 |
2000 |
450 |
|
RU104-230 |
RU106-230 |
3/8 |
9.53 |
9 |
229 |
0.02 |
0.5 |
2.3 |
59 |
2000 |
450 |
|
RU104-330 |
RU106-330 |
3/8 |
9.53 |
12 |
305 |
0.02 |
0.5 |
3.6 |
91 |
2000 |
450 |
|
RU104-450 |
RU106-450 |
3/8 |
9.53 |
18 |
457 |
0.02 |
0.5 |
5 |
129 |
2000 |
450 |
|
RU104-600 |
RU106-600 |
3/8 |
9.53 |
24 |
610 |
0.02 |
0.5 |
7 |
177 |
2000 |
450 |
|
RU104-750 |
RU106-750 |
3/8 |
9.53 |
30 |
762 |
0.02 |
0.5 |
8.6 |
225 |
2000 |
450 |
|
RU104-900 |
RU106-900 |
3/8 |
9.53 |
36 |
914 |
0.02 |
0.5 |
10.8 |
273 |
2000 |
450 |
Technical Information
| Parameter | Value |
|---|---|
| Material  | A) 316 grade non-magnetic stainless steel |
| B)304grade non-magnetic stainless steel | |
| Temperature Range | -60°C to +300°C |
| Surface Finish | Metallic |
| Flammability Rating | UL94 fireproof, Halogen free and UV-resistant |
| Package Quantity | 100 Pcs/Bag |
Certifications
UL Listed
More info available on request
ABS Certified
More info available on request
DNV Certified
More info available on request
