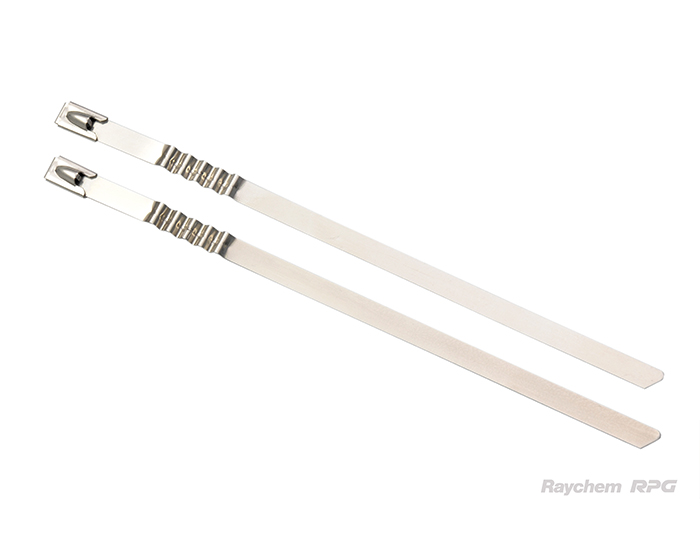

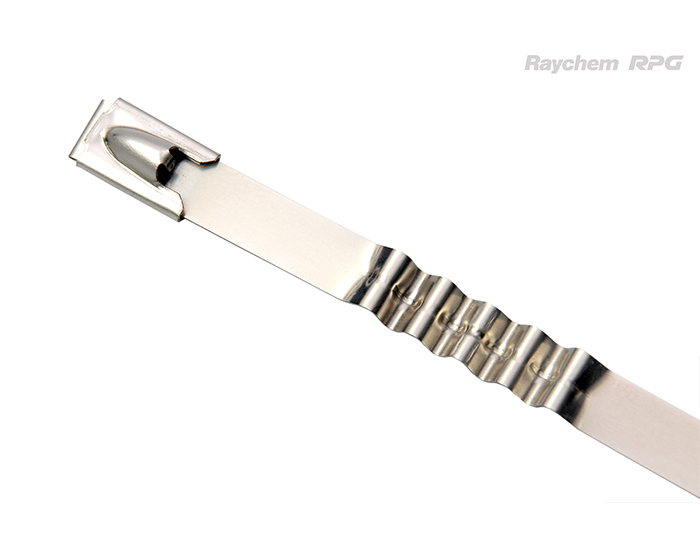

The unique spring form, available in metallic finish, maintains greater installed tension on non-resillent objects.
- The cable ties are designed with Wedge Lock Mechanism System for quick installation with low insertion force and strength.
- They are resistant to corrosion and suitable for indoor, outdoor or harsh environments.
- Catalog
- Add to List
- Enquire Now
Please connect with us
Email Us ebu@raychemrpg.com
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|
Part No. for Stainless Steel Grade |
Width |
Length |
Thickness |
Max. Bundling Diameter |
Min. Loop Tensile Strength |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SS304 |
SS316 |
In |
mm |
In |
mm |
In |
mm |
In |
mm |
N |
lbs |
|
Ball Lock Spring Type - 4.6 mm width |
|||||||||||
|
BUz44-200 |
BUz46-200 |
0.18 |
4.6 |
8 |
200 |
0.01 |
0.25 |
2.0 |
50 |
445 |
100 |
|
BUz44-260 |
BUz46-260 |
0.18 |
4.6 |
10 |
260 |
0.01 |
0.25 |
2.7 |
69 |
445 |
100 |
|
BUz44-360 |
BUz46-360 |
0.18 |
4.6 |
14 |
360 |
0.01 |
0.25 |
3.9 |
100 |
445 |
100 |
|
BUz44-520 |
BUz46-520 |
0.18 |
4.6 |
20 |
520 |
0.01 |
0.25 |
5.9 |
151 |
445 |
100 |
|
BUz44-680 |
BUz46-680 |
0.18 |
4.6 |
27 |
680 |
0.01 |
0.25 |
7.2 |
183 |
445 |
100 |
|
BUz44-840 |
BUz46-840 |
0.18 |
4.6 |
33 |
840 |
0.01 |
0.25 |
10 |
253 |
445 |
100 |
|
BUz44-1000 |
BUz46-1000 |
0.18 |
4.6 |
39 |
1000 |
0.01 |
0.25 |
12 |
304 |
445 |
100 |
|
Ball Lock Spring Type - 7.9 mm width |
|||||||||||
|
BUz74-200 |
BUz76-200 |
0.31 |
7.9 |
8 |
200 |
0.01 |
0.25 |
2 |
50 |
1112 |
250 |
|
BUz74-260 |
BUz76-260 |
0.31 |
7.9 |
10 |
260 |
0.01 |
0.25 |
2.7 |
69 |
1112 |
250 |
|
BUz74-360 |
BUz76-360 |
0.31 |
7.9 |
14 |
360 |
0.01 |
0.25 |
3.9 |
100 |
1112 |
250 |
|
BUz74-520 |
BUz76-520 |
0.31 |
7.9 |
20 |
520 |
0.01 |
0.25 |
5.9 |
151 |
1112 |
250 |
|
BUz74-680 |
BUz76-680 |
0.31 |
7.9 |
27 |
680 |
0.01 |
0.25 |
7.2 |
183 |
1112 |
250 |
|
BUz74-840 |
BUz76-840 |
0.31 |
7.9 |
33 |
840 |
0.01 |
0.25 |
10 |
253 |
1112 |
250 |
|
BUz74-1000 |
BUz76-1000 |
0.31 |
7.9 |
39 |
1000 |
0.01 |
0.25 |
12 |
304 |
1112 |
250 |
|
Ball Lock Spring Type - 12.7 mm width |
|||||||||||
|
BUz124-100 |
BUz126-100 |
0.5 |
12.7 |
4 |
100 |
0.02 |
0.4 |
0.7 |
18 |
3115 |
700 |
|
BUz124-150 |
BUz126-150 |
0.5 |
12.7 |
6 |
150 |
0.02 |
0.4 |
1.3 |
34 |
3115 |
700 |
|
BUz124-200 |
BUz126-200 |
0.5 |
12.7 |
8 |
200 |
0.02 |
0.4 |
2 |
50 |
3115 |
700 |
|
BUz124-260 |
BUz126-260 |
0.5 |
12.7 |
10 |
260 |
0.02 |
0.4 |
2.7 |
69 |
3115 |
700 |
|
BUz124-360 |
BUz126-360 |
0.5 |
12.7 |
14 |
360 |
0.02 |
0.4 |
3.9 |
100 |
3115 |
700 |
|
BUz124-520 |
BUz126-520 |
0.5 |
12.7 |
20 |
520 |
0.02 |
0.4 |
5.9 |
151 |
3115 |
700 |
|
BUz124-620 |
BUz126-680 |
0.5 |
12.7 |
24 |
620 |
0.02 |
0.4 |
7.2 |
183 |
3115 |
700 |
|
BUz124-840 |
BUz126-840 |
0.5 |
12.7 |
33 |
840 |
0.02 |
0.4 |
10 |
253 |
3115 |
700 |
|
BUz124-1000 |
BUz126-1000 |
0.5 |
12.7 |
39 |
1000 |
0.02 |
0.4 |
12 |
304 |
3115 |
700 |
|
Ball Lock Spring Type - 16 mm width |
|||||||||||
|
BUz164-150 |
BUz166-150 |
0.63 |
16 |
6 |
150 |
0.02 |
0.4 |
1.3 |
34 |
3560 |
800 |
|
BUz164-200 |
BUz166-200 |
0.63 |
16 |
8 |
200 |
0.02 |
0.4 |
2 |
50 |
3560 |
800 |
|
BUz164-260 |
BUz166-260 |
0.63 |
16 |
10 |
260 |
0.02 |
0.4 |
2.7 |
69 |
3560 |
800 |
|
BUz164-360 |
BUz166-360 |
0.63 |
16 |
14 |
360 |
0.02 |
0.4 |
3.9 |
100 |
3560 |
800 |
|
BUz164-520 |
BUz166-520 |
0.63 |
16 |
20 |
520 |
0.02 |
0.4 |
5.9 |
151 |
3560 |
800 |
|
BUz164-620 |
BUz166-680 |
0.63 |
16 |
24 |
620 |
0.02 |
0.4 |
7.2 |
183 |
3560 |
800 |
|
BUz164-840 |
BUz166-840 |
0.63 |
16 |
33 |
840 |
0.02 |
0.4 |
10 |
253 |
3560 |
800 |
|
BUz164-1000 |
BUz166-1000 |
0.63 |
16 |
39 |
1000 |
0.02 |
0.4 |
12 |
304 |
3560 |
800 |
Technical Information
| Parameter | Value |
|---|---|
| Material | A) 316 grade non-magnetic stainless steel |
| B) 304grade non-magnetic stainless steel | |
| Temperature Range | -60°C to +300°C |
| Surface Finish | Metallic |
| Flammability Rating | UL94 fireproof, Halogen free and UV-resistant |
| Package Quantity | 100 Pcs/Bag |
