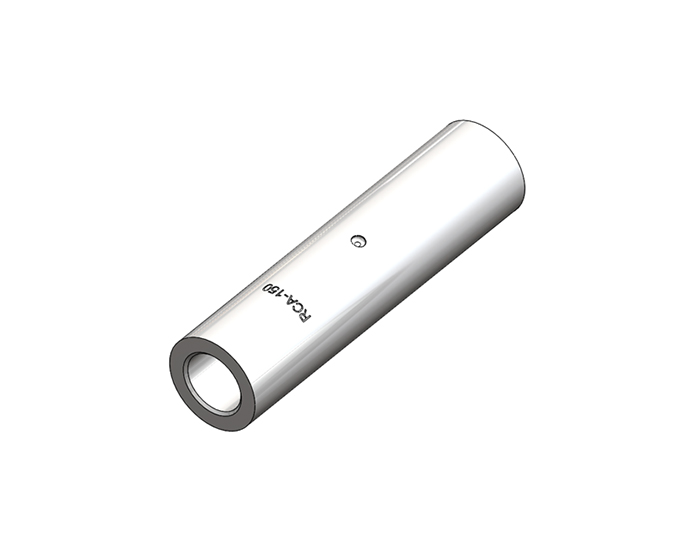

RCA - Two-way Splice Connectors - Standard Aluminium Splices FullScreen
  • Features
  • Help & Support

Standard barrel with crimps for reliable connection

  • Make in India
  • Standard Splices for aluminium conductors, range 10 – 500 mm2

Please connect with us

Specifications

Nominal Cross Section mm2

Catalogue Code

Dimensions (mm)

 ØA

ØC

J

10

RCA - 10

4.5

12.0

80.0

16

RCA - 16

5.5

16.0

90.5

25

RCA - 25

6.5

16.0

90.5

35

RCA - 35

8.0

16.0

90.5

50

RCA - 50

9.0

20.0

106.5

70

RCA - 70

11.0

20.0

106.5

95

RCA - 95

12.5

20.0

106.5

120

RCA - 120

13.7

25.0

133.0

150

RCA - 150

15.5

25.0

135.0

185

RCA - 185

17.0

32.0

143.5

240

RCA - 240

19.5

32.0

146.0

300

RCA - 300

22.5

34.0

144.5

400

RCA - 400

27.5

38.5

150.0

500

RCA - 500

31.0

42.0

160.0

Technical Information

Parameter
Provides maximum conductivity, low resistance and ductility for excellent combination of electrical and crimp forming properties
Connector short barrel for limited space application
Internal wire-stop prevents over insertion of cable
Material – high conductivity electrolytic aluminium
Finish – electro tin plated
