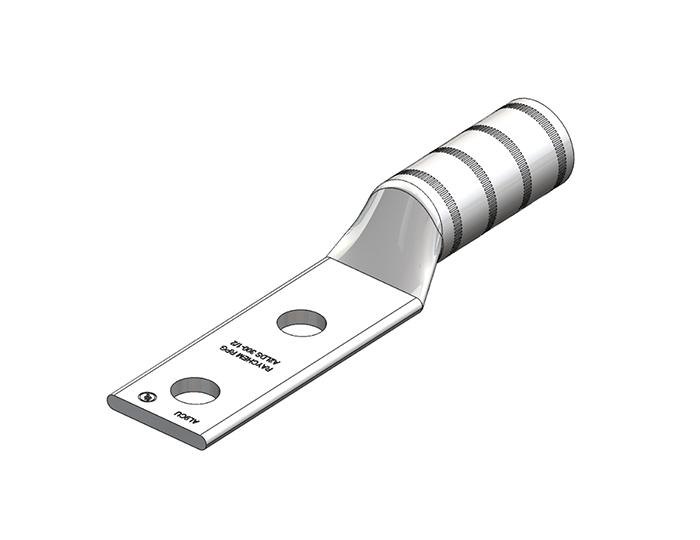

A2LDS - Two-hole Lugs - Aluminium Dual Rated FullScreen
  • Features
  • Help & Support

For aluminium and copper conductors

  • Make in India
  • Two-Hole Aluminium Lugs - Dual Rated for aluminium and copper conductors ranging from 1/0 AWG – 1000 MCM

Please connect with us

Specifications

Nominal Cross Section (AWG/mm²)

Catalouge Code

Dimensions (mm)

Stud Hole

Hole Spacing

Barrel ID

Barrel OD

Barrel Length

Palm Width

Total Length

AWG

Sqmm

ØE

 ØA

ØC

B

D

J

1/0

50

A2LDS 1/0 -3/8

10.2

44.5

10.5

16.3

38.1

22.4

134.1

A2LDS 1/0 -1/2

13.2

44.5

10.5

16.3

38.1

22.4

134.1

2/0

70

A2LDS 2/0-3/8

10.2

44.5

11.2

17.5

38.1

24.2

139.7

A2LDS 2/0-1/2

13.2

44.5

11.2

17.5

38.1

24.2

139.7

3/0

95

A2LDS 3/0-3/8

10.2

44.5

12.3

19.3

38.1

26.9

139.7

A2LDS 3/0-1/2

13.2

44.5

12.3

19.3

38.1

26.9

139.7

4/0

120

A2LDS 4/0-1/2

13.2

44.5

13.7

22.2

49.2

30.2

152.4

A2LDS 4/0-5/8

16.8

44.5

13.7

22.2

49.2

30.2

152.4

250

130

A2LDS 250-1/2

13.2

44.5

15.1

23.0

49.2

31.4

152.4

A2LDS 250-5/8

16.8

44.5

15.1

23.0

49.2

31.4

152.4

300

150

A2LDS 300-1/2

13.2

44.5

16.5

25.7

57.2

34.5

166.6

350

185

A2LDS 350-1/2

13.2

44.5

18.3

28.1

57.2

38.1

166.6

A2LDS 350-5/8

16.8

44.5

18.3

28.1

57.2

38.1

166.6

400

200

A2LDS 400-1/2*

13.2

44.5

19.4

30.0

63.5

41.2

174.8

500

240

A2LDS 500-1/2

13.2

44.5

21.4

33.5

76.2

43.9

185.7

A2LDS 500-5/8

16.8

44.5

21.4

33.5

76.2

43.9

185.7

A2LDS 500-3/4*

20.0

44.5

21.4

33.5

76.2

43.9

185.7

600

300

A2LDS 600-1/2

13.2

44.5

23.4

36.5

76.2

44.5

196.9

A2LDS 600-5/8*

16.8

44.5

23.4

36.6

76.2

49.9

185.7

750

400

A2LDS 750-1/2

13.2

44.5

26.2

38.1

85.9

50.8

209.6

A2LDS 750-5/8*

16.8

44.5

26.2

38.1

85.9

50.8

209.6

A2LDS 750-3/4*

20.0

44.5

26.2

38.1

85.9

50.8

209.6

1000

500

A2LDS 1000-1/2*

13.2

44.5

30.3

46.8

117.4

62.0

245.8

Technical Information

Parameter
Designed and tested for aluminium and copper conductors
Best suited in applications where two bolts are needed to avoid rotation or movement of lugs
Stud hole spacing as per NEMA Standard
Provides maximum conductivity, low resistance and ductility for excellent combination of electrical and crimp forming properties
Seamless, one-piece aluminum construction with tin plating for maximum conductivity and preventing oxidation on surface
Designated as AL9CU
Designed for heavy duty applications upto 35kV
Material – High conductivity electrolytic aluminium
Finish – Electro tin plated

Certifications

UL Listed
UL Listed

More info available on request

ANSI certified
ANSI certified

More info available on request
