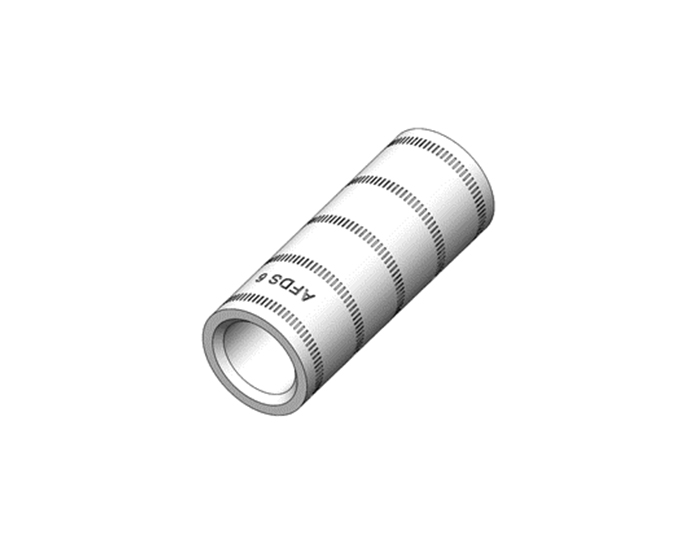

AFDS - Two-way Splice Connectors - Aluminium Dual Rated FullScreen
  • Features
  • Help & Support

Standard barrel with crimps for reliable connection

  • Make in India
  • Dual rated aluminum and copper conductors, range 6 - 750 AWG

Please connect with us

Specifications

Nominal Cross Section (AWG/mm²)

Catalogue Code

Dimensions (mm)

AWG

Sq mm

 ØA

ØC

J

16

AFDS 6

5.10

8.80

41.10

25

AFDS 4

6.70

11.90

53.80

35

AFDS 2

7.80

13.50

50.80

42

AFDS 1

8.90

13.50

50.80

1/0

50

AFDS 1/0

10.50

16.30

53.80

2/0

70

AFDS 2/0

11.20

17.50

58.70

3/0

95

AFDS 3/0

12.30

19.30

66.50

4/0

120

AFDS 4/0

13.70

22.20

69.90

250

130

AFDS 250

15.10

23.00

74.70

300

150

AFDS 300

16.50

25.70

79.20

350

185

AFDS 350

18.30

28.10

85.80

500

240

AFDS 500

21.40

33.50

98.60

600

300

AFDS 600

23.40

36.50

104.60

750

400

AFDS 750

26.20

38.10

118.80

Technical Information

Parameter
Provides maximum conductivity, low resistance and ductility for excellent combination of electrical and crimp forming properties
Connector short barrel for limited space application
Internal wire-stop prevents over Insertion of cable
Material – high conductivity electrolytic aluminium
Finish – electro tin plated

Certifications

UL Listed
UL Listed

More info available on request

ANSI certified
ANSI certified

More info available on request
