For aluminium and copper conductors

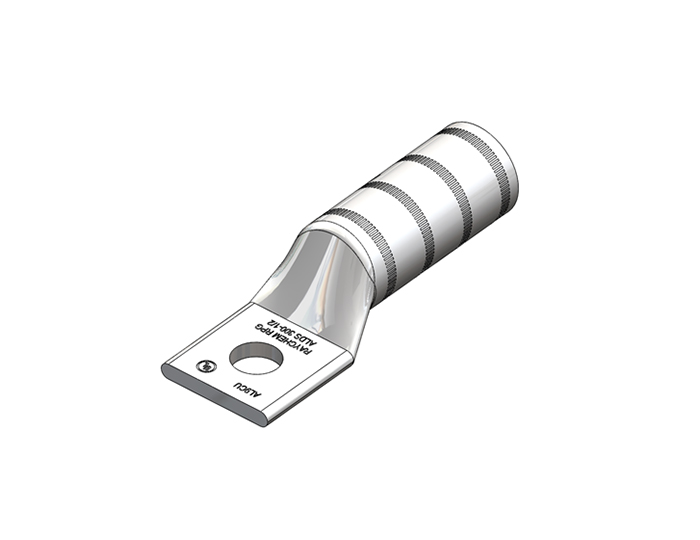

- One-Hole Aluminium Lugs - Dual Rated for aluminium and copper conductors ranging from 6 AWG – 750 MCM
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|
Catalogue Code |
Nominal Cross Section (AWG / Sq mm) |
Dimensions (mm) |
|||||
|---|---|---|---|---|---|---|---|
|
Stud Hole |
Barrel ID |
Palm Width |
Barrel Length |
Total Length |
|||
|
AWG |
Sq mm |
ØE |
ØA |
D |
B |
J |
|
|
ALDS 6 -1/4 |
6 |
16 |
6.8 |
5.1 |
14.2 |
19.1 |
57.9 |
|
ALDS 6 -5/16 |
8.4 |
5.1 |
14.2 |
19.1 |
57.9 |
||
|
ALDS 6 -3/8 |
10.2 |
5.1 |
14.2 |
19.1 |
57.9 |
||
|
ALDS 4 -1/4 |
4 |
25 |
6.8 |
6.7 |
15.7 |
23.8 |
58.4 |
|
ALDS 4 -5/16 |
8.4 |
6.7 |
15.7 |
23.8 |
58.4 |
||
|
ALDS 2 -1/4* |
2 |
35 |
6.8 |
7.8 |
19.1 |
23.4 |
66.5 |
|
ALDS 2 -5/16 |
8.4 |
7.8 |
19.1 |
23.4 |
66.5 |
||
|
ALDS 2 -3/8 |
10.2 |
7.8 |
19.1 |
23.4 |
66.5 |
||
|
ALDS 2 -1/2 |
13.2 |
7.8 |
19.1 |
23.4 |
66.5 |
||
|
ALDS 1 -3/8 |
1 |
42 |
10.2 |
8.9 |
19.1 |
23.4 |
66.5 |
|
ALDS 1 -1/2 |
13.2 |
8.9 |
19.1 |
23.4 |
66.5 |
||
|
ALDS 1/0 -3/8 |
1/0 |
50 |
10.2 |
10.5 |
22.4 |
30.0 |
79.2 |
|
ALDS 1/0 -1/2 |
13.2 |
10.5 |
22.4 |
30.0 |
79.2 |
||
|
ALDS 2/0 -3/8 |
2/0 |
70 |
10.2 |
11.2 |
24.2 |
33.0 |
81.0 |
|
ALDS 2/0 -1/2 |
13.2 |
11.2 |
24.2 |
33.0 |
81.0 |
||
|
ALDS 3/0 -3/8 |
3/0 |
95 |
10.2 |
12.3 |
26.9 |
38.1 |
87.4 |
|
ALDS 3/0 -1/2 |
13.2 |
12.3 |
26.9 |
38.1 |
87.4 |
||
|
ALDS 4/0 -1/2 |
4/0 |
120 |
13.2 |
13.7 |
30.2 |
36.6 |
90.4 |
|
ALDS 4/0 -5/8 |
16.8 |
13.7 |
30.2 |
36.6 |
90.4 |
||
|
ALDS 250 -1/2 |
250 |
130 |
13.2 |
15.1 |
31.4 |
39.6 |
91.9 |
|
ALDS 250 -5/8 |
16.8 |
15.1 |
31.4 |
39.6 |
91.9 |
||
|
ALDS 300 -1/2 |
300 |
150 |
13.2 |
16.5 |
34.5 |
55.6 |
101.6 |
|
ALDS 300 -5/8* |
16.8 |
16.5 |
34.5 |
55.6 |
101.6 |
||
|
ALDS 350 -1/2 |
350 |
185 |
13.2 |
18.3 |
37.8 |
55.6 |
108.0 |
|
ALDS 350 -5/8 |
16.8 |
18.3 |
37.8 |
55.6 |
109.7 |
||
|
ALDS 400 -5/8* |
400 |
200 |
16.8 |
19.4 |
41.2 |
63.5 |
127.1 |
|
ALDS 500 -1/2 |
500 |
240 |
13.2 |
21.4 |
43.9 |
74.6 |
138.2 |
|
ALDS 500 -5/8 |
16.8 |
21.4 |
43.9 |
74.6 |
138.2 |
||
|
ALDS 600 -1/2 |
600 |
300 |
13.2 |
23.4 |
44.5 |
76.2 |
141.0 |
|
ALDS 600 -5/8* |
16.8 |
23.4 |
44.5 |
76.2 |
141.0 |
||
|
ALDS 750 -1/2 |
750 |
400 |
13.2 |
26.2 |
50.8 |
84.3 |
162.1 |
|
ALDS 750 -5/8* |
16.8 |
26.2 |
50.8 |
84.3 |
162.1 |
||
|
ALDS 1000-5/8* |
1000 |
500 |
16.8 |
30.3 |
63.5 |
117.3 |
201.6 |
Technical Information
| Parameter |
|---|
| Designed and tested for Aluminium and Copper Conductors |
| Provides maximum conductivity, low resistance and ductility for excellent combination of electrical and crimp forming properties |
| Seamless, one-piece aluminum construction with tin plating for maximum conductivity and preventing oxidation on surface |
| Designed for heavy duty applications upto 35kV |
| Material – High conductivity electrolytic aluminium |
| Finish – Electro tin plated |
Certifications
UL Listed
More info available on request
ANSI certified
More info available on request
