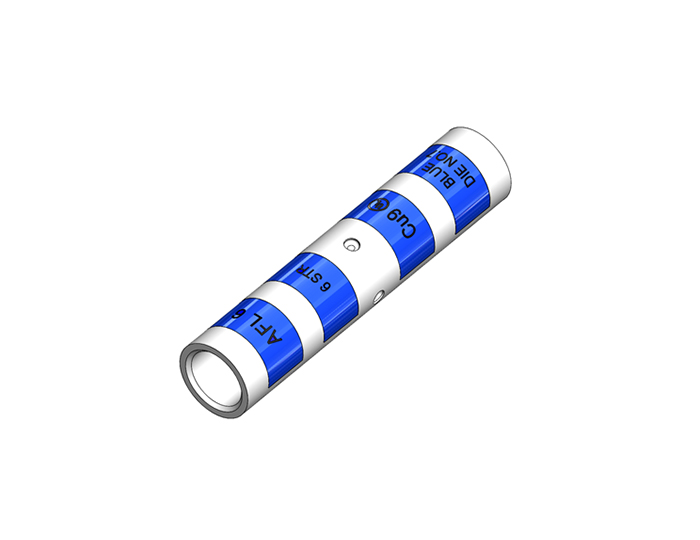

AFL - Two-way Splice Connectors - Long Barrel FullScreen
  • Features
  • Help & Support

Long barrel with multiple crimps for secured connection

  • Make in India
  • Two-Way Splice Long Barrel Connectors for copper conductors ranging from 8 – 1000 AWG

Please connect with us

Specifications

Nominal Cross Section (AWG/mm²)

Catalogue Code

Dimensions (mm)

AWG

Sq mm

 ØA

ØC

J

10

AFL 8

4.4

6.9

44.5

16

AFL 6

5.0

7.6

60.5

25

AFL 4

6.3

8.6

64.8

35

AFL 2

7.8

10.6

71.6

42

AFL 1

9.0

11.7

78.0

1/0

50

AFL 1/0

9.9

13.1

77.7

2/0

70

AFL 2/0

11.3

14.3

83.8

3/0

95

AFL 3/0

12.4

15.7

83.8

4/0

120

AFL 4/0

14.2

17.6

90.7

250

130

AFL 250

15.1

19.1

90.9

300

150

AFL 300

16.5

20.7

110.2

350

185

AFL 350

17.8

22.3

110.5

400

200

AFL 400

19.3

24.2

117.3

500

240

AFL 500

21.1

27.0

124.7

600

300

AFL 600

23.4

30.1

148.6

650

350

AFL 650

24.3

30.9

156.2

750

400

AFL 750*

26.2

33.1

162.1

1000

500

AFL 1000

29.7

38.2

176.5

Technical Information

Parameter
Permits multiple crimps for secured connection
Suitable for limited space application
Internal wire stop prevents over Insertion of cable
Material – High conductivity ETP Copper
Finish – Electro tin plated

Certifications

UL Listed
UL Listed

More info available on request
