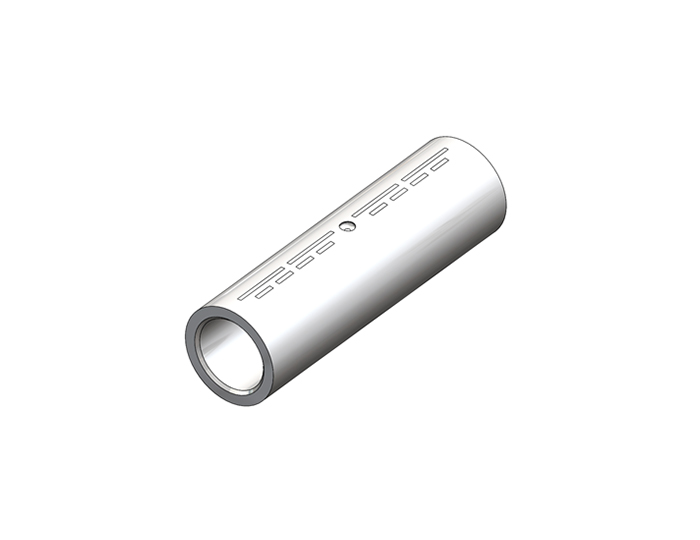

Splices designed as per DIN Standard 46267, Part-1
- Two-Way Splice Connectors - Din 46267, Part-1 for copper conductors ranging from 6 – 1000 mm2
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|
Nominal Cross Section mm2 |
Catalogue Code |
Dimensions (mm) |
||
|---|---|---|---|---|
|
ØA |
ØC |
J |
||
|
6 |
RCD - 6 |
3.8 |
5.5 |
30.0 |
|
10 |
RCD - 10 |
4.5 |
6.0 |
30.0 |
|
16 |
RCD - 16 |
5.5 |
8.5 |
50.0 |
|
25 |
RCD - 25 |
7.0 |
10.0 |
50.0 |
|
35 |
RCD - 35 |
8.2 |
12.5 |
50.0 |
|
50 |
RCD - 50 |
10.0 |
14.5 |
56.0 |
|
70 |
RCD - 70 |
11.5 |
16.5 |
56.0 |
|
95 |
RCD - 95 |
13.5 |
19.0 |
70.0 |
|
120 |
RCD -120 |
15.5 |
21.0 |
70.0 |
|
150 |
RCD -150 |
17.0 |
23.5 |
80.0 |
|
185 |
RCD - 185 |
19.0 |
25.5 |
85.0 |
|
240 |
RCD - 240 |
21.5 |
29.0 |
90.0 |
|
300 |
RCD - 300 |
24.5 |
32.0 |
100.0 |
|
400 |
RCD - 400 |
27.5 |
38.5 |
150.0 |
|
500 |
RCD - 500 |
31.0 |
42.0 |
160.0 |
|
630 |
RCD - 630 |
34.5 |
44.0 |
160.0 |
|
800 |
RCD - 600 |
40.0 |
52.0 |
200.0 |
|
1000 |
RCD - 1000 |
44.0 |
58.0 |
200.0 |
Technical Information
| Parameter |
|---|
| Designed as per DIN Standard 46267, Part-1 |
| Internal wire stop prevents over insertion of cable |
| Material – High conductivity ETP Copper |
| Finish – Electro tin plated |
Certifications
IEC certified
More info available on request
