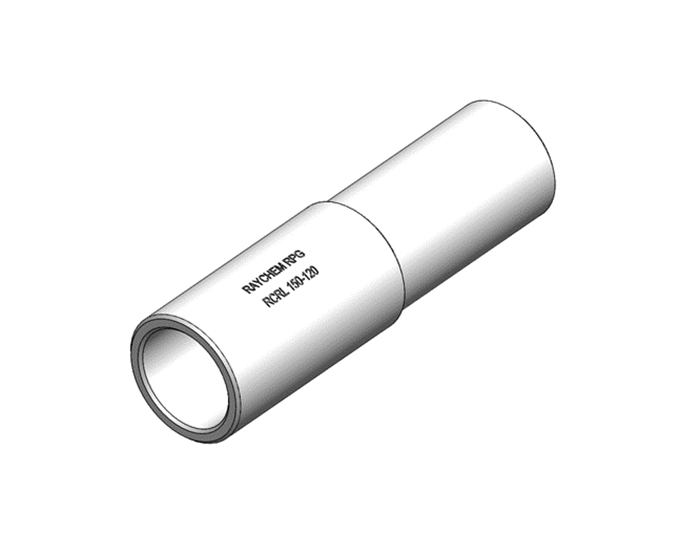

RCRL - In line Connectors - Reducing Link FullScreen
  • Features
  • Help & Support

Application for different sizes of cable connections

  • Make in India
  • Inline Connectors - Reducing Link for copper conductors ranging from 6 – 300 mm2

Please connect with us

Specifications

CatalogueCode

NominalCross

SectionSq mm

Dimensions (mm)

Barrel

ID

Barrel

ID

Barrel

Length

T otal

Length

Barrel ‘A

Barrel ‘B’

ØA 1

ØA 2

G

L

RCRL-6-4

6

4

3.8

3.1

14.0

28.0

RCRL-10-6

10

6

4.5

3.8

14.0

28.0

RCRL-16-6

16

6

5.4

3.8

23.0

37.0

RCRL-25-6

25

6

6.8

3.8

26.0

40.0

RCRL-25-10

25

10

6.8

4.5

26.0

40.0

RCRL-25-16

25

16

6.8

5.4

26.0

49.0

RCRL-35-10

35

10

8.2

4.5

26.0

40.0

RCRL-35-16

35

16

8.2

5.4

26.0

49.0

RCRL-35-25

35

25

8.2

6.8

26.0

52.0

RCRL-50-10

50

10

9.5

4.5

26.5

42.0

RCRL-50-16

50

16

9.5

5.4

26.5

51.0

RCRL-50-25

50

25

9.5

6.8

26.5

53.0

RCRL-50-35

50

35

9.5

8.2

26.5

53.0

RCRL-70-16

70

16

11.3

5.4

28.5

53.0

RCRL-70-25

70

25

11.3

6.8

29.0

55.0

RCRL-70-35

70

35

11.3

8.2

29.0

55.0

RCRL-70-50

70

50

11.3

9.5

29.0

55.0

RCRL-95-25

95

25

13.5

6.8

33.0

59.0

RCRL-95-35

95

35

13.5

8.2

33.0

59.0

RCRL-95-50

95

50

13.5

9.5

33.0

59.0

RCRL - 95-70

95

70

13.5

11.3

33.0

61.0

RCRL - 120-35

120

35

15.0

8.2

35.0

62.0

RCRL - 120-50

120

50

15.0

9.5

35.0

64.0

RCRL - 120-70

120

70

15.0

11.3

35.0

64.0

RCRL - 120-95

120

95

15.0

13.5

35.0

67.0

RCRL - 150-50

150

50

16.5

9.5

38.0

65.0

RCRL - 150-70

150

70

16.5

11.3

38.0

67.0

RCRL - 150-95

150

95

16.5

13.5

38.0

70.0

RCRL - 150-120

150

120

16.5

15.0

38.0

73.0

RCRL - 185-70

185

70

18.5

11.3

38.0

67.0

RCRL - 185-95

185

95

18.5

13.5

38.0

70.0

RCRL - 185-120

185

120

18.5

15.0

38.0

73.0

RCRL - 185-185

185

185

18.5

18.5

-

75.0

RCRL - 240-95

240

95

21.0

13.5

47.0

81.0

RCRL - 240-120

240

120

21.0

15.0

47.0

81.0

RCRL - 240-150

240

150

21.0

16.5

47.0

83.0

RCRL - 240-185

240

185

21.0

18.5

47.0

85.0

RCRL - 240-240

240

240

21.0

21.0

-

90.0

RCRL - 300-120

300

120

23.5

15.0

50.0

87.0

RCRL - 300-150

300

150

23.5

16.5

50.0

89.0

RCRL - 300-185

300

185

23.5

18.5

50.0

89.0

RCRL - 300-240

300

240

23.5

21.0

50.0

97.0

RCRL - 300-300

300

300

23.5

23.5

-

99.0

Technical Information

Parameter
Manufactured by seamless high conductivity copper tubing
Internally beveled wire entry for easy conductor insertion
Material – High conductivity ETP Copper
Finish – Electro tin plated
