Standard barrel with crimps for reliable connection

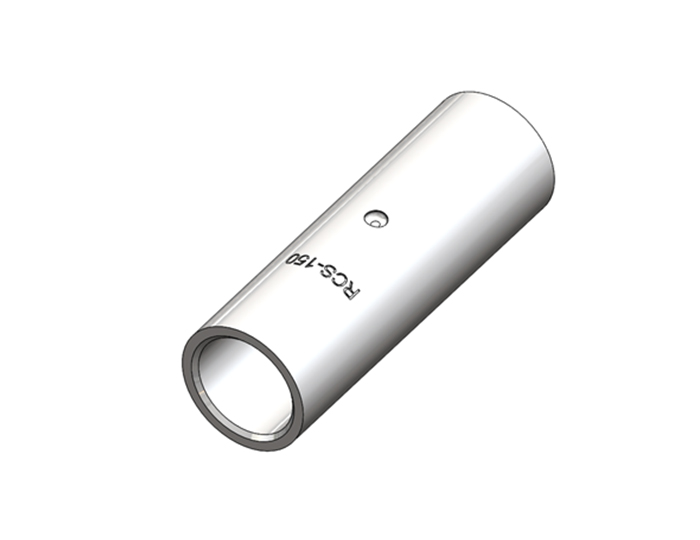

- Two-Way Splice Short Barrel Connectors for copper conductors ranging from 2.5 – 1000 mm2
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|
Nominal Cross Section mm2 |
Catalogue Code |
Dimensions (mm) |
||
|---|---|---|---|---|
|
ØA |
ØC |
J |
||
|
1.5 |
RCS 1.5 |
1.8 |
3.7 |
12.0 |
|
2.5 |
RCS 2.5 |
2.4 |
4.0 |
15.0 |
|
4 |
RCS 4 |
3.1 |
4.8 |
15.0 |
|
6 |
RCS 6 |
3.8 |
5.5 |
15.0 |
|
10 |
RCS 10 |
4.5 |
6.2 |
20.0 |
|
16 |
RCS 16 |
5.4 |
7.1 |
20.0 |
|
25 |
RCS 25 |
6.8 |
8.8 |
32.0 |
|
35 |
RCS 35 |
8.2 |
10.6 |
36.0 |
|
50 |
RCS 50 |
9.5 |
12.4 |
40.0 |
|
70 |
RCS 70 |
11.3 |
14.6 |
45.0 |
|
95 |
RCS 95 |
13.5 |
17.4 |
45.0 |
|
120 |
RCS 120 |
15.0 |
19.4 |
45.0 |
|
150 |
RCS 150 |
16.5 |
21.2 |
55.0 |
|
185 |
RCS 185 |
18.5 |
23.5 |
60.0 |
|
240 |
RCS 240 |
21.0 |
26.5 |
80.0 |
|
300 |
RCS 300 |
23.5 |
30.0 |
85.0 |
|
400 |
RCS 400 |
28.5 |
36.5 |
85.0 |
|
500 |
RCS 500 |
30.0 |
39.0 |
100.0 |
|
630 |
RCS 630 |
35.0 |
45.0 |
110.0 |
|
800 |
RCS 800 |
39.0 |
50.6 |
150.0 |
|
1000 |
RCS 1000 |
43.0 |
56.2 |
170.0 |
Technical Information
| Parameter |
|---|
| Suitable for limited space application |
| Internal wire stop prevents over Insertion of cable |
| Material – High conductivity ETP Copper |
| Finish – Electro tin plated |
Certifications
UL Listed
More info available on request
IEC certified
More info available on request
