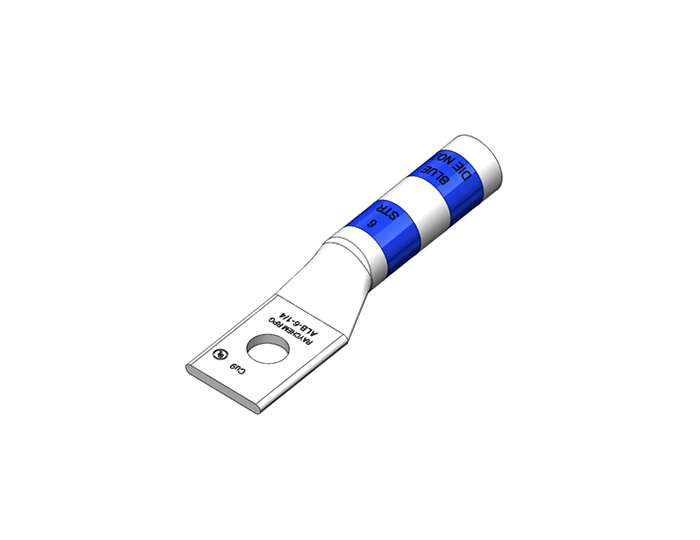

ALB - One-Hole Lugs - Long Barrel FullScreen
  • Features
  • Help & Support

Long barrel with multiple crimps for secured connection

  • Make in India
  • One-Hole Long Barrel Lugs for copper conductors ranging from 8 – 1000 AWG

Please connect with us

Specifications

Nominal Cross Section (AWG/mm²)

Catalogue Code

Dimensions (mm)

Stud Hole

Barrel ID

Barrel OD

Palm Width

Stud Centre Distance

Barrel Length

Total Length

AWG

Sq mm

ØE

 ØA

ØC

D

G

H

B

J

10

ALB 8-# 10

5.20

4.40

6.90

9.65

8.0

9.4

20.57

42.9

ALB 8-1/4

6.80

4.40

6.90

10.41

8.0

9.4

20.57

42.9

ALB 8-3/16

5.20

4.40

6.90

9.65

8.0

9.4

20.57

42.9

ALB 8-5/16

8.40

4.40

6.90

10.41

8.0

9.4

20.57

42.9

16

ALB 6-#10

5.20

4.95

7.42

10.41

7.0

7.1

28.45

48.3

ALB 6-1/4

6.80

4.95

7.42

10.41

6.5

7.1

28.45

48.3

ALB 6-1/2

13.20

4.95

7.42

21.08

13.0

13.8

28.45

67.1

25

ALB 4-# 10

5.20

6.30

8.64

12.45

7.0

6.8

28.45

48.3

ALB 4-1/4

6.80

6.30

8.64

12.70

7.0

6.8

28.45

48.5

ALB 4-5/16

8.40

6.30

8.64

12.70

8.2

10.0

28.45

48.5

ALB 4-3/8

10.20

6.30

8.64

14.73

9.7

10.0

28.45

57.2

ALB 4-1/2

13.20

6.30

8.64

21.08

12.8

14.0

28.45

68.3

35

ALB 2-# 10

5.20

7.80

10.62

15.49

10.0

9.4

31.75

53.3

ALB 2-1/4

6.80

7.80

10.62

15.49

10.0

9.4

31.75

53.3

ALB 2-5/16

8.40

7.80

10.62

15.49

10.0

9.4

31.75

58.2

ALB 2-3/8

10.20

7.80

10.62

15.49

14.1

14.0

31.75

73.2

ALB 2-1/2

13.20

7.80

10.62

21.08

14.1

14.0

31.75

73.2

42

ALB 1- #10

5.20

8.99

11.73

17.27

17.0

18.7

35.05

78.7

ALB 1-5/16

8.40

8.99

11.73

17.27

17.0

18.7

35.05

78.7

ALB 1-1/2

13.20

8.99

11.73

21.08

17.0

18.7

35.05

77.7

1/0

50

ALB 1/0-# 10

5.20

9.93

13.08

19.05

16.0

17.4

35.05

78.7

ALB 1/0-5/16

8.40

9.93

13.08

19.05

16.0

17.4

35.05

78.7

ALB 1/0-3/8

10.20

9.93

13.08

19.05

16.0

17.4

35.05

78.7

ALB 1/0-1/2

13.20

9.93

13.08

19.05

16.0

17.4

35.05

77.5

2/0

70

ALB 2/0-5/16

8.40

11.33

14.30

20.83

16.0

16.4

38.10

81.3

ALB 2/0-3/8

10.20

11.33

14.30

20.83

16.0

16.4

38.10

81.3

ALB 2/0-1/2

13.20

11.33

14.30

20.83

16.0

16.4

38.10

81.5

3/0

95

ALB 3/0-3/8

10.20

12.37

15.70

23.11

13.0

15.6

38.10

77.7

ALB 3/0-1/2

13.20

12.37

15.70

23.11

13.0

15.6

38.10

77.7

4/0

120

ALB 4/0-3/8

10.20

14.20

17.55

25.40

14.5

14.4

41.15

75.7

ALB 4/0-1/2

13.20

14.20

17.55

25.40

14.5

14.4

41.15

82.0

250

130

ALB 250-3/8

10.20

15.09

19.13

27.69

14.5

15.2

41.15

82.8

ALB 250-1/2

13.20

15.09

19.13

27.69

14.5

15.2

41.15

82.8

300

150

ALB 300-5/16

8.40

16.48

20.70

30.48

15.0

15.9

50.80

93.7

ALB 300-3/8

10.20

16.48

20.70

30.48

15.0

15.9

50.80

93.7

ALB 300-1/2

13.20

16.48

20.70

30.48

15.0

15.9

50.80

93.7

350

185

ALB 350-3/8

10.20

17.78

22.28

32.77

14.0

15.9

50.80

94.7

ALB 350-1/2

13.20

17.78

22.28

32.77

14.0

15.9

50.80

94.7

ALB 350-9/16*

14.50

17.78

22.28

32.77

14.0

15.9

50.80

94.7

400

200

ALB 400-3/8

10.20

19.25

24.21

35.05

18.0

19.6

53.85

104.1

ALB 400-1/2

13.20

19.25

24.21

35.05

18.0

19.6

53.85

104.1

ALB 400-5/8

16.80

19.25

24.21

35.05

18.0

19.6

53.85

104.1

500

240

ALB 500-1/2

13.20

21.08

27.03

39.12

18.0

19.4

57.15

111.8

ALB 500-5/8

16.80

21.08

27.03

39.12

18.0

19.4

57.15

111.8

600

300

ALB 600-1/2

13.20

23.37

30.10

43.43

18.5

19.6

68.33

122.7

ALB 600-5/8

16.80

23.37

30.10

43.43

18.5

19.6

68.33

121.9

ALB 600-3/4*

20.00

23.37

30.10

43.43

18.5

19.6

68.33

121.9

650

350

ALB 650-1/2

13.20

24.33

30.91

44.81

18.0

19.0

68.25

125.0

ALB 650-5/8

16.80

24.33

30.91

44.81

18.0

19.0

68.25

125.0

ALB 650-7/8

23.20

24.33

30.91

44.81

21.0

22.0

68.25

131.0

750

400

ALB 750-1/2

13.20

26.16

33.07

48.01

19.0

19.2

73.15

129.8

ALB 750-5/8

16.80

26.16

33.07

48.01

19.0

19.2

73.15

129.5

1000

500

ALB 1000-1/2

13.20

29.72

38.20

55.63

20.0

22.2

76.20

137.2

ALB 1000-5/8

16.80

29.72

38.20

55.63

20.0

22.2

76.20

137.2

Technical Information

Parameter
Permits multiple crimps for secured connection
Seamless, one-piece copper construction with tin plating for maximum conductivity and avoiding oxidation of copper
Copper conductivity of lug is => 97% IACS and purity = 99.9% min
Material – High conductivity ETP Copper
Finish – Electro tin plated

Certifications

UL Listed
UL Listed

More info available on request
