As per European Standards, barrels used in regular copper electrical applications

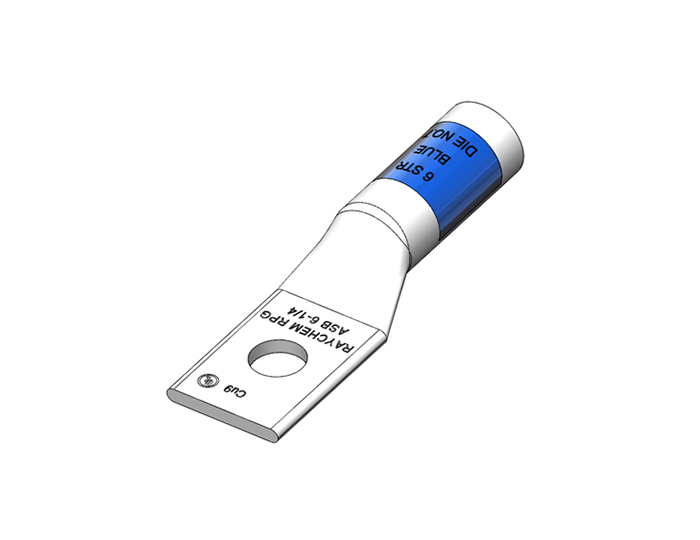

- One-Hole Lugs - Standard Barrel for copper conductors ranging from 8 – 1000 AWG
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|
Nominal Cross Section (AWG/mm²) |
Catalogue Code |
Dimensions (mm) |
||||||
|---|---|---|---|---|---|---|---|---|
|
Stud Hole |
Barrel ID |
Barrel OD |
Palm Width |
Barrel Length |
Total Length |
|||
|
AWG |
Sq mm |
ØE |
ØA |
ØC |
D |
B |
J |
|
|
8 |
10 |
ASB 8-#10 |
5.2 |
4.4 |
6.9 |
11.2 |
11.2 |
32.0 |
|
ASB 8-1/4 |
6.8 |
4.4 |
6.9 |
11.2 |
11.2 |
32.0 |
||
|
ASB 8-5/16 |
8.4 |
4.4 |
6.9 |
13.2 |
11.2 |
35.1 |
||
|
ASB 8-3/8 |
10.2 |
4.4 |
6.9 |
14.7 |
11.2 |
38.4 |
||
|
6 |
16 |
ASB 6-8-10 |
4.5 |
5.0 |
7.4 |
10.4 |
13.7 |
30.0 |
|
ASB 6-#10 |
5.2 |
5.0 |
7.4 |
10.4 |
13.7 |
30.0 |
||
|
ASB 6-1/4 |
6.8 |
5.0 |
7.4 |
11.4 |
13.7 |
30.0 |
||
|
ASB 6-5/16 |
8.4 |
5.0 |
7.4 |
13.2 |
13.7 |
33.0 |
||
|
ASB 6-3/8 |
10.2 |
5.0 |
7.4 |
16.0 |
13.7 |
33.0 |
||
|
4 |
25 |
ASB 4-8-10 |
4.5 |
6.3 |
8.6 |
12.7 |
20.6 |
40.1 |
|
ASB 4-1/4 |
6.8 |
6.3 |
8.6 |
12.7 |
20.6 |
44.2 |
||
|
ASB 4-5/16 |
8.4 |
6.3 |
8.6 |
14.7 |
20.6 |
48.8 |
||
|
ASB 4-3/8 |
10.2 |
6.3 |
8.6 |
14.7 |
20.6 |
48.8 |
||
|
ASB 4-1/2 |
13.2 |
6.3 |
8.6 |
18.0 |
20.6 |
55.9 |
||
|
2 |
35 |
ASB 2-1/4 |
6.8 |
7.8 |
10.6 |
15.5 |
22.4 |
48.3 |
|
ASB 2-5/16 |
8.4 |
7.8 |
10.6 |
15.5 |
22.4 |
48.3 |
||
|
ASB 2-3/8 |
10.2 |
7.8 |
10.6 |
15.5 |
22.4 |
52.3 |
||
|
ASB 2-1/2 |
13.2 |
7.8 |
10.6 |
18.5 |
22.4 |
58.9 |
||
|
1 |
42 |
ASB 1-1/4 |
6.8 |
9.0 |
11.7 |
17.3 |
22.4 |
58.4 |
|
ASB 1-5/16 |
8.4 |
9.0 |
11.7 |
17.3 |
22.4 |
48.3 |
||
|
ASB 1-3/8 |
10.2 |
9.0 |
11.7 |
17.3 |
22.4 |
53.3 |
||
|
ASB 1-1/2 |
13.2 |
9.0 |
11.7 |
18.5 |
22.4 |
60.2 |
||
|
1/0 |
50 |
ASB 1/0-1/4 |
6.8 |
9.9 |
13.1 |
19.1 |
22.4 |
50.8 |
|
ASB 1/0-5/16 |
8.4 |
9.9 |
13.1 |
19.1 |
22.4 |
50.8 |
||
|
ASB 1/0-3/8 |
10.2 |
9.9 |
13.1 |
19.1 |
22.4 |
53.1 |
||
|
ASB 1/0-1/2 |
13.2 |
9.9 |
13.1 |
19.1 |
22.4 |
59.4 |
||
|
2/0 |
70 |
ASB 2/0-1/4 |
6.8 |
11.3 |
14.3 |
20.8 |
23.9 |
49.3 |
|
ASB 2/0-5/16 |
8.4 |
11.3 |
14.3 |
15.7 |
23.9 |
66.5 |
||
|
ASB 2/0-3/8 |
10.2 |
11.3 |
14.3 |
20.8 |
23.9 |
55.6 |
||
|
ASB 2/0-1/2 |
13.2 |
11.3 |
14.3 |
20.8 |
23.9 |
62.0 |
||
|
ASB 2/0-3/4 |
20.0 |
11.3 |
14.3 |
24.4 |
23.9 |
75.2 |
||
|
3/0 |
95 |
ASB 3/0-5/16 |
8.4 |
12.4 |
15.7 |
23.1 |
25.4 |
54.9 |
|
ASB 3/0-3/8 |
10.2 |
12.4 |
15.7 |
23.1 |
25.4 |
58.4 |
||
|
ASB 3/0-1/2 |
13.2 |
12.4 |
15.7 |
23.1 |
25.4 |
64.5 |
||
|
4/0 |
120 |
ASB 4/0-1/4 |
6.8 |
14.2 |
17.6 |
25.4 |
22.4 |
50.8 |
|
ASB 4/0-5/16 |
8.4 |
14.2 |
17.6 |
25.4 |
22.4 |
55.9 |
||
|
ASB 4/0-3/8 |
10.2 |
14.2 |
17.6 |
25.4 |
22.4 |
55.9 |
||
|
ASB 4/0-1/2 |
13.2 |
14.2 |
17.6 |
25.4 |
22.4 |
62.5 |
||
|
ASB 4/0-9/16* |
14.5 |
14.2 |
17.6 |
25.4 |
22.4 |
62.5 |
||
|
ASB 4/0-5/8 |
16.8 |
14.2 |
17.6 |
26.7 |
22.4 |
62.5 |
||
|
ASB 4/0-3/4 |
20.0 |
14.2 |
17.6 |
26.7 |
22.4 |
62.5 |
||
|
250 |
135 |
ASB 250-1/4 |
6.8 |
15.1 |
19.1 |
27.7 |
26.9 |
55.9 |
|
ASB 250-5/16 |
8.4 |
15.1 |
19.1 |
27.7 |
26.9 |
55.9 |
||
|
ASB 250-3/8 |
10.2 |
15.1 |
19.1 |
27.7 |
26.9 |
61.5 |
||
|
ASB 250-1/2 |
13.2 |
15.1 |
19.1 |
27.7 |
26.9 |
67.8 |
||
|
300 |
150 |
ASB 300-5/16 |
8.4 |
16.5 |
20.7 |
30.5 |
26.2 |
58.4 |
|
ASB 300-3/8 |
10.2 |
16.5 |
20.7 |
30.5 |
26.2 |
58.4 |
||
|
ASB 300-1/2 |
13.2 |
16.5 |
20.7 |
30.5 |
26.2 |
68.6 |
||
|
ASB 300-5/8 |
16.8 |
16.5 |
20.7 |
30.5 |
26.2 |
73.7 |
||
|
ASB 300-7/8 |
23.2 |
16.5 |
20.7 |
30.5 |
26.2 |
86.4 |
||
|
350 |
185 |
ASB 350-3/8 |
10.2 |
17.8 |
22.3 |
32.8 |
26.9 |
63.5 |
|
ASB 350-1/2 |
13.2 |
17.8 |
22.3 |
32.8 |
32.8 |
69.9 |
||
|
ASB 350-5/8 |
16.8 |
17.8 |
22.3 |
32.8 |
32.8 |
76.2 |
||
|
ASB 350-7/8 |
23.2 |
17.8 |
22.3 |
32.8 |
32.8 |
101.6 |
||
|
400 |
200 |
ASB 400-3/8 |
10.2 |
19.3 |
24.2 |
35.1 |
30.2 |
68.6 |
|
ASB 400-1/2 |
13.2 |
19.3 |
24.2 |
35.6 |
30.2 |
74.4 |
||
|
ASB 400-5/8 |
16.8 |
19.3 |
24.2 |
35.1 |
30.2 |
81.3 |
||
|
ASB 400-7/8 |
23.2 |
19.3 |
24.2 |
35.6 |
30.2 |
91.4 |
||
|
500 |
240 |
ASB 500-3/8 |
10.2 |
21.1 |
27.0 |
39.1 |
32.3 |
73.7 |
|
ASB 500-1/2 |
13.2 |
21.1 |
27.0 |
39.1 |
32.3 |
79.2 |
||
|
ASB 500-5/8 |
16.8 |
21.1 |
27.0 |
39.1 |
32.3 |
86.4 |
||
|
ASB 500-9/16* |
14.5 |
21.1 |
27.0 |
39.1 |
32.3 |
91.4 |
||
|
ASB 500-3/4 |
20.0 |
21.1 |
27.0 |
39.1 |
32.3 |
91.4 |
||
|
ASB 500-7/8 |
23.2 |
21.1 |
27.0 |
39.1 |
32.3 |
96.5 |
||
|
600 |
300 |
ASB 600-3/8* |
10.2 |
23.4 |
30.1 |
43.4 |
35.1 |
83.8 |
|
ASB 600-1/2 |
13.2 |
23.4 |
30.1 |
43.4 |
35.1 |
83.8 |
||
|
ASB 600-9/16* |
14.5 |
23.4 |
30.1 |
43.4 |
35.1 |
94.0 |
||
|
ASB 600-5/8 |
16.8 |
23.4 |
30.1 |
43.4 |
35.1 |
94.0 |
||
|
ASB 600-3/4 |
20.0 |
23.4 |
30.1 |
43.4 |
35.1 |
94.0 |
||
|
650 |
350 |
ASB 650-1/2 |
13.2 |
24.3 |
30.9 |
44.8 |
36.1 |
85.0 |
|
ASB 650-5/8 |
16.8 |
24.3 |
30.9 |
44.8 |
36.1 |
91.0 |
||
|
ASB 650-7/8 |
23.2 |
24.3 |
30.9 |
44.8 |
36.1 |
100.0 |
||
|
750 |
400 |
ASB 750-1/2 |
13.2 |
26.2 |
33.1 |
48.0 |
36.1 |
86.6 |
|
ASB 750-5/8 |
16.8 |
26.2 |
33.1 |
48.0 |
36.1 |
93.2 |
||
|
ASB 750-7/8 |
23.2 |
26.2 |
33.1 |
48.0 |
36.1 |
104.1 |
||
|
1000 |
500 |
ASB 1000-1/2 |
13.2 |
29.72 |
38.20 |
55.6 |
41.9 |
101.6 |
|
ASB 1000-5/8 |
16.8 |
29.72 |
38.20 |
55.6 |
41.9 |
101.6 |
||
|
ASB 1000-1 |
26.4 |
29.72 |
38.20 |
55.6 |
41.9 |
120.1 |
||
Technical Information
| Parameter |
|---|
| Standard barrel used in regular electrical applications |
| Seamless, one-piece copper construction with tin plating for maximum conductivity and avoiding oxidation of copper |
| Copper conductivity of lugs is => 97% IACS and purity = 99.9% min |
| Material – High conductivity ETP Copper |
| Finish – Electro tin plated |
Certifications
UL Listed
More info available on request
