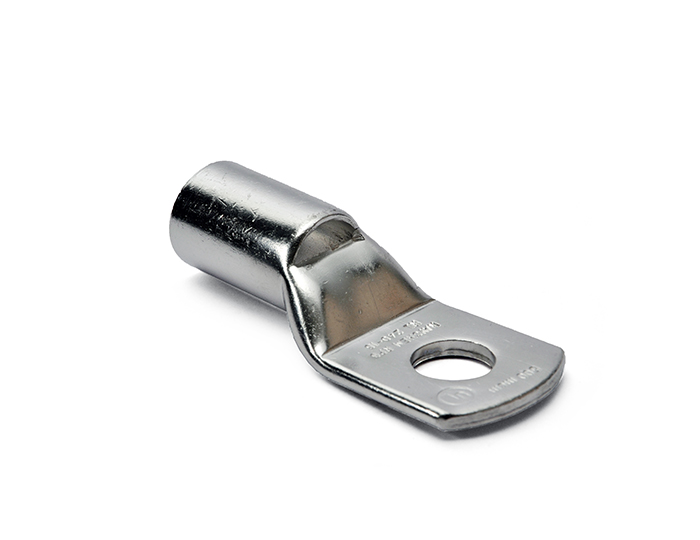

RL - One-Hole Lugs FullScreen
  • Features
  • Help & Support

Standard barrel for regular copper electrical applications

  • Make in India
  • One-hole, standard barrel lug for copper conductors ranging from 1.5 – 1000 mm2
  • UL Listed as per UL 486A-486B for use up to 35 KV and temperature rated 90°C

Please connect with us

Specifications

Nominal Cross Section mm2

Bolt Size

Catalogue Code

Dimensions (mm)

Stud Hole

Barrel ID

Barrel OD

Palm Width

Stud Centre Distance

Barrel Length

Total Length

ØE

 ØA

ØC

D

G

H

B

J

1.5

M4

RL 1.5-4

4.2

1.8

3.7

8.0

4.0

5.0

6.0

17.0

M5

RL 1.5-5

5.2

1.8

3.7

8.0

4.0

5.0

6.0

17.0

M6

RL 1.5-6

6.5

1.8

3.7

10.0

4.0

6.0

6.0

18.0

2.5

M4

RL 2.5-4

4.2

2.4

4.0

8.0

4.0

5.0

8.0

19.0

M5

RL 2.5-5

5.2

2.4

4.0

8.0

4.0

5.0

8.0

19.0

M6

RL 2.5-6

6.5

2.4

4.0

10.0

5.0

6.0

8.0

21.0

M8

RL 2.5-8

8.4

2.4

4.0

12.0

6.0

9.0

8.0

26.0

4

M4

RL 4-4

4.2

3.1

4.8

10.0

5.0

6.0

8.0

21.0

M5

RL 4-5

5.2

3.1

4.8

10.0

5.0

6.0

8.0

21.0

M6

RL 4-6

6.5

3.1

4.8

10.0

5.0

6.0

8.0

21.0

M8

RL 4-8

8.4

3.1

4.8

12.0

6.0

9.0

8.0

24.0

6

M4

RL 6-4

4.2

3.8

5.5

10.0

6.0

6.0

10.0

23.0

M5

RL 6-5

5.2

3.8

5.5

10.0

6.0

6.0

10.0

23.0

M6

RL 6-6

6.5

3.8

5.5

10.0

5.0

6.0

10.0

24.0

M 8

RL 6- 8 *

8.4

3.8

5.5

12.0

6.0

9.0

10.0

27.0

M10

RL 6-10

10.5

3.8

5.5

15.0

8.0

11.0

10.0

32.0

10

M5

RL 10-5

5.2

4.5

6.2

11.0

6.0

7.0

10.0

26.5

M6

RL 10-6

6.5

4.5

6.2

11.0

6.0

7.0

10.0

26.5

M8

RL 10–8

8.4

4.5

6.2

12.0

6.0

9.0

10.0

27.5

M10

RL 10-10

10.5

4.5

6.8

15.0

8.0

11.0

11.0

32.0

M12

RL 10-12

13.0

4.5

6.8

17.0

10.0

13.0

11.0

39.0

M16

RL 10-16 *

17.0

4.5

6.8

22.0

12.5

13.5

12.0

43.0

16

M5

RL 16-5

5.2

5.4

7.1

12.0

7.0

7.0

12.0

30.0

M6

RL 16-6

6.5

5.4

7.1

12.0

7.0

7.0

12.0

30.0

M8

RL 16-8

8.4

5.4

7.1

12.0

7.0

7.0

12.0

30.0

M10

RL 16-10

10.5

5.4

7.6

15.0

8.0

12.0

12.0

35.0

M12

RL 16-12

13.0

5.4

7.6

17.0

11.0

13.0

12.0

39.0

M14

RL 16-14

14.5

5.4

7.6

18.0

11.0

13.0

13.0

42.0

M16

RL 16-16 *

17.0

5.4

7.6

21.0

11.0

13.0

15.0

47.0

25

M6

RL 25-6

6.5

6.8

8.8

13.0

7.0

7.0

12.0

30.0

M8

RL 25-8

8.4

6.8

8.8

13.0

7.0

7.0

12.0

30.0

M10

RL 25-10

10.5

6.8

8.8

15.0

10.0

11.0

13.0

36.5

M12

RL 25-12

13.0

6.8

8.8

17.0

10.0

12.0

15.0

40.0

M16

RL 25-16

17.0

6.8

8.8

21.0

10.0

12.0

15.0

47.0

35

M6

RL 35-6

6.5

8.2

10.6

16.0

9.0

9.0

14.0

36.0

M8

RL 35-8

8.4

8.2

10.6

16.0

9.0

9.0

14.0

36.0

M10

RL 35-10

10.5

8.2

10.6

16.0

9.0

9.0

14.0

37.0

M12

RL 35-12

13.0

8.2

10.6

18.0

10.0

12.0

13.5

41.0

M14

RL 35-14

14.5

8.2

10.6

20.0

10.0

12.0

13.5

41.0

M16

RL 35-16

17.0

8.2

10.6

22.0

14.0

18.0

13.5

50.0

50

M6

RL 50-6

6.5

9.5

12.4

18.0

9.0

10.0

16.0

42.0

M8

RL 50-8

8.4

9.5

12.4

18.0

9.0

10.0

16.0

42.0

M10

RL 50-10

10.5

9.5

12.4

18.0

9.0

10.0

16.0

42.0

M12

RL 50-12

13.0

9.5

12.4

20.0

10.0

12.0

17.0

45.0

M14

RL 50-14

14.5

9.5

12.4

20.0

10.0

12.0

17.0

45.0

M16

RL 50-16

17.0

9.5

12.4

22.0

15.0

15.0

18.0

52.0

M20

RL 50-20

21.0

9.5

12.4

26.0

15.0

15.0

18.0

60.0

-

RL 50-BL

-

9.5

12.4

26.0

15.0

15.0

18.0

60.0

70

M6

RL 70-6

6.5

11.3

14.6

21.0

11.0

11.0

18.5

47.0

M8

RL 70-8

8.4

11.3

14.6

21.0

11.0

11.0

18.5

47.0

M10

RL 70-10

10.5

11.3

14.6

21.0

11.0

11.0

18.5

47.0

M12

RL 70-12

13.0

11.3

14.6

21.0

11.0

11.0

18.5

47.0

M14

RL 70-14

14.5

11.3

14.6

22.0

14.0

15.0

18.5

55.0

M16

RL 70-16

17.0

11.3

14.6

26.0

14.0

16.0

18.5

56.0

M20

RL 70-20

21.0

11.3

14.6

28.0

14.0

16.0

18.5

63.0

-

RL 70-BL

-

11.3

14.6

28.0

-

-

18.5

63.0

95

M6

RL 95-6

6.5

13.5

17.4

25.0

12.0

13.0

21.0

53.0

M8

RL 95-8

8.4

13.5

17.4

25.0

12.0

13.0

21.0

53.0

M10

RL 95-10

10.5

13.5

17.4

25.0

12.0

13.0

21.0

53.0

M12

RL 95–12

13.0

13.5

17.4

25.0

12.0

13.0

21.0

53.0

M4

RL 95–14

14.5

13.5

17.4

25.0

14.0

15.0

22.0

55.0

M16

RL 95-16

17.0

13.5

17.4

25.0

14.0

16.0

22.0

58.0

M20

RL 95-20

21.0

13.5

17.4

28.0

14.0

16.0

22.0

63.0

-

RL 95-BL

-

13.5

17.4

28.0

-

-

22.0

63.0

120

M6

RL 120-6

6.5

15.0

19.4

28.0

13.0

14.0

23.0

60.0

M8

RL 120-8

8.4

15.0

19.4

28.0

13.0

14.0

23.0

60.0

M10

RL 120-10

10.5

15.0

19.4

28.0

13.0

14.0

23.0

60.0

M12

RL 120-12

13.0

15.0

19.4

28.0

13.0

14.0

23.0

60.0

M14

RL 120-14

14.5

15.0

19.4

28.0

13.0

14.0

23.0

60.0

M16

RL 120-16

17.0

15.0

19.4

28.0

16.0

16.0

23.0

64.0

M20

RL 120-20

21.0

15.0

19.4

28.0

16.0

16.0

23.0

64.0

-

RL 120-BL

-

15.0

19.4

28.0

-

-

23.0

64.0

150

M6

RL 150-6

6.5

16.5

21.2

30.0

16.0

16.0

27.0

70.0

M8

RL 150-8

8.4

16.5

21.2

30.0

16.0

16.0

27.0

70.0

M10

RL 150-10

10.5

16.5

21.2

30.0

16.0

16.0

27.0

70.0

M12

RL 150-12

13.0

16.5

21.2

30.0

16.0

16.0

27.0

70.0

M14

RL 150-14

14.5

16.5

21.2

30.0

16.0

16.0

27.0

70.0

M16

RL 150-16

17.0

16.5

21.2

30.0

16.0

16.0

27.0

70.0

M18

RL 150-18

19.0

16.5

21.2

30.0

19.0

16.0

27.0

73.0

M20

RL 150-20

21.0

16.5

21.2

30.0

19.0

16.0

27.0

73.0

-

RL 150-BL

-

16.5

21.2

30.0

-

-

27.0

73.0

185

M6

RL 185-6

6.5

18.5

23.5

34.0

17.0

19.0

32.0

80.0

M8

RL 185-8

8.4

18.5

23.5

34.0

17.0

19.0

32.0

80.0

M10

RL 185-10

10.5

18.5

23.5

34.0

17.0

19.0

32.0

80.0

M12

RL 185-12

13.0

18.5

23.5

34.0

17.0

19.0

32.0

80.0

M14

RL 185-14

14.5

18.5

23.5

34.0

17.0

19.0

32.0

80.0

M16

RL 185-16

17.0

18.5

23.5

34.0

17.0

19.0

32.0

80.0

M18

RL 185-18

19.0

18.5

23.5

34.0

17.0

19.0

32.0

80.0

M20

RL 185-20

21.0

18.5

23.5

34.0

17.0

19.0

32.0

80.0

-

RL 185-BL

-

18.5

23.5

34.0

-

-

32.0

80.0

240

M6

RL 240–6

6.5

21.0

26.5

38.0

20.0

20.0

37.0

94.0

M8

RL 240–8

8.4

21.0

26.5

38.0

20.0

20.0

37.0

94.0

M10

RL 240–10

10.5

21.0

26.5

38.0

20.0

20.0

37.0

94.0

M12

RL 240–12

13.0

21.0

26.5

38.0

20.0

20.0

37.0

94.0

M14

RL 240-14

14.5

21.0

26.5

38.0

20.0

20.0

37.0

94.0

M16

RL 240-16

17.0

21.0

26.5

38.0

20.0

20.0

37.0

94.0

M18

RL 240-18

19.0

21.0

26.5

38.0

20.0

20.0

37.0

94.0

M20

RL 240-20

21.0

21.0

26.5

38.0

20.0

20.0

37.0

94.0

-

RL 240-BL

-

21.0

26.5

38.0

-

-

37.0

94.0

300

M6

RL 300-6

6.5

23.5

30.0

43.0

22.0

22.0

42.0

101.0

M8

RL 300-8

8.4

23.5

30.0

43.0

22.0

22.0

42.0

101.0

M10

RL 300-10

10.5

23.5

30.0

43.0

22.0

22.0

42.0

101.0

M12

RL 300-12

13.0

23.5

30.0

43.0

22.0

22.0

42.0

101.0

M14

RL 300-14

14.5

23.5

30.0

43.0

22.0

22.0

42.0

101.0

M16

RL 300-16

17.0

23.5

30.0

43.0

22.0

22.0

42.0

101.0

M18

RL 300-18

19.0

23.5

30.0

43.0

22.0

22.0

42.0

101.0

M20

RL 300-20

21.0

23.5

30.0

43.0

22.0

22.0

42.0

101.0

-

RL 300-BL

-

23.5

30.0

43.0

-

-

42.0

103.0

400

M6

RL 400-6

6.5

28.5

36.5

52.5

26.0

26.0

44.0

114.0

M8

RL 400-8

8.4

28.5

36.5

52.5

26.0

26.0

44.0

114.0

M10

RL 400-10

10.5

28.5

36.5

52.5

26.0

26.0

44.0

114.0

M12

RL 400-12

13.0

28.5

36.5

52.5

26.0

26.0

44.0

114.0

M14

RL 400-14

14.5

28.5

36.5

52.5

26.0

26.0

44.0

114.0

M16

RL 400-16

17.0

28.5

36.5

52.5

26.0

26.0

44.0

114.0

M18

RL 400–18

19.0

28.5

36.5

52.5

26.0

26.0

44.0

114.0

M20

RL 400–20

21.0

28.5

36.5

52.5

26.0

26.0

44.0

114.0

-

RL 400–BL

 -

28.5

36.5

52.5

 -

 -

44.0

114.0

500

M6

RL 500-6

6.5

30.0

39.0

56.0

28.0

28.0

48.0

129.0

M8

RL 500-8

8.4

30.0

39.0

56.0

28.0

28.0

48.0

129.0

M10

RL 500-10

10.5

30.0

39.0

56.0

28.0

28.0

48.0

129.0

M12

RL 500-12

13.0

30.0

39.0

56.0

28.0

28.0

48.0

129.0

M14

RL 500-14

14.5

30.0

39.0

56.0

28.0

28.0

48.0

129.0

M16

RL 500-16

17.0

30.0

39.0

56.0

28.0

28.0

48.0

129.0

M12

RL 500–18

19.0

30.0

39.0

56.0

28.0

28.0

48.0

129.0

M20

RL 500–20

21.0

30.0

39.0

56.0

28.0

28.0

48.0

129.0

-

RL 500–BL

 -

30.0

39.0

56.0

-

-

48.0

129.0

630

M6

RL 630-6

6.5

35.0

45.0

63.8

33.0

33.0

58.0

148.0

M8

RL 630-8

8.4

35.0

45.0

63.8

33.0

33.0

58.0

148.0

M10

RL 630-10

10.5

35.0

45.0

63.8

33.0

33.0

58.0

148.0

M12

RL 630-12

13.0

35.0

45.0

63.8

33.0

33.0

58.0

148.0

M14

RL 630-14

14.5

35.0

45.0

63.8

33.0

33.0

58.0

148.0

M16

RL 630-16

17.0

35.0

45.0

63.8

33.0

33.0

58.0

148.0

M18

RL 630–18

19.0

35.0

45.0

63.8

33.0

33.0

58.0

148.0

M20

RL 630–20

21.0

35.0

45.0

63.8

33.0

33.0

58.0

148.0

-

RL 630–BL

-

35.0

45.0

63.8

-

-

58.0

148.0

800

M8

RL 800-8 *

8.4

39.0

50.6

72.0

30.0

35.5

78.0

170.0

M10

RL 800-10 *

10.5

39.0

50.6

72.0

30.0

35.5

78.0

170.0

M12

RL 800-12 *

13.0

39.0

50.6

72.0

30.0

35.5

78.0

170.0

M14

RL 800-14 *

14.5

39.0

50.6

72.0

30.0

35.5

78.0

170.0

M16

RL 800–16 *

17.0

39.0

50.6

72.0

30.0

35.5

78.0

170.0

M20

RL 800–20 *

21.0

39.0

50.6

72.0

30.0

35.5

78.0

170.0

-

RL 800-BL *

-

39.0

50.6

72.0

 -

 -

78.0

170.0

1000

M12

RL 1000-12*

13.0

43.0

56.2

79.0

88.0

-

90.0

200.0

M14

RL 1000-14*

14.5

43.0

56.2

79.0

88.0

-

90.0

200.0

M16

RL 1000-16*

17.0

43.0

56.2

79.0

88.0

-

90.0

200.0

M20

RL 1000–20*

21.0

43.0

56.2

79.0

88.0

-

90.0

200.0

-

RL 1000–BL*

-

43.0

56.2

79.0

-

-

90.0

200.0

Technical Information

Parameter
Annealed material optimizes material and crimping properties
Made of pure electrolytic copper (>99% Cu)
Annealed material optimizes material and crimping properties
Flat contact surface and precise stud holes as per metric standard
Material – High conductivity ETP Copper
Finish – Electro tin plated

Certifications

UL Listed
UL Listed

More info available on request

IEC certified
IEC certified

More info available on request

Related Products

All products provided below with slider to find faster.
