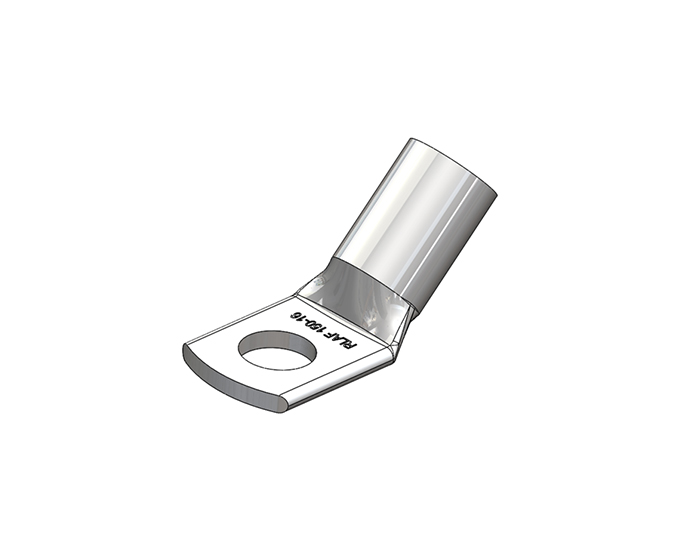

For application on 45˚ angle connection
- One-Hole Lugs - 45˚ Standard Barrel for copper conductors ranging from 6 – 400 mm2
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|
Nominal Cross Section mm2 |
Bolt Size |
Catalogue Code |
Dimensions (mm) |
||||||
|---|---|---|---|---|---|---|---|---|---|
|
Stud Hole |
Barrel ID |
Barrel OD |
Palm Width |
Stud Centre Distance |
Barrel Length |
||||
|
ØE |
ØA |
ØC |
D |
G |
H |
B |
|||
|
6 |
M4 |
RLAF 6-4 |
4.4 |
3.8 |
5.5 |
9.5 |
4.0 |
7.0 |
9.0 |
|
M5 |
RLAF 6-5 |
5.4 |
3.8 |
5.5 |
9.5 |
4.0 |
7.0 |
9.0 |
|
|
M6 |
RLAF 6-6 |
6.4 |
3.8 |
5.5 |
10.0 |
5.0 |
9.0 |
9.0 |
|
|
M8 |
RLAF 6-8 |
8.4 |
3.8 |
5.5 |
12.0 |
7.0 |
11.0 |
9.0 |
|
|
M10 |
RLAF 6-10 |
10.5 |
3.8 |
5.5 |
16.0 |
10.0 |
13.0 |
9.0 |
|
|
M12 |
RLAF 6-12 |
13.0 |
3.8 |
6.5 |
18.0 |
12.0 |
17.0 |
9.0 |
|
|
10 |
M5 |
RLAF 10-5 |
5.4 |
4.5 |
6.2 |
12.0 |
6.0 |
10.0 |
9.0 |
|
M6 |
RLAF 10-6 |
6.4 |
4.5 |
6.2 |
12.0 |
6.0 |
10.0 |
10.0 |
|
|
M8 |
RLAF 10-8 |
8.4 |
4.5 |
6.2 |
12.0 |
7.0 |
12.0 |
10.0 |
|
|
M10 |
RLAF 10-10 |
10.5 |
4.7 |
7.1 |
16.0 |
10.0 |
13.0 |
10.0 |
|
|
M12 |
RLAF 10-12 |
13.0 |
4.7 |
7.1 |
18.0 |
12.0 |
18.0 |
10.0 |
|
|
16 |
M5 |
RLAF 16-5 |
5.4 |
5.4 |
7.1 |
12.0 |
7.0 |
10.0 |
13.0 |
|
M6 |
RLAF 16-6 |
6.4 |
5.4 |
7.1 |
12.0 |
7.0 |
10.0 |
13.0 |
|
|
M8 |
RLAF 16-8 |
8.4 |
5.4 |
7.1 |
12.0 |
7.0 |
12.0 |
13.0 |
|
|
M10 |
RLAF 16-10 |
10.5 |
5.5 |
7.9 |
16.0 |
10.0 |
13.0 |
13.0 |
|
|
M12 |
RLAF 16-12 |
13.0 |
5.5 |
7.9 |
18.0 |
12.0 |
18.0 |
13.0 |
|
|
M14 |
RLAF 16-14 |
15.0 |
5.5 |
7.9 |
21.0 |
14.0 |
20.0 |
13.0 |
|
|
M16 |
RLAF 16-16 |
17.0 |
5.5 |
7.9 |
26.0 |
16.0 |
21.0 |
13.0 |
|
|
25 |
M5 |
RLAF 25-5 |
5.4 |
6.8 |
8.8 |
13.0 |
7.0 |
10.0 |
14.0 |
|
M6 |
RLAF 25-6 |
6.4 |
6.8 |
8.8 |
13.0 |
7.0 |
10.0 |
14.0 |
|
|
M8 |
RLAF 25-8 |
8.4 |
6.8 |
8.8 |
13.0 |
7.0 |
12.0 |
14.0 |
|
|
M10 |
RLAF 25-10 |
10.5 |
6.8 |
8.8 |
16.0 |
10.0 |
13.0 |
14.0 |
|
|
M12 |
RLAF 25-12 |
13.0 |
6.8 |
8.8 |
18.0 |
12.0 |
18.0 |
14.0 |
|
|
M14 |
RLAF 25-14 |
15.0 |
7.1 |
9.5 |
21.0 |
12.0 |
18.0 |
14.0 |
|
|
M16 |
RLAF 25-16 |
17.0 |
7.1 |
9.5 |
26.0 |
16.0 |
21.0 |
14.0 |
|
|
35 |
M6 |
RLAF 35-6 |
6.4 |
8.2 |
10.6 |
15.0 |
9.0 |
12.0 |
16.0 |
|
M8 |
RLAF 35-8 |
8.4 |
8.2 |
10.6 |
15.0 |
9.0 |
12.0 |
16.0 |
|
|
M10 |
RLAF 35-10 |
10.5 |
8.2 |
10.6 |
18.0 |
10.0 |
13.0 |
16.0 |
|
|
M12 |
RLAF 35-12 |
13.0 |
8.2 |
10.6 |
21.0 |
12.0 |
18.0 |
16.0 |
|
|
M14 |
RLAF 35-14 |
15.0 |
8.4 |
11.5 |
21.0 |
14.0 |
20.0 |
16.0 |
|
|
M16 |
RLAF 35-16 |
17.0 |
8.4 |
11.5 |
26.0 |
16.0 |
21.0 |
16.0 |
|
|
50 |
M6 |
RLAF 50-6 |
6.4 |
9.5 |
12.4 |
18.0 |
10.0 |
13.0 |
18.0 |
|
M8 |
RLAF 50-8 |
8.4 |
9.5 |
12.4 |
18.0 |
10.0 |
13.0 |
18.0 |
|
|
M10 |
RLAF 50-10 |
10.5 |
9.5 |
12.4 |
18.0 |
10.0 |
13.0 |
18.0 |
|
|
M12 |
RLAF 50-12 |
13.0 |
9.5 |
12.4 |
23.0 |
12.0 |
18.0 |
18.0 |
|
|
M14 |
RLAF 50-14 |
15.0 |
9.5 |
12.4 |
23.0 |
14.0 |
20.0 |
18.0 |
|
|
M16 |
RLAF 50-16 |
17.0 |
9.5 |
12.4 |
28.0 |
16.0 |
21.0 |
18.0 |
|
|
M20 |
RLAF 50-20 |
21.0 |
9.5 |
12.4 |
30.0 |
19.0 |
24.0 |
18.0 |
|
|
70 |
M6 |
RLAF 70-6 |
6.4 |
11.2 |
14.7 |
21.0 |
10.0 |
13.0 |
20.0 |
|
M8 |
RLAF 70-8 |
8.4 |
11.2 |
14.7 |
21.0 |
10.0 |
13.0 |
20.0 |
|
|
M10 |
RLAF 70-10 |
10.5 |
11.2 |
14.7 |
21.0 |
10.0 |
17.0 |
20.0 |
|
|
M12 |
RLAF 70-12 |
13.0 |
11.2 |
14.7 |
21.0 |
12.0 |
17.0 |
20.0 |
|
|
M14 |
RLAF 70-14 |
15.0 |
11.5 |
16.5 |
23.0 |
14.0 |
20.0 |
20.0 |
|
|
M16 |
RLAF 70-16 |
17.0 |
11.5 |
16.5 |
28.0 |
16.0 |
21.0 |
20.0 |
|
|
M20 |
RLAF 70-20 |
21.0 |
11.5 |
16.5 |
30.0 |
19.0 |
24.0 |
20.0 |
|
|
95 |
M8 |
RLAF 95-8 |
8.4 |
13.5 |
17.4 |
25.0 |
12.0 |
17.0 |
24.0 |
|
M10 |
RLAF 95-10 |
10.5 |
13.5 |
17.4 |
25.0 |
12.0 |
17.0 |
24.0 |
|
|
M12 |
RLAF 95-12 |
13.0 |
13.5 |
17.4 |
25.0 |
12.0 |
17.0 |
24.0 |
|
|
M14 |
RLAF 95-14 |
15.0 |
13.5 |
19.0 |
26.0 |
14.0 |
20.0 |
24.0 |
|
|
M16 |
RLAF 95-16 |
17.0 |
13.5 |
19.0 |
28.0 |
16.0 |
21.0 |
24.0 |
|
|
M20 |
RLAF 95-20 |
21.0 |
13.5 |
19.0 |
36.0 |
20.0 |
27.0 |
24.0 |
|
|
120 |
M8 |
RLAF 120-8 |
8.4 |
15.0 |
19.4 |
28.0 |
14.0 |
19.0 |
25.0 |
|
M10 |
RLAF 120-10 |
10.5 |
15.0 |
19.4 |
28.0 |
14.0 |
19.0 |
25.0 |
|
|
M12 |
RLAF 120-12 |
13.0 |
15.0 |
19.4 |
28.0 |
14.0 |
19.0 |
25.0 |
|
|
M14 |
RLAF 120-14 |
15.0 |
15.0 |
19.4 |
28.0 |
16.0 |
21.0 |
25.0 |
|
|
M16 |
RLAF 120-16 |
17.0 |
15.0 |
19.4 |
28.0 |
16.0 |
21.0 |
25.0 |
|
|
M20 |
RLAF 120-20 |
21.0 |
15.5 |
21.0 |
36.0 |
20.0 |
27.0 |
25.0 |
|
|
150 |
M8 |
RLAF 150-8 |
8.4 |
16.5 |
21.2 |
30.0 |
14.0 |
19.0 |
29.0 |
|
M10 |
RLAF 150-10 |
10.5 |
16.5 |
21.2 |
30.0 |
14.0 |
19.0 |
29.0 |
|
|
M12 |
RLAF 150-12 |
13.0 |
16.5 |
21.2 |
30.0 |
14.0 |
19.0 |
29.0 |
|
|
M14 |
RLAF 150-14 |
15.0 |
16.5 |
21.2 |
30.0 |
14.0 |
19.0 |
29.0 |
|
|
M16 |
RLAF 150-16 |
17.0 |
16.5 |
21.2 |
30.0 |
16.0 |
21.0 |
29.0 |
|
|
M20 |
RLAF 150-20 |
21.0 |
16.5 |
21.2 |
36.0 |
20.0 |
27.0 |
29.0 |
|
|
185 |
M10 |
RLAF 185-10 |
10.5 |
18.5 |
23.5 |
34.0 |
17.0 |
22.0 |
30.0 |
|
M12 |
RLAF 185-12 |
13.0 |
18.5 |
23.5 |
34.0 |
17.0 |
22.0 |
30.0 |
|
|
M14 |
RLAF 185-14 |
15.0 |
18.5 |
23.5 |
34.0 |
17.0 |
22.0 |
30.0 |
|
|
M16 |
RLAF 185-16 |
17.0 |
18.5 |
23.5 |
34.0 |
17.0 |
22.0 |
30.0 |
|
|
M20 |
RLAF 185-20 |
21.0 |
18.5 |
23.5 |
34.0 |
20.0 |
27.0 |
30.0 |
|
|
240 |
M10 |
RLAF 240-10 |
10.5 |
21.0 |
26.5 |
38.0 |
20.0 |
25.0 |
35.0 |
|
M12 |
RLAF 240-12 |
13.0 |
21.0 |
26.5 |
38.0 |
20.0 |
25.0 |
35.0 |
|
|
M14 |
RLAF 240-14 |
15.0 |
21.0 |
26.5 |
38.0 |
20.0 |
25.0 |
35.0 |
|
|
M16 |
RLAF 240-16 |
17.0 |
21.0 |
26.5 |
38.0 |
20.0 |
25.0 |
35.0 |
|
|
M20 |
RLAF 240-20 |
21.0 |
21.0 |
26.5 |
38.0 |
20.0 |
27.0 |
35.0 |
|
|
300 |
M12 |
RLAF 300-12 |
13.0 |
23.5 |
30.0 |
43.0 |
22.0 |
27.0 |
42.0 |
|
M14 |
RLAF 300-14 |
15.0 |
23.5 |
30.0 |
43.0 |
22.0 |
27.0 |
42.0 |
|
|
M16 |
RLAF 300-16 |
17.0 |
23.5 |
30.0 |
43.0 |
22.0 |
27.0 |
42.0 |
|
|
M20 |
RLAF 300-20 |
21.0 |
23.5 |
30.0 |
43.0 |
22.0 |
27.0 |
42.0 |
|
|
400 |
M12 |
RLAF 400-12 |
13.0 |
26.8 |
34.8 |
50.0 |
24.0 |
29.0 |
44.0 |
|
M14 |
RLAF 400-14 |
15.0 |
26.8 |
34.8 |
50.0 |
24.0 |
29.0 |
44.0 |
|
|
M16 |
RLAF 400-16 |
17.0 |
26.8 |
34.8 |
50.0 |
24.0 |
29.0 |
44.0 |
|
|
M120 |
RLAF 400-20 |
21.0 |
26.8 |
34.8 |
50.0 |
24.0 |
29.0 |
44.0 |
|
|
MBL |
RLAF 400-BL |
- |
26.8 |
34.8 |
50.0 |
24.0 |
29.0 |
44.0 |
|
Technical Information
|
Parameter |
|---|
| Specifically developed for application on 45˚ angle connections |
| Annealed material optimizes material and crimping properties |
| Flat contact surface and precise stud holes as per Metric Standard |
| Material – High conductivity ETP Copper |
| Finish – Electro tin plated |
