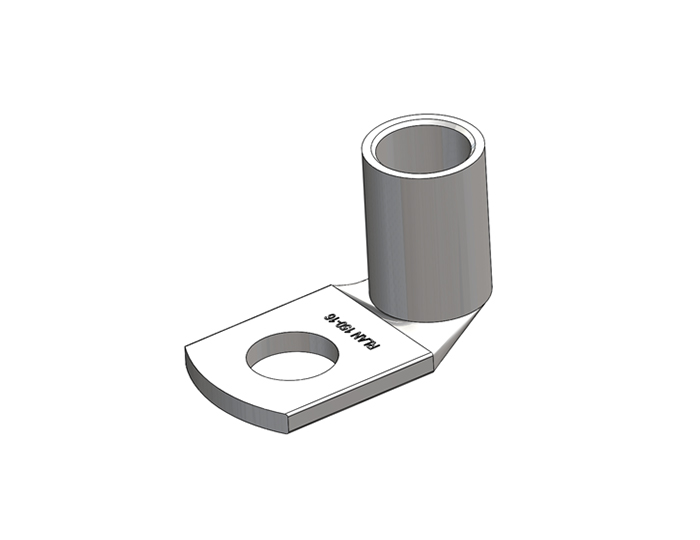

For application on 90˚ angle connection
- One-Hole Lugs - 90˚ Standard Barrel for copper conductors ranging from 6 – 150 mm2
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|
Catalogue Code |
Nominal Cross Section Sq mm |
Bolt Size |
Dimensions (mm) |
|||||
|---|---|---|---|---|---|---|---|---|
|
Stud Hole |
Barrel ID |
Palm Width |
Stud Centre Distance |
Barrel Length |
||||
|
ØE |
ØA |
D |
G |
H |
B |
|||
|
RLAN 6- 4 |
6 |
M4 |
4.4 |
3.8 |
9.5 |
4.0 |
7.0 |
9.0 |
|
RLAN 6- 5 |
M5 |
5.4 |
3.8 |
9.5 |
4.0 |
7.0 |
9.0 |
|
|
RLAN 6- 6 |
M6 |
6.4 |
3.8 |
10.0 |
5.0 |
9.0 |
9.0 |
|
|
RLAN 6- 8 |
M8 |
8.4 |
3.8 |
12.0 |
7.0 |
11.0 |
9.0 |
|
|
RLAN 6- 10 |
M10 |
10.5 |
3.8 |
16.0 |
10.0 |
13.0 |
9.0 |
|
|
RLAN 6- 12 |
M12 |
13.0 |
3.8 |
18.0 |
12.0 |
17.0 |
9.0 |
|
|
RLAN 10- 5 |
10 |
M5 |
5.4 |
4.5 |
12.0 |
6.0 |
10.0 |
9.0 |
|
RLAN 10- 6 |
M6 |
6.4 |
4.5 |
12.0 |
6.0 |
10.0 |
10.0 |
|
|
RLAN 10- 8 |
M8 |
8.4 |
4.5 |
12.0 |
7.0 |
12.0 |
10.0 |
|
|
RLAN 10- 10 |
M10 |
10.5 |
4.7 |
16.0 |
10.0 |
13.0 |
10.0 |
|
|
RLAN 10- 12 |
M12 |
13.0 |
4.7 |
18.0 |
12.0 |
18.0 |
10.0 |
|
|
RLAN 16- 5 |
16 |
M5 |
5.4 |
5.4 |
12.0 |
7.0 |
10.0 |
13.0 |
|
RLAN 16- 6 |
M6 |
6.4 |
5.4 |
12.0 |
7.0 |
10.0 |
13.0 |
|
|
RLAN 16- 8 |
M8 |
8.4 |
5.4 |
12.0 |
7.0 |
12.0 |
13.0 |
|
|
RLAN 16- 10 |
M10 |
10.5 |
5.5 |
16.0 |
10.0 |
13.0 |
13.0 |
|
|
RLAN 16- 12 |
M12 |
13.0 |
5.5 |
18.0 |
12.0 |
18.0 |
13.0 |
|
|
RLAN 16- 14 |
M14 |
15.0 |
5.5 |
21.0 |
14.0 |
20.0 |
13.0 |
|
|
RLAN 16- 16 |
M16 |
17.0 |
5.5 |
26.0 |
16.0 |
21.0 |
13.0 |
|
|
RLAN 25- 5 |
25 |
M5 |
5.4 |
6.8 |
13.0 |
7.0 |
10.0 |
14.0 |
|
RLAN 25- 6 |
M6 |
6.4 |
6.8 |
13.0 |
7.0 |
10.0 |
14.0 |
|
|
RLAN 25- 8 |
M8 |
8.4 |
6.8 |
13.0 |
7.0 |
12.0 |
14.0 |
|
|
RLAN 25- 10 |
M10 |
10.5 |
6.8 |
16.0 |
10.0 |
13.0 |
14.0 |
|
|
RLAN 25- 12 |
M12 |
13.0 |
6.8 |
18.0 |
12.0 |
18.0 |
14.0 |
|
|
RLAN 25- 14 |
M14 |
15.0 |
7.1 |
21.0 |
12.0 |
18.0 |
14.0 |
|
|
RLAN 25- 16 |
M16 |
17.0 |
7.1 |
26.0 |
16.0 |
21.0 |
14.0 |
|
|
RLAN 35- 6 |
35 |
M6 |
6.4 |
8.2 |
15.0 |
9.0 |
12.0 |
16.0 |
|
RLAN 35- 8 |
M8 |
8.4 |
8.2 |
15.0 |
9.0 |
12.0 |
16.0 |
|
|
RLAN 35- 10 |
M10 |
10.5 |
8.2 |
18.0 |
10.0 |
13.0 |
16.0 |
|
|
RLAN 35- 12 |
M12 |
13.0 |
8.2 |
21.0 |
12.0 |
18.0 |
16.0 |
|
|
RLAN 35- 14 |
M14 |
15.0 |
8.2 |
21.0 |
14.0 |
20.0 |
16.0 |
|
|
RLAN 35- 16 |
M16 |
17.0 |
8.4 |
26.0 |
16.0 |
21.0 |
16.0 |
|
|
RLAN 50- 6 |
50 |
M6 |
6.4 |
9.5 |
18.0 |
10.0 |
13.0 |
18.0 |
|
RLAN 50- 8 |
M8 |
8.4 |
9.5 |
18.0 |
10.0 |
13.0 |
18.0 |
|
|
RLAN 50- 10 |
M10 |
10.5 |
9.5 |
18.0 |
10.0 |
13.0 |
18.0 |
|
|
RLAN 50- 12 |
M12 |
13.0 |
9.5 |
23.0 |
12.0 |
18.0 |
18.0 |
|
|
RLAN 50- 14 |
M14 |
15.0 |
9.5 |
23.0 |
14.0 |
20.0 |
18.0 |
|
|
RLAN 50- 16 |
M16 |
17.0 |
9.5 |
28.0 |
16.0 |
21.0 |
18.0 |
|
|
RLAN 50- 20 |
M20 |
21.0 |
9.5 |
30.0 |
19.0 |
24.0 |
18.0 |
|
|
RLAN 70- 6 |
70 |
M6 |
6.4 |
11.2 |
21.0 |
10.0 |
13.0 |
20.0 |
|
RLAN 70- 8 |
M8 |
8.4 |
11.2 |
21.0 |
10.0 |
13.0 |
20.0 |
|
|
RLAN 70- 10 |
M10 |
10.5 |
11.2 |
21.0 |
10.0 |
17.0 |
20.0 |
|
|
RLAN 70- 12 |
M12 |
13.0 |
11.2 |
21.0 |
12.0 |
17.0 |
20.0 |
|
|
RLAN 70- 14 |
M14 |
15.0 |
11.2 |
23.0 |
14.0 |
20.0 |
20.0 |
|
|
RLAN 70- 16 |
M16 |
17.0 |
11.2 |
28.0 |
16.0 |
21.0 |
20.0 |
|
|
RLAN 70- 20 |
M20 |
21.0 |
11.2 |
30.0 |
19.0 |
24.0 |
20.0 |
|
|
RLAN 95- 8 |
95 |
M8 |
8.4 |
13.5 |
25.0 |
12.0 |
17.0 |
24.0 |
|
RLAN 95- 10 |
M10 |
10.5 |
13.5 |
25.0 |
12.0 |
17.0 |
24.0 |
|
|
RLAN 95- 12 |
M12 |
13.0 |
13.5 |
25.0 |
12.0 |
17.0 |
24.0 |
|
|
RLAN 95- 14 |
M14 |
15.0 |
13.5 |
26.0 |
14.0 |
20.0 |
24.0 |
|
|
RLAN 95- 16 |
M16 |
17.0 |
13.5 |
28.0 |
16.0 |
21.0 |
24.0 |
|
|
RLAN 95-20 |
M20 |
21.0 |
13.5 |
36.0 |
20.0 |
27.0 |
24.0 |
|
|
RLAN 120-8 |
120 |
M8 |
8.4 |
15.0 |
28.0 |
14.0 |
19.0 |
25.0 |
|
RLAN 120-10 |
M10 |
10.5 |
15.0 |
28.0 |
14.0 |
19.0 |
25.0 |
|
|
RLAN 120-12 |
M12 |
13.0 |
15.0 |
28.0 |
14.0 |
19.0 |
25.0 |
|
|
RLAN 120-14 |
M14 |
15.0 |
15.0 |
28.0 |
16.0 |
21.0 |
25.0 |
|
|
RLAN 120-16 |
M16 |
17.0 |
15.0 |
28.0 |
16.0 |
21.0 |
25.0 |
|
|
RLAN 120-20 |
M20 |
21.0 |
15.5 |
36.0 |
20.0 |
27.0 |
25.0 |
|
|
RLAN 150-8 |
150 |
M8 |
8.4 |
16.5 |
30.0 |
14.0 |
19.0 |
29.0 |
|
RLAN 150-10 |
M10 |
10.5 |
16.5 |
30.0 |
14.0 |
19.0 |
29.0 |
|
|
RLAN 150-12 |
M12 |
13.0 |
16.5 |
30.0 |
14.0 |
19.0 |
29.0 |
|
|
RLAN 150-14 |
M14 |
15.0 |
16.5 |
30.0 |
14.0 |
19.0 |
29.0 |
|
|
RLAN 150-16 |
M16 |
17.0 |
16.5 |
30.0 |
16.0 |
21.0 |
29.0 |
|
|
RLAN 150-20 |
M20 |
21.0 |
16.5 |
36.0 |
20.0 |
27.0 |
29.0 |
|
Technical Information
| Parameter |
|---|
| Specifically developed for application on 90˚ angle connections |
| Annealed material optimizes material and crimping properties |
| Flat contact surface and precise stud holes as per Metric Standard |
| Material – High conductivity ETP Copper |
| Finish – Electro tin plated |
