Design and construction as per DIN 46235 Standard

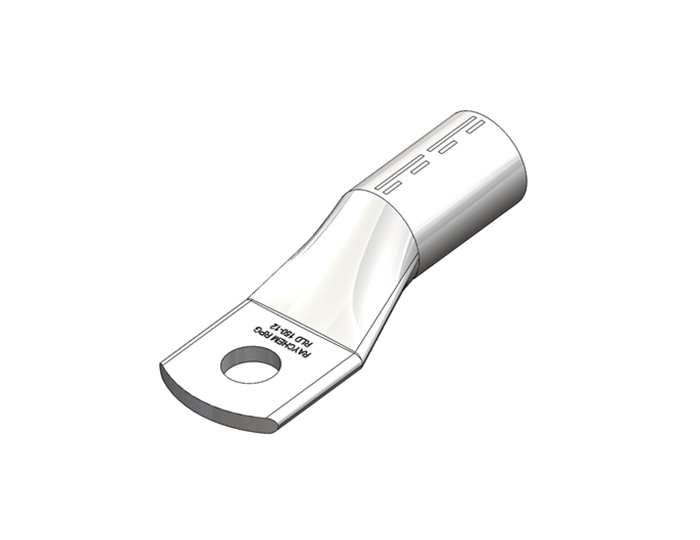

- One-Hole Lugs - DIN 46235 for copper conductors ranging from 6 – 1000 mm2
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|
Nominal Cross Section mm2 |
Catalogue Code |
Bolt Size |
Dimensions (mm) |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
Stud Hole |
Barrel ID |
Barrel OD |
Palm Width |
Stud Centre Distance |
Barrel Length |
Total Length |
||||
|
ØE |
ØA |
ØC |
D |
G |
H |
B |
J |
|||
|
6 |
RLDS 6-5 |
M5 |
5.3 |
3.8 |
5.5 |
8.5 |
9.0 |
6.0 |
10.0 |
33.0 |
|
RLDS 6-6 |
M6 |
6.4 |
3.8 |
5.5 |
8.5 |
10.5 |
8.0 |
10.0 |
34.5 |
|
|
10 |
RLDS 10-5 |
M5 |
5.3 |
4.5 |
6.0 |
9.0 |
9.0 |
6.0 |
10.0 |
36.0 |
|
RLDS 10-6 |
M6 |
6.4 |
4.5 |
6.0 |
9.0 |
10.5 |
8.0 |
10.0 |
37.5 |
|
|
16 |
RLDS 16-6 |
M6 |
6.4 |
5.5 |
8.5 |
13.0 |
10.5 |
8.0 |
20.0 |
46.5 |
|
RLDS 16-8 |
M8 |
8.4 |
5.5 |
8.5 |
13.0 |
13.0 |
10.0 |
20.0 |
49.0 |
|
|
RLDS 16-10 |
M10 |
10.5 |
5.5 |
8.5 |
13.0 |
15.0 |
12.0 |
20.0 |
51.0 |
|
|
25 |
RLDS 25-6 |
M6 |
6.4 |
7.0 |
10.0 |
14.0 |
10.5 |
8.0 |
20.0 |
48.5 |
|
RLDS 25-8 |
M8 |
8.4 |
7.0 |
10.0 |
16.0 |
13.0 |
10.0 |
20.0 |
51.0 |
|
|
RLDS 25-10 |
M10 |
10.5 |
7.0 |
10.0 |
17.0 |
15.0 |
12.0 |
20.0 |
53.0 |
|
|
RLDS 25-12 |
M12 |
13.0 |
7.0 |
10.0 |
19.0 |
16.0 |
13.0 |
20.0 |
54.0 |
|
|
35 |
RLDS 35-8 |
M8 |
8.4 |
8.2 |
12.5 |
17.0 |
13.0 |
10.0 |
20.0 |
55.0 |
|
RLDS 35-10 |
M10 |
10.5 |
8.2 |
12.5 |
19.0 |
15.0 |
12.0 |
20.0 |
57.0 |
|
|
RLDS 35-12 |
M12 |
13.0 |
8.2 |
12.5 |
21.0 |
16.0 |
13.0 |
20.0 |
58.0 |
|
|
50 |
RLDS 50-8 |
M8 |
8.4 |
10.0 |
14.5 |
20.0 |
13.0 |
10.0 |
28.0 |
65.0 |
|
RLDS 50-10 |
M10 |
10.5 |
10.0 |
14.5 |
22.0 |
15.0 |
12.0 |
28.0 |
67.0 |
|
|
RLDS 50-12 |
M12 |
13.0 |
10.0 |
14.5 |
24.0 |
16.0 |
13.0 |
28.0 |
68.0 |
|
|
RLDS 50-16 |
M16 |
17.0 |
10.0 |
14.5 |
28.0 |
19.0 |
16.0 |
28.0 |
71.0 |
|
|
70 |
RLDS 70-8 |
M8 |
8.4 |
11.5 |
16.5 |
24.0 |
13.0 |
10.0 |
28.0 |
68.0 |
|
RLDS 70-10 |
M10 |
10.5 |
11.5 |
16.5 |
24.0 |
15.0 |
12.0 |
28.0 |
70.0 |
|
|
RLDS 70-12 |
M12 |
13.0 |
11.5 |
16.5 |
24.0 |
16.0 |
13.0 |
28.0 |
71.0 |
|
|
RLDS 70-16 |
M16 |
17.0 |
11.5 |
16.5 |
30.0 |
19.0 |
16.0 |
28.0 |
74.0 |
|
|
95 |
RLDS 95-10 |
M10 |
10.5 |
13.5 |
19.0 |
28.0 |
15.0 |
12.0 |
35.0 |
80.0 |
|
RLDS 95-12 |
M12 |
13.0 |
13.5 |
19.0 |
28.0 |
16.0 |
13.0 |
35.0 |
81.0 |
|
|
RLDS 95-16 |
M16 |
17.0 |
13.5 |
19.0 |
32.0 |
19.0 |
16.0 |
35.0 |
84.0 |
|
|
120 |
RLDS 120-10 |
M10 |
10.5 |
15.5 |
21.0 |
32.0 |
15.0 |
12.0 |
35.0 |
85.0 |
|
RLDS 120-12 |
M12 |
13.0 |
15.5 |
21.0 |
32.0 |
16.0 |
13.0 |
35.0 |
86.0 |
|
|
RLDS 120-16 |
M16 |
17.0 |
15.5 |
21.0 |
32.0 |
19.0 |
16.0 |
35.0 |
89.0 |
|
|
RLDS 120-20 |
M20 |
21.0 |
15.5 |
21.0 |
38.0 |
22.0 |
20.0 |
35.0 |
92.0 |
|
|
150 |
RLDS 150-10 |
M10 |
10.5 |
17.0 |
23.5 |
34.0 |
15.0 |
12.0 |
35.0 |
93.0 |
|
RLDS 150-12 |
M12 |
13.0 |
17.0 |
23.5 |
34.0 |
16.0 |
13.0 |
35.0 |
94.0 |
|
|
RLDS 150-16 |
M16 |
17.0 |
17.0 |
23.5 |
34.0 |
19.0 |
16.0 |
35.0 |
97.0 |
|
|
RLDS 150-20 |
M20 |
21.0 |
17.0 |
23.5 |
40.0 |
22.0 |
20.0 |
35.0 |
100.0 |
|
|
185 |
RLDS 185-10 |
M10 |
10.5 |
19.0 |
25.5 |
37.0 |
15.0 |
12.0 |
40.0 |
97.0 |
|
RLDS 185-12 |
M12 |
13.0 |
19.0 |
25.5 |
37.0 |
16.0 |
13.0 |
40.0 |
98.0 |
|
|
RLDS 185-16 |
M16 |
17.0 |
19.0 |
25.5 |
37.0 |
19.0 |
16.0 |
40.0 |
101.0 |
|
|
RLDS 185-20 |
M20 |
21.0 |
19.0 |
25.5 |
40.0 |
22.0 |
20.0 |
40.0 |
104.0 |
|
|
240 |
RLDS 240-12 |
M12 |
13.0 |
21.5 |
29.0 |
42.0 |
16.0 |
13.0 |
40.0 |
108.0 |
|
RLDS 240-16 |
M16 |
17.0 |
21.5 |
29.0 |
42.0 |
19.0 |
16.0 |
40.0 |
111.0 |
|
|
RLDS 240-20 |
M20 |
21.0 |
21.5 |
29.0 |
45.0 |
22.0 |
20.0 |
40.0 |
114.0 |
|
|
300 |
RLDS 300-16 |
M16 |
17.0 |
24.5 |
32.0 |
48.0 |
19.0 |
16.0 |
50.0 |
119.0 |
|
RLDS 300-20 |
M20 |
21.0 |
24.5 |
32.0 |
48.0 |
22.0 |
20.0 |
50.0 |
122.0 |
|
|
400 |
RLDS 400-16 |
M16 |
17.0 |
27.5 |
38.5 |
55.0 |
25.0 |
16.0 |
70.0 |
140.0 |
|
RLDS 400-20 |
M20 |
21.0 |
27.5 |
38.5 |
55.0 |
25.0 |
20.0 |
70.0 |
140.0 |
|
|
500 |
RLDS 500-20 |
M20 |
21.0 |
31.0 |
42.0 |
60.0 |
25.0 |
20.0 |
70.0 |
150.0 |
|
630 |
RLDS 630-20 |
M20 |
21.0 |
34.5 |
44.0 |
60.0 |
25.0 |
20.0 |
80.0 |
160.0 |
|
800 |
RLDS 800-20 |
M20 |
21.0 |
40.0 |
52.0 |
75.0 |
25.0 |
20.0 |
100.0 |
190.0 |
|
1000 |
RLDS 1000-20 |
M20 |
21.0 |
44.0 |
58.0 |
85.0 |
25.0 |
20.0 |
100.0 |
190.0 |
Technical Information
| Parameter |
|---|
| Complies to IEC 61328-1 Standard |
| Design and construction as per DIN 46235 Standard |
| Annealed material optimizes material and crimping properties |
| Flat contact surface and precise stud holes as per Metric Standard |
| Material – High conductivity ETP Copper |
| Finish – Electro tin plated |
Certifications
IEC certified
More info available on request
