Withstands high voltage application upto 33kV

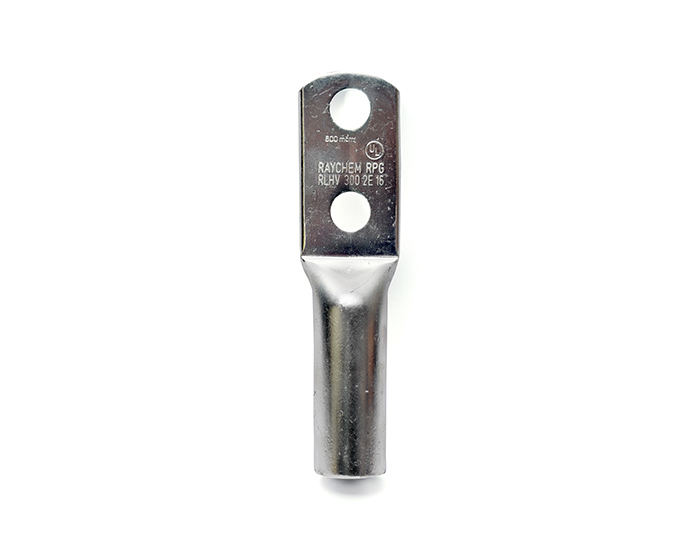

- Two-Hole Heavy Duty Lugs for copper conductors ranging from 25 – 630 mm2
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|
Catalogue Code |
Nominal Cross Section Sq mm |
Bolt Size |
Dimensions (mm) |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
Stud Hole |
Hole Spacing |
Barrel ID |
Palm Width |
Stud Centre Distance |
Barrel Length |
Total Length |
||||
|
ØE |
ØA |
D |
G |
H |
B |
J |
||||
|
RLHV 25 -2E-6 |
25 |
M6 |
6.5 |
44.5 |
6.8 |
16.0 |
15.0 |
17.0 |
37.0 |
123.0 |
|
RLHV 25 -2E-8 |
M8 |
8.4 |
44.5 |
6.8 |
16.0 |
15.0 |
17.0 |
37.0 |
123.0 |
|
|
RLHV 25 -2E-10 |
M10 |
10.5 |
44.5 |
6.8 |
16.0 |
15.0 |
17.0 |
37.0 |
123.0 |
|
|
RLHV 25 -2E-12 |
M12 |
13.0 |
44.5 |
6.8 |
18.0 |
15.0 |
17.0 |
37.0 |
123.0 |
|
|
RLHV 35 -2E-6 |
35 |
M6 |
6.5 |
44.5 |
8.2 |
18.0 |
15.0 |
17.0 |
37.0 |
124.0 |
|
RLHV 35 -2E-8 |
M8 |
8.4 |
44.5 |
8.2 |
18.0 |
15.0 |
17.0 |
37.0 |
124.0 |
|
|
RLHV 35 -2E-10 |
M10 |
10.5 |
44.5 |
8.2 |
18.0 |
15.0 |
17.0 |
37.0 |
124.0 |
|
|
RLHV 35 -2E-12 |
M12 |
13.0 |
44.5 |
8.2 |
18.0 |
15.0 |
17.0 |
37.0 |
124.0 |
|
|
RLHV 35 -2E-14 |
M14 |
14.5 |
44.5 |
8.2 |
18.0 |
15.0 |
17.0 |
37.0 |
124.0 |
|
|
RLHV 35-2E-16 |
M16 |
17.0 |
44.5 |
8.2 |
18.0 |
15.0 |
17.0 |
37.0 |
124.0 |
|
|
RLHV 50 -2E-6 |
50 |
M6 |
6.8 |
44.5 |
9.5 |
20.0 |
14.0 |
16.0 |
39.5 |
124.0 |
|
RLHV 50 -2E-8 |
M8 |
8.4 |
44.5 |
9.5 |
20.0 |
14.0 |
16.0 |
39.5 |
124.0 |
|
|
RLHV 50 -2E-10 |
M10 |
10.5 |
44.5 |
9.5 |
20.0 |
14.0 |
16.0 |
39.5 |
124.0 |
|
|
RLHV 50 -2E-12 |
M12 |
13.0 |
44.5 |
9.5 |
20.0 |
14.0 |
16.0 |
39.5 |
124.0 |
|
|
RLHV 50 -2E-14 |
M14 |
14.5 |
44.5 |
9.5 |
20.0 |
14.0 |
16.0 |
39.5 |
124.0 |
|
|
RLHV 50 -2E-16 |
M16 |
17.0 |
44.5 |
9.5 |
20.0 |
14.0 |
16.0 |
34.0 |
124.0 |
|
|
RLHV 70 -2E-6 |
70 |
M6 |
6.5 |
44.5 |
11.0 |
23.0 |
14.0 |
16.0 |
42.0 |
126.0 |
|
RLHV 70 -2E-8 |
M8 |
8.4 |
44.5 |
11.0 |
23.0 |
14.0 |
16.0 |
42.0 |
126.0 |
|
|
RLHV 70 -2E-10 |
M10 |
10.5 |
44.5 |
11.0 |
23.0 |
14.0 |
16.0 |
42.0 |
126.0 |
|
|
RLHV 70 -2E-12 |
M12 |
13.0 |
44.5 |
11.0 |
23.0 |
14.0 |
16.0 |
42.0 |
126.0 |
|
|
RLHV 70 -2E-14 |
M14 |
14.5 |
44.5 |
11.0 |
23.0 |
14.0 |
16.0 |
42.0 |
126.0 |
|
|
RLHV 70-2E 16 |
M16 |
17.0 |
44.5 |
11.0 |
23.0 |
14.0 |
16.0 |
36.0 |
126.0 |
|
|
RLHV 95 -2E-8 |
95 |
M8 |
8.4 |
44.5 |
13.5 |
27.0 |
16.0 |
18.0 |
46.0 |
138.5 |
|
RLHV 95 -2E-10 |
M10 |
10.5 |
44.5 |
13.5 |
27.0 |
16.0 |
18.0 |
46.0 |
138.5 |
|
|
RLHV 95 -2E-12 |
M12 |
13.0 |
44.5 |
13.5 |
27.0 |
16.0 |
18.0 |
46.0 |
138.5 |
|
|
RLHV 95 -2E-14 |
M14 |
14.5 |
44.5 |
13.5 |
27.0 |
16.0 |
18.0 |
46.0 |
138.5 |
|
|
RLHV 95 -2E-16 |
M16 |
17.0 |
44.5 |
13.5 |
27.0 |
16.0 |
18.0 |
46.0 |
138.5 |
|
|
RLHV 95 -2E-18 |
M18 |
19.0 |
44.5 |
13.5 |
27.0 |
16.0 |
18.0 |
46.0 |
138.5 |
|
|
RLHV 95 -2E-BL |
- |
- |
44.5 |
13.5 |
27.0 |
16.0 |
18.0 |
46.0 |
138.5 |
|
|
RLHV 120 -2E-8 |
120 |
M8 |
8.4 |
44.5 |
15.0 |
29.0 |
16.0 |
18.0 |
52.0 |
144.5 |
|
RLHV 120 -2E-10 |
M10 |
10.5 |
44.5 |
15.0 |
29.0 |
16.0 |
18.0 |
52.0 |
144.5 |
|
|
RLHV 120 -2E-12 |
M12 |
13.0 |
44.5 |
15.0 |
29.0 |
16.0 |
18.0 |
52.0 |
144.5 |
|
|
RLHV 120 -2E-14 |
M14 |
14.5 |
44.5 |
15.0 |
29.0 |
16.0 |
18.0 |
52.0 |
144.5 |
|
|
RLHV 120 -2E-16 |
M16 |
17.0 |
44.5 |
15.0 |
29.0 |
16.0 |
18.0 |
52.0 |
144.5 |
|
|
RLHV 120 -2E-18 |
M18 |
19.0 |
44.5 |
15.0 |
29.0 |
16.0 |
18.0 |
52.0 |
144.5 |
|
|
RLHV 120 -2E-20 |
M20 |
21.0 |
44.5 |
15.0 |
29.0 |
16.0 |
18.0 |
52.0 |
144.5 |
|
|
RLHV 120 -2E-BL |
- |
- |
44.5 |
15.0 |
29.0 |
16.0 |
18.0 |
52.0 |
144.5 |
|
|
RLHV 150 -2E-8 |
150 |
M8 |
8.4 |
44.5 |
16.5 |
32.0 |
14.0 |
16.0 |
56.5 |
144.5 |
|
RLHV 150 -2E-10 |
M10 |
10.5 |
44.5 |
16.5 |
32.0 |
14.0 |
16.0 |
56.5 |
144.5 |
|
|
RLHV 150 -2E-12 |
M12 |
13.0 |
44.5 |
16.5 |
32.0 |
14.0 |
16.0 |
56.5 |
144.5 |
|
|
RLHV 150 -2E-14 |
M14 |
14.5 |
44.5 |
16.5 |
32.0 |
14.0 |
16.0 |
56.5 |
144.5 |
|
|
RLHV 150 -2E-16 |
M16 |
17.0 |
44.5 |
16.5 |
32.0 |
14.0 |
16.0 |
56.5 |
144.5 |
|
|
RLHV 150 -2E-18 |
M18 |
19.0 |
44.5 |
16.5 |
32.0 |
14.0 |
16.0 |
56.5 |
144.5 |
|
|
RLHV 150 -2E-20 |
M20 |
21.0 |
44.5 |
16.5 |
32.0 |
14.0 |
16.0 |
56.5 |
144.5 |
|
|
RLHV 150 -2E-BL |
- |
- |
44.5 |
16.5 |
32.0 |
14.0 |
16.0 |
56.5 |
144.5 |
|
|
RLHV 185 -2E-8 |
185 |
M8 |
8.4 |
44.5 |
18.5 |
34.0 |
16.0 |
18.0 |
65.0 |
156.0 |
|
RLHV 185 -2E-10 |
M10 |
10.5 |
44.5 |
18.5 |
34.0 |
16.0 |
18.0 |
65.0 |
156.0 |
|
|
RLHV 185 -2E-12 |
M12 |
13.0 |
44.5 |
18.5 |
34.0 |
16.0 |
18.0 |
65.0 |
156.0 |
|
|
RLHV 185 -2E-14 |
M14 |
14.5 |
44.5 |
18.5 |
34.0 |
16.0 |
18.0 |
65.0 |
156.0 |
|
|
RLHV 185 -2E-16 |
M16 |
17.0 |
44.5 |
18.5 |
34.0 |
16.0 |
18.0 |
65.0 |
156.0 |
|
|
RLHV 185 -2E-18 |
M18 |
19.0 |
44.5 |
18.5 |
34.0 |
16.0 |
18.0 |
65.0 |
156.0 |
|
|
RLHV 185 -2E-20 |
M20 |
21.0 |
44.5 |
18.5 |
34.0 |
16.0 |
18.0 |
65.0 |
156.0 |
|
|
RLHV 185 -2E-BL |
- |
- |
44.5 |
18.5 |
34.0 |
16.0 |
18.0 |
65.0 |
156.0 |
|
|
RLHV 240 -2E-8 |
240 |
M8 |
8.4 |
44.5 |
21.0 |
38.0 |
16.0 |
20.0 |
65.0 |
160.0 |
|
RLHV 240 -2E-10 |
M10 |
10.5 |
44.5 |
21.0 |
38.0 |
16.0 |
20.0 |
65.0 |
160.0 |
|
|
RLHV 240 -2E-12 |
M12 |
13.0 |
44.5 |
21.0 |
38.0 |
16.0 |
20.0 |
65.0 |
160.0 |
|
|
RLHV 240 -2E-14 |
M14 |
14.5 |
44.5 |
21.0 |
38.0 |
16.0 |
20.0 |
65.0 |
160.0 |
|
|
RLHV 240 -2E-16 |
M16 |
17.0 |
44.5 |
21.0 |
38.0 |
16.0 |
20.0 |
65.0 |
160.0 |
|
|
RLHV 240 -2E-18 |
M18 |
19.0 |
44.5 |
21.0 |
38.0 |
16.0 |
20.0 |
65.0 |
160.0 |
|
|
RLHV 240 -2E-20 |
M20 |
21.0 |
44.5 |
21.0 |
38.0 |
16.0 |
20.0 |
65.0 |
160.0 |
|
|
RLHV 240 -2E-BL |
- |
- |
44.5 |
21.0 |
38.0 |
16.0 |
20.0 |
65.0 |
160.0 |
|
|
RLHV 300 -2E-8 |
300 |
M8 |
8.4 |
44.5 |
23.5 |
45.0 |
17.0 |
19.0 |
79.5 |
175.0 |
|
RLHV 300 -2E-10 |
M10 |
10.5 |
44.5 |
23.5 |
45.0 |
17.0 |
19.0 |
79.5 |
175.0 |
|
|
RLHV 300 -2E-12 |
M12 |
13.0 |
44.5 |
23.5 |
45.0 |
17.0 |
19.0 |
79.5 |
175.0 |
|
|
RLHV 300 -2E-14 |
M14 |
14.5 |
44.5 |
23.5 |
45.0 |
17.0 |
19.0 |
79.5 |
175.0 |
|
|
RLHV 300 -2E-16 |
M16 |
17.0 |
44.5 |
23.5 |
45.0 |
17.0 |
19.0 |
79.5 |
175.0 |
|
|
RLHV 300 -2E-18 |
M18 |
19.0 |
44.5 |
23.5 |
45.0 |
17.0 |
19.0 |
79.5 |
175.0 |
|
|
RLHV 300 -2E-20 |
M20 |
21.0 |
44.5 |
23.5 |
45.0 |
17.0 |
19.0 |
79.5 |
175.0 |
|
|
RLHV 300 -2E-BL |
- |
- |
44.5 |
23.5 |
45.0 |
17.0 |
19.0 |
79.5 |
175.0 |
|
|
RLHV 400 -2E-10 |
400 |
M10 |
10.5 |
44.5 |
27.0 |
53.0 |
17.0 |
19.0 |
81.0 |
182.5 |
|
RLHV 400 -2E-12 |
M12 |
13.0 |
44.5 |
27.0 |
53.0 |
17.0 |
19.0 |
81.0 |
182.5 |
|
|
RLHV 400 -2E-14 |
M14 |
14.5 |
44.5 |
27.0 |
53.0 |
17.0 |
19.0 |
81.0 |
182.5 |
|
|
RLHV 400 -2E-16 |
M16 |
17.0 |
44.5 |
27.0 |
53.0 |
17.0 |
19.0 |
81.0 |
182.5 |
|
|
RLHV 400 -2E-18 |
M18 |
19.0 |
44.5 |
27.0 |
53.0 |
17.0 |
19.0 |
81.0 |
182.5 |
|
|
RLHV 400 -2E-20 |
M20 |
21.0 |
44.5 |
27.0 |
53.0 |
17.0 |
19.0 |
81.0 |
182.5 |
|
|
RLHV 400 -2E-BL |
- |
- |
44.5 |
27.0 |
53.0 |
17.0 |
19.0 |
81.0 |
182.5 |
|
|
RLHV 500 -2E-10 |
500 |
M10 |
10.5 |
44.5 |
30.3 |
57.0 |
20.0 |
20.0 |
85.5 |
194.5 |
|
RLHV 500 -2E-12 |
M12 |
13.0 |
44.5 |
30.3 |
57.0 |
20.0 |
20.0 |
85.5 |
194.5 |
|
|
RLHV 500 -2E-14 |
M14 |
14.5 |
44.5 |
30.3 |
57.0 |
20.0 |
20.0 |
85.5 |
194.5 |
|
|
RLHV 500 -2E-16 |
M16 |
17.0 |
44.5 |
30.3 |
57.0 |
20.0 |
20.0 |
85.5 |
194.5 |
|
|
RLHV 500 -2E-18 |
M18 |
19.0 |
44.5 |
30.3 |
57.0 |
20.0 |
20.0 |
85.5 |
194.5 |
|
|
RLHV 500 -2E-20 |
M20 |
21.0 |
44.5 |
30.3 |
57.0 |
20.0 |
20.0 |
85.5 |
194.5 |
|
|
RLHV 500 -2E-BL |
- |
- |
44.5 |
30.3 |
57.0 |
20.0 |
20.0 |
85.5 |
194.5 |
|
|
RLHV 630 -2E-10 |
630 |
M10 |
10.5 |
44.5 |
33.4 |
61.0 |
20.0 |
20.0 |
95.5 |
206.5 |
|
RLHV 630 -2E-12 |
M12 |
13.0 |
44.5 |
33.4 |
61.0 |
20.0 |
20.0 |
95.5 |
206.5 |
|
|
RLHV 630 -2E-14 |
M14 |
14.5 |
44.5 |
33.4 |
61.0 |
20.0 |
20.0 |
95.5 |
206.5 |
|
|
RLHV 630 -2E-16 |
M16 |
17.0 |
44.5 |
33.4 |
61.0 |
20.0 |
20.0 |
95.5 |
206.5 |
|
|
RLHV 630 -2E-18 |
M18 |
19.0 |
44.5 |
33.4 |
61.0 |
20.0 |
20.0 |
95.5 |
206.5 |
|
|
RLHV 630 -2E-20 |
M20 |
21.0 |
44.5 |
33.4 |
61.0 |
20.0 |
20.0 |
95.5 |
206.5 |
|
|
RLHV 630 -2E-BL |
- |
- |
44.5 |
33.4 |
61.0 |
20.0 |
20.0 |
95.5 |
206.5 |
|
Technical Information
| Parameter |
|---|
| Withstands high voltage applications upto 33kV |
| Stud hole spacing as per NEMA Standards |
| Best suited in application where two bolts are needed to avoid rotation or movement of lugs |
| Annealed material optimizes material and crimping properties |
| Flat contact surface and precise stud holes as per Metrics Standard |
| Material – High conductivity ETP Copper |
| Finish – Electro tin plated |
Certifications
UL Listed
More info available on request
IEC certified
More info available on request
Related Products
All products provided below with slider to find faster.
/
Customizable
A2LDS - Two-hole Lugs - Aluminium Dual Rated
For aluminium and copper conductors
Learn More
Customizable
AFDS - Two-way Splice Connectors - Aluminium Dual Rated
Standard barrel with crimps for reliable connection
Learn More
Customizable
AFL - Two-way Splice Connectors - Long Barrel
Long barrel with multiple crimps for secured connection
Learn More
Customizable
AFS - Two-way Splice Connectors - Standard Barrel
Standard barrel with crimps for reliable connection
Learn More
Customizable
ALDH - One-hole Lugs - Aluminium Dual Rated Heavy Duty
For heavy duty aluminium and copper conductors
Learn More
Customizable
ALDS - One-hole Lugs - Aluminium Dual Rated
For aluminium and copper conductors
Learn More
Customizable
RADE - One-hole Lugs - Aluminium Lugs as per DIN 46329
For aluminium and copper conductors and best suited to avoid rotation or movement of lugs
Learn More
Customizable
RCD - Two-way Splice Connectors - DIN 46267 Part-1
Splices designed as per DIN Standard 46267, Part-1
Learn More
Customizable
RCL - Two-way Splice Connectors - Long Barrel
Long barrel with multiple crimps for secured connection
Learn More
Customizable
RCRL - In line Connectors - Reducing Link
Application for different sizes of cable connections
Learn More
Customizable
RCS - Two-way Splice Connectors - Short Barrel
Standard barrel with crimps for reliable connection
Learn More
Customizable
RLAX - One-hole Lugs - Aluminium Lugs for XLPE Cables
For significant lower dead weight aluminium conductors in power distribution application
Learn More
