Designed to withstand high voltage application upto 33 KV

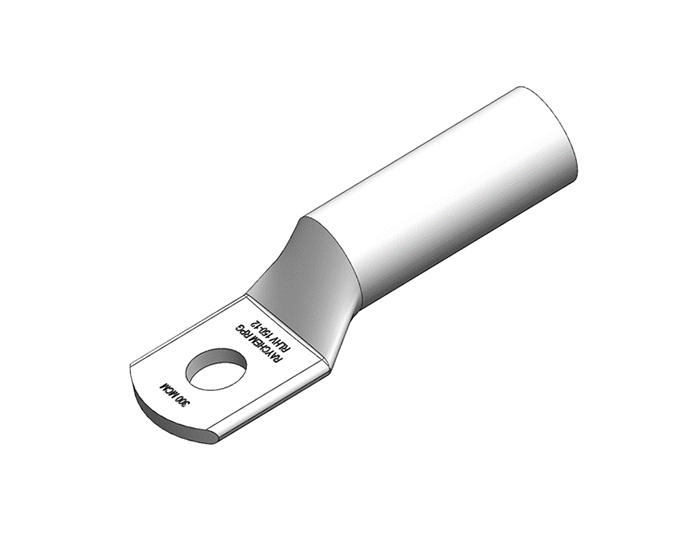

- One-Hole Heavy Duty Lugs for copper conductors ranging from 25 – 630 mm2
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|
Nominal Cross Section mm2 |
Bolt Size |
Catalogue Code |
Dimensions (mm) |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
Stud Hole |
Barrel ID |
Barrel OD |
Palm Width |
Stud Centre Distance |
Barrel Length |
Total Length |
||||
|
ØE |
ØA |
ØC |
D |
G |
H |
B |
J |
|||
|
25 |
M6 |
RLHV 25-6 |
6.5 |
6.8 |
10.0 |
16.0 |
10.0 |
12.0 |
37.0 |
68.5 |
|
M8 |
RLHV 25-8 |
8.4 |
6.8 |
10.0 |
16.0 |
10.0 |
12.0 |
37.0 |
68.5 |
|
|
M10 |
RLHV 25-10 |
10.5 |
6.8 |
10.0 |
16.0 |
10.0 |
12.0 |
37.0 |
68.5 |
|
|
M12 |
RLHV 25-12 |
13.0 |
6.8 |
10.0 |
18.0 |
10.0 |
12.0 |
37.0 |
68.5 |
|
|
35 |
M6 |
RLHV 35-6 |
6.5 |
8.2 |
12.5 |
19.5 |
14.0 |
16.0 |
37.0 |
79.5 |
|
M8 |
RLHV 35-8 |
8.4 |
8.2 |
12.5 |
19.5 |
14.0 |
16.0 |
37.0 |
79.5 |
|
|
M10 |
RLHV 35-10 |
10.5 |
8.2 |
12.5 |
19.5 |
14.0 |
16.0 |
37.0 |
79.5 |
|
|
M12 |
RLHV 35-12 |
13.0 |
8.2 |
12.5 |
19.5 |
14.0 |
16.0 |
37.0 |
79.5 |
|
|
M14 |
RLHV 35-14 |
14.5 |
8.2 |
12.5 |
19.5 |
14.0 |
16.0 |
37.0 |
79.5 |
|
|
M16 |
RLHV 35-16 |
17.0 |
8.2 |
12.5 |
19.5 |
14.0 |
16.0 |
37.0 |
79.5 |
|
|
50 |
M6 |
RLHV 50-6 |
6.5 |
9.5 |
14.5 |
20.0 |
15.0 |
16.0 |
39.5 |
79.5 |
|
M8 |
RLHV 50-8 |
8.4 |
9.5 |
14.5 |
20.0 |
15.0 |
16.0 |
39.5 |
79.5 |
|
|
M10 |
RLHV 50-10 |
10.5 |
9.5 |
14.5 |
20.0 |
15.0 |
16.0 |
39.5 |
79.5 |
|
|
M12 |
RLHV 50-12 |
13.0 |
9.5 |
14.5 |
20.0 |
15.0 |
16.0 |
39.5 |
79.5 |
|
|
M14 |
RLHV 50-14 |
14.5 |
9.5 |
14.5 |
20.0 |
15.0 |
16.0 |
39.5 |
79.5 |
|
|
M16 |
RLHV 50-16 |
17.0 |
9.5 |
14.5 |
20.0 |
15.0 |
16.0 |
39.5 |
79.5 |
|
|
70 |
M6 |
RLHV 70-6 |
6.5 |
11.0 |
16.0 |
23.0 |
14.0 |
16.0 |
42.0 |
81.5 |
|
M8 |
RLHV 70-8 |
8.4 |
11.0 |
16.0 |
23.0 |
14.0 |
16.0 |
42.0 |
81.5 |
|
|
M10 |
RLHV 70-10 |
10.5 |
11.0 |
16.0 |
23.0 |
14.0 |
16.0 |
42.0 |
81.5 |
|
|
M12 |
RLHV 70-12 |
13.0 |
11.0 |
16.0 |
23.0 |
14.0 |
16.0 |
42.0 |
81.5 |
|
|
M14 |
RLHV 70-14 |
14.5 |
11.0 |
16.0 |
23.0 |
14.0 |
16.0 |
42.0 |
81.5 |
|
|
M16 |
RLHV 70-16 |
17.0 |
11.0 |
16.0 |
23.0 |
14.0 |
16.0 |
42.0 |
81.5 |
|
|
95 |
M8 |
RLHV 95-8 |
8.4 |
13.5 |
19.0 |
27.0 |
14.0 |
16.0 |
46.0 |
90.0 |
|
M10 |
RLHV 95-10 |
10.5 |
13.5 |
19.0 |
27.0 |
14.0 |
16.0 |
46.0 |
90.0 |
|
|
M12 |
RLHV 95-12 |
13.0 |
13.5 |
19.0 |
27.0 |
14.0 |
16.0 |
46.0 |
90.0 |
|
|
M14 |
RLHV 95-14 |
14.5 |
13.5 |
19.0 |
27.0 |
14.0 |
16.0 |
46.0 |
90.0 |
|
|
M16 |
RLHV 95-16 |
17.0 |
13.5 |
19.0 |
27.0 |
14.0 |
16.0 |
46.0 |
90.0 |
|
|
M18 |
RLHV 95-18 |
19.0 |
13.5 |
19.0 |
27.0 |
14.0 |
16.0 |
46.0 |
90.0 |
|
|
M20 |
RLHV 95-20 |
21.0 |
13.5 |
19.0 |
27.0 |
14.0 |
16.0 |
46.0 |
90.0 |
|
|
- |
RLHV 95-BL |
- |
13.5 |
19.0 |
27.0 |
14.0 |
16.0 |
46.0 |
90.0 |
|
|
120 |
M8 |
RLHV 120-8 |
8.4 |
15.0 |
20.5 |
29.0 |
16.0 |
16.0 |
52.0 |
98.0 |
|
M10 |
RLHV 120-10 |
10.5 |
15.0 |
20.5 |
29.0 |
16.0 |
16.0 |
52.0 |
98.0 |
|
|
M12 |
RLHV 120-12 |
13.0 |
15.0 |
20.5 |
29.0 |
16.0 |
16.0 |
52.0 |
98.0 |
|
|
M14 |
RLHV 120-14 |
14.5 |
15.0 |
20.5 |
29.0 |
16.0 |
16.0 |
52.0 |
98.0 |
|
|
M16 |
RLHV 120-16 |
17.0 |
15.0 |
20.5 |
29.0 |
16.0 |
16.0 |
52.0 |
98.0 |
|
|
M18 |
RLHV 120-18 |
19.0 |
15.0 |
20.5 |
29.0 |
16.0 |
16.0 |
52.0 |
98.0 |
|
|
M20 |
RLHV 120-20 |
21.0 |
15.0 |
20.5 |
29.0 |
16.0 |
16.0 |
52.0 |
98.0 |
|
|
- |
RLHV 120-BL |
- |
15.0 |
20.5 |
29.0 |
16.0 |
16.0 |
52.0 |
98.0 |
|
|
150 |
M8 |
RLHV 150-8 |
8.4 |
16.5 |
23.0 |
32.0 |
19.0 |
16.0 |
56.5 |
105.0 |
|
M10 |
RLHV 150-10 |
10.5 |
16.5 |
23.0 |
32.0 |
19.0 |
16.0 |
56.5 |
105.0 |
|
|
M12 |
RLHV 150-12 |
13.0 |
16.5 |
23.0 |
32.0 |
19.0 |
16.0 |
56.5 |
105.0 |
|
|
M14 |
RLHV 150-14 |
14.5 |
16.5 |
23.0 |
32.0 |
19.0 |
16.0 |
56.5 |
105.0 |
|
|
M16 |
RLHV 150-16 |
17.0 |
16.5 |
23.0 |
32.0 |
19.0 |
16.0 |
56.5 |
105.0 |
|
|
M18 |
RLHV 150-18 |
19.0 |
16.5 |
23.0 |
32.0 |
19.0 |
16.0 |
56.5 |
105.0 |
|
|
M20 |
RLHV 150-20 |
21.0 |
16.5 |
23.0 |
32.0 |
19.0 |
16.0 |
56.5 |
105.0 |
|
|
- |
RLHV 150-BL |
- |
16.5 |
23.0 |
32.0 |
19.0 |
16.0 |
56.5 |
105.0 |
|
|
185 |
M8 |
RLHV 185-8 |
8.4 |
18.5 |
24.0 |
32.7 |
17.0 |
19.0 |
65.0 |
113.5 |
|
M10 |
RLHV 185-10 |
10.5 |
18.5 |
24.0 |
32.7 |
17.0 |
19.0 |
65.0 |
113.5 |
|
|
M12 |
RLHV 185-12 |
13.0 |
18.5 |
24.0 |
32.7 |
17.0 |
19.0 |
65.0 |
113.5 |
|
|
M14 |
RLHV 185-14 |
14.5 |
18.5 |
24.0 |
32.7 |
17.0 |
19.0 |
65.0 |
113.5 |
|
|
M16 |
RLHV 185-16 |
17.0 |
18.5 |
24.0 |
32.7 |
17.0 |
19.0 |
65.0 |
113.5 |
|
|
M18 |
RLHV 185-18 |
19.0 |
18.5 |
24.0 |
32.7 |
17.0 |
19.0 |
65.0 |
113.5 |
|
|
M20 |
RLHV 185-20 |
21.0 |
18.5 |
24.0 |
32.7 |
17.0 |
19.0 |
65.0 |
113.5 |
|
|
- |
RLHV 185-BL |
- |
18.5 |
24.0 |
32.7 |
- |
- |
65.0 |
113.5 |
|
|
240 |
M8 |
RLHV 240-8 |
8.4 |
21.0 |
26.5 |
38.0 |
20.0 |
20.0 |
65.0 |
119.5 |
|
M10 |
RLHV 240-10 |
10.5 |
21.0 |
26.5 |
38.0 |
20.0 |
20.0 |
65.0 |
119.5 |
|
|
M12 |
RLHV 240-12 |
13.0 |
21.0 |
26.5 |
38.0 |
20.0 |
20.0 |
65.0 |
119.5 |
|
|
M14 |
RLHV 240-14 |
14.5 |
21.0 |
26.5 |
38.0 |
20.0 |
20.0 |
65.0 |
119.5 |
|
|
M16 |
RLHV 240-16 |
17.0 |
21.0 |
26.5 |
38.0 |
20.0 |
20.0 |
65.0 |
119.5 |
|
|
M18 |
RLHV 240-18 |
19.0 |
21.0 |
26.5 |
38.0 |
20.0 |
20.0 |
65.0 |
119.5 |
|
|
M20 |
RLHV 240-20 |
21.0 |
21.0 |
26.5 |
38.0 |
20.0 |
20.0 |
65.0 |
119.5 |
|
|
- |
RLHV 240-BL |
- |
21.0 |
26.5 |
38.0 |
- |
- |
65.0 |
119.5 |
|
|
300 |
M8 |
RLHV 300-8 |
8.4 |
23.5 |
32.0 |
45.0 |
22.0 |
22.0 |
79.5 |
138.5 |
|
M10 |
RLHV 300-10 |
10.5 |
23.5 |
32.0 |
45.0 |
22.0 |
22.0 |
79.5 |
138.5 |
|
|
M12 |
RLHV 300-12 |
13.0 |
23.5 |
32.0 |
45.0 |
22.0 |
22.0 |
79.5 |
138.5 |
|
|
M14 |
RLHV 300-14 |
14.5 |
23.5 |
32.0 |
45.0 |
22.0 |
22.0 |
79.5 |
138.5 |
|
|
M16 |
RLHV 300-16 |
17.0 |
23.5 |
32.0 |
45.0 |
22.0 |
22.0 |
79.5 |
138.5 |
|
|
M18 |
RLHV 300-18 |
19.0 |
23.5 |
32.0 |
45.0 |
22.0 |
22.0 |
79.5 |
138.5 |
|
|
M20 |
RLHV 300-20 |
21.0 |
23.5 |
32.0 |
45.0 |
22.0 |
22.0 |
79.5 |
138.5 |
|
|
- |
RLHV 300-BL |
- |
23.5 |
32.0 |
45.0 |
22.0 |
22.0 |
79.5 |
138.5 |
|
|
400 |
M10 |
RLHV 400-10 |
10.5 |
27.0 |
38.0 |
53.0 |
26.0 |
26.0 |
81.0 |
154.0 |
|
M12 |
RLHV 400-12 |
13.0 |
27.0 |
38.0 |
53.0 |
26.0 |
26.0 |
81.0 |
154.0 |
|
|
M14 |
RLHV 400-14 |
14.5 |
27.0 |
38.0 |
53.0 |
26.0 |
26.0 |
81.0 |
154.0 |
|
|
M16 |
RLHV 400-16 |
17.0 |
27.0 |
38.0 |
53.0 |
26.0 |
26.0 |
81.0 |
154.0 |
|
|
M18 |
RLHV 400-18 |
19.0 |
27.0 |
38.0 |
53.0 |
26.0 |
26.0 |
81.0 |
154.0 |
|
|
M20 |
RLHV 400-20 |
21.0 |
27.0 |
38.0 |
53.0 |
26.0 |
26.0 |
81.0 |
154.0 |
|
|
- |
RLHV 400-BL |
- |
27.0 |
38.0 |
53.0 |
26.0 |
26.0 |
81.0 |
154.0 |
|
|
500 |
M10 |
RLHV 500-10 |
10.5 |
30.3 |
41.0 |
57.0 |
28.0 |
28.0 |
85.5 |
166.0 |
|
M12 |
RLHV 500-12 |
13.0 |
30.3 |
41.0 |
57.0 |
28.0 |
28.0 |
85.5 |
166.0 |
|
|
M14 |
RLHV 500-14 |
14.5 |
30.3 |
41.0 |
57.0 |
28.0 |
28.0 |
85.5 |
166.0 |
|
|
M16 |
RLHV 500-16 |
17.0 |
30.3 |
41.0 |
57.0 |
28.0 |
28.0 |
85.5 |
166.0 |
|
|
M18 |
RLHV 500-18 |
19.0 |
30.3 |
41.0 |
57.0 |
28.0 |
28.0 |
85.5 |
166.0 |
|
|
M20 |
RLHV 500-20 |
21.0 |
30.3 |
41.0 |
57.0 |
28.0 |
28.0 |
85.5 |
166.0 |
|
|
- |
RLHV 500-BL |
- |
30.3 |
41.0 |
57.0 |
28.0 |
28.0 |
85.5 |
166.0 |
|
|
630 |
M10 |
RLHV 630-10 |
10.5 |
33.4 |
43.0 |
61.0 |
33.0 |
33.0 |
95.5 |
188.0 |
|
M12 |
RLHV 630-12 |
13.0 |
33.4 |
43.0 |
61.0 |
33.0 |
33.0 |
95.5 |
188.0 |
|
|
M14 |
RLHV 630-14 |
14.5 |
33.4 |
43.0 |
61.0 |
33.0 |
33.0 |
95.5 |
188.0 |
|
|
M16 |
RLHV 630-16 |
17.0 |
33.4 |
43.0 |
61.0 |
33.0 |
33.0 |
95.5 |
188.0 |
|
|
M18 |
RLHV 630-18 |
19.0 |
33.4 |
43.0 |
61.0 |
33.0 |
33.0 |
95.5 |
188.0 |
|
|
M20 |
RLHV 630-20 |
21.0 |
33.4 |
43.0 |
61.0 |
33.0 |
33.0 |
95.5 |
188.0 |
|
|
- |
RLHV 630-BL |
- |
33.4 |
43.0 |
61.0 |
33.0 |
33.0 |
95.5 |
188.0 |
|
Technical Information
| Parameter |
|---|
| Withstands high voltage applications upto 33kV |
| Annealed material optimizes material and crimping properties |
| Flat contact surface and precise stud holes as per the Metric Standard |
| Material – High conductivity ETP Copper |
| Finish – Electro tin plated |
Certifications
UL Listed
More info available on request
IEC certified
More info available on request
Related Products
All products provided below with slider to find faster.
/
Customizable
A2LDS - Two-hole Lugs - Aluminium Dual Rated
For aluminium and copper conductors
Learn More
Customizable
AFDS - Two-way Splice Connectors - Aluminium Dual Rated
Standard barrel with crimps for reliable connection
Learn More
Customizable
AFL - Two-way Splice Connectors - Long Barrel
Long barrel with multiple crimps for secured connection
Learn More
Customizable
AFS - Two-way Splice Connectors - Standard Barrel
Standard barrel with crimps for reliable connection
Learn More
Customizable
ALDH - One-hole Lugs - Aluminium Dual Rated Heavy Duty
For heavy duty aluminium and copper conductors
Learn More
Customizable
ALDS - One-hole Lugs - Aluminium Dual Rated
For aluminium and copper conductors
Learn More
Customizable
RADE - One-hole Lugs - Aluminium Lugs as per DIN 46329
For aluminium and copper conductors and best suited to avoid rotation or movement of lugs
Learn More
Customizable
RCD - Two-way Splice Connectors - DIN 46267 Part-1
Splices designed as per DIN Standard 46267, Part-1
Learn More
Customizable
RCL - Two-way Splice Connectors - Long Barrel
Long barrel with multiple crimps for secured connection
Learn More
Customizable
RCRL - In line Connectors - Reducing Link
Application for different sizes of cable connections
Learn More
Customizable
RCS - Two-way Splice Connectors - Short Barrel
Standard barrel with crimps for reliable connection
Learn More
Customizable
RLAX - One-hole Lugs - Aluminium Lugs for XLPE Cables
For significant lower dead weight aluminium conductors in power distribution application
Learn More
