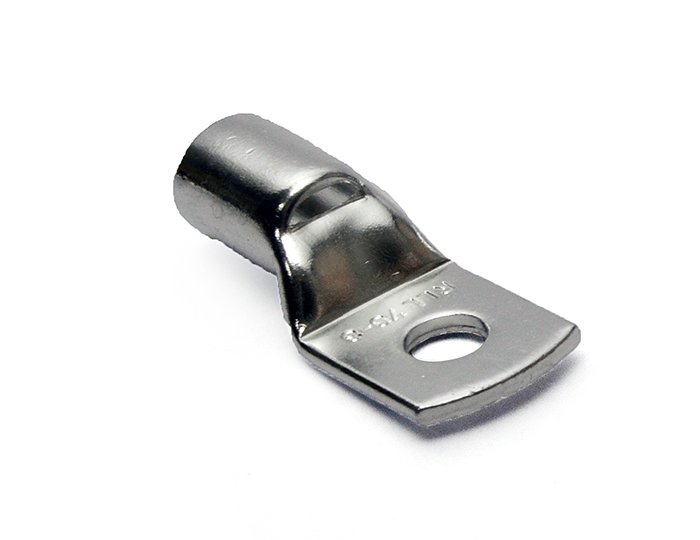

Durable lugs for low voltage application
- One-Hole Medium Voltage Lugs for copper conductors ranging from 35 – 800 mm2
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|
Nominal Cross Section mm2 |
Bolt Size |
Catalogue Code |
Dimensions (mm) |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
Stud Hole |
Barrel ID |
Barrel OD |
Palm Width |
Stud Centre Distance |
Barrel Length |
Total Length |
||||
|
ØE |
ØA |
ØC |
D |
G |
H |
B |
J |
|||
|
35 |
M6 |
RLL 35-6 |
6.5 |
8 |
10 |
15 |
9 |
9 |
13.5 |
37 |
|
M8 |
RLL 35-8 |
8.4 |
8 |
10 |
15 |
9 |
9 |
13.5 |
37 |
|
|
M10 |
RLL 35-10 |
10.5 |
8 |
10 |
15 |
9 |
9 |
13.5 |
37 |
|
|
M12 |
RLL 35-12 |
13 |
8 |
10 |
18 |
10 |
12 |
13.5 |
41 |
|
|
M16 |
RLL 35-16 |
17 |
8 |
10 |
22 |
14 |
16 |
13.5 |
50 |
|
|
50 |
M6 |
RLL 50-6 |
6.5 |
9.2 |
11.2 |
16 |
9 |
10 |
17 |
42 |
|
M8 |
RLL 50-8 |
8.4 |
9.2 |
11.2 |
16 |
9 |
10 |
17 |
42 |
|
|
M10 |
RLL 50-10 |
10.5 |
9.2 |
11.2 |
16 |
9 |
10 |
17 |
42 |
|
|
M12 |
RLL 50-12 |
13 |
9.2 |
11.2 |
20 |
10 |
12 |
17 |
45 |
|
|
M14 |
RLL 50-14 |
14.5 |
9.2 |
11.2 |
22 |
15 |
15 |
18 |
54 |
|
|
M16 |
RLL 50-16 |
17 |
9.2 |
11.2 |
22 |
15 |
15 |
18 |
54 |
|
|
M20 |
RLL 50-20 |
21 |
9.2 |
11.2 |
26 |
18 |
18 |
18 |
60 |
|
|
70 |
M6 |
RLL 70-6 |
6.5 |
11.5 |
13.8 |
20 |
11 |
11 |
18.5 |
47 |
|
M8 |
RLL 70-8 |
8.4 |
11.5 |
13.8 |
20 |
11 |
11 |
18.5 |
47 |
|
|
M10 |
RLL 70-10 |
10.5 |
11.5 |
13.8 |
20 |
11 |
11 |
18.5 |
47 |
|
|
M12 |
RLL 70-12 |
13 |
11.5 |
13.8 |
20 |
11 |
11 |
18.5 |
47 |
|
|
M14 |
RLL 70-14 |
14.5 |
11.5 |
13.8 |
20 |
14 |
15 |
18.5 |
55 |
|
|
M16 |
RLL 70-16 |
17 |
11.5 |
13.8 |
20 |
14 |
16 |
18.5 |
56 |
|
|
M20 |
RLL 70-20 |
21 |
11.5 |
13.8 |
20 |
16 |
18 |
18.5 |
63 |
|
|
95 |
M6 |
RLL 95-6 |
6.5 |
12.8 |
15.6 |
23 |
12 |
13 |
21 |
53 |
|
M8 |
RLL 95-8 |
8.4 |
12.8 |
15.6 |
23 |
12 |
13 |
21 |
53 |
|
|
M10 |
RLL 95-10 |
10.5 |
12.8 |
15.6 |
23 |
12 |
13 |
21 |
53 |
|
|
M12 |
RLL 95-12 |
13 |
12.8 |
15.6 |
23 |
12 |
13 |
21 |
53 |
|
|
M14 |
RLL 95-14 |
14.5 |
12.8 |
15.6 |
23 |
14 |
15 |
22 |
55 |
|
|
M16 |
RLL 95-16 |
17 |
12.8 |
15.6 |
23 |
14 |
16 |
22 |
56 |
|
|
M20 |
RLL 95-20 |
21 |
12.8 |
15.6 |
23 |
15 |
16 |
22 |
63 |
|
|
- |
RLL 95-BL |
- |
12.8 |
15.6 |
23 |
15 |
16 |
22 |
63 |
|
|
120 |
M8 |
RLL 120-8 |
8.4 |
14.8 |
17.8 |
26 |
13 |
14 |
23 |
60 |
|
M10 |
RLL 120-10 |
10.5 |
14.8 |
17.8 |
26 |
13 |
14 |
23 |
60 |
|
|
M12 |
RLL 120-12 |
13 |
14.8 |
17.8 |
26 |
13 |
14 |
23 |
60 |
|
|
M14 |
RLL 120-14 |
14.5 |
14.8 |
17.8 |
26 |
13 |
14 |
23 |
60 |
|
|
M16 |
RLL 120-16 |
17 |
14.8 |
17.8 |
26 |
16 |
16 |
23 |
64 |
|
|
M20 |
RLL 120-20 |
21 |
14.8 |
17.8 |
26 |
16 |
20 |
23 |
68 |
|
|
- |
RLL 120-BL |
- |
14.8 |
17.8 |
26 |
16 |
20 |
23 |
68 |
|
|
150 |
M8 |
RLL 150-8 |
8.4 |
16 |
19.6 |
28 |
16 |
16 |
27 |
70 |
|
M10 |
RLL 150-10 |
10.5 |
16 |
19.6 |
28 |
16 |
16 |
27 |
70 |
|
|
M12 |
RLL 150-12 |
13 |
16 |
19.6 |
28 |
16 |
16 |
27 |
70 |
|
|
M14 |
RLL 150-14 |
14.5 |
16 |
19.6 |
28 |
16 |
16 |
27 |
70 |
|
|
M16 |
RLL 150-16 |
17 |
16 |
19.6 |
28 |
16 |
16 |
27 |
70 |
|
|
M18 |
RLL 150-18 |
19 |
16 |
19.6 |
28 |
16 |
16 |
27 |
73 |
|
|
M20 |
RLL 150-20 |
21 |
16 |
19.6 |
28 |
16 |
16 |
27 |
73 |
|
|
- |
RLL 150-BL |
- |
16 |
19.6 |
28 |
16 |
16 |
27 |
73 |
|
|
185 |
M8 |
RLL 185-8 |
8.4 |
18 |
22 |
32 |
17 |
19 |
32 |
80 |
|
M10 |
RLL 185-10 |
10.5 |
18 |
22 |
32 |
17 |
19 |
32 |
80 |
|
|
M12 |
RLL 185-12 |
13 |
18 |
22 |
32 |
17 |
19 |
32 |
80 |
|
|
M14 |
RLL 185-14 |
14.5 |
18 |
22 |
32 |
17 |
19 |
32 |
80 |
|
|
M16 |
RLL 185-16 |
17 |
18 |
22 |
32 |
17 |
19 |
32 |
80 |
|
|
M18 |
RLL 185-18 |
19 |
18 |
22 |
32 |
17 |
19 |
32 |
80 |
|
|
M20 |
RLL 185-20 |
21 |
18 |
22 |
32 |
17 |
19 |
32 |
80 |
|
|
- |
RLL 185-BL |
- |
18 |
22 |
32 |
17 |
19 |
32 |
80 |
|
|
240 |
M8 |
RLL 240-8 |
8.4 |
22 |
26 |
38 |
20 |
21 |
39 |
94 |
|
M10 |
RLL 240-10 |
10.5 |
22 |
26 |
38 |
20 |
21 |
39 |
94 |
|
|
M12 |
RLL 240-12 |
13 |
22 |
26 |
38 |
20 |
21 |
39 |
94 |
|
|
M14 |
RLL 240-14 |
14.5 |
22 |
26 |
38 |
20 |
21 |
39 |
94 |
|
|
M16 |
RLL 240-16 |
17 |
22 |
26 |
38 |
20 |
21 |
39 |
94 |
|
|
M18 |
RLL 240-18 |
19 |
22 |
26 |
38 |
20 |
21 |
39 |
94 |
|
|
M20 |
RLL 240-20 |
21 |
22 |
26 |
38 |
20 |
21 |
39 |
94 |
|
|
- |
RLL 240-BL |
- |
22 |
26 |
38 |
20 |
21 |
39 |
94 |
|
|
300 |
M8 |
RLL 300-8 |
8.4 |
24 |
28.7 |
42 |
22 |
23 |
42 |
102 |
|
M10 |
RLL 300-10 |
10.5 |
24 |
28.7 |
42 |
22 |
23 |
42 |
102 |
|
|
M12 |
RLL 300-12 |
13 |
24 |
28.7 |
42 |
22 |
23 |
42 |
102 |
|
|
M14 |
RLL 300-14 |
14.5 |
24 |
28.7 |
42 |
22 |
23 |
42 |
102 |
|
|
M16 |
RLL 300-16 |
17 |
24 |
28.7 |
42 |
22 |
23 |
42 |
102 |
|
|
M18 |
RLL 300-18 |
19 |
24 |
28.7 |
42 |
22 |
23 |
42 |
102 |
|
|
M20 |
RLL 300-20 |
21 |
24 |
28.7 |
42 |
22 |
23 |
42 |
102 |
|
|
- |
RLL 300-BL |
- |
24 |
28.7 |
42 |
- |
- |
42 |
102 |
|
|
400 |
M8 |
RLL 400-8 |
8.4 |
28 |
33.2 |
49 |
25 |
25 |
45 |
112 |
|
M10 |
RLL 400-10 |
10.5 |
28 |
33.2 |
49 |
25 |
25 |
45 |
112 |
|
|
M12 |
RLL 400-12 |
13 |
28 |
33.2 |
49 |
25 |
25 |
45 |
112 |
|
|
M14 |
RLL 400-14 |
14.5 |
28 |
33.2 |
49 |
25 |
25 |
45 |
112 |
|
|
M16 |
RLL 400-16 |
17 |
28 |
33.2 |
49 |
25 |
25 |
45 |
112 |
|
|
M18 |
RLL 400-18 |
19 |
28 |
33.2 |
49 |
25 |
25 |
45 |
112 |
|
|
M20 |
RLL 400-20 |
21 |
28 |
33.2 |
49 |
25 |
25 |
45 |
112 |
|
|
- |
RLL 400-BL |
- |
28 |
33.2 |
49 |
- |
- |
45 |
112 |
|
|
500 |
M8 |
RLL 500-8 |
8.4 |
30 |
36 |
53 |
27 |
27 |
50 |
121 |
|
M10 |
RLL 500-10 |
10.5 |
30 |
36 |
53 |
27 |
27 |
50 |
121 |
|
|
M12 |
RLL 500-12 |
13 |
30 |
36 |
53 |
27 |
27 |
50 |
121 |
|
|
M14 |
RLL 500-14 |
14.5 |
30 |
36 |
53 |
27 |
27 |
50 |
121 |
|
|
M16 |
RLL 500-16 |
17 |
30 |
36 |
53 |
27 |
27 |
50 |
121 |
|
|
M18 |
RLL 500-18 |
19 |
30 |
36 |
53 |
27 |
27 |
50 |
121 |
|
|
M20 |
RLL 500-20 |
21 |
30 |
36 |
53 |
27 |
27 |
50 |
121 |
|
|
- |
RLL 500-BL |
- |
30 |
36 |
53 |
- |
- |
50 |
121 |
|
|
630 |
M8 |
RLL 630-8 |
8.4 |
35 |
41.5 |
61 |
25 |
25 |
70 |
144 |
|
M10 |
RLL 630-10 |
10.5 |
35 |
41.5 |
61 |
25 |
25 |
70 |
144 |
|
|
M12 |
RLL 630-12 |
13 |
35 |
41.5 |
61 |
25 |
25 |
70 |
144 |
|
|
M14 |
RLL 630-14 |
14.5 |
35 |
41.5 |
61 |
25 |
25 |
70 |
144 |
|
|
M16 |
RLL 630-16 |
17 |
35 |
41.5 |
61 |
25 |
25 |
70 |
144 |
|
|
M18 |
RLL 630-18 |
19 |
35 |
41.5 |
61 |
25 |
25 |
70 |
144 |
|
|
M20 |
RLL 630-20* |
21 |
35 |
41.5 |
61 |
25 |
25 |
70 |
144 |
|
|
- |
RLL 630-BL |
- |
35 |
41.5 |
61 |
- |
- |
70 |
144 |
|
|
800 |
M16 |
RLL 800-16* |
17 |
39 |
46.3 |
67 |
32.0 |
32.0 |
78 |
170 |
|
M20 |
RLL 800-20* |
21 |
39 |
46.3 |
67 |
32.0 |
32.0 |
78 |
170 |
|
|
- |
RLL 800-BL* |
- |
39 |
46.3 |
67 |
- |
- |
78 |
170 |
|
Technical Information
| Parameter |
|---|
| Annealed material optimizes material and crimping properties |
| Flat contact surface and precise stud holes as per Metric Standard |
| Material – High conductivity ETP Copper |
| Finish – Electro tin plated |
Certifications
UL Listed
More info available on request
Related Products
All products provided below with slider to find faster.
/
Customizable
A2LDS - Two-hole Lugs - Aluminium Dual Rated
For aluminium and copper conductors
Learn More
Customizable
AFDS - Two-way Splice Connectors - Aluminium Dual Rated
Standard barrel with crimps for reliable connection
Learn More
Customizable
AFL - Two-way Splice Connectors - Long Barrel
Long barrel with multiple crimps for secured connection
Learn More
Customizable
AFS - Two-way Splice Connectors - Standard Barrel
Standard barrel with crimps for reliable connection
Learn More
Customizable
ALDH - One-hole Lugs - Aluminium Dual Rated Heavy Duty
For heavy duty aluminium and copper conductors
Learn More
Customizable
ALDS - One-hole Lugs - Aluminium Dual Rated
For aluminium and copper conductors
Learn More
Customizable
RADE - One-hole Lugs - Aluminium Lugs as per DIN 46329
For aluminium and copper conductors and best suited to avoid rotation or movement of lugs
Learn More
Customizable
RCD - Two-way Splice Connectors - DIN 46267 Part-1
Splices designed as per DIN Standard 46267, Part-1
Learn More
Customizable
RCL - Two-way Splice Connectors - Long Barrel
Long barrel with multiple crimps for secured connection
Learn More
Customizable
RCRL - In line Connectors - Reducing Link
Application for different sizes of cable connections
Learn More
Customizable
RCS - Two-way Splice Connectors - Short Barrel
Standard barrel with crimps for reliable connection
Learn More
Customizable
RLAX - One-hole Lugs - Aluminium Lugs for XLPE Cables
For significant lower dead weight aluminium conductors in power distribution application
Learn More
