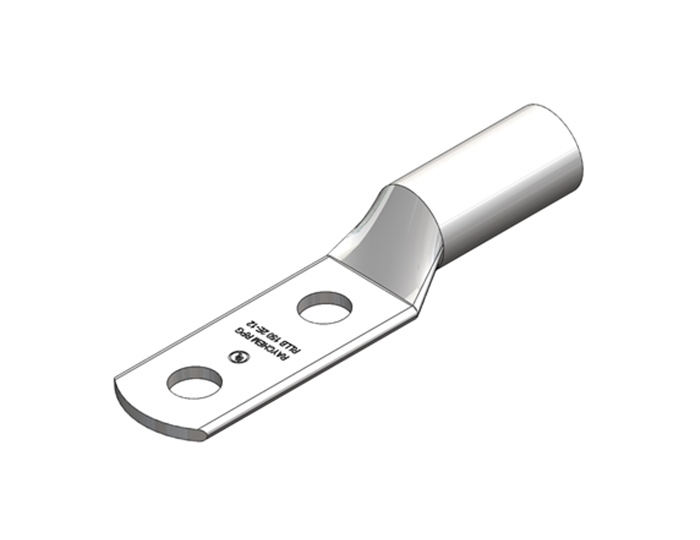

Longer length barrel with extra crimps for heavy duty loads. Two hole heavy duty lugs are best suited to avoid rotation or movement of lugs.
- Two-Hole Long Extended Barrel Lugs for copper conductors ranging from 10 – 1000 mm2
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|
Nominal Cross Section mm2 |
Bolt Size |
Catalogue Code |
Dimensions (mm) |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Stud Hole |
Hole Spacing |
Barrel ID |
Barrel OD |
Palm Width |
Stud Centre Distance |
Barrel Length |
Total Length |
||||
|
ØE |
ØA |
ØC |
D |
G |
H |
B |
J |
||||
|
10 |
M5 |
RLLBE-10-2E-5 |
5.5 |
44.5 |
4.5 |
6.2 |
11.0 |
7.5 |
7.0 |
18.0 |
83.0 |
|
M6 |
RLLBE-10-2E-6 |
6.5 |
44.5 |
4.5 |
6.2 |
11.0 |
7.5 |
7.0 |
18.0 |
83.0 |
|
|
16 |
M5 |
RLLBE-16-2E-5 |
5.5 |
44.5 |
5.4 |
7.6 |
12.0 |
7.5 |
7.0 |
28.0 |
93.0 |
|
M6 |
RLLBE-16-2E-6 |
6.5 |
44.5 |
5.4 |
7.6 |
12.0 |
7.5 |
7.0 |
28.0 |
93.0 |
|
|
25 |
M6 |
RLLBE-25-2E-6 |
6.5 |
44.5 |
6.8 |
8.8 |
13.0 |
15.0 |
17.0 |
31.2 |
117.2 |
|
M8 |
RLLBE-25-2E-8 |
8.4 |
44.5 |
6.8 |
8.8 |
13.0 |
15.0 |
17.0 |
31.2 |
117.2 |
|
|
35 |
M6 |
RLLBE-35-2E-6 |
6.5 |
44.5 |
8.2 |
10.6 |
16.0 |
15.0 |
17.0 |
28.0 |
115.0 |
|
M8 |
RLLBE-35-2E-8 |
8.4 |
44.5 |
8.2 |
10.6 |
16.0 |
15.0 |
17.0 |
28.0 |
115.0 |
|
|
M10 |
RLLBE-35-2E-10 |
10.5 |
44.5 |
8.2 |
10.6 |
16.0 |
15.0 |
17.0 |
28.0 |
115.0 |
|
|
42 |
M6 |
RLLBE-42-2E-6 |
6.5 |
44.5 |
9.5 |
12.4 |
18.0 |
14.0 |
16.0 |
30.0 |
116.0 |
|
M8 |
RLLBE-42-2E-8 |
8.4 |
44.5 |
9.5 |
12.4 |
18.0 |
14.0 |
16.0 |
30.0 |
116.0 |
|
|
M10 |
RLLBE-42-2E-10 |
10.5 |
44.5 |
9.5 |
12.4 |
18.0 |
14.0 |
16.0 |
30.0 |
116.0 |
|
|
M12 |
RLLBE-42-2E-12 |
13.0 |
44.5 |
9.5 |
12.4 |
18.0 |
14.0 |
16.0 |
30.0 |
116.0 |
|
|
50 |
M6 |
RLLBE-50-2E-6 |
6.5 |
44.5 |
9.5 |
12.4 |
18.0 |
14.0 |
16.0 |
33.0 |
117.5 |
|
M8 |
RLLBE-50-2E-8 |
8.4 |
44.5 |
9.5 |
12.4 |
18.0 |
14.0 |
16.0 |
33.0 |
117.5 |
|
|
M10 |
RLLBE-50-2E-10 |
10.5 |
44.5 |
9.5 |
12.4 |
18.0 |
14.0 |
16.0 |
33.0 |
117.5 |
|
|
M12 |
RLLBE-50-2E-12 |
13.0 |
44.5 |
9.5 |
12.4 |
18.0 |
14.0 |
16.0 |
33.0 |
117.5 |
|
|
70 |
M8 |
RLLBE-70-2E-8 |
8.4 |
44.5 |
11.3 |
14.6 |
21.0 |
14.0 |
16.0 |
37.6 |
121.6 |
|
M10 |
RLLBE-70-2E-10 |
10.5 |
44.5 |
11.3 |
14.6 |
21.0 |
14.0 |
16.0 |
37.6 |
121.6 |
|
|
M12 |
RLLBE-70-2E-12 |
13.0 |
44.5 |
11.3 |
14.6 |
21.0 |
14.0 |
16.0 |
37.6 |
121.6 |
|
|
M14 |
RLLBE-70-2E-14 |
14.5 |
44.5 |
11.3 |
14.6 |
21.0 |
14.0 |
16.0 |
37.6 |
121.6 |
|
|
95 |
M8 |
RLLBE-95-2E-8 |
8.4 |
44.5 |
13.5 |
17.4 |
25.0 |
16.0 |
18.0 |
40.0 |
132.5 |
|
M10 |
RLLBE-95-2E-10 |
10.5 |
44.5 |
13.5 |
17.4 |
25.0 |
16.0 |
18.0 |
40.0 |
132.5 |
|
|
M12 |
RLLBE-95-2E-12 |
13.0 |
44.5 |
13.5 |
17.4 |
25.0 |
16.0 |
18.0 |
40.0 |
132.5 |
|
|
M14 |
RLLBE-95-2E-14 |
14.5 |
44.5 |
13.5 |
17.4 |
25.0 |
16.0 |
18.0 |
40.0 |
132.5 |
|
|
M16 |
RLLBE-95-2E-16 |
17.0 |
44.5 |
13.5 |
17.4 |
25.0 |
16.0 |
18.0 |
40.0 |
132.5 |
|
|
120 |
M8 |
RLLBE-120-2E-8 |
8.4 |
44.5 |
14.2 |
17.8 |
25.5 |
16.0 |
18.0 |
41.9 |
134.4 |
|
M10 |
RLLBE-120-2E-10 |
10.5 |
44.5 |
14.2 |
17.8 |
25.5 |
16.0 |
18.0 |
41.9 |
134.4 |
|
|
M12 |
RLLBE-120-2E-12 |
13.0 |
44.5 |
14.2 |
17.8 |
25.5 |
16.0 |
18.0 |
41.9 |
134.4 |
|
|
M14 |
RLLBE-120-2E-14 |
14.5 |
44.5 |
14.2 |
17.8 |
25.5 |
16.0 |
18.0 |
41.9 |
134.4 |
|
|
M16 |
RLLBE-120-2E-16 |
17.0 |
44.5 |
14.2 |
17.8 |
25.5 |
16.0 |
18.0 |
41.9 |
134.4 |
|
|
130 |
M8 |
RLLBE-130-2E-8 |
8.4 |
44.5 |
16.0 |
19.6 |
28.0 |
16.0 |
18.0 |
46.0 |
138.5 |
|
M10 |
RLLBE-130-2E-10 |
10.5 |
44.5 |
16.0 |
19.6 |
28.0 |
16.0 |
18.0 |
46.0 |
138.5 |
|
|
M12 |
RLLBE-130-2E-12 |
13.0 |
44.5 |
16.0 |
19.6 |
28.0 |
16.0 |
18.0 |
46.0 |
138.5 |
|
|
M14 |
RLLBE-130-2E-14 |
14.5 |
44.5 |
16.0 |
19.6 |
28.0 |
16.0 |
18.0 |
46.0 |
138.5 |
|
|
M16 |
RLLBE-130-2E-16 |
17.0 |
44.5 |
16.0 |
19.6 |
28.0 |
16.0 |
18.0 |
46.0 |
138.5 |
|
|
M18 |
RLLBE-130-2E-18 |
19.0 |
44.5 |
16.0 |
19.6 |
28.0 |
16.0 |
18.0 |
46.0 |
138.5 |
|
|
150 |
M8 |
RLLBE-150-2E-8 |
8.4 |
44.5 |
16.5 |
21.2 |
30.0 |
14.0 |
16.0 |
53.0 |
141.0 |
|
M10 |
RLLBE-150-2E-10 |
10.5 |
44.5 |
16.5 |
21.2 |
30.0 |
14.0 |
16.0 |
53.0 |
141.0 |
|
|
M12 |
RLLBE-150-2E-12 |
13.0 |
44.5 |
16.5 |
21.2 |
30.0 |
14.0 |
16.0 |
53.0 |
141.0 |
|
|
M14 |
RLLBE-150-2E-14 |
14.5 |
44.5 |
16.5 |
21.2 |
30.0 |
14.0 |
16.0 |
53.0 |
141.0 |
|
|
M16 |
RLLBE-150-2E-16 |
17.0 |
44.5 |
16.5 |
21.2 |
30.0 |
14.0 |
16.0 |
53.0 |
141.0 |
|
|
M18 |
RLLBE-150-2E-18 |
19.0 |
44.5 |
16.5 |
21.2 |
30.0 |
14.0 |
16.0 |
53.0 |
141.0 |
|
|
M20 |
RLLBE-150-2E-20 |
21.0 |
44.5 |
16.5 |
21.2 |
30.0 |
14.0 |
16.0 |
53.0 |
141.0 |
|
|
- |
RLLBE-150-2E-BL |
- |
44.5 |
16.5 |
21.2 |
30.0 |
14.0 |
16.0 |
53.0 |
141.0 |
|
|
185 |
M8 |
RLLBE-185-2E-8 |
8.4 |
44.5 |
18.5 |
23.5 |
34.0 |
16.0 |
18.0 |
54.0 |
145.0 |
|
M10 |
RLLBE-185-2E-10 |
10.5 |
44.5 |
18.5 |
23.5 |
34.0 |
16.0 |
18.0 |
54.0 |
145.0 |
|
|
M12 |
RLLBE-185-2E-12 |
13.0 |
44.5 |
18.5 |
23.5 |
34.0 |
16.0 |
18.0 |
54.0 |
145.0 |
|
|
M14 |
RLLBE-185-2E-14 |
14.5 |
44.5 |
18.5 |
23.5 |
34.0 |
16.0 |
18.0 |
54.0 |
145.0 |
|
|
M16 |
RLLBE-185-2E-16 |
17.0 |
44.5 |
18.5 |
23.5 |
34.0 |
16.0 |
18.0 |
54.0 |
145.0 |
|
|
M18 |
RLLBE-185-2E-18 |
19.0 |
44.5 |
18.5 |
23.5 |
34.0 |
16.0 |
18.0 |
54.0 |
145.0 |
|
|
M20 |
RLLBE-185-2E-20 |
21.0 |
44.5 |
18.5 |
23.5 |
34.0 |
16.0 |
18.0 |
54.0 |
145.0 |
|
|
- |
RLLBE-185-2E-BL |
- |
44.5 |
18.5 |
23.5 |
34.0 |
16.0 |
18.0 |
54.0 |
145.0 |
|
|
200 |
M8 |
RLLBE-200-2E-8 |
8.4 |
44.5 |
19.7 |
23.5 |
34.0 |
16.0 |
18.0 |
60.0 |
152.0 |
|
M10 |
RLLBE-200-2E-10 |
10.5 |
44.5 |
19.7 |
23.5 |
34.0 |
16.0 |
18.0 |
60.0 |
152.0 |
|
|
M12 |
RLLBE-200-2E-12 |
13.0 |
44.5 |
19.7 |
23.5 |
34.0 |
16.0 |
18.0 |
60.0 |
152.0 |
|
|
M14 |
RLLBE-200-2E-14 |
14.5 |
44.5 |
19.7 |
23.5 |
34.0 |
16.0 |
18.0 |
60.0 |
152.0 |
|
|
M16 |
RLLBE-200-2E-16 |
17.0 |
44.5 |
19.7 |
23.5 |
34.0 |
16.0 |
18.0 |
60.0 |
152.0 |
|
|
M18 |
RLLBE-200-2E-18 |
19.0 |
44.5 |
19.7 |
23.5 |
34.0 |
16.0 |
18.0 |
60.0 |
152.0 |
|
|
M20 |
RLLBE-200-2E-20 |
21.0 |
44.5 |
19.7 |
23.5 |
34.0 |
16.0 |
18.0 |
60.0 |
152.0 |
|
|
- |
RLLBE-200-2E-BL |
- |
44.5 |
19.7 |
23.5 |
34.0 |
16.0 |
18.0 |
60.0 |
152.0 |
|
|
240 |
M8 |
RLLBE-240-2E-8 |
8.4 |
44.5 |
21.0 |
26.5 |
38.0 |
16.0 |
20.0 |
64.7 |
159.7 |
|
M10 |
RLLBE-240-2E-10 |
10.5 |
44.5 |
21.0 |
26.5 |
38.0 |
16.0 |
20.0 |
64.7 |
159.7 |
|
|
M12 |
RLLBE-240-2E-12 |
13.0 |
44.5 |
21.0 |
26.5 |
38.0 |
16.0 |
20.0 |
64.7 |
159.7 |
|
|
M14 |
RLLBE-240-2E-14 |
14.5 |
44.5 |
21.0 |
26.5 |
38.0 |
16.0 |
20.0 |
64.7 |
159.7 |
|
|
M16 |
RLLBE-240-2E-16 |
17.0 |
44.5 |
21.0 |
26.5 |
38.0 |
16.0 |
20.0 |
64.7 |
159.7 |
|
|
M18 |
RLLBE-240-2E-18 |
19.0 |
44.5 |
21.0 |
26.5 |
38.0 |
16.0 |
20.0 |
64.7 |
159.7 |
|
|
M20 |
RLLBE-240-2E-20 |
21.0 |
44.5 |
21.0 |
26.5 |
38.0 |
16.0 |
20.0 |
64.7 |
159.7 |
|
|
- |
RLLBE-240-2E-BL |
- |
44.5 |
21.0 |
26.5 |
38.0 |
16.0 |
20.0 |
64.7 |
159.7 |
|
|
300 |
M10 |
RLLBE-300-2E-10 |
10.5 |
44.5 |
23.5 |
30.0 |
43.0 |
22.0 |
22.0 |
74.0 |
181.5 |
|
M12 |
RLLBE-300-2E-12 |
13.0 |
44.5 |
23.5 |
30.0 |
43.0 |
22.0 |
22.0 |
74.0 |
181.5 |
|
|
M14 |
RLLBE-300-2E-14 |
14.5 |
44.5 |
23.5 |
30.0 |
43.0 |
22.0 |
22.0 |
74.0 |
181.5 |
|
|
M16 |
RLLBE-300-2E-16 |
17.0 |
44.5 |
23.5 |
30.0 |
43.0 |
22.0 |
22.0 |
74.0 |
181.5 |
|
|
M18 |
RLLBE-300-2E-18 |
19.0 |
44.5 |
23.5 |
30.0 |
43.0 |
22.0 |
22.0 |
74.0 |
181.5 |
|
|
M20 |
RLLBE-300-2E-20 |
21.0 |
44.5 |
23.5 |
30.0 |
43.0 |
22.0 |
22.0 |
74.0 |
181.5 |
|
|
- |
RLLBE-300-2E-BL |
- |
44.5 |
23.5 |
30.0 |
43.0 |
22.0 |
22.0 |
74.0 |
181.5 |
|
|
400 |
M10 |
RLLBE-400-2E-10 |
10.5 |
44.5 |
28.5 |
36.5 |
52.5 |
17.0 |
19.0 |
84.0 |
185.5 |
|
M12 |
RLLBE-400-2E-12 |
13.0 |
44.5 |
28.5 |
36.5 |
52.5 |
17.0 |
19.0 |
84.0 |
185.5 |
|
|
M14 |
RLLBE-400-2E-14 |
14.5 |
44.5 |
28.5 |
36.5 |
52.5 |
17.0 |
19.0 |
84.0 |
185.5 |
|
|
M16 |
RLLBE-400-2E-16 |
17.0 |
44.5 |
28.5 |
36.5 |
52.5 |
17.0 |
19.0 |
84.0 |
185.5 |
|
|
M18 |
RLLBE-400-2E-18 |
19.0 |
44.5 |
28.5 |
36.5 |
52.5 |
17.0 |
19.0 |
84.0 |
185.5 |
|
|
M20 |
RLLBE-400-2E-20 |
21.0 |
44.5 |
28.5 |
36.5 |
52.5 |
17.0 |
19.0 |
84.0 |
185.5 |
|
|
- |
RLLBE-400-2E-BL |
- |
44.5 |
28.5 |
36.5 |
52.5 |
17.0 |
19.0 |
84.0 |
185.5 |
|
|
500 |
M10 |
RLLBE-500-2E-10 |
10.5 |
44.5 |
30.0 |
39.0 |
56.0 |
20.0 |
20.0 |
85.0 |
195.0 |
|
M12 |
RLLBE-500-2E-12 |
13.0 |
44.5 |
30.0 |
39.0 |
56.0 |
20.0 |
20.0 |
85.0 |
195.0 |
|
|
M14 |
RLLBE-500-2E-14 |
14.5 |
44.5 |
30.0 |
39.0 |
56.0 |
20.0 |
20.0 |
85.0 |
195.0 |
|
|
M16 |
RLLBE-500-2E-16 |
17.0 |
44.5 |
30.0 |
39.0 |
56.0 |
20.0 |
20.0 |
85.0 |
195.0 |
|
|
M18 |
RLLBE-500-2E-18 |
19.0 |
44.5 |
30.0 |
39.0 |
56.0 |
20.0 |
20.0 |
85.0 |
195.0 |
|
|
M20 |
RLLBE-500-2E-20 |
21.0 |
44.5 |
30.0 |
39.0 |
56.0 |
20.0 |
20.0 |
85.0 |
195.0 |
|
|
- |
RLLBE-500-2E-BL |
- |
44.5 |
30.0 |
39.0 |
56.0 |
20.0 |
20.0 |
85.0 |
195.0 |
|
Technical Information
| Parameter |
|---|
| Extended longer length barrel permits extra crimps for heavy-duty loads |
| Stud hole spacing as per NEMA standards |
| Best suited in application where two bolts are needed to avoid rotation or movement of lugs |
| Annealed material optimizes material and crimping properties |
| Flat contact surface and precise stud holes as per the Metric Standard |
| Material – High conductivity ETP Copper |
| Electro tin plated |
| Ordering Information |
|---|
| Add following suffix |
| A - Without Window |
| B - With Window |
| C - With Rectangular Notch |
| D - Without Window & Flare Barrel Entry |
| E - With Window & Flare Barrel Entry |
| F - With Rectangular Notch & Flare Barrel Entry |
| Also available with Inspection Window |
Certifications
UL Listed
More info available on request
IEC certified
More info available on request
Related Products
All products provided below with slider to find faster.
/
Customizable
A2LDS - Two-hole Lugs - Aluminium Dual Rated
For aluminium and copper conductors
Learn More
Customizable
AFDS - Two-way Splice Connectors - Aluminium Dual Rated
Standard barrel with crimps for reliable connection
Learn More
Customizable
AFL - Two-way Splice Connectors - Long Barrel
Long barrel with multiple crimps for secured connection
Learn More
Customizable
AFS - Two-way Splice Connectors - Standard Barrel
Standard barrel with crimps for reliable connection
Learn More
Customizable
ALDH - One-hole Lugs - Aluminium Dual Rated Heavy Duty
For heavy duty aluminium and copper conductors
Learn More
Customizable
ALDS - One-hole Lugs - Aluminium Dual Rated
For aluminium and copper conductors
Learn More
Customizable
RADE - One-hole Lugs - Aluminium Lugs as per DIN 46329
For aluminium and copper conductors and best suited to avoid rotation or movement of lugs
Learn More
Customizable
RCD - Two-way Splice Connectors - DIN 46267 Part-1
Splices designed as per DIN Standard 46267, Part-1
Learn More
Customizable
RCL - Two-way Splice Connectors - Long Barrel
Long barrel with multiple crimps for secured connection
Learn More
Customizable
RCRL - In line Connectors - Reducing Link
Application for different sizes of cable connections
Learn More
Customizable
RCS - Two-way Splice Connectors - Short Barrel
Standard barrel with crimps for reliable connection
Learn More
Customizable
RLAX - One-hole Lugs - Aluminium Lugs for XLPE Cables
For significant lower dead weight aluminium conductors in power distribution application
Learn More
