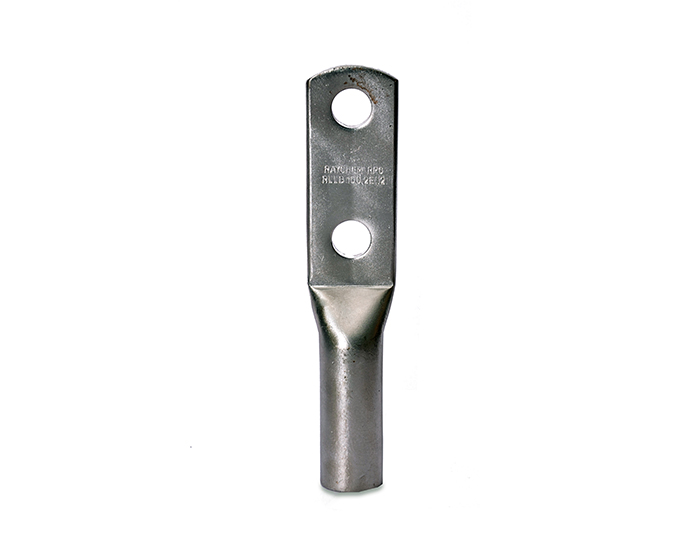

Longer length barrel with extra crimps for heavy duty loads. Two hole heavy duty lugs are best suited to avoid rotation or movement of lugs.
- Two-Hole Long Barrel Lugs for copper conductors ranging from 6 – 1000 mm2
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|
Nominal Cross Section mm2 |
Bolt Size |
Catalogue Code |
Dimensions (mm) |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Stud Hole |
Hole Spacing |
Barrel ID |
Barrel OD |
Palm Width |
Stud Centre Distance |
Barrel Length |
Total Length |
||||
|
ØE |
ØA |
ØC |
D |
G |
H |
B |
J |
||||
|
6 |
M6 |
RLLB 6 2E-6* |
6.5 |
44.5 |
3.8 |
5.5 |
12.0 |
7.0 |
7.0 |
15.0 |
76.0 |
|
M8 |
RLLB 6 2E-8 |
8.4 |
44.5 |
3.8 |
5.5 |
12.0 |
7.0 |
7.0 |
15.0 |
76.0 |
|
|
10 |
M6 |
RLLB 10 2E-6* |
6.5 |
44.5 |
4.5 |
6.2 |
12.0 |
7.0 |
7.0 |
15.0 |
78.5 |
|
M8 |
RLLB 10 2E-8 |
8.4 |
44.5 |
4.5 |
6.2 |
12.0 |
7.0 |
7.0 |
15.0 |
78.5 |
|
|
M10 |
RLLB 10 2E-10* |
10.5 |
44.5 |
4.5 |
6.2 |
15.0 |
10.0 |
10.0 |
15.0 |
84.5 |
|
|
M12 |
RLLB 10 2E-12* |
13.0 |
44.5 |
4.5 |
6.8 |
17.0 |
10.0 |
12.0 |
15.0 |
86.5 |
|
|
16 |
M6 |
RLLB 16 2E-6* |
6.5 |
44.5 |
5.4 |
7.6 |
12.0 |
7.0 |
7.0 |
18.0 |
79.5 |
|
M8 |
RLLB 16 2E-8 |
8.4 |
44.5 |
5.4 |
7.6 |
12.0 |
7.0 |
7.0 |
18.0 |
79.5 |
|
|
M10 |
RLLB 16 2E-10 |
10.5 |
44.5 |
5.4 |
7.6 |
15.0 |
7.0 |
7.0 |
18.0 |
79.5 |
|
|
M12 |
RLLB 16 2E-12 |
13.0 |
44.5 |
5.4 |
7.6 |
17.0 |
10.0 |
12.0 |
18.0 |
85.5 |
|
|
25 |
M8 |
RLLB 25 2E-8 |
8.4 |
44.5 |
6.8 |
8.8 |
13.0 |
8.0 |
12.0 |
16.0 |
85.5 |
|
M10 |
RLLB 25 2E-10 |
10.5 |
44.5 |
6.8 |
8.8 |
15.0 |
8.0 |
12.0 |
16.0 |
85.5 |
|
|
M12 |
RLLB 25 2E-12 |
13.0 |
44.5 |
6.8 |
8.8 |
17.0 |
8.0 |
12.0 |
16.0 |
85.5 |
|
|
35 |
M8 |
RLLB 35 2E-8 |
8.4 |
44.5 |
8.2 |
10.6 |
16.0 |
9.0 |
14.0 |
20.0 |
92.5 |
|
M10 |
RLLB 35 2E-10 |
10.5 |
44.5 |
8.2 |
10.6 |
16.0 |
9.0 |
14.0 |
20.0 |
92.5 |
|
|
M12 |
RLLB 35 2E-12 |
13.0 |
44.5 |
8.2 |
10.6 |
16.0 |
9.0 |
14.0 |
20.0 |
92.5 |
|
|
50 |
M8 |
RLLB 50 2E-8 |
8.4 |
44.5 |
9.5 |
12.4 |
18.0 |
10.0 |
16.0 |
26.0 |
103.5 |
|
M10 |
RLLB 50 2E-10 |
10.5 |
44.5 |
9.5 |
12.4 |
18.0 |
10.0 |
16.0 |
26.0 |
103.5 |
|
|
M12 |
RLLB 50 2E-12 |
13.0 |
44.5 |
9.5 |
12.4 |
20.0 |
10.0 |
16.0 |
26.0 |
103.5 |
|
|
M14 |
RLLB 50 2E-14 |
14.5 |
44.5 |
9.5 |
12.4 |
20.0 |
10.0 |
16.0 |
26.0 |
103.5 |
|
|
70 |
M8 |
RLLB 70 2E-8 |
8.4 |
44.5 |
11.3 |
14.6 |
21.0 |
12.0 |
19.0 |
28.0 |
110.5 |
|
M10 |
RLLB 70 2E-10 |
10.5 |
44.5 |
11.3 |
14.6 |
21.0 |
12.0 |
19.0 |
28.0 |
110.5 |
|
|
M12 |
RLLB 70 2E-12 |
13.0 |
44.5 |
11.3 |
14.6 |
21.0 |
12.0 |
19.0 |
28.0 |
110.5 |
|
|
M14 |
RLLB 70 2E-14 |
14.5 |
44.5 |
11.3 |
14.6 |
22.0 |
12.0 |
19.0 |
28.0 |
110.5 |
|
|
M16 |
RLLB 70 2E-16 |
17.0 |
44.5 |
11.3 |
14.6 |
22.0 |
14.5 |
16.5 |
28.0 |
110.5 |
|
|
95 |
M8 |
RLLB 95 2E-8 |
8.4 |
44.5 |
13.5 |
17.4 |
25.0 |
12.0 |
20.0 |
32.0 |
118.5 |
|
M10 |
RLLB 95 2E-10 |
10.5 |
44.5 |
13.5 |
17.4 |
25.0 |
12.0 |
20.0 |
32.0 |
118.5 |
|
|
M12 |
RLLB 95 2E-12 |
13.0 |
44.5 |
13.5 |
17.4 |
25.0 |
12.0 |
20.0 |
32.0 |
118.5 |
|
|
M14 |
RLLB 95 2E-14 |
14.5 |
44.5 |
13.5 |
17.4 |
25.0 |
14.0 |
19.0 |
32.0 |
119.5 |
|
|
M16 |
RLLB 95 2E-16 |
17.0 |
44.5 |
13.5 |
17.4 |
25.0 |
14.0 |
19.0 |
32.0 |
119.5 |
|
|
M18 |
RLLB 95 2E-18 |
19.0 |
44.5 |
13.5 |
17.4 |
25.0 |
14.0 |
19.0 |
32.0 |
119.5 |
|
|
120 |
M8 |
RLLB 120 2E-8 |
8.4 |
44.5 |
15.0 |
19.4 |
28.0 |
14.0 |
23.0 |
35.0 |
126.5 |
|
M10 |
RLLB 120 2E-10 |
10.5 |
44.5 |
15.0 |
19.4 |
28.0 |
14.0 |
23.0 |
35.0 |
126.5 |
|
|
M12 |
RLLB 120 2E-12 |
13.0 |
44.5 |
15.0 |
19.4 |
28.0 |
14.0 |
23.0 |
35.0 |
126.5 |
|
|
M14 |
RLLB 120 2E-14 |
14.5 |
44.5 |
15.0 |
19.4 |
28.0 |
14.0 |
23.0 |
35.0 |
126.5 |
|
|
M16 |
RLLB 120 2E-16 |
17.0 |
44.5 |
15.0 |
19.4 |
28.0 |
14.0 |
23.0 |
35.0 |
126.5 |
|
|
M18 |
RLLB 120 2E-18 |
19.0 |
44.5 |
15.0 |
19.4 |
28.0 |
14.0 |
23.0 |
35.0 |
126.5 |
|
|
M20 |
RLLB 120 2E-20 |
21.0 |
44.5 |
15.0 |
19.4 |
28.0 |
14.0 |
23.0 |
35.0 |
126.5 |
|
|
150 |
M8 |
RLLB 150 2E-8 |
8.4 |
44.5 |
16.5 |
21.2 |
30.0 |
14.0 |
24.0 |
38.0 |
130.5 |
|
M10 |
RLLB 150 2E-10 |
10.5 |
44.5 |
16.5 |
21.2 |
30.0 |
14.0 |
24.0 |
38.0 |
130.5 |
|
|
M12 |
RLLB 150 2E-12 |
13.0 |
44.5 |
16.5 |
21.2 |
30.0 |
14.0 |
24.0 |
38.0 |
130.5 |
|
|
M14 |
RLLB 150 2E-14 |
14.5 |
44.5 |
16.5 |
21.2 |
30.0 |
14.0 |
24.0 |
38.0 |
130.5 |
|
|
M16 |
RLLB 150 2E-16 |
17.0 |
44.5 |
16.5 |
21.2 |
30.0 |
14.0 |
24.0 |
38.0 |
130.5 |
|
|
M18 |
RLLB 150 2E-18 |
19.0 |
44.5 |
16.5 |
21.2 |
30.0 |
14.0 |
24.0 |
38.0 |
130.5 |
|
|
M20 |
RLLB 150 2E-20 |
21.0 |
44.5 |
16.5 |
21.2 |
30.0 |
14.0 |
24.0 |
38.0 |
130.5 |
|
|
185 |
M8 |
RLLB 185 2E-8 |
8.4 |
44.5 |
18.5 |
23.5 |
34.0 |
17.0 |
23.0 |
43.0 |
139.5 |
|
M10 |
RLLB 185 2E-10 |
10.5 |
44.5 |
18.5 |
23.5 |
34.0 |
17.0 |
23.0 |
43.0 |
139.5 |
|
|
M12 |
RLLB 185 2E-12 |
13.0 |
44.5 |
18.5 |
23.5 |
34.0 |
17.0 |
23.0 |
43.0 |
139.5 |
|
|
M14 |
RLLB 185 2E-14 |
14.5 |
44.5 |
18.5 |
23.5 |
34.0 |
17.0 |
23.0 |
43.0 |
139.5 |
|
|
M16 |
RLLB 185 2E-16 |
17.0 |
44.5 |
18.5 |
23.5 |
34.0 |
17.0 |
23.0 |
43.0 |
139.5 |
|
|
M18 |
RLLB 185 2E-18 |
19.0 |
44.5 |
18.5 |
23.5 |
34.0 |
17.0 |
23.0 |
43.0 |
139.5 |
|
|
M20 |
RLLB 185 2E-20 |
21.0 |
44.5 |
18.5 |
23.5 |
34.0 |
17.0 |
23.0 |
43.0 |
139.5 |
|
|
240 |
M8 |
RLLB 240 2E-8 |
8.4 |
44.5 |
21.0 |
26.5 |
38.0 |
20.0 |
30.0 |
50.0 |
156.5 |
|
M10 |
RLLB 240 2E-10 |
10.5 |
44.5 |
21.0 |
26.5 |
38.0 |
20.0 |
30.0 |
50.0 |
156.5 |
|
|
M12 |
RLLB 240 2E-12 |
13.0 |
44.5 |
21.0 |
26.5 |
38.0 |
20.0 |
30.0 |
50.0 |
156.5 |
|
|
M14 |
RLLB 240 2E-14 |
14.5 |
44.5 |
21.0 |
26.5 |
38.0 |
20.0 |
30.0 |
50.0 |
156.5 |
|
|
M16 |
RLLB 240 2E-16 |
17.0 |
44.5 |
21.0 |
26.5 |
38.0 |
20.0 |
30.0 |
50.0 |
156.5 |
|
|
M18 |
RLLB 240 2E-18 |
19.0 |
44.5 |
21.0 |
26.5 |
38.0 |
20.0 |
30.0 |
50.0 |
156.5 |
|
|
M20 |
RLLB 240 2E-20 |
21.0 |
44.5 |
21.0 |
26.5 |
38.0 |
20.0 |
30.0 |
50.0 |
156.5 |
|
|
300 |
M10 |
RLLB 300 2E-10 |
10.5 |
44.5 |
23.5 |
30.0 |
43.0 |
20.0 |
32.0 |
54.0 |
164.5 |
|
M12 |
RLLB 300 2E-12 |
13.0 |
44.5 |
23.5 |
30.0 |
43.0 |
20.0 |
32.0 |
54.0 |
164.5 |
|
|
M14 |
RLLB 300 2E-14 |
14.5 |
44.5 |
23.5 |
30.0 |
43.0 |
20.0 |
32.0 |
54.0 |
164.5 |
|
|
M16 |
RLLB 300 2E-16 |
17.0 |
44.5 |
23.5 |
30.0 |
43.0 |
20.0 |
32.0 |
54.0 |
164.5 |
|
|
M18 |
RLLB 300 2E-18 |
19.0 |
44.5 |
23.5 |
30.0 |
43.0 |
20.0 |
32.0 |
54.0 |
164.5 |
|
|
M20 |
RLLB 300 2E-20 |
21.0 |
44.5 |
23.5 |
30.0 |
43.0 |
20.0 |
32.0 |
54.0 |
164.5 |
|
|
400 |
M10 |
RLLB 400 2E-10 |
10.5 |
44.5 |
28.5 |
36.5 |
52.5 |
22.0 |
34.0 |
62.0 |
178.5 |
|
M12 |
RLLB 400 2E-12 |
13.0 |
44.5 |
28.5 |
36.5 |
52.5 |
22.0 |
34.0 |
62.0 |
178.5 |
|
|
M14 |
RLLB 400 2E-14 |
14.5 |
44.5 |
28.5 |
36.5 |
52.5 |
22.0 |
34.0 |
62.0 |
178.5 |
|
|
M16 |
RLLB 400 2E-16 |
17.0 |
44.5 |
28.5 |
36.5 |
52.5 |
22.0 |
34.0 |
62.0 |
178.5 |
|
|
M18 |
RLLB 400 2E-18 |
19.0 |
44.5 |
28.5 |
36.5 |
52.5 |
22.0 |
34.0 |
62.0 |
178.5 |
|
|
M20 |
RLLB 400 2E-20 |
21.0 |
44.5 |
28.5 |
36.5 |
52.5 |
22.0 |
34.0 |
62.0 |
178.5 |
|
|
500 |
M10 |
RLLB 500 2E-10 |
10.5 |
44.5 |
30.0 |
39.0 |
56.0 |
28.0 |
28.0 |
69.0 |
189.5 |
|
M12 |
RLLB 500 2E-12 |
13.0 |
44.5 |
30.0 |
39.0 |
56.0 |
28.0 |
28.0 |
69.0 |
189.5 |
|
|
M14 |
RLLB 500 2E-14 |
14.5 |
44.5 |
30.0 |
39.0 |
56.0 |
28.0 |
28.0 |
69.0 |
189.5 |
|
|
M16 |
RLLB 500 2E-16 |
17.0 |
44.5 |
30.0 |
39.0 |
56.0 |
28.0 |
28.0 |
69.0 |
189.5 |
|
|
M18 |
RLLB 500 2E-18 |
19.0 |
44.5 |
30.0 |
39.0 |
56.0 |
28.0 |
28.0 |
69.0 |
189.5 |
|
|
M20 |
RLLB 500 2E-20 |
21.0 |
44.5 |
30.0 |
39.0 |
56.0 |
28.0 |
28.0 |
69.0 |
189.5 |
|
|
630 |
M10 |
RLLB 630 2E-10 |
10.5 |
44.5 |
35.0 |
45.0 |
63.8 |
30.0 |
30.0 |
78.0 |
202.5 |
|
M12 |
RLLB 630 2E-12 |
13.0 |
44.5 |
35.0 |
45.0 |
63.8 |
30.0 |
30.0 |
78.0 |
202.5 |
|
|
M14 |
RLLB 630 2E-14 |
14.5 |
44.5 |
35.0 |
45.0 |
63.8 |
30.0 |
30.0 |
78.0 |
202.5 |
|
|
M16 |
RLLB 630 2E-16 |
17.0 |
44.5 |
35.0 |
45.0 |
63.8 |
30.0 |
30.0 |
78.0 |
202.5 |
|
|
M18 |
RLLB 630 2E-18 |
19.0 |
44.5 |
35.0 |
45.0 |
63.8 |
30.0 |
30.0 |
78.0 |
202.5 |
|
|
M20 |
RLLB 630 2E-20 |
21.0 |
44.5 |
35.0 |
45.0 |
63.8 |
30.0 |
30.0 |
78.0 |
202.5 |
|
|
- |
RLLB 630 2E-BL |
- |
- |
35.0 |
45.0 |
63.8 |
- |
- |
78.0 |
202.5 |
|
|
800 |
M10 |
RLLB 800 2E-10* |
10.5 |
44.5 |
39.0 |
50.6 |
72.0 |
20.0 |
20.0 |
97.0 |
208.0 |
|
M12 |
RLLB 800 2E-12* |
13.0 |
44.5 |
39.0 |
50.6 |
72.0 |
20.0 |
20.0 |
97.0 |
208.0 |
|
|
M14 |
RLLB 800 2E-14* |
14.5 |
44.5 |
39.0 |
50.6 |
72.0 |
20.0 |
20.0 |
97.0 |
208.0 |
|
|
M16 |
RLLB 800 2E-16* |
17.0 |
44.5 |
39.0 |
50.6 |
72.0 |
22.0 |
22.0 |
97.0 |
212.0 |
|
|
M20 |
RLLB 800 2E-20* |
21.0 |
44.5 |
39.0 |
50.6 |
72.0 |
22.0 |
22.0 |
97.0 |
212.0 |
|
|
- |
RLLB 800 2E-BL* |
- |
- |
39.0 |
50.6 |
72.0 |
- |
- |
97.0 |
212.0 |
|
|
1000 |
M10 |
RLLB 1000 2E-10* |
10.5 |
44.5 |
44.0 |
56.2 |
79.0 |
20.0 |
20.0 |
126.0 |
238.0 |
|
M12 |
RLLB 1000 2E-12* |
13.0 |
44.5 |
44.0 |
56.2 |
79.0 |
20.0 |
20.0 |
126.0 |
238.0 |
|
|
M14 |
RLLB 1000 2E-14* |
14.5 |
44.5 |
44.0 |
56.2 |
79.0 |
20.0 |
20.0 |
126.0 |
238.0 |
|
|
M16 |
RLLB 1000 2E-16* |
17.0 |
44.5 |
44.0 |
56.2 |
79.0 |
22.0 |
22.0 |
126.0 |
242.0 |
|
|
M20 |
RLLB 1000 2E-20* |
21.0 |
44.5 |
44.0 |
56.2 |
79.0 |
22.0 |
22.0 |
126.0 |
242.0 |
|
|
- |
RLLB 1000 2E-BL* |
- |
- |
44.0 |
56.2 |
79.0 |
- |
- |
126.0 |
242.0 |
|
Technical Information
| Parameter |
|---|
| Longer length barrel permits extra crimps for heavy duty loads |
| Best suited in application where two bolts are needed to avoid rotation or movement of lugs |
| Stud hole spacing as per NEMA standards |
| Annealed material optimizes material and crimping properties |
| Flat contact surface and precise stud holes as per the Metric Standard |
| Material – High conductivity ETP Copper |
| Finish – Electro tin plated |
Certifications
UL Listed
More info available on request
IEC certified
More info available on request
Related Products
All products provided below with slider to find faster.
/
Customizable
A2LDS - Two-hole Lugs - Aluminium Dual Rated
For aluminium and copper conductors
Learn More
Customizable
AFDS - Two-way Splice Connectors - Aluminium Dual Rated
Standard barrel with crimps for reliable connection
Learn More
Customizable
AFL - Two-way Splice Connectors - Long Barrel
Long barrel with multiple crimps for secured connection
Learn More
Customizable
AFS - Two-way Splice Connectors - Standard Barrel
Standard barrel with crimps for reliable connection
Learn More
Customizable
ALDH - One-hole Lugs - Aluminium Dual Rated Heavy Duty
For heavy duty aluminium and copper conductors
Learn More
Customizable
ALDS - One-hole Lugs - Aluminium Dual Rated
For aluminium and copper conductors
Learn More
Customizable
RADE - One-hole Lugs - Aluminium Lugs as per DIN 46329
For aluminium and copper conductors and best suited to avoid rotation or movement of lugs
Learn More
Customizable
RCD - Two-way Splice Connectors - DIN 46267 Part-1
Splices designed as per DIN Standard 46267, Part-1
Learn More
Customizable
RCL - Two-way Splice Connectors - Long Barrel
Long barrel with multiple crimps for secured connection
Learn More
Customizable
RCRL - In line Connectors - Reducing Link
Application for different sizes of cable connections
Learn More
Customizable
RCS - Two-way Splice Connectors - Short Barrel
Standard barrel with crimps for reliable connection
Learn More
Customizable
RLAX - One-hole Lugs - Aluminium Lugs for XLPE Cables
For significant lower dead weight aluminium conductors in power distribution application
Learn More
