Extended longer length barrel with extra crimps for heavy duty loads

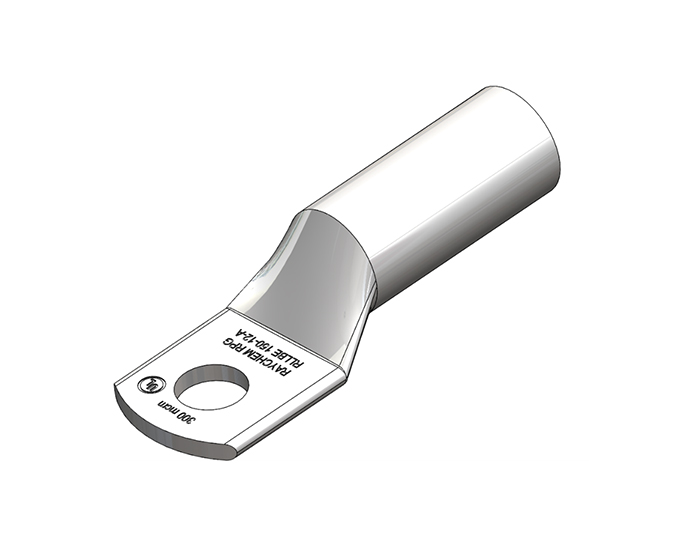

- One-Hole Long Barrel Lugs for copper conductors ranging from 6 – 1000 mm2
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|
Catalogue Code |
Nominal Cross Section Sq mm |
Bolt Size |
Dimensions (mm) |
||||||
|---|---|---|---|---|---|---|---|---|---|
|
Stud Hole |
Barrel ID |
Palm Width |
Stud Centre Distance |
Barrel Length |
Total Length |
||||
|
ØE |
ØA |
D |
G |
H |
B |
J |
|||
|
RLLBE-10-5 - A |
10 |
M5 |
5.5 |
4.5 |
11.0 |
6.0 |
7.0 |
18.0 |
37.0 |
|
RLLBE-10-6 - A |
M6 |
6.5 |
4.5 |
11.0 |
6.0 |
7.0 |
18.0 |
37.0 |
|
|
RLLBE-16-5 - A |
16 |
M5 |
5.5 |
5.4 |
12.0 |
7.0 |
7.0 |
28.0 |
47.0 |
|
RLLBE-16-6 - A |
M6 |
6.5 |
5.4 |
12.0 |
7.0 |
7.0 |
28.0 |
47.0 |
|
|
RLLBE-25-6 - A |
25 |
M6 |
6.5 |
6.8 |
13.0 |
7.0 |
7.0 |
31.2 |
50.0 |
|
RLLBE-25-8 - A |
M8 |
8.5 |
6.8 |
13.0 |
7.0 |
7.0 |
31.2 |
50.0 |
|
|
RLLBE-35-6 - A |
35 |
M6 |
6.5 |
8.2 |
16.0 |
9.0 |
9.0 |
28.0 |
53.0 |
|
RLLBE-35-8 - A |
M8 |
8.4 |
8.2 |
16.0 |
9.0 |
9.0 |
28.0 |
53.0 |
|
|
RLLBE-35-10 - A |
M10 |
10.5 |
8.2 |
16.0 |
9.0 |
9.0 |
28.0 |
53.0 |
|
|
RLLBE-42-6 - A |
42 |
M6 |
6.5 |
9.5 |
18.0 |
9.0 |
10.0 |
30.0 |
63.0 |
|
RLLBE-42-8 - A |
M8 |
8.4 |
9.5 |
18.0 |
9.0 |
10.0 |
30.0 |
63.0 |
|
|
RLLBE-42-10 - A |
M10 |
10.5 |
9.5 |
18.0 |
9.0 |
10.0 |
30.0 |
63.0 |
|
|
RLLBE-42-12 - A |
M12 |
13.0 |
9.5 |
18.0 |
9.0 |
10.0 |
30.0 |
63.0 |
|
|
RLLBE-50-6 - A |
50 |
M6 |
6.5 |
9.5 |
18.0 |
9.0 |
10.0 |
33.0 |
66.0 |
|
RLLBE-50-8 - A |
M8 |
8.4 |
9.5 |
18.0 |
9.0 |
10.0 |
33.0 |
66.0 |
|
|
RLLBE-50-10 - A |
M10 |
10.5 |
9.5 |
18.0 |
9.0 |
10.0 |
33.0 |
66.0 |
|
|
RLLBE-50-12 - A |
M12 |
13.0 |
9.5 |
18.0 |
9.0 |
10.0 |
33.0 |
66.0 |
|
|
RLLBE-70-8 - A |
70 |
M8 |
8.4 |
11.3 |
21.0 |
11.0 |
11.0 |
37.6 |
68.6 |
|
RLLBE-70-10 - A |
M10 |
10.5 |
11.3 |
21.0 |
11.0 |
11.0 |
37.6 |
68.6 |
|
|
RLLBE-70-12 - A |
M12 |
13.0 |
11.3 |
21.0 |
11.0 |
11.0 |
37.6 |
68.6 |
|
|
RLLBE-70-14 - A |
M14 |
14.5 |
11.3 |
21.0 |
11.0 |
11.0 |
37.6 |
68.6 |
|
|
RLLBE-95-8 - A |
95 |
M8 |
8.4 |
13.5 |
25.0 |
12.0 |
13.0 |
40.0 |
73.0 |
|
RLLBE-95-10 - A |
M10 |
10.5 |
13.5 |
25.0 |
12.0 |
13.0 |
40.0 |
73.0 |
|
|
RLLBE-95-12 - A |
M12 |
13.0 |
13.5 |
25.0 |
12.0 |
13.0 |
40.0 |
73.0 |
|
|
RLLBE-95-14 - A |
M14 |
14.5 |
13.5 |
25.0 |
12.0 |
13.0 |
40.0 |
73.0 |
|
|
RLLBE-95-16 - A |
M16 |
17.0 |
13.5 |
25.0 |
12.0 |
13.0 |
40.0 |
73.0 |
|
|
RLLBE-120-8 - A |
120 |
M8 |
8.4 |
14.2 |
25.5 |
13.0 |
14.0 |
41.9 |
77.0 |
|
RLLBE-120-10 - A |
M10 |
10.5 |
14.2 |
25.5 |
13.0 |
14.0 |
41.9 |
77.0 |
|
|
RLLBE-120-12 - A |
M12 |
13.0 |
14.2 |
25.5 |
13.0 |
14.0 |
41.9 |
77.0 |
|
|
RLLBE-120-14 - A |
M14 |
14.5 |
14.2 |
25.5 |
13.0 |
14.0 |
41.9 |
77.0 |
|
|
RLLBE-120-16 - A |
M16 |
17.0 |
14.2 |
25.5 |
13.0 |
14.0 |
41.9 |
77.0 |
|
|
RLLBE-130-8 - A |
130 |
M8 |
8.4 |
16.0 |
28.0 |
13.0 |
14.0 |
46.0 |
83.0 |
|
RLLBE-130-10 - A |
M10 |
10.5 |
16.0 |
28.0 |
13.0 |
14.0 |
46.0 |
83.0 |
|
|
RLLBE-130-12 - A |
M12 |
13.0 |
16.0 |
28.0 |
13.0 |
14.0 |
46.0 |
83.0 |
|
|
RLLBE-130-14 - A |
M14 |
14.5 |
16.0 |
28.0 |
13.0 |
14.0 |
46.0 |
83.0 |
|
|
RLLBE-130-16 - A |
M16 |
17.0 |
16.0 |
28.0 |
13.0 |
14.0 |
46.0 |
83.0 |
|
|
RLLBE-130-18 - A |
M18 |
19.0 |
16.0 |
28.0 |
13.0 |
14.0 |
46.0 |
83.0 |
|
|
RLLBE-150-8 - A |
150 |
M8 |
8.4 |
16.5 |
30.0 |
16.0 |
20.0 |
53.0 |
102.5 |
|
RLLBE-150-10 - A |
M10 |
10.5 |
16.5 |
30.0 |
16.0 |
20.0 |
53.0 |
102.5 |
|
|
RLLBE-150-12 - A |
M12 |
13.0 |
16.5 |
30.0 |
16.0 |
20.0 |
53.0 |
102.5 |
|
|
RLLBE-150-14 - A |
M14 |
14.5 |
16.5 |
30.0 |
16.0 |
20.0 |
53.0 |
102.5 |
|
|
RLLBE-150-16 - A |
M16 |
17.0 |
16.5 |
30.0 |
16.0 |
20.0 |
53.0 |
102.5 |
|
|
RLLBE-150-18 - A |
M18 |
19.0 |
16.5 |
30.0 |
16.0 |
20.0 |
53.0 |
102.5 |
|
|
RLLBE-150-20 - A |
M20 |
21.0 |
16.5 |
30.0 |
16.0 |
20.0 |
53.0 |
102.5 |
|
|
RLLBE-150 - BL |
- |
- |
16.5 |
30.0 |
16.0 |
20.0 |
53.0 |
102.5 |
|
|
RLLBE-185-8 - A |
185 |
M8 |
8.4 |
18.5 |
34.0 |
17.0 |
19.0 |
54.0 |
104.0 |
|
RLLBE-185-10 - A |
M10 |
10.5 |
18.5 |
34.0 |
17.0 |
19.0 |
54.0 |
104.0 |
|
|
RLLBE-185-12 - A |
M12 |
13.0 |
18.5 |
34.0 |
17.0 |
19.0 |
54.0 |
104.0 |
|
|
RLLBE-185-14 - A |
M14 |
14.5 |
18.5 |
34.0 |
17.0 |
19.0 |
54.0 |
104.0 |
|
|
RLLBE-185-16 - A |
M16 |
17.0 |
18.5 |
34.0 |
17.0 |
19.0 |
54.0 |
104.0 |
|
|
RLLBE-185-18 - A |
M18 |
19.0 |
18.5 |
34.0 |
17.0 |
19.0 |
54.0 |
104.0 |
|
|
RLLBE-185-20 - A |
M20 |
21.0 |
18.5 |
34.0 |
17.0 |
19.0 |
54.0 |
104.0 |
|
|
RLLBE-185 - BL |
- |
- |
18.5 |
34.0 |
17.0 |
19.0 |
54.0 |
104.0 |
|
|
RLLBE-200-8 - A |
200 |
M8 |
8.4 |
19.7 |
34.0 |
15.0 |
18.0 |
60.0 |
107.0 |
|
RLLBE-200-10 - A |
M10 |
10.5 |
19.7 |
34.0 |
15.0 |
18.0 |
60.0 |
107.0 |
|
|
RLLBE-200-12 - A |
M12 |
13.0 |
19.7 |
34.0 |
15.0 |
18.0 |
60.0 |
107.0 |
|
|
RLLBE-200-14 - A |
M14 |
14.5 |
19.7 |
34.0 |
15.0 |
18.0 |
60.0 |
107.0 |
|
|
RLLBE-200-16 - A |
M16 |
17.0 |
19.7 |
34.0 |
15.0 |
18.0 |
60.0 |
107.0 |
|
|
RLLBE-200-18 - A |
M18 |
19.0 |
19.7 |
34.0 |
15.0 |
18.0 |
60.0 |
107.0 |
|
|
RLLBE-200-20 - A |
M20 |
21.0 |
19.7 |
34.0 |
15.0 |
18.0 |
60.0 |
107.0 |
|
|
RLLBE-200 - BL |
- |
- |
19.7 |
34.0 |
15.0 |
18.0 |
60.0 |
107.0 |
|
|
RLLBE-240-8 - A |
240 |
M8 |
8.4 |
21.0 |
38.0 |
16.0 |
17.1 |
64.7 |
115.0 |
|
RLLBE-240-10 - A |
M10 |
10.5 |
21.0 |
38.0 |
16.0 |
17.1 |
64.7 |
115.0 |
|
|
RLLBE-240-12 - A |
M12 |
13.0 |
21.0 |
38.0 |
16.0 |
17.1 |
64.7 |
115.0 |
|
|
RLLBE-240-14 - A |
M14 |
14.5 |
21.0 |
38.0 |
16.0 |
17.1 |
64.7 |
115.0 |
|
|
RLLBE-240-16 - A |
M16 |
17.0 |
21.0 |
38.0 |
16.0 |
17.1 |
64.7 |
115.0 |
|
|
RLLBE-240-18 - A |
M18 |
19.0 |
21.0 |
38.0 |
16.0 |
17.1 |
64.7 |
115.0 |
|
|
RLLBE-240-20 - A |
M20 |
21.0 |
21.0 |
38.0 |
16.0 |
17.1 |
64.7 |
115.0 |
|
|
RLLBE-240 - BL |
- |
- |
21.0 |
38.0 |
16.0 |
17.1 |
64.7 |
115.0 |
|
|
RLLBE-300-10 - A |
300 |
M10 |
10.5 |
23.5 |
43.0 |
22.0 |
22.0 |
74.0 |
137.0 |
|
RLLBE-300-12 - A |
M12 |
13.0 |
23.5 |
43.0 |
22.0 |
22.0 |
74.0 |
137.0 |
|
|
RLLBE-300-14 - A |
M14 |
14.5 |
23.5 |
43.0 |
22.0 |
22.0 |
74.0 |
137.0 |
|
|
RLLBE-300-16 - A |
M16 |
17.0 |
23.5 |
43.0 |
22.0 |
22.0 |
74.0 |
137.0 |
|
|
RLLBE-300-18 - A |
M18 |
19.0 |
23.5 |
43.0 |
22.0 |
22.0 |
74.0 |
137.0 |
|
|
RLLBE-300-20 - A |
M20 |
21.0 |
23.5 |
43.0 |
22.0 |
22.0 |
74.0 |
137.0 |
|
|
RLLBE-300 - BL |
- |
- |
23.5 |
43.0 |
22.0 |
22.0 |
74.0 |
137.0 |
|
|
RLLBE-400-10 - A |
400 |
M10 |
10.5 |
28.5 |
52.5 |
25.0 |
25.0 |
84.0 |
154.0 |
|
RLLBE-400-12 - A |
M12 |
13.0 |
28.5 |
52.5 |
25.0 |
25.0 |
84.0 |
154.0 |
|
|
RLLBE-400-14 - A |
M14 |
14.5 |
28.5 |
52.5 |
25.0 |
25.0 |
84.0 |
154.0 |
|
|
RLLBE-400-16 - A |
M16 |
17.0 |
28.5 |
52.5 |
25.0 |
25.0 |
84.0 |
154.0 |
|
|
RLLBE-400-18 - A |
M18 |
19.0 |
28.5 |
52.5 |
25.0 |
25.0 |
84.0 |
154.0 |
|
|
RLLBE-400-20 - A |
M20 |
21.0 |
28.5 |
52.5 |
25.0 |
25.0 |
84.0 |
154.0 |
|
|
RLLBE-400 - BL |
- |
- |
28.5 |
52.5 |
25.0 |
25.0 |
84.0 |
154.0 |
|
|
RLLBE-500-10 - A |
500 |
M10 |
10.5 |
30.0 |
56.0 |
25.0 |
26.0 |
85.0 |
161.0 |
|
RLLBE-500-12 - A |
M12 |
13.0 |
30.0 |
56.0 |
25.0 |
26.0 |
85.0 |
161.0 |
|
|
RLLBE-500-14 - A |
M14 |
14.5 |
30.0 |
56.0 |
25.0 |
26.0 |
85.0 |
161.0 |
|
|
RLLBE-500-16 - A |
M16 |
17.0 |
30.0 |
56.0 |
25.0 |
26.0 |
85.0 |
161.0 |
|
|
RLLBE-500-18 - A |
M18 |
19.0 |
30.0 |
56.0 |
25.0 |
26.0 |
85.0 |
161.0 |
|
|
RLLBE-500-20 - A |
M20 |
21.0 |
30.0 |
56.0 |
25.0 |
26.0 |
85.0 |
161.0 |
|
|
RLLBE-500 - BL |
- |
- |
30.0 |
56.0 |
25.0 |
26.0 |
85.0 |
161.0 |
|
Technical Information
| Parameter |
|---|
| Longer length barrel permits extra crimps for additional heavy-duty loads |
| Annealed material optimizes material and crimping properties |
| Flat contact surface and precise stud holes as per the Metric Standard |
| Material – High conductivity ETP Copper |
| Finish – Electro tin plated |
| Ordering Information |
|---|
| Add following suffix |
| A - Without Window |
| B - With Window |
| C - With Rectangular Notch |
| D - Without Window & Flare Barrel Entry |
| E - With Window & Flare Barrel Entry |
| F - With Rectangular Notch & Flare Barrel Entry |
| Also available with Inspection Window |
Certifications
UL Listed
More info available on request
IEC certified
More info available on request
Related Products
All products provided below with slider to find faster.
/
Customizable
A2LDS - Two-hole Lugs - Aluminium Dual Rated
For aluminium and copper conductors
Learn More
Customizable
AFDS - Two-way Splice Connectors - Aluminium Dual Rated
Standard barrel with crimps for reliable connection
Learn More
Customizable
AFL - Two-way Splice Connectors - Long Barrel
Long barrel with multiple crimps for secured connection
Learn More
Customizable
AFS - Two-way Splice Connectors - Standard Barrel
Standard barrel with crimps for reliable connection
Learn More
Customizable
ALDH - One-hole Lugs - Aluminium Dual Rated Heavy Duty
For heavy duty aluminium and copper conductors
Learn More
Customizable
ALDS - One-hole Lugs - Aluminium Dual Rated
For aluminium and copper conductors
Learn More
Customizable
RADE - One-hole Lugs - Aluminium Lugs as per DIN 46329
For aluminium and copper conductors and best suited to avoid rotation or movement of lugs
Learn More
Customizable
RCD - Two-way Splice Connectors - DIN 46267 Part-1
Splices designed as per DIN Standard 46267, Part-1
Learn More
Customizable
RCL - Two-way Splice Connectors - Long Barrel
Long barrel with multiple crimps for secured connection
Learn More
Customizable
RCRL - In line Connectors - Reducing Link
Application for different sizes of cable connections
Learn More
Customizable
RCS - Two-way Splice Connectors - Short Barrel
Standard barrel with crimps for reliable connection
Learn More
Customizable
RLAX - One-hole Lugs - Aluminium Lugs for XLPE Cables
For significant lower dead weight aluminium conductors in power distribution application
Learn More
