For circuit breakers with reduced space terminal blocks

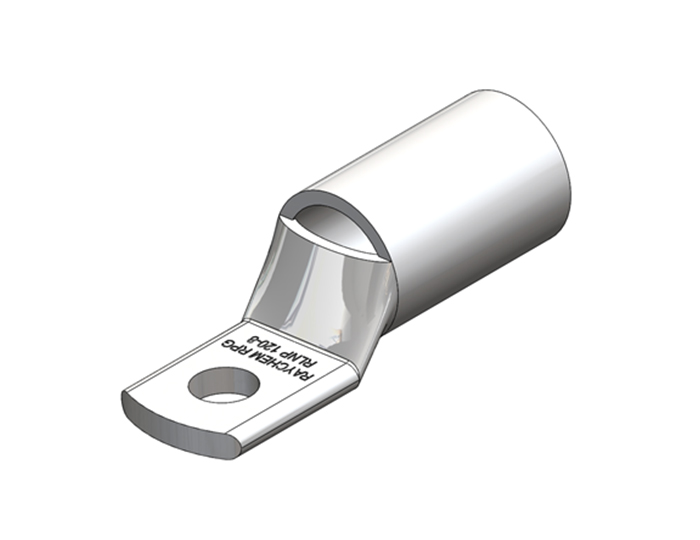

- One-Hole Lug - Narrow Palm for copper conductors ranging from 35 – 300 mm2
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|
Nominal Cross Section mm2 |
Bolt Size |
Catalogue Code |
Dimensions (mm) |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
Stud Hole |
Barrel ID |
Barrel OD |
Palm Width |
Stud Centre Distance |
Barrel Length |
Total Length |
||||
|
ØE |
ØA |
ØC |
D |
G |
H |
B |
J |
|||
|
35 |
M6 |
RLNP 35-6 |
6.5 |
8.2 |
10.6 |
15.0 |
3.0 |
21.0 |
21.0 |
41.0 |
|
50 |
M6 |
RLNP 50-6 |
6.5 |
9.5 |
12.4 |
15.0 |
3.2 |
22.0 |
22.0 |
43.0 |
|
M8 |
RLNP 50-8 |
8.4 |
9.5 |
12.4 |
15.0 |
3.2 |
22.0 |
22.0 |
46.0 |
|
|
M10 |
RLNP 50-10 |
10.5 |
9.5 |
12.4 |
19.0 |
3.2 |
22.0 |
22.0 |
49.0 |
|
|
70 |
M6 |
RLNP 70-6 |
6.5 |
11.2 |
14.6 |
17.0 |
3.3 |
24.0 |
24.0 |
45.0 |
|
M8 |
RLNP 70-8 |
8.4 |
11.2 |
14.6 |
17.0 |
3.3 |
24.0 |
24.0 |
48.0 |
|
|
M10 |
RLNP 70-10 |
10.5 |
11.2 |
14.6 |
19.0 |
3.3 |
24.0 |
24.0 |
51.0 |
|
|
95 |
M8 |
RLNP 95-8 |
8.4 |
13.4 |
17.4 |
19.0 |
3.9 |
27.0 |
27.0 |
51.0 |
|
M10 |
RLNP 95-10 |
10.5 |
13.4 |
17.4 |
19.0 |
3.9 |
27.0 |
27.0 |
55.0 |
|
|
120 |
M8 |
RLNP 120-8 |
8.4 |
15.6 |
19.4 |
19.0 |
5.0 |
30.0 |
30.0 |
61.0 |
|
M10 |
RLNP 120-10 |
10.5 |
15.6 |
19.4 |
19.0 |
5.0 |
30.0 |
30.0 |
61.0 |
|
|
150 |
M8 |
RLNP 150-8 |
8.4 |
16.7 |
21.2 |
19.0 |
5.5 |
30.0 |
30.0 |
66.0 |
|
M10 |
RLNP 150-10 |
10.5 |
16.7 |
21.2 |
19.0 |
5.5 |
30.0 |
30.0 |
66.0 |
|
|
185 |
M10 |
RLNP 185-10 |
10.5 |
18.4 |
23.5 |
31.0 |
5.7 |
38.0 |
38.0 |
82.0 |
|
240 |
M10 |
RLNP 240-10 |
10.5 |
21.2 |
26.5 |
31.0 |
7.1 |
38.0 |
38.0 |
82.0 |
|
300 |
M10 |
RLNP 300-10 |
10.5 |
23.5 |
30.0 |
31.0 |
7.8 |
42.0 |
42.0 |
87.0 |
Technical Information
| Parameter |
|---|
| Specifically developed for application on circuit breakers with reduced space terminal blocks |
| Annealed material optimizes material and crimping properties |
| Flat contact surface and precise stud holes as per Metric Standard |
| Material – High conductivity ETP Copper |
| Finish – Electro tin plated |
Certifications
UL Listed
More info available on request
IEC certified
More info available on request
