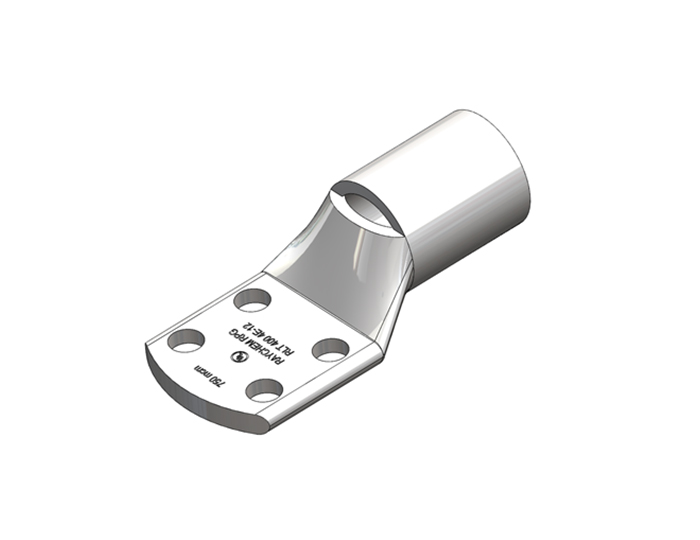

Heavy Duty lugs for transformer application
- Four-Hole Transformer Lugs for copper conductors ranging from 400 – 1000 mm2
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|
Nominal Cross Section mm2 |
Bolt Size |
Catalogue Code |
Dimensions (mm) |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
Stud Hole |
Barrel ID |
Barrel OD |
Palm Width |
Stud Centre Distance |
Barrel Length |
Total Length |
||||
|
ØE |
ØA |
ØC |
D |
G |
H |
B |
J |
|||
|
400 |
M10 |
RLT 400 4E-10 |
10.5 |
28.5 |
36.5 |
52.5 |
25.0 |
35.0 |
44.0 |
114.0 |
|
M12 |
RLT 400 4E-12 |
13.0 |
28.5 |
36.5 |
52.5 |
25.0 |
35.0 |
44.0 |
114.0 |
|
|
- |
RLT 400 4E-BL |
- |
28.5 |
36.5 |
52.5 |
- |
- |
44.0 |
114.0 |
|
|
500 |
M10 |
RLT 500 4E-10 |
10.5 |
30.0 |
39.0 |
56.0 |
25.0 |
35.0 |
48.0 |
124.0 |
|
M12 |
RLT 500 4E-12 |
13.0 |
30.0 |
39.0 |
56.0 |
25.0 |
35.0 |
48.0 |
124.0 |
|
|
M14 |
RLT 500 4E-14 |
14.5 |
30.0 |
39.0 |
56.0 |
25.0 |
35.0 |
48.0 |
124.0 |
|
|
- |
RLT 500 4E-BL |
- |
30.0 |
39.0 |
56.0 |
- |
- |
48.0 |
124.0 |
|
|
630 |
M10 |
RLT 630 4E-10 |
10.5 |
35.0 |
45.0 |
65.0 |
25.0 |
35.0 |
56.0 |
146.0 |
|
M12 |
RLT 630 4E-12 |
13.0 |
35.0 |
45.0 |
65.0 |
25.0 |
35.0 |
56.0 |
146.0 |
|
|
M14 |
RLT 630 4E-14 |
14.5 |
35.0 |
45.0 |
65.0 |
25.0 |
35.0 |
56.0 |
146.0 |
|
|
M16 |
RLT 630 4E-16 |
17.0 |
35.0 |
45.0 |
65.0 |
25.0 |
35.0 |
56.0 |
146.0 |
|
|
- |
RLT 630 4E-BL |
- |
35.0 |
45.0 |
65.0 |
- |
- |
56.0 |
146.0 |
|
|
800 |
M20 |
RLT 800 4E-20* |
21.0 |
39.0 |
50.6 |
72.0 |
25.0 |
35.0 |
78.0 |
170.0 |
|
1000 |
M20 |
RLT 1000 4E-20* |
21.0 |
43.0 |
56.2 |
78.5 |
25.0 |
35.0 |
90.0 |
200.0 |
Technical Information
| Parameter |
|---|
| Heavy Duty lugs for transformer application |
| Annealed material optimizes material and crimping properties |
| Flat contact surface and precise stud holes as per Metric Standard |
| Material – High conductivity ETP Copper |
| Finish – Electro tin plated |
Certifications
UL Listed
More info available on request
IEC certified
More info available on request
