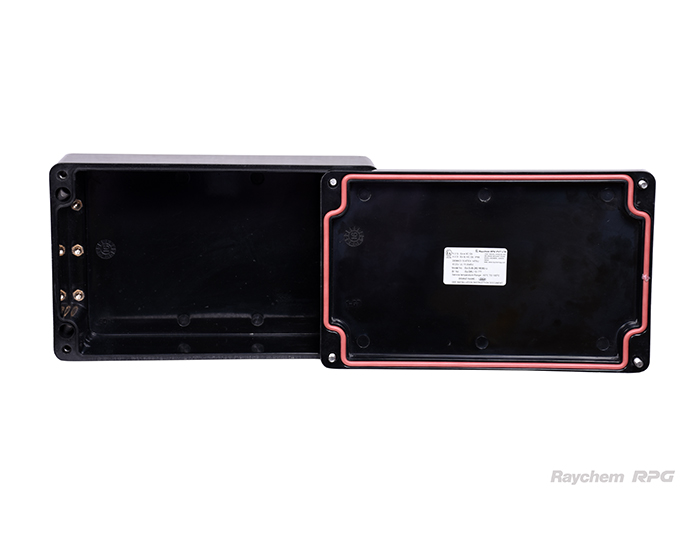

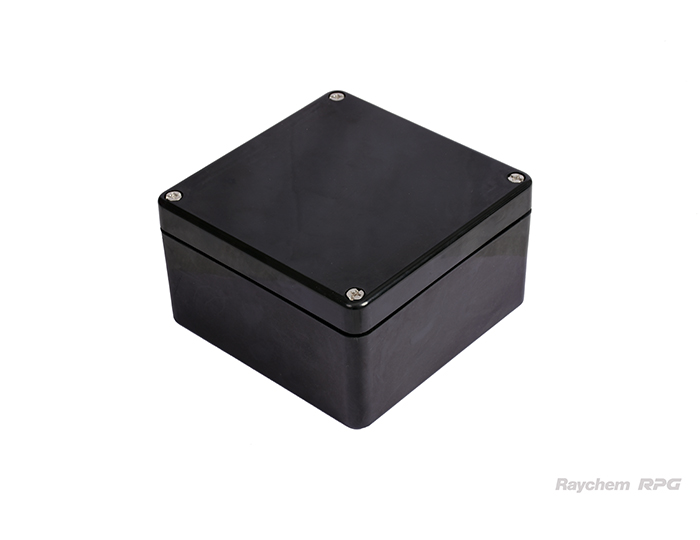

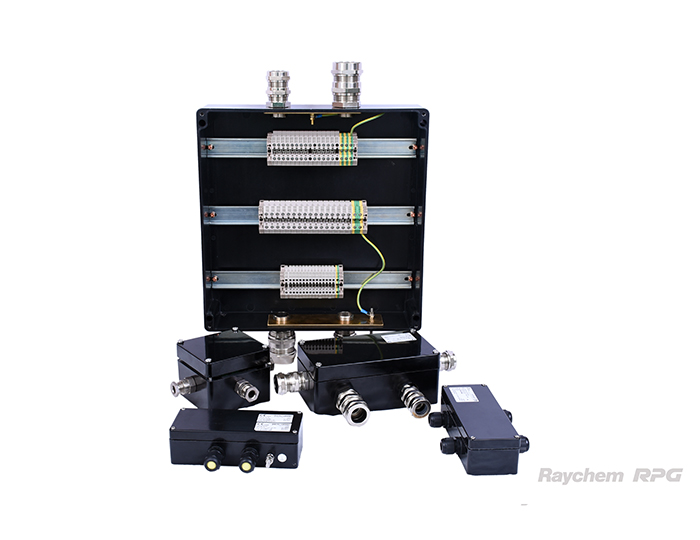

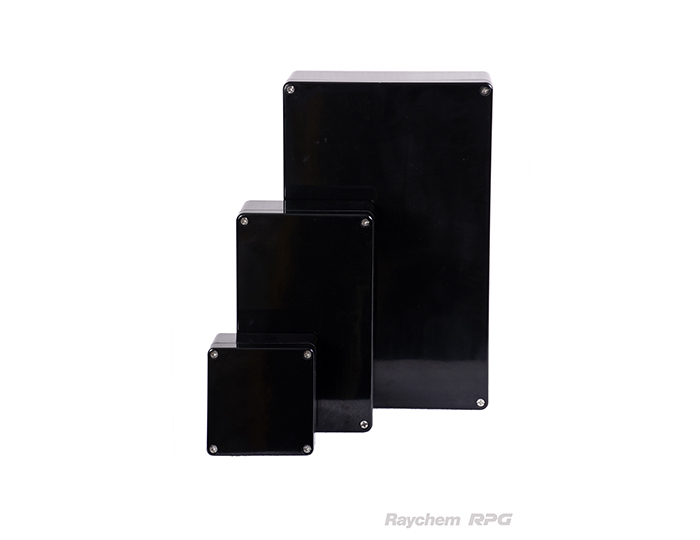

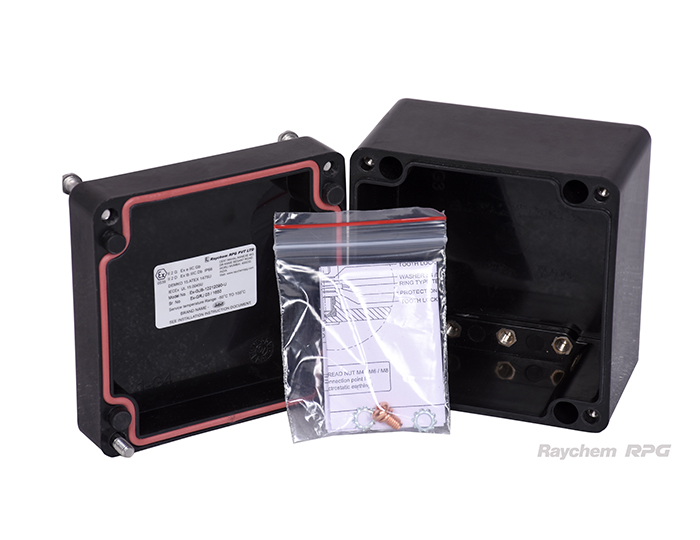

Polyester junction boxes with addition of graphite for hazardous areas - Ex e, Ex ia and Ex tb
- GRP Ex Enclosures are available in RAL 9011 black colour
- Suitable for harsh and demanding locations onshore and offshore
- Catalog
- Add to List
- Enquire Now
Chat with UsSpecifications
| Model No. | Dimensions (mm) | |||
|---|---|---|---|---|
| Equipment | Component | Length | Width | Depth |
| EXGRJ 807555 | GRJ 807555 | 80 | 75 | 55 |
| EXGRJ 117555 | GRJ 117555 | 110 | 75 | 55 |
| EXGRJ 167555 | GRJ 167555 | 160 | 75 | 55 |
| EXGRJ 197555 | GRJ 197555 | 190 | 75 | 55 |
| EXGRJ 167575 | GRJ 167575 | 160 | 75 | 75 |
| EXGRJ 807575 | GRJ 807575 | 80 | 75 | 75 |
| EXGRJ 117575 | GRJ 117575 | 110 | 75 | 75 |
| EXGRJ 197575 | GRJ 197575 | 190 | 75 | 75 |
| EXGRJ 121290 | GRJ 121290 | 122 | 120 | 90 |
| EXGRJ 161690 | GRJ 161690 | 160 | 160 | 90 |
| EXGRJ 221290 | GRJ 221290 | 220 | 120 | 90 |
| EXGRJ 261690 | GRJ 261690 | 260 | 160 | 90 |
| EXGRJ 361690 | GRJ 361690 | 360 | 160 | 90 |
| EXGRJ 252512 | GRJ 252512 | 255 | 250 | 120 |
| EXGRJ 252516 | GRJ 252516 | 255 | 250 | 160 |
| EXGRJ 402512 | GRJ 402512 | 400 | 250 | 120 |
| EXGRJ 402516 | GRJ 402516 | 400 | 250 | 160 |
| EXGRJ 404012 | GRJ 404012 | 400 | 405 | 120 |
| EXGRJ 404020 | GRJ 404020 | 400 | 405 | 201 |
| EXGRJ 602512 | GRJ 602512 | 600 | 250 | 120 |
| EXGRJ 602516 | GRJ 602516 | 600 | 250 | 160 |
Instruction ManualTechnical Information
| Parameter | Value |
|---|---|
| Material | Glass Reinforced Polyester, Graphite Added |
| Color | Similar to RAL 9011 / Black |
| Protection Class | IP66, IEC/EN 60529 |
| Surface resistance | < 10⁹ Ohm |
| Mechanical Strength | Impact energy > 7 Joules, IEC/EN 60079-0 |
| Flammability | Self Extinguishing, UL 94 V0 |
| Service Temperature | -60°C to +110°C (Silicone) |
| Compliance Standard | IEC /EN 60079-0, IEC/EN 60079, IEC/EN 60079-11 and IEC/EN 60079-31 |
| Name | Marking | Certificates no. |
|---|---|---|
| Equipment | II 1GD / II 2GD |
SIRA 19 ATEX 3015X IECEx SIR 19.0020X |
| Ex eb IIC T6…T4 Gb | ||
| Ex eb ia IIC T6…T4 Gb | ||
| Ex tb IIIC T85°C, T100°C, T135°C Db | ||
| Ex ia IIC T6…T4 Ga | ||
| Ex ia IIIC T85°C, T100°C, T135°C Da | ||
| Component | II 2G Ex eb IIC Gb | SIRA 18 ATEX 3261U IECEx SIR 18.0070U |
| II 2D Ex tb IIIC Db | ||
| -60 oC ≤ Ta ≤ +110 oC |
Certifications
IECEx certified
More info. Available on request
Ex certified
More info. Available on request
EAC Certified
More info. Available on request
