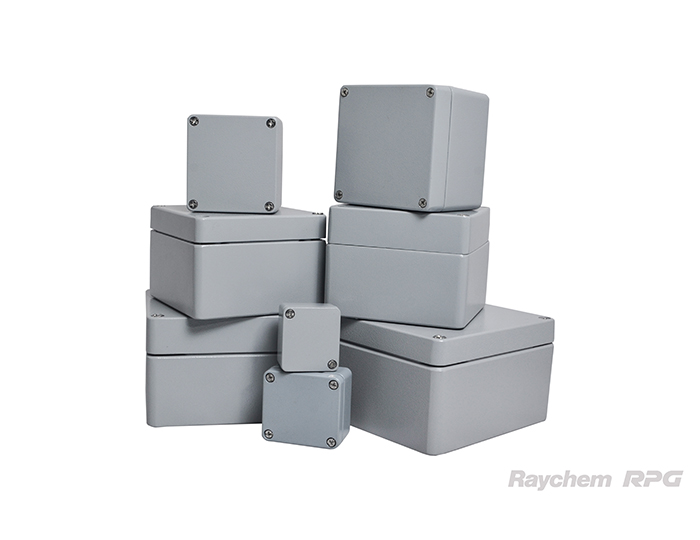

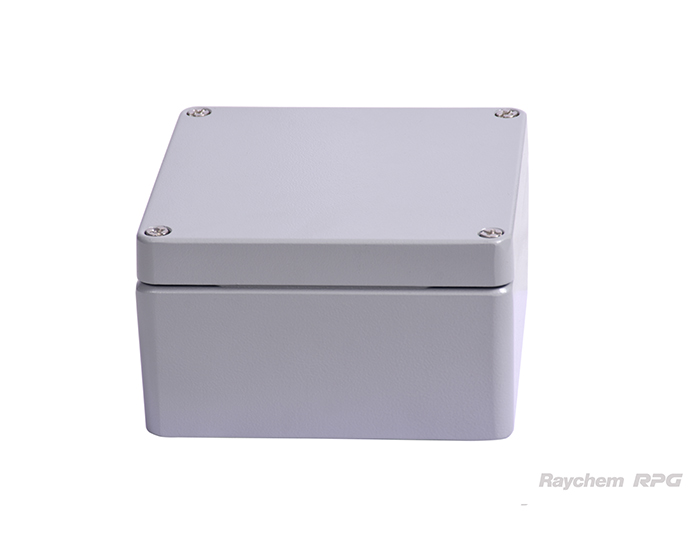

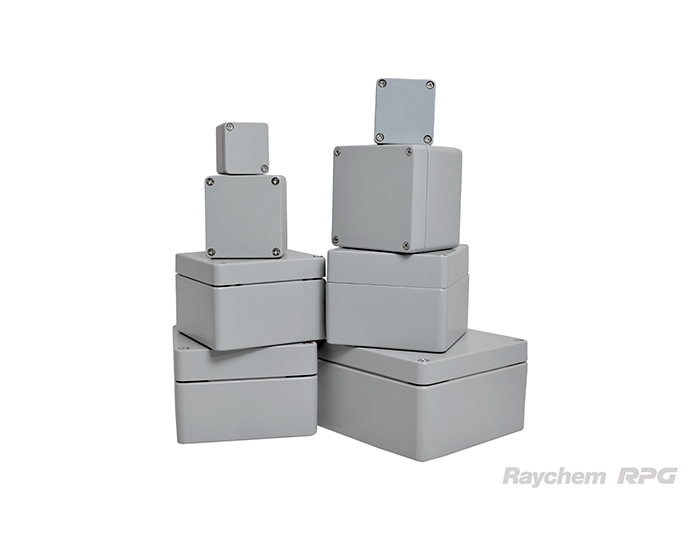

Robust die-cast, Powder Coated aluminium enclosures conforming to Protection Category IP 66, IP67 and IP 68 and Impact Resistance upto IK09
- Provides complete safety to electrical equipment
Customization provided to standard enclosures including machining, Customized Powder Coating, screen printing, Accessories like Cable Glands, Terminal
- High impact and temperature resistant
- Weatherproof
- Catalog
- Add to List
- Enquire Now
Chat with UsSpecifications
|
Aluminium |
|||
|---|---|---|---|
|
Raychem RPG Box Reference |
Box Size |
||
|
Length (A) (mm) |
Width (B) (mm) |
Depth (C) (mm) |
|
|
RJ 01 |
50 |
45 |
30 |
|
RJ 02 |
98 |
64 |
34 |
|
RJ 03 |
150 |
64 |
34 |
|
RJ 04 |
58 |
64 |
34 |
|
RJ 05 |
75 |
80 |
57 |
|
RJ 06 |
125 |
80 |
57 |
|
RJ 07 |
175 |
80 |
57 |
|
RJ 08 |
250 |
80 |
57 |
|
RJ 09 |
100 |
100 |
81 |
|
RJ 10 |
160 |
100 |
81 |
|
RJ 11 |
122 |
120 |
81 |
|
RJ 12 |
220 |
120 |
91 |
|
RJ 13 |
260 |
160 |
90 |
|
RJ 14 |
360 |
160 |
90 |
|
RJ 15 |
160 |
160 |
90 |
|
RJ 17 |
280 |
230 |
110 |
|
RJ 18 |
330 |
230 |
110 |
|
RJ 19 |
230 |
200 |
110 |
|
RJ 20 |
330 |
230 |
180 |
|
RJ 21 |
220 |
120 |
81 |
|
RJ 22 |
122 |
120 |
91 |
|
RJ 28 |
180 |
180 |
100 |
|
RJ 29 |
280 |
180 |
100 |
|
RJ 30 |
230 |
200 |
180 |
|
RJ 31 |
400 |
310 |
110 |
|
RJ 32 |
400 |
310 |
180 |
|
RJ 33 |
600 |
310 |
110 |
|
RJ 34 |
600 |
310 |
180 |
|
RJ 35 |
400 |
230 |
110 |
|
RJ 36 |
140 |
140 |
90 |
|
RJ 37 |
200 |
140 |
90 |
Industrial ManualTechnical Information
|
Parameter |
Value |
|---|---|
|
Material: |
Aluminium Alloy (AlSi12) |
|
IP: |
IP 66 (IP67, IP68 on Request) |
|
Impact Energy: |
IK 09 (10 Joules) |
|
Temperature range : |
-40°C to +80°C (Neoprene) |
|
-60°C to +140°C (Silicone) |
|
|
-30°C to +150°C (Viton) |
|
|
-55°C to +125°C (EMC) |
|
|
Gasket: |
Neoprene, Silicone, Viton, EMC |
|
Colour:
|
Natural Finish (Pretreated) |
|
RAL 7001 (Other colours on request) |
|
|
Accessories: |
Mounting Plates, Mounting Brackets, Internal Hinges, External Hinges |
|
Certifications: |
UL, CE |
Certifications
UL Listed
More info available on request
CE Certified
More info available on request
