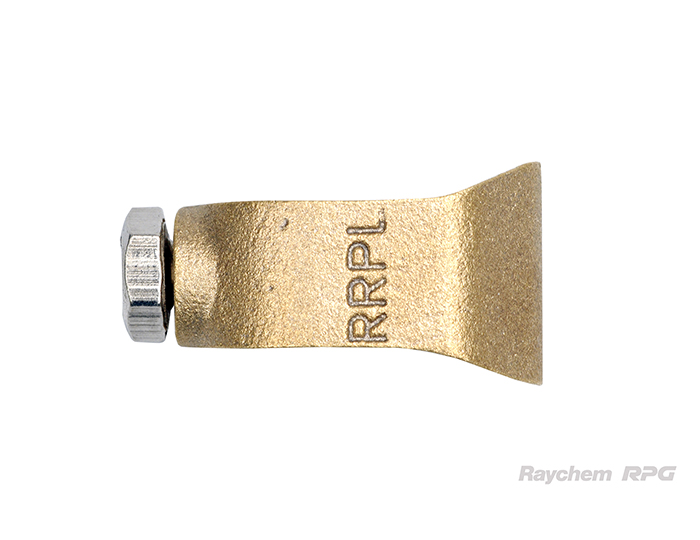

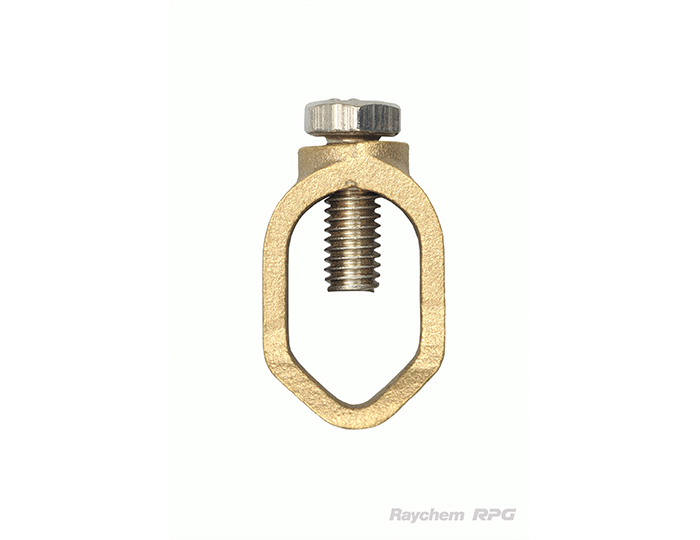

Rod to Cable Clamp (Type G)
Related Tags :
Type G
No Search Result
Contact Us
Connect with us by clicking on one of the following options.
Sales Enquiry Visit Contact Page
Grievance Officer grievance_officer@raychemrpg.com- Other Enquiry info@raychemrpg.com
Chat with Us Mon. to Sat. 9am to 6pm
0
-
-
Your List Is Empty
- View Products
Share
- Features
- Help & Support
Provides a secure connection between round conductor and earth rod. Used for providing a secure connection between down conductor cable and the earth rod.
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|
Rod to Cable Clamps Type G |
||||
|
S.No. |
Product Code |
Shank Rod Dia. In Inch |
Shank Rod Dia. In mm |
C/S Range in Sq. mm |
|---|---|---|---|---|
|
1 |
RCG - 01 |
3/8" |
9.5 |
6-35 |
|
2 |
RCG - 02 |
1/2" |
12.5 |
16-50 |
|
3 |
RCG - 03 |
5/8" |
16 |
16-70 |
|
4 |
RCG - 04 |
3/4" |
20 |
16-95 |
|
5 |
RCG - 05 |
1" |
25 |
70-120 |
|
Raychem RPG manufacturers Rod to Cable Clamp “type G” as per IEC 62561-1, BS EN 50164-1 and EN 50164-1. |
||||
Technical Information
| Parameter |
|---|
| Manufactured from high quality copper alloy |
| Designed and tested for class H category - “Heavy Duty” |
| Withstands lightning impulse current of 100 kA |
Certifications
IEC certified
More info available on request
