Insulating Boots FullScreen
  • Features
  • Help & Support

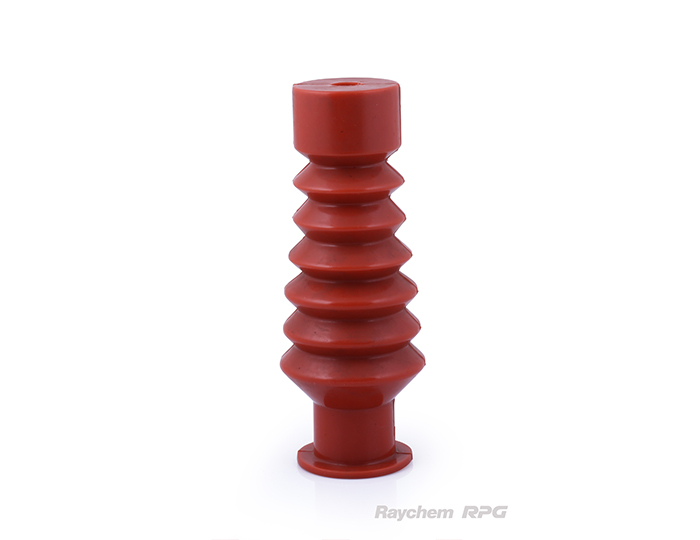

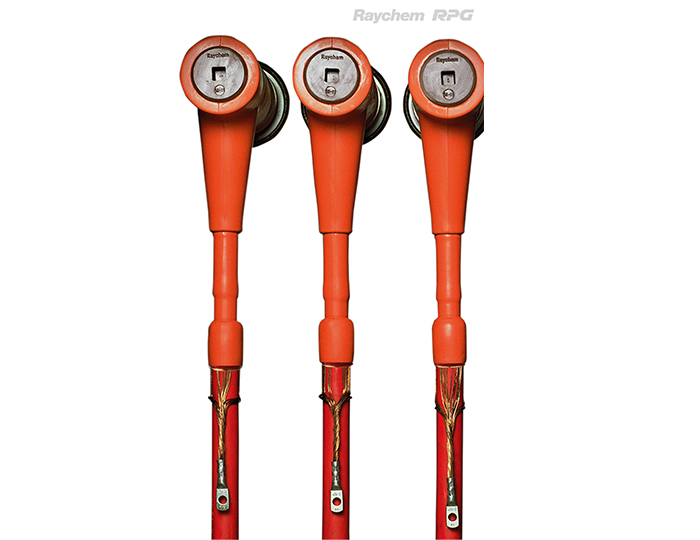

Medium Voltage Insulating Boots. Cold applied unscreened elastomeric insulating boots (in Silicon or EPDM) are moulded parts, fitted over the connection between a cable lug and inline or right-angled equipment bushing, to improve phase-to-phase and phase-to-ground insulation. They are used in switchgear and transformer cable boxes where the air clearances are insufficient for normal operation or protect against flashover due to rodents or high humidity. The non-tracking elastomeric housing has excellent erosion resistance, dielectric properties, and environmental resistance, giving superb performance in areas of high humidity and electrical stresses.

  • Make in India
  • Tool free application
  • High-performance insulation material
  • Excellent track and erosion resistance
  • Removable and installable
  • Type tested
  • more...

Please connect with us


Parameter Value
Suitable for indoor applications upto 17.5 kV system
Improves air clearances in confined boxes
Mounted on single or three core applications
Kit No:  Kit Contents
CAB-RRL-KIT  (for three core cable) Elastomeric insulating boots, Silicon grease, Installation instruction

E-CAB-KIT  (for three core cable)

 Elastomeric insulating boots, Silicon grease, Installation instruction


Technical Information

Parameter Value
Maximum system voltage 17.5 kV
Basic impulse level 75 / 95 kV
AC high Voltage 36kV for 1 minute
Bushing diameter 46 - 70 mm
Bushing types DIN, CEN ELEC, ANSI 400/630A
Cable cross section 35 – 400 mm²










More info available on request


More info available on request
