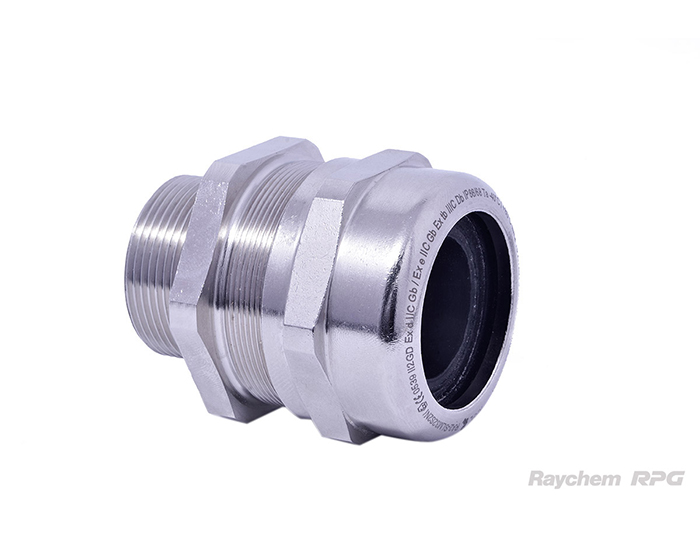

Ex metal cable glands suitable for unarmoured cables suitable in Group II (Surface). Raychem RPG supplies cable glands suitable for Ex Hazardous areas in which flammable substances (Oil & Gas) substantially exist, making it potentially explosive atmospheres. Our cable glands are compatible for equipment/enclosures/junction boxes of Group II (Surface Industries) with Equipment Protection.
- Designs specific for non-explosion-hazard zones
- Approved in accordance with directive 2014/34/EU
- Applicable for Group II (Surface Industries)
- Equipment Protection up to Ex d, Ex e and Ex tb
- High IP rating upto IP68
- High impact resistance
- more...
- Catalog
- Add to List
- Enquire Now
Chat with UsSpecifications
|
Metric: |
||||||||
|---|---|---|---|---|---|---|---|---|
|
Part Numbers |
TD ISO 965-3 |
Dimensions |
D |
S1+S2+S3 |
S1+S2 |
S1 |
||
|
H |
TL |
SW |
||||||
|
SLM08S1BRC |
M8x1.25 |
15.5 |
5 |
11 |
2,0-4,0 |
- |
- |
2-4 |
|
SLM12S1BRC |
M12x1,5 |
30.5 |
16 |
22 |
4,0-8,0 |
4-6 |
6-8 |
- |
|
SLM12S2BRC |
M12x1,5 |
27 |
16 |
20 |
3,0-8,0 |
- |
3-6 |
6-8 |
|
SLM16S1BRC |
M16x1,5 |
27 |
16 |
20 |
3,0-9,0 |
- |
3-6 |
6-9 |
|
SLM16S2BRC |
M16x1,5 |
31 |
16 |
22 |
4,0-12,0 |
4-6 |
6-9 |
9-12 |
|
SLM20S0BRC |
M20x1,5 |
27 |
16 |
22/20 |
3,0-9,0 |
- |
3-6 |
6-9 |
|
SLM20S1BRC |
M20x1,5 |
27 |
16 |
22 |
4,0-12,0 |
4-6 |
6-9 |
9-12 |
|
SLM20S2BRC |
M20x1,5 |
30 |
16 |
28 |
10,0-16,0 |
10-12 |
12-14,5 |
14,5-16 |
|
SLM25S0BRC |
M25x1,5 |
27 |
16 |
28/22 |
4,0-12,0 |
4-6 |
6-9 |
9-12 |
|
SLM25S1BRC |
M25x1,5 |
30.5 |
16 |
28 |
10,0-18,0 |
10-12 |
12-14,5 |
14,5-18 |
|
SLM25S2BRC |
M25x1,5 |
34 |
16 |
35 |
14,0-20,0 |
14-17 |
17-20 |
- |
|
SLM32S0BRC |
M32x1,5 |
31.5 |
16 |
35/28 |
10,0-18,0 |
10-12 |
12-14,5 |
14,5-18 |
|
SLM32S1BRC |
M32x1,5 |
33 |
16 |
35 |
14,0-24,0 |
14-17 |
17-20 |
20-24 |
|
SLM32S2BRC |
M32x1,5 |
41 |
16 |
45 |
22,0-28,0 |
22-24 |
24-27 |
27-28 |
|
SLM40S0BRC |
M40x1,5 |
33 |
18 |
45/35 |
14,0-24,0 |
14-17 |
17-20 |
20-24 |
|
SLM40S1BRC |
M40x1,5 |
41 |
18 |
45 |
22,0-32,0 |
22-24 |
24-27 |
27-32 |
|
SLM40S2BRC |
M40x1,5 |
44 |
18 |
50 |
26,0-34,0 |
26-28 |
28-31 |
31-34 |
|
SLM50S0BRC |
M50x1,5 |
43 |
18 |
55/45 |
22,0-32,0 |
22-24 |
24-27 |
27-32 |
|
SLM50S1BRC |
M50x1,5 |
44 |
18 |
55/50 |
26,0-35,0 |
26-28 |
28-31 |
31-35 |
|
SLM50S2BRC |
M50x1,5 |
43 |
18 |
64 |
35,0-44,0 |
35-38 |
38-41 |
41-44 |
|
SLM63S0BRC |
M63x1,5 |
42 |
18 |
68/50 |
26,0-35,0 |
26-28 |
28-31 |
31-35 |
|
SLM63S1BRC |
M63x1,5 |
43 |
18 |
68/64 |
35,0-45,0 |
35-38 |
38-41 |
41-45 |
|
SLM63S2BRC |
M63x1,5 |
52.5 |
18 |
75/80 |
46,0-56,0 |
46-48 |
48-52 |
52-56 |
|
SLM75S0BRC |
M75x1,5 |
45 |
20 |
80/64 |
35,0-45,0 |
35-38 |
38-41 |
41-45 |
|
SLM75S1BRC |
M75x1,5 |
52 |
20 |
80 |
46,0-62,0 |
46-51 |
51-56 |
56-62 |
|
SLM75S2BRC |
M75x1,5 |
55 |
20 |
95 |
60,0-69,0 |
60-65 |
65-69 |
- |
|
SLM80S0BRC |
M80x1.5 |
55 |
20 |
95 |
60,0-71,0 |
60-65 |
65-70 |
70-71 |
|
SLM80S1BRC |
M80x2.0 |
55 |
20 |
95 |
60,0-71,0 |
60-65 |
65-70 |
70-71 |
|
SLM90S0BRC |
M90x1,5 |
52 |
20 |
95/80 |
46,0-62,0 |
46-51 |
51-56 |
56-62 |
|
SLM90S1BRC |
M90x1,5 |
55 |
20 |
95 |
60,0-75,0 |
60-65 |
65-70 |
70-75 |
|
SLM90S2BRC |
M90x1,5 |
55 |
20 |
105 |
75,0-82,0 |
75-78 |
78-81 |
81-82 |
|
SLM100S0BRC |
M100x1,5 |
55 |
20 |
105/95 |
60,0-75,0 |
60-65 |
65-70 |
70-75 |
|
SLM1001BRC |
M100x1,5 |
55 |
20 |
105 |
75,0-85,0 |
75-78 |
78-81 |
81-85 |
|
SLM1102BRC |
M110x1,5 |
57 |
20 |
115 |
85,0-95,0 |
85-88 |
88-91 |
91-95 |
|
SLM115X1BRC |
M115x2.0 |
59 |
24 |
130/105 |
75,0-85,0 |
75-78 |
78-81 |
81-85 |
|
SLM115S1BRC |
M115x2.0 |
59 |
24 |
130/115 |
85,0-95,0 |
85-88 |
88-91 |
91-95 |
|
SLM115S2BRC |
M115x2.0 |
62.5 |
24 |
130 |
95,0-105,0 |
95-98 |
98-101 |
101-105 |
|
SLM130S0BRC |
M130x2.0 |
65.5 |
24 |
140 |
105,0-115,0 |
105-108 |
108-111 |
111-115 |
|
NPT: |
||||||||
|---|---|---|---|---|---|---|---|---|
|
Part Numbers |
TD ANSI ASME NPT B1.20.1 |
Dimensions |
D |
S1+S2+S3 |
S1+S2 |
S1 |
||
|
H |
TL |
SW |
||||||
|
SLN14S1BRC |
1/4” |
30.5 |
16 |
22 |
4,0-8,0 |
4-6 |
6-8 |
- |
|
SLN14S2BRC |
1/4" |
27 |
16 |
20 |
3,0-8,0 |
- |
3-6 |
6-8 |
|
SLN38S1BRC |
3/8" |
27 |
16 |
20 |
3,0-9,0 |
- |
3-6 |
6-9 |
|
SLN38S2BRC |
3/8" |
30.5 |
16 |
22 |
4,0-12,0 |
4-6 |
6-9 |
9-12 |
|
SLN12S0BRC |
1/2" |
27 |
16 |
22/20 |
3,0-9,0 |
- |
3-6 |
6-9 |
|
SLN12S1BRC |
1/2" |
27 |
16 |
22 |
4,0-12,0 |
4-6 |
6-9 |
9-12 |
|
SLN12S2BRC |
1/2" |
30 |
16 |
28 |
10,0-16,0 |
10-12 |
12-14,5 |
14,5-16 |
|
SLN34S0BRC |
3/4" |
27 |
16 |
28/22 |
4,0-12,0 |
4-6 |
6-9 |
9-12 |
|
SLN34S1BRC |
3/4" |
30 |
16 |
28 |
10,0-18,0 |
10-12 |
12-14,5 |
14,5-18 |
|
SLN34S2BRC |
3/4" |
33 |
16 |
35 |
14,0-20,0 |
14-17 |
17-20 |
- |
|
SLN01S0BRC |
1" |
31 |
20 |
35/28 |
10,0-18,0 |
10-12 |
12-14,5 |
14,5-18 |
|
SLN01S1BRC |
1" |
33 |
20 |
35 |
14,0-24,0 |
14-17 |
17-20 |
20-24 |
|
SLN01S2BRC |
1" |
40 |
20 |
45 |
22,0-26,0 |
22-24 |
24-26 |
- |
|
SLN1140S0BRC |
11/4" |
33 |
20 |
45/35 |
14,0-24,0 |
14-17 |
17-20 |
20-24 |
|
SLN1141BRC |
11/4" |
40.5 |
20 |
45 |
22,0-32,0 |
22-24 |
24-27 |
27-32 |
|
SLN1142BRC |
11/4" |
43.5 |
20 |
50 |
26,0-34,0 |
26-28 |
28-31 |
31-34 |
|
SLN112S0BRC |
11/2" |
42.5 |
20 |
55/45 |
22,0-32,0 |
22-24 |
24-27 |
27-32 |
|
SLN1121BRC |
11/2" |
43.5 |
20 |
55/50 |
26,0-35,0 |
26-28 |
28-31 |
31-35 |
|
SLN1122BRC |
11/2" |
42 |
20 |
64 |
35,0-41,0 |
35-38 |
38-41 |
- |
|
SLN02S0BRC |
2" |
41.5 |
20 |
68/50 |
26,0-35,0 |
26-28 |
28-31 |
31-35 |
|
SLN02S1BRC |
2" |
43.5 |
20 |
68/64 |
35,0-45,0 |
35-38 |
38-41 |
41-45 |
|
SLN02S2BRC |
2" |
52 |
20 |
75/80 |
46,0-52,0 |
46-48 |
48-52 |
- |
|
SLN212S0BRC |
21/2" |
45.5 |
21 |
80/64 |
35,0-45,0 |
35-38 |
38-41 |
41-45 |
|
SLN2121BRC |
21/2" |
52 |
21 |
80 |
46,0-62,0 |
46-51 |
51-56 |
56-62 |
|
SLN2122BRC |
21/2" |
55 |
21 |
95 |
60,0-64,0 |
60-64 |
- |
- |
|
SLN03S0BRC |
3" |
52 |
21 |
95/80 |
46,0-62,0 |
46-51 |
51-56 |
56-62 |
|
SLN03S1BRC |
3" |
55 |
21 |
95 |
60,0-75,0 |
60-65 |
65-70 |
70-75 |
|
SLN03S2BRC |
3" |
55 |
21 |
105 |
75,0-79,5 |
75-78 |
78-79,5 |
- |
|
SLN04S0BRC |
4" |
55 |
21 |
115/95 |
60,0-75,0 |
60-65 |
65-70 |
70-75 |
|
SLN04S1BRC |
4" |
55 |
21 |
115/105 |
75,0-85,0 |
75-78 |
78-81 |
81-85 |
|
SLN04S2BRC |
4" |
56 |
21 |
115 |
85,0-95,0 |
85-88 |
88-91 |
91-95 |
|
SLN04S3BRC |
4" |
62.5 |
21 |
130 |
95,0-101,0 |
95-98 |
98-101 |
- |
|
SLN05S1BRC |
5" |
62.5 |
27 |
145/130 |
95,0-105,0 |
95-98 |
98-101 |
101-105 |
|
SLN05S2BRC |
5" |
65.5 |
27 |
145/140 |
105,0-115,0 |
105-108 |
108-111 |
111-115 |
Technical Information
|
Parameters |
ATEX |
||
|---|---|---|---|
|
RA2 |
|||
|
RAW MATERIAL |
Stainless steel - 316/304/303, Aluminum, Nickel plated Brass |
||
|
IP (IEC 60529) |
IP 66/68 |
||
|
Mechanical Specifications |
Impact Category |
7 Joules |
|
|
Service Temperature |
Ex db, Ex eb, Ex tb |
Neoprene: -40°C to +80°C Silicone: -60°C to +80°C |
|
|
Ex eb, Ex tb |
Neoprene: -40°C to +80°C Silicone: -60°C to +140°C |
||
|
Seal |
Single |
||
|
Accessories |
Shrouds/locknuts/earth tags/washers |
||
|
Cable type |
Unarmoured |
||
|
Certifications |
ATEX |
||
Technical InformationCertifications
IECEx certified
More info. Available on request
Ex certified
More info. Available on request
EAC Certified
More info. Available on request
UL Listed
More info available on request
