Industrial GRP FullScreen View 3D
  • Features
  • Help & Support

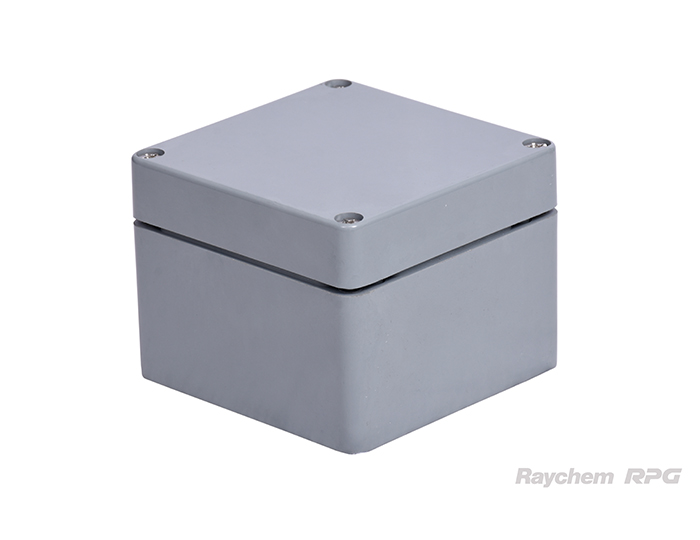

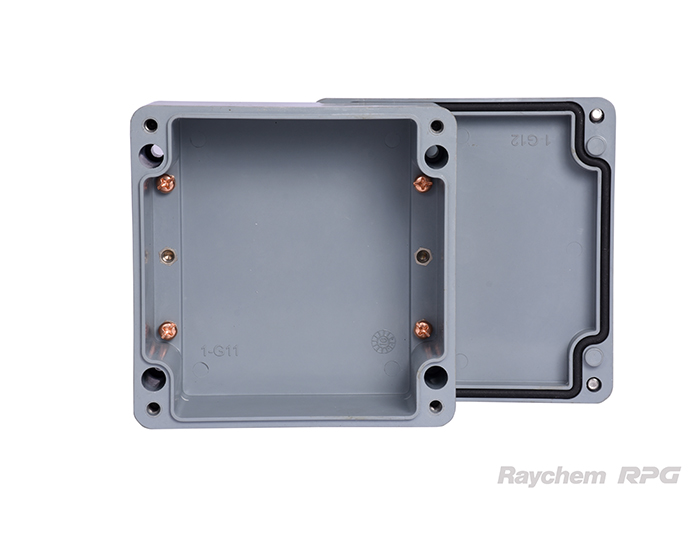

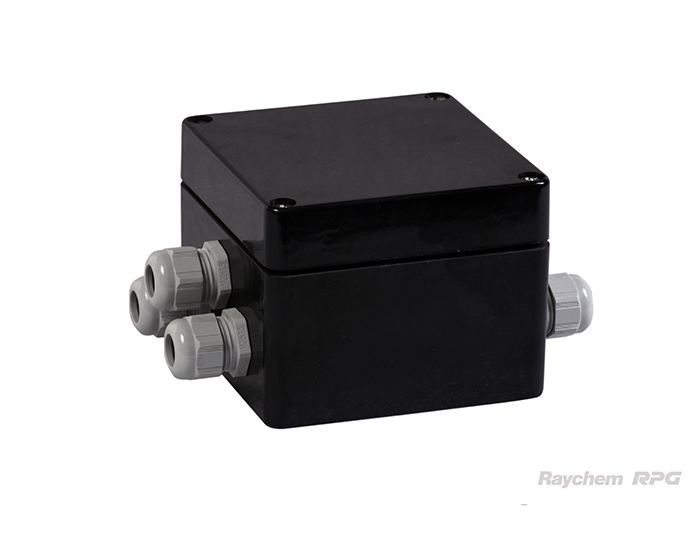

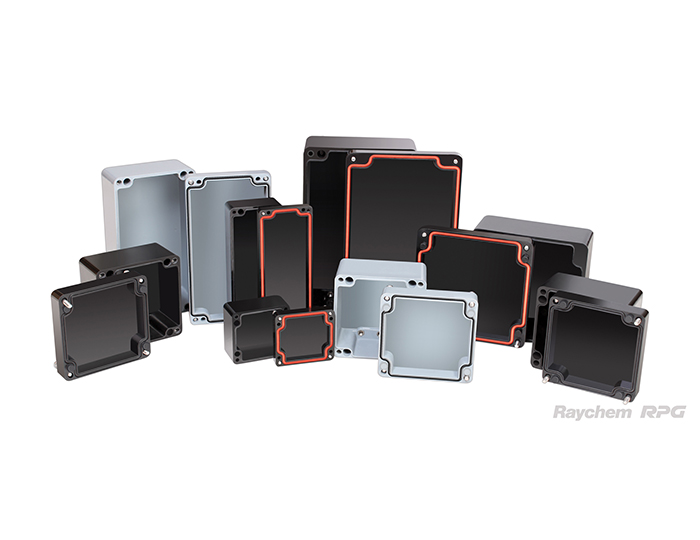

Fibre-glass reinforced polyester enclosures in grey or black variants conforming to Protection Category IP 66, IP67 and IP 68

  • Make in India
  • Standard enclosures in RAL 7000 grey and RAL 9011 black colours
  • Ingress protection of IP 66 as per IEC 60529 Standard
  • Provide protection of IP 67 and IP 68 on request

Please connect with us

Specifications

GRP

Raychem RPG Box Reference

Box Size

Length (A) (mm)

Width (B) (mm)

Depth (C) (mm)

GRJ01

80

75

55

GRJ02

110

75

55

GRJ03

122

120

90

GRJ04

80

75

75

GRJ05

160

75

55

GRJ06

160

75

75

GRJ07

160

160

90

GRJ08

110

75

75

GRJ09

190

75

55

GRJ10

190

75

75

GRJ11

220

120

90

GRJ12

255

250

120

GRJ13

260

160

90

GRJ14

360

160

90

GRJ15

400

250

120

GRJ16

400

405

120

GRJ17

255

250

160

GRJ18

400

250

160

GRJ19

400

405

201

GRJ20

600

250

121

GRJ21

600

250

161

Technical Information

 Parameter

Black GRP

Grey GRP

Material

Glass Reinforced Polyester-graphite added

Glass Reinforced Polyester

IP

IP 66 (IP67, IP68 on Request)

IP 66 (IP67, IP68 on Request)

Impact Energy

7 Joules

7 Joules

Temperature range

-40°C to +80°C (Neoprene)

-40°C to +80°C (Neoprene)

-60° C to +110°C (Silicone)

-60° C to +110°C (Silicone)

Gasket

Neoprene, Silicone

Neoprene, Silicone

Colour

Black (RAL 9011)

Grey (RAL 7000)

Surface resistance

<10⁹Ω (Black)

>10¹²Ω (Grey)

Flammability

V0 (UL 94)

V0 (UL 94)

Dielectric Strength

--

18kV/mm

Certifications

UL, CE

UL, CE

Certifications

CE Certified
CE Certified

More info available on request
