Offer overhead connectors like Branch Connectors, T-Connectors, Bi-metallic Lugs, Bimetallic Sleeves, PG Clamps and Droppers as per NFC Standard. Different types of Compression/Bolted type Connectors and Droppers. They are extensively used by SNCF (French Railway) in France, DMRC and other countries.
- Available for 1.5 kV DC and 25 kV AC for semi/high speed Railway Network
- Sturdy mechanical and electrical contact at high speeds
- Easy to Install and light in weight
- Different types of Connectors and Droppers approved by SNCF.
- Catalog
- Add to List
- Enquire Now
Please connect with us
Email Us epd@raychemrpg.com
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|
Si. No. |
Railway Catenary Products |
Reference Standard |
Application |
|---|---|---|---|
|
1 |

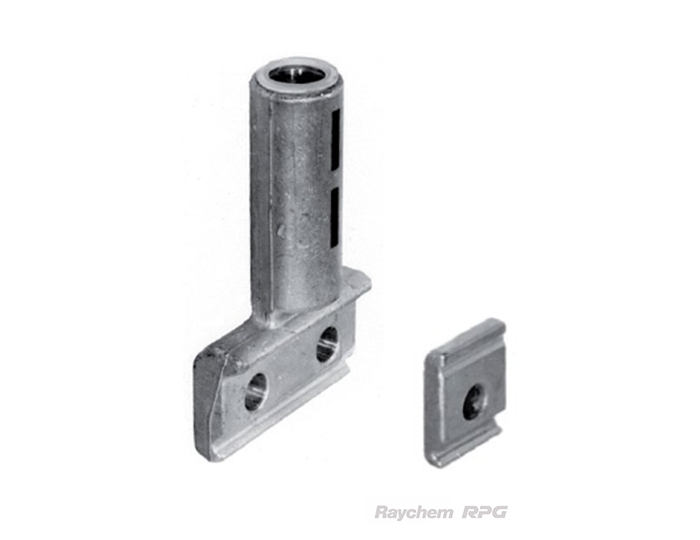

Branch Connector (DPH 7) |
NFC |
Crimped connector to make mechanical and electrical branch between one end of bare copper conductor to intermediate point on a main bare copper conductor |
|
2 |
Branch Tee & Half Clamp (FC tee / FC half clamp) |
NFC |
Branch (mechanical & electrical) connection between copper conductor and contact wire. |
|
3 |
Suspension Assembly for anti-swinging arm |
NFC |
Mechanical connection between cantilever and anti-swinging arm to keep fixed distance |
|
4 |

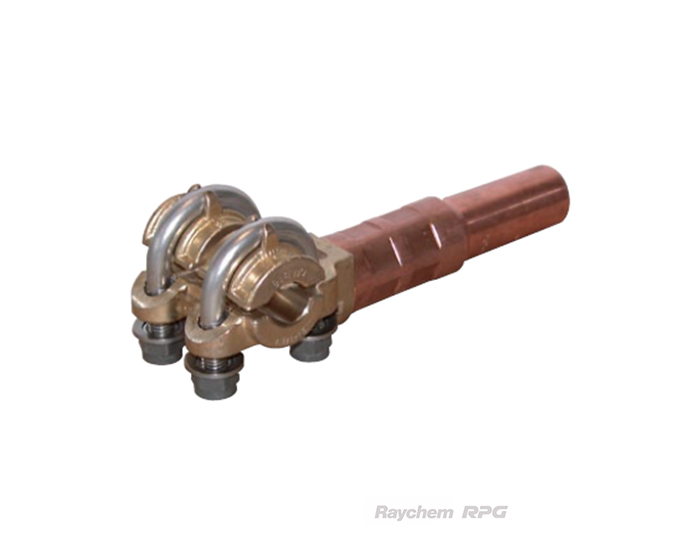

Branch Tee (RAC T7) |
NFC |
Connection between copper catenary conductor and bare copper rod |
|
5 |

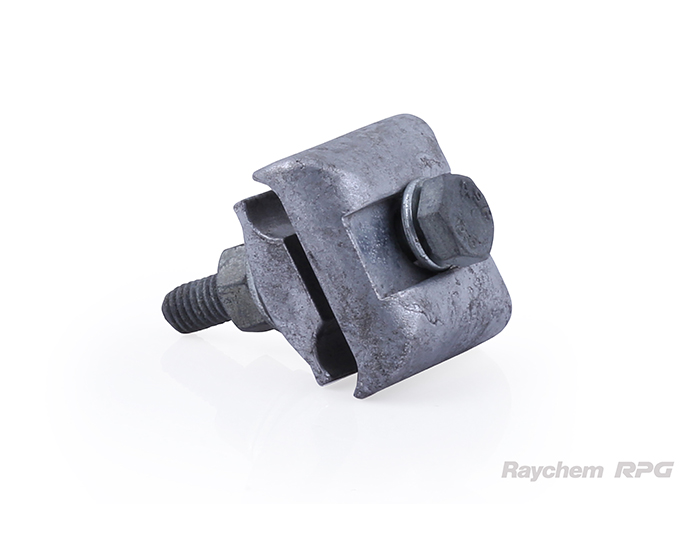

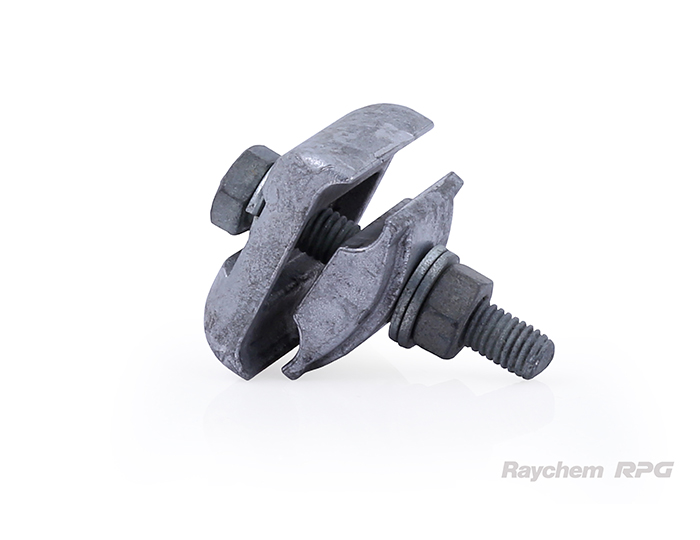

P G Clamp |
NFC/IS |
Connection between two parallel conductors Aluminium Clamps / Copper Clamps / Bimetallic Clamps |
|
6 |

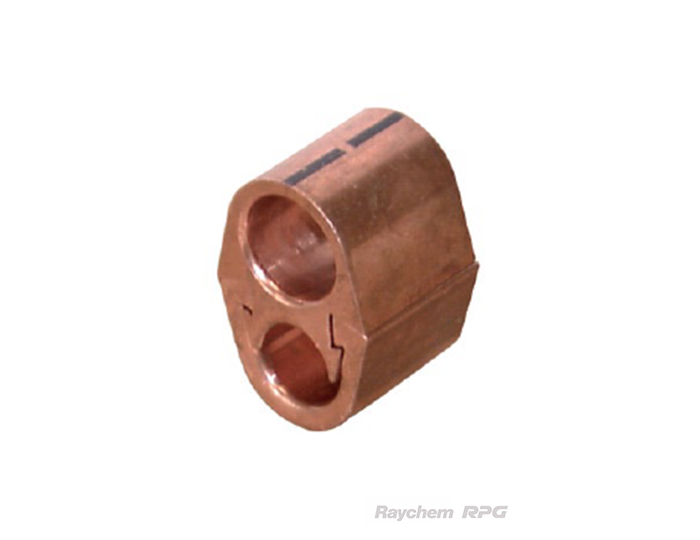

Crimped Sleeve (J… U-P / N) |
NFC |
Sleeve to join two copper conductors of equal section |
|
7 |

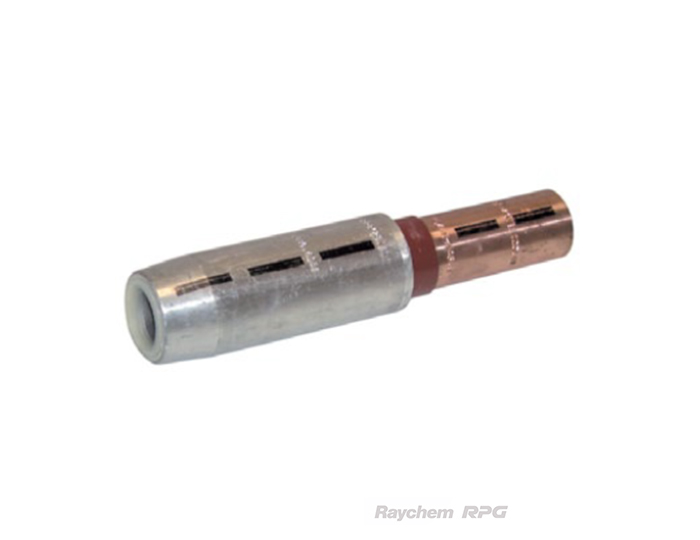

Crimped Bimetallic Sleeve (XGX) |
NFC |
Sleeve to join copper conductor to aluminium conductors |
|
8 |
Bimetallic Lug (XDX) |
NFC |
Connection between aluminium conductor to copper palm |
|
9 |

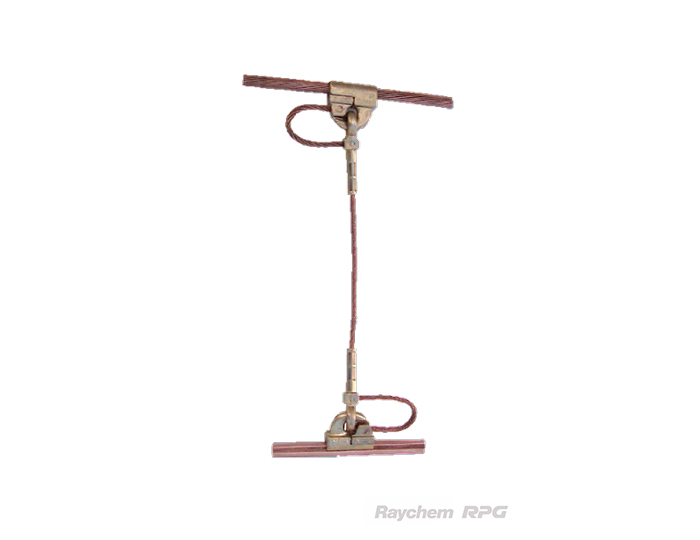

Current carrying catenary Dropper |
NFC |
Dropper provides mechanical connection between messenger and contact wires. It distributes current along the catenary to avoid additional connection to supply power |
Technical Information
|
SL. No. |
Description |
Unit |
Value Guaranteed by the Bidder |
|---|---|---|---|
|
1. |
Voltage Class |
kV |
1.5 kV DC / 25 kV AC |
|
2. |
Reference standards |
NFC |
|
|
3. |
Branch Connector (DPH 7) |
||
|
a) |
Type of Clamps |
Crimp Type |
|
|
b) |
Material of Clamp |
Copper |
|
|
4. |
Branch Tee & Half Clamp (FC tee / FC half clamp) |
||
|
a) |
Type of Clamps |
Bolted & Crimp Type |
|
|
b) |
Material of Clamp |
Copper |
|
|
5. |
Suspension Assy. for anti-swinging arm |
||
|
a) |
Cable Length |
Any cable length between 200 to 1700 mm |
|
|
b) |
Material of Clamp |
End Lugs: Stainless Steel Binding cable: Stainless Steel |
|
|
c) |
Breaking load |
N |
10000 (Min.) |
|
6. |
Branch Tee (RAC T7) |
||
|
a) |
Type of Clamps |
Bolted & Crimp Type |
|
|
b) |
Material of Clamp |
Copper |
|
|
7. |
P G Clamp |
||
|
a) |
Type of Clamps |
Bolted Type |
|
|
b) |
Material of Clamp |
Aluminium / Copper / Bimetallic (Al/Cu) |
|
|
8. |
Crimped Sleeve (J… U-P / N) |
||
|
a) |
Type of Clamps |
Crimp Type |
|
|
b) |
Material of Clamp |
Aluminium / Copper |
|
|
9. |
Crimped Bimetallic Sleeve (XGX) |
||
|
a) |
Type of Clamps |
Crimp Type |
|
|
b) |
Material of Clamp |
Aluminium and Copper |
|
|
10. |
Bimetallic Lug (XDX) |
||
|
a) |
Type of Clamps |
Crimp Type |
|
|
b) |
Material of Clamp |
Aluminium and Copper |
|
|
11. |
Current carrying Catenary Dropper |
||
|
a) |
Cable length |
Any cable length between 277 to 2077 mm |
|
|
b) |
Material of Clamp |
Dropper Clamps: Cupro-aluminium Wire: Copper |
|
|
c) |
Patent reference |
WO 96/01747 |
|
|
d) |
Breaking load |
N |
6000 (Min.) |
|
12. |
Packing details |
Standard Wooden Box Packing |
|
