![Air Rods](https://www.raychemrpg.com/assets/images/gallery/gtuVfuG3NZuWR74tflVkSGTWyb8ZvK.jpg)
![FullScreen](https://www.raychemrpg.com/assets/images/product-details/full-screen.png)
- Features
- Help & Support

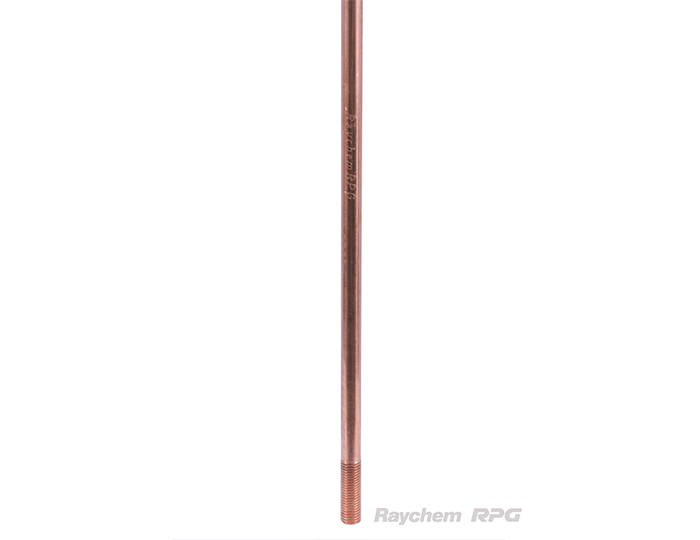

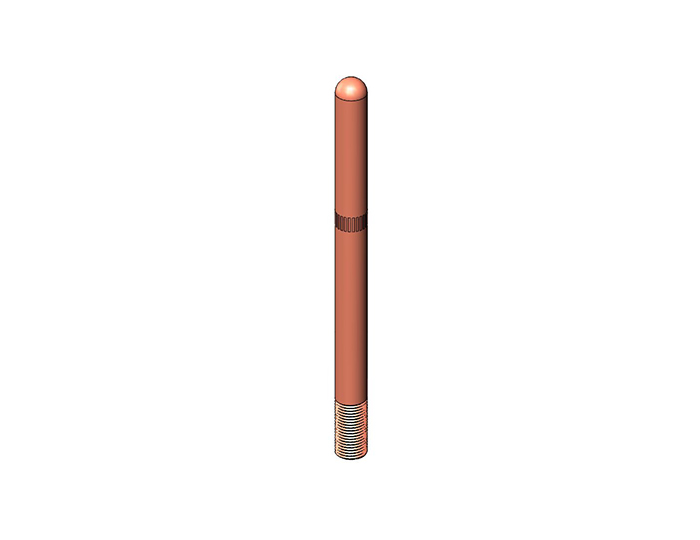

Conventional Air Terminal Rod used on highest point of elevated structures to captures maximum lightening strikes
- Provides an electrical connection between air terminal rod and down conductor (copper tape) which interfaces with ground or earth through an electrode, engineered to protect structures from lightning strikes
- Simplified design makes simple installation
- Air terminal base is mounted on buildings, telecommunication towers and other high structures
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
Air Terminal Base for stranded and solid round conductor conform to IEC 62561-1:2012, BS EN 50164-1:2009 and EN 50164-1:2009 Standards |
|||||
---|---|---|---|---|---|
Sr.No. |
Product Code |
Dia. Of Rod (mm) |
Thread Size |
Length |
Material |
1 |
RAR -01 |
15 |
M16 |
300 |
Copper |
2 |
RAR -02 |
15 |
M16 |
500 |
Copper |
3 |
RAR -03 |
15 |
M16 |
1000 |
Copper |
4 |
RAR -04 |
15 |
M16 |
1500 |
Copper |
5 |
RAR -05 |
15 |
M16 |
2000 |
Copper |
6 |
RAR -06 |
19 |
M20 |
300 |
Copper |
7 |
RAR -07 |
19 |
M20 |
500 |
Copper |
8 |
RAR -08 |
19 |
M20 |
1000 |
Copper |
9 |
RAR -09 |
19 |
M20 |
1500 |
Copper |
10 |
RAR -10 |
19 |
M20 |
2000 |
Copper |
Technical Information
Parameter |
---|
Air terminal base is manufactured from high quality copper and aluminium alloys |
Copper alloy connectors do not contain more than 15% zinc |
Bolts withstand torque of at least 20 Nm. 4; current of 100kA |
Air terminal bases available in different material and sizes |
Certifications
![UL Listed](https://www.raychemrpg.com/assets/images/products/2pz67lKnHMV1irHSXtUiLD2IQprwJj.jpg)
UL Listed
More info available on request
![IEC certified](https://www.raychemrpg.com/assets/images/products/CQjAsQ9vNEdbZUs8JjV5l6hWXENFxc.jpg)
IEC certified
More info available on request
