Support to Air terminal rod on side / wall mounting
- Rod brackets and couplings provide support to air terminal rods on side or wall mounting.
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|

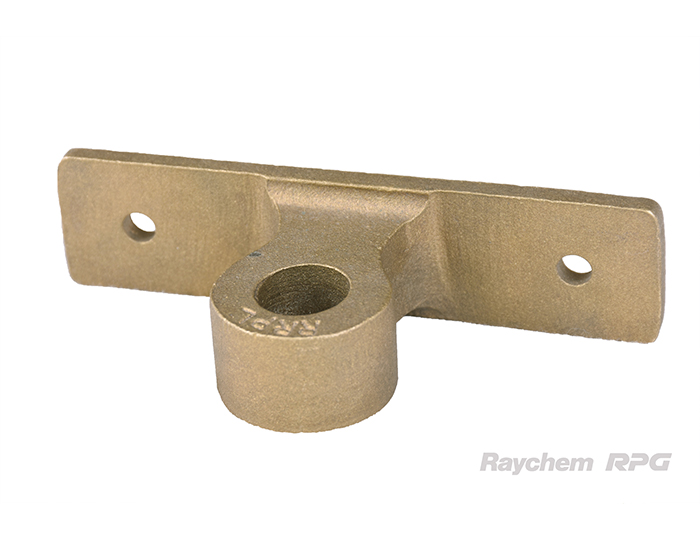

Side Mounting Rod Brackets
|
|
|---|---|
|
Product Code |
Rod Dia. (mm) |
|
RROB-01 |
15 |
|
RROB-02 |
19 |
|
2. Closed Type Bracket |
|
| Product Code | Rod Dia. (mm) |
| RRCB-01 | 15 |
| RRCB-02 | 19 |
|
Side mounting brackets support side mounting installations as per IEC 62561-1:2012, BS EN 50164-1:2009 and EN 50164-1:2009 Standards. |
|

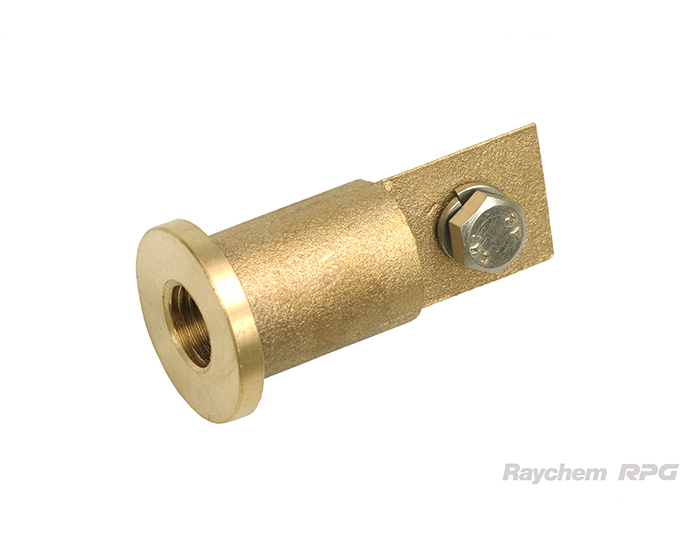

| Connection Clamp | |||
|---|---|---|---|
|
|||
|
Product Code |
Rod dia. (mm) |
Thread Size |
Tape Size (mm) |
|
RTC-01 |
15 |
M16 |
25 X 3 |
|
RTC-03 |
19 |
M20 |
25 X 3 |
|

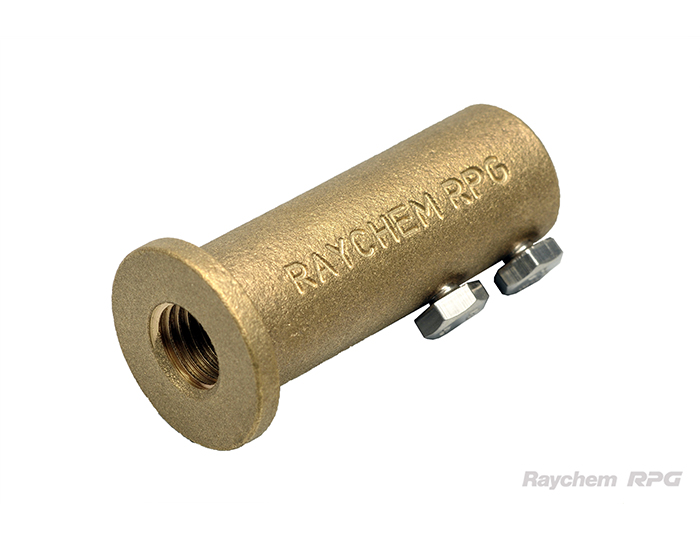

2. Rod to Cable Coupling: |
|||
| Part Code | Thread Size | Conductor Cross Section (Sq.mm) | |
| RRC-01 | M16 | 35-95 | |
| RRC-02 | M20 | 35-95 | |
|
Coupling support to air terminal rod to cable / conductor on side / wall mounting bracket |
|||
Technical Information
| Parameter |
|---|
| Side Mounting Bracket Clamp made from high quality copper and aluminium alloys for corrosion resistance |
| Withstands fault current capacity of 100kA |
Certifications
IEC certified
More info available on request
